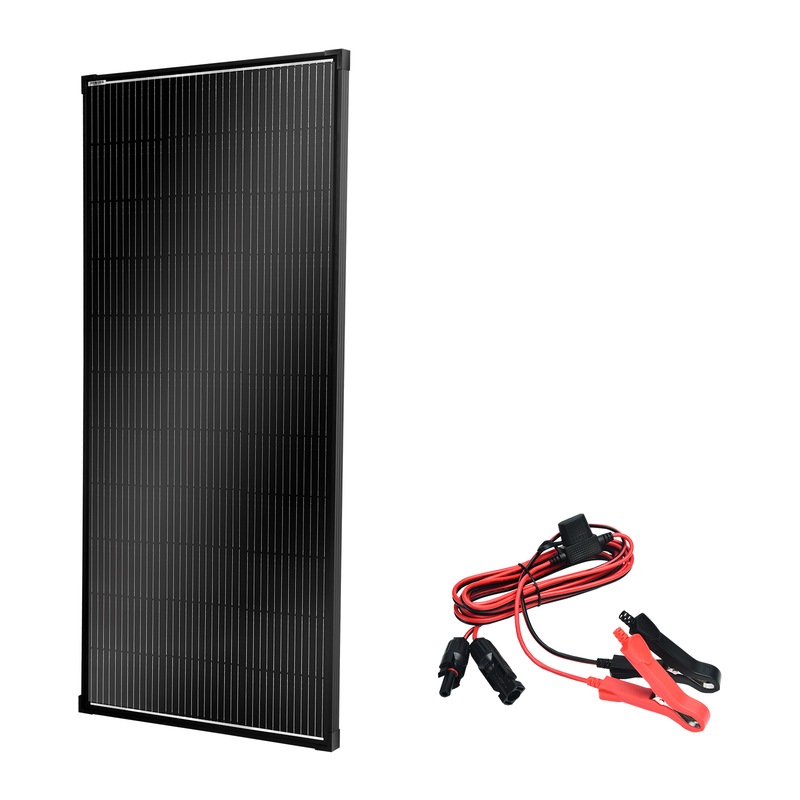

200W Solar Panel Fixed Black Frame + MC4 to Alligator Clip Connector

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$449.95

Collect 449 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Pay in 4 interest-free payments of $112.49 with Learn More

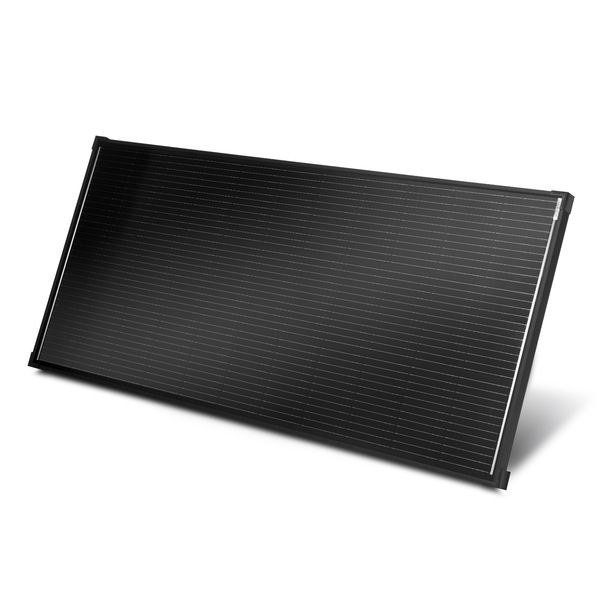

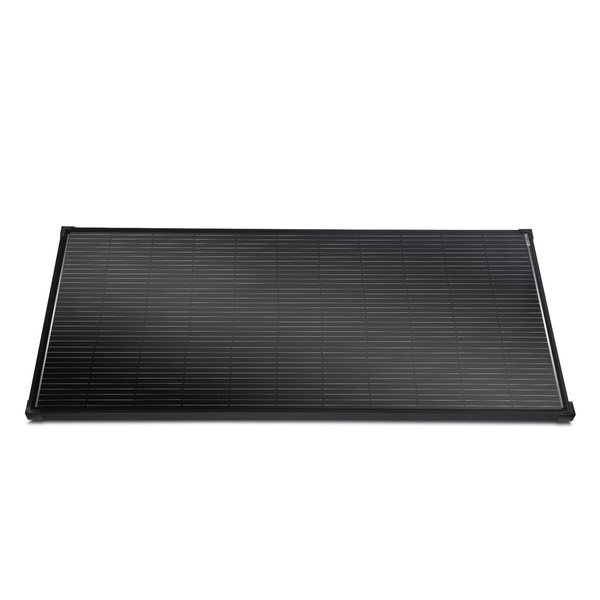

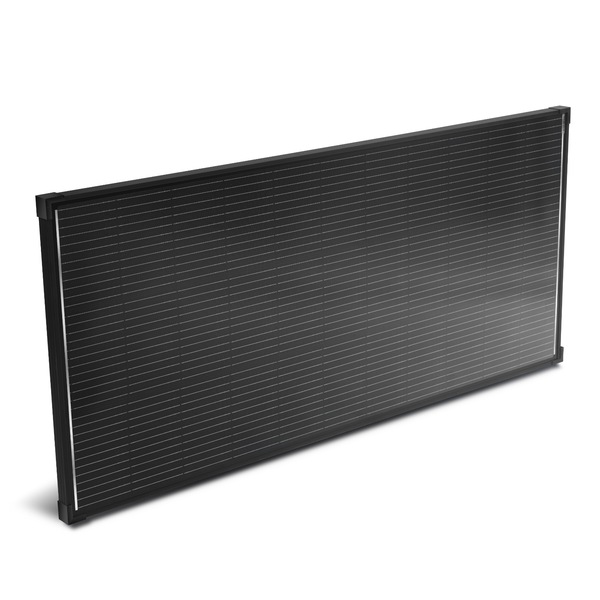

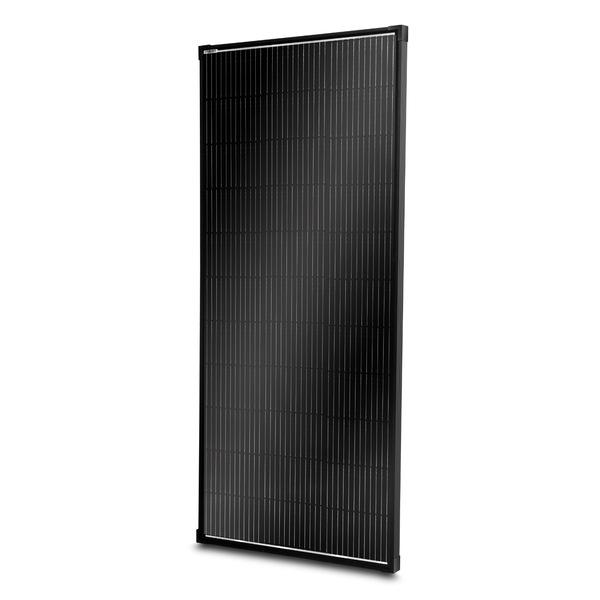

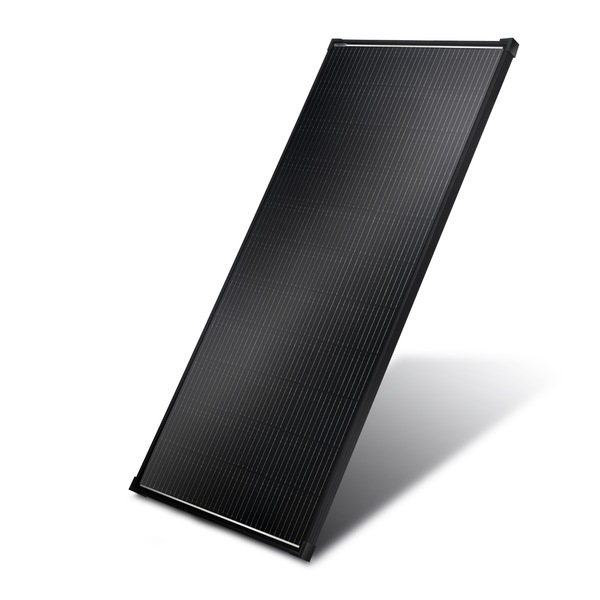

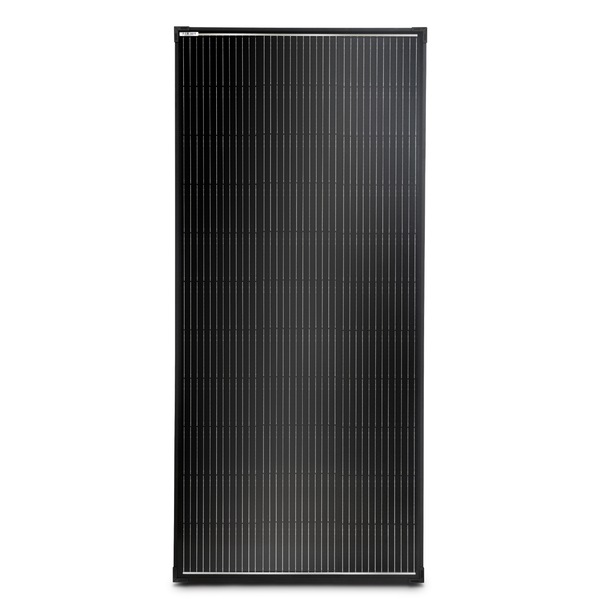

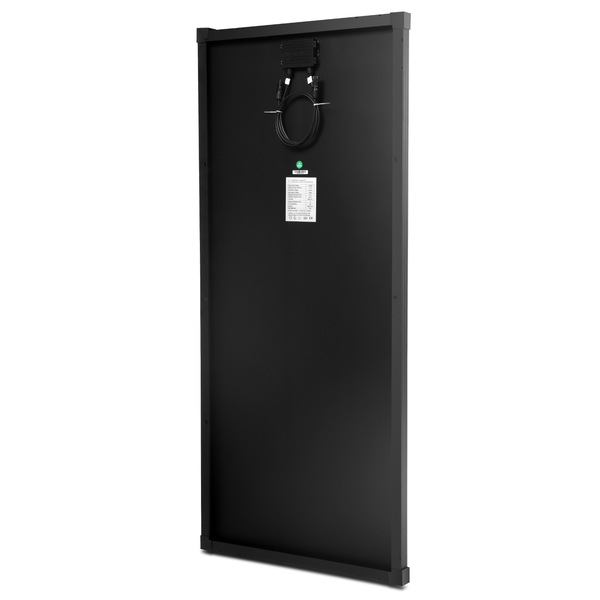

Product 1: 200W Solar Panel Fixed Black Frame

  • Specifications

    • Max Power: 200W
    • Max Power Voltage (Vmp): 18.74V
    • Max Power Current (lmp): 10.41A
    • Open-Circuit Voltage (Voc): 22.86V
    • Short-Circuit Current (Isc): 10.93A
    • Max System Voltage: 1000V
    • Max Series Fuse Rating: 15A
    • Module Efficiency STC (%): 19.66%
    • Cell Efficiency: 23%
    • Power Tolerance: 0-5W
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -40°C-85°C
    • Temperature Coefficients of Pmax: -0.34%℃
    • Temperature Coefficients of Voc: -0.28%℃
    • Temperature Coefficients of lsc: +0.05%℃
    • Nominal Operating Cell Temperature (NOCT): 45±2°C
    • Type: Fixed
    • Solar Cell: Monocrystalline Grade A
    • Cell Tech: PERC
    • Panel Leads (Pair-AWG): 2.5mm²

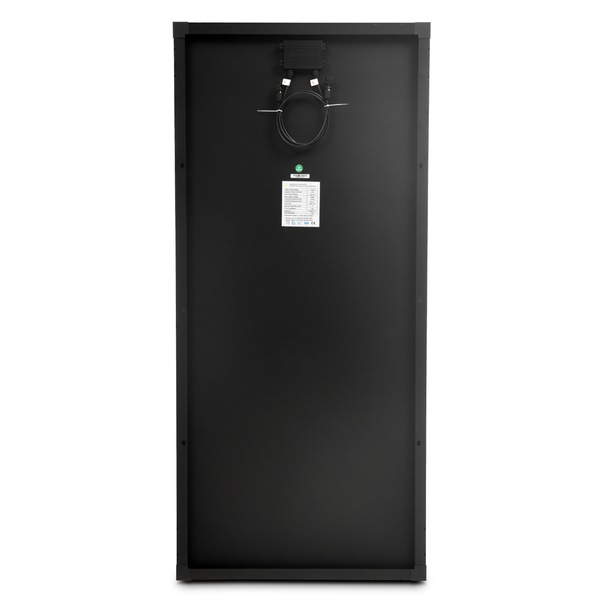

    • Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
    • Tie Down Points: Yes, 4 Points
    • Frame: Anodized Aluminium Alloy
    • IP Rating: IP65
    • Certifications: CE, ISO
    • Warranty: 5 Years

  • Dimensions & Weight

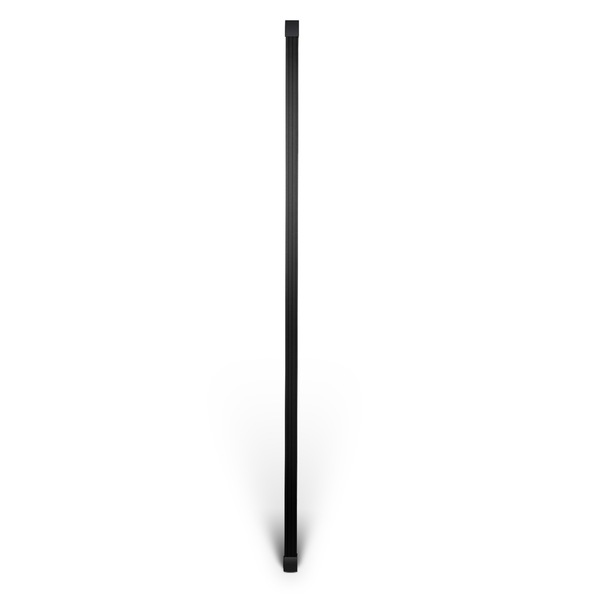

    • Product Dimensions: L1480xW670xH35mm
    • Package Dimensions: L1500xW690xH50mm
    • Net Weight: 11kg
    • Gross Weight: 11.9kg

  • Package List

    • 1x 200W Fixed Solar Panel Black Frame

    Product 2: MC4 to Alligator Clip Connector

  • Specifications

    • Cable: 14AWG
    • Cable Length: 2.4m long
    • Colour: Black/Red
    • Usage: Used to connect battery or solar controller

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348070224

    Estimated Delivery Time Frame:3-8 business days
