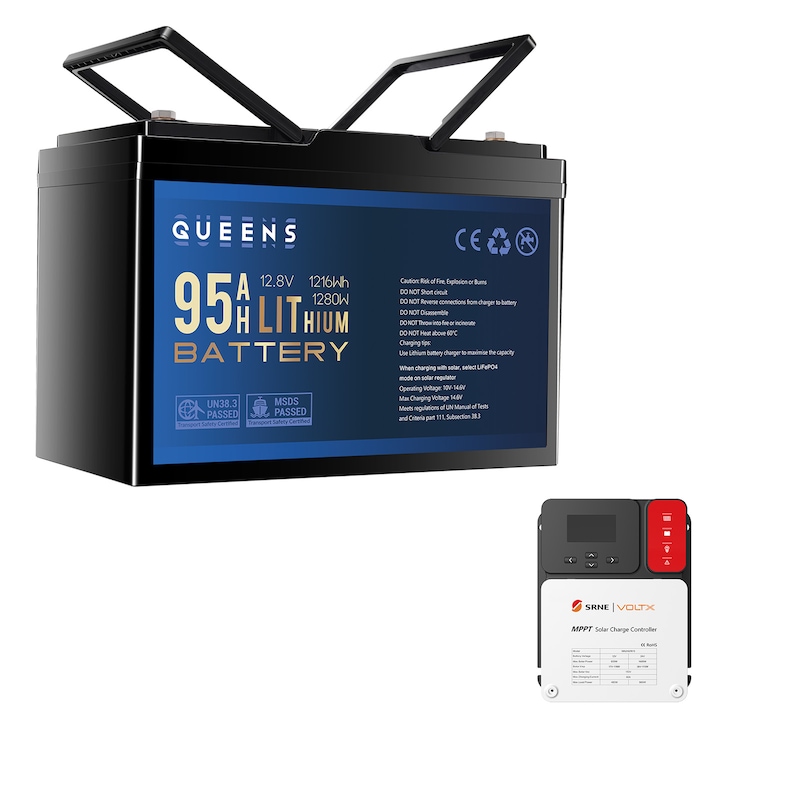

QUEENS 12V 1216Wh 100A Lithium Battery + 60A MPPT DC to DC Solar Controller Battery Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$699

Collect 699 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

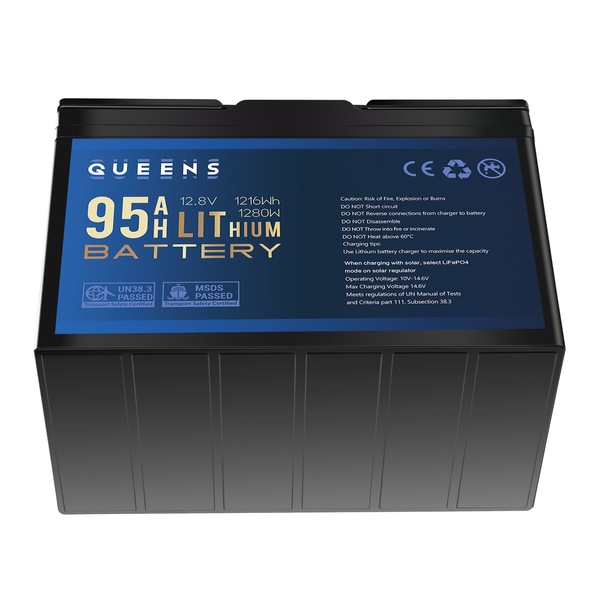

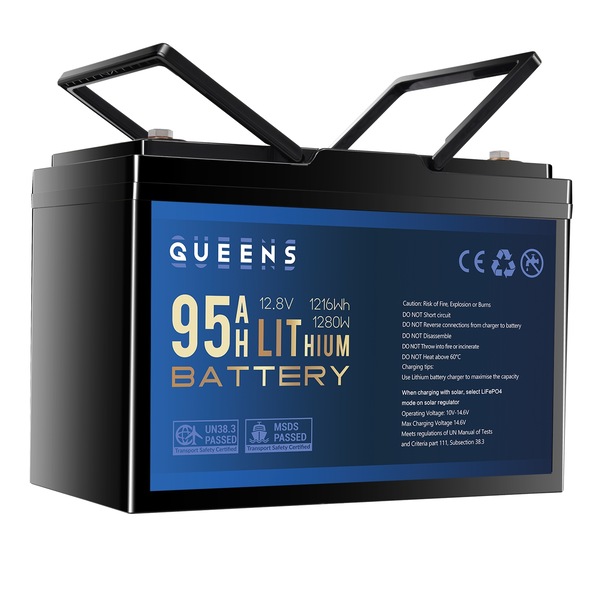

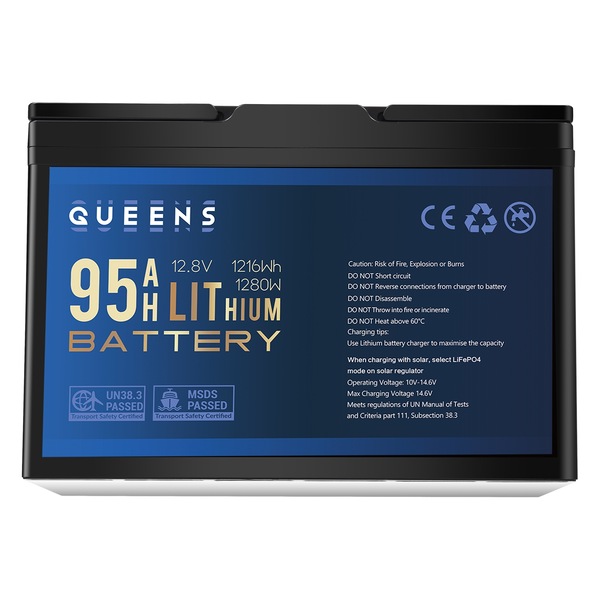

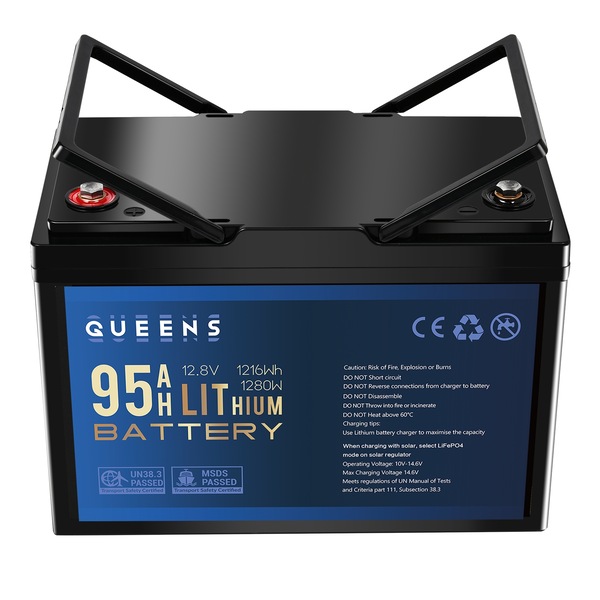

Product 1: QUEENS 12V 1216Wh 100A Lithium Battery

  • Specifications

    • Brand: QUEENS
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 95Ah
    • Rated Energy: 1216Wh
    • Approx Life Cycles: ≥3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A
    • Charging Voltage: 13.6-13.8V
    • Overcharge Protection: 14.8V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 11.2V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel, Generator
    • Battery Cells: Prismatic
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Shape: General
    • Certifications: UN38.3
    • Protection Class: IP65
    • Warranty in Years: 2

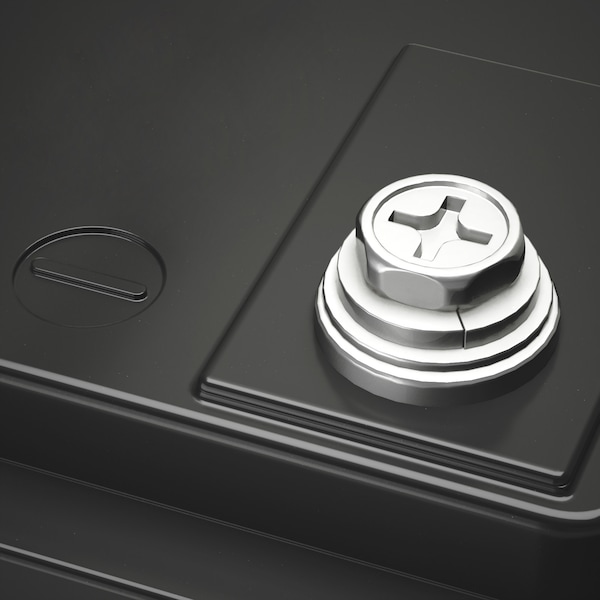

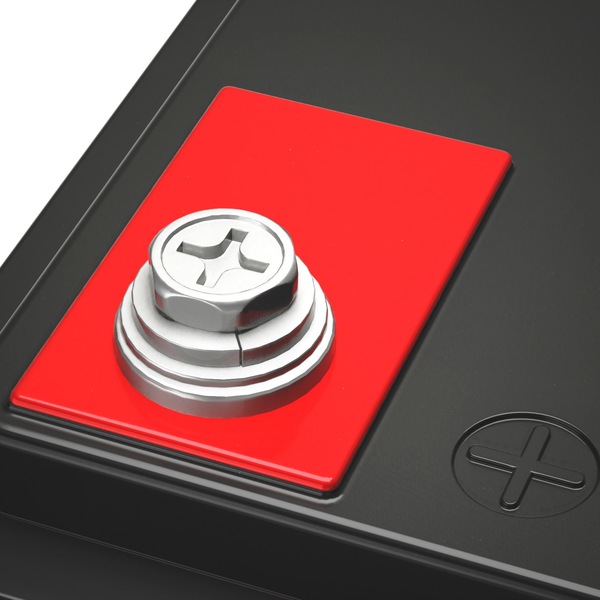

    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S2P
    • Parallel Connection: No
    • Series Connection: No

  • Dimensions & Weight

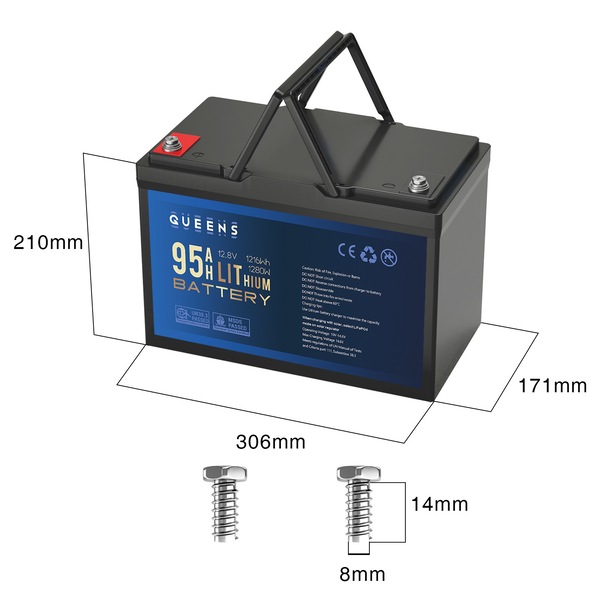

    • Product Size: L306 x W171 x H210mm
    • Package Size: L360 x W220 x H276mm
    • Bolt Terminal Size: Hexagon x 14mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 10.8kg
    • Gross Weight: 11.8kg

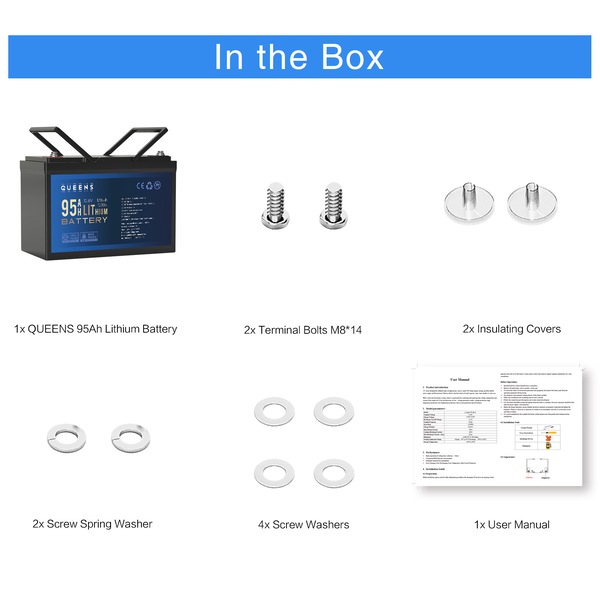

  • Package List

    • 1x QUEENS 95Ah Lithium Battery
    • 2x Terminal Bolts M8*14
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: 60A MPPT DC to DC Solar Controller Battery Charger

  • Electrical Parameters


    • Static power consumption: ≤50mA
    • Battery Type: USE/FLD/GEL/LI/SLD(Default)
    • System voltage: 12V/24V
    • Battery's operating voltage range: 8V-32V
    • Rated charging current: 60A
    • Maximum PV Input Current: 53A
    • Maximum solar panel power: 800W/12V; 1600W/24V
    • Maximum PV open-circuit voltage: 150V
    • MPPT operating voltage point range: (Battery Voltage +2)~110V
    • MPPT tracking efficiency: >99%
    • Charging conversion efficiency: 85%-98% (10%-100% of rated power)
    • Rated load current: 40A
    • Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.
    • TTL communication: Baud Rate 9600kps
    • RS485 communication: 2 isolated RS485 communication ports,
    • supporting parallel use, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.
    • Bluetooth communication: Built-in
    • CAN communication: RV-C Protocol
    • Historical data: Can store historical data of the past 300 days
    • Backlight function: Light up if the key is pressed down, and automatically turn off in 20s if there is no key action
    • Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.
    • Grounding type: Co-negative design and negative grounding
    • Cooling mode: Natural Cooling
    • Parallel connection for charging: Yes
    • Charging voltage line loss compensation: Yes
    • Support full settings: Yes
    • Constant voltage output setting: Yes
    • Charging temperature compensation of lead-acid battery: Yes
    • Temperature protection: Yes
    • Overload/short-circuit protection: Yes
    • Load pre-start: Yes

  • Environmental Data

    • Protection grade: IP32
    • Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)

  • Mechanical Specifications


    • Dimension: 260*216*98.5mm
    • Mounting hole spacing: 200 mm
    • Weight: 3.4kg
    • Fixed hole position: Φ10mm

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
