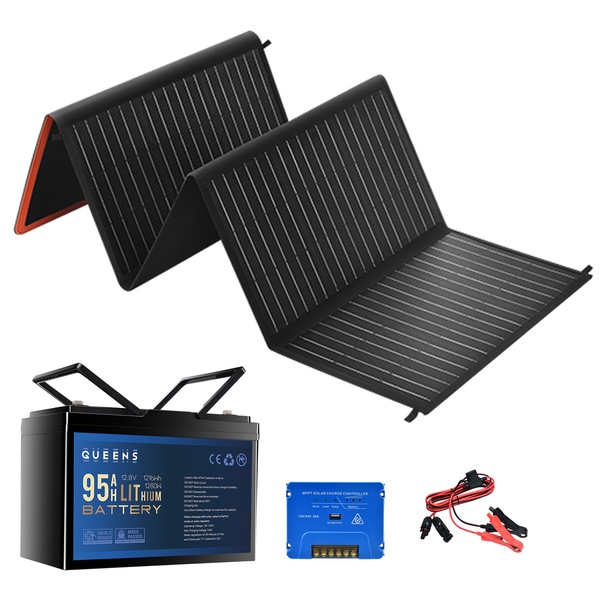

QUEENS 12V 1216Wh 100A Lithium Battery + VoltX 100W Solar Panel ETFE

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products

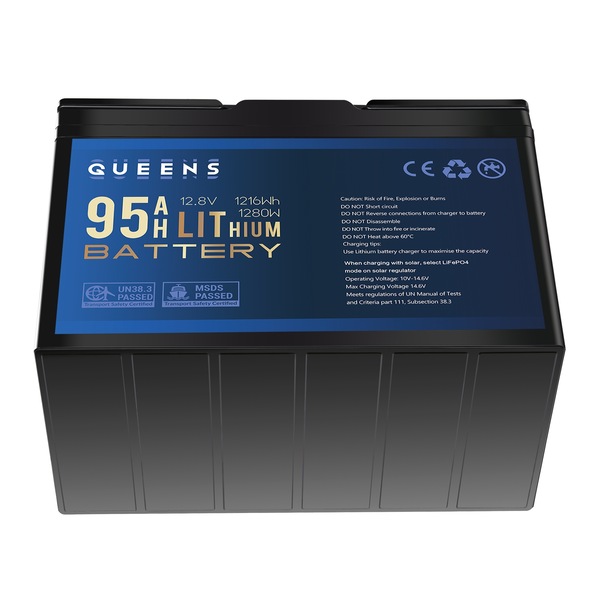

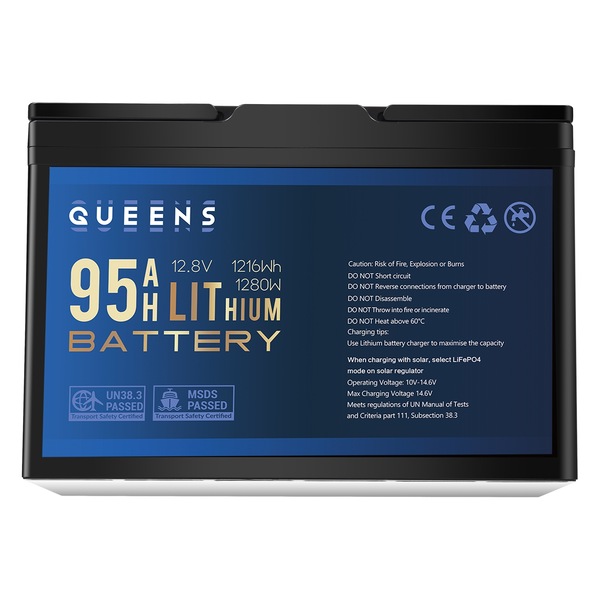

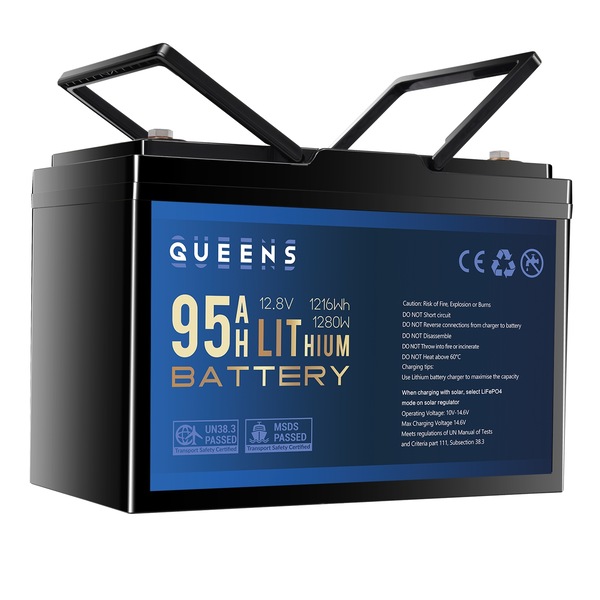

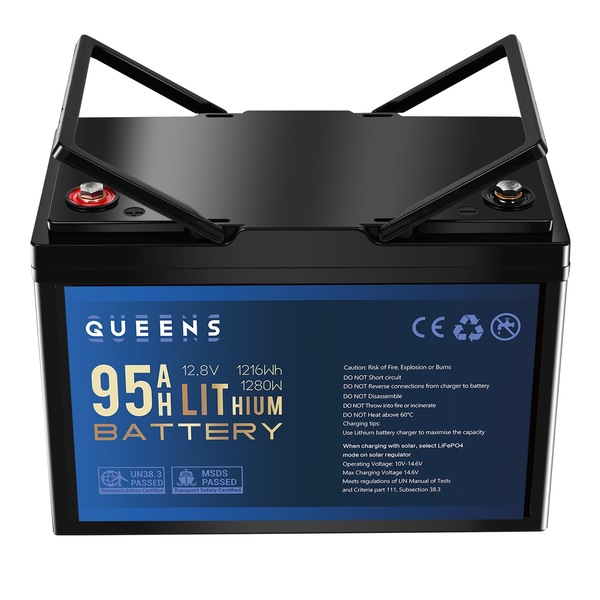

Product 1: QUEENS 12V 1216Wh 100A Lithium Battery

  • Specifications

    • Brand: QUEENS
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 95Ah
    • Rated Energy: 1216Wh
    • Approx Life Cycles: ≥3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A
    • Charging Voltage: 13.6-13.8V
    • Overcharge Protection: 14.8V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 11.2V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel, Generator
    • Battery Cells: Prismatic
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Shape: General
    • Certifications: UN38.3
    • Protection Class: IP65
    • Warranty in Years: 2

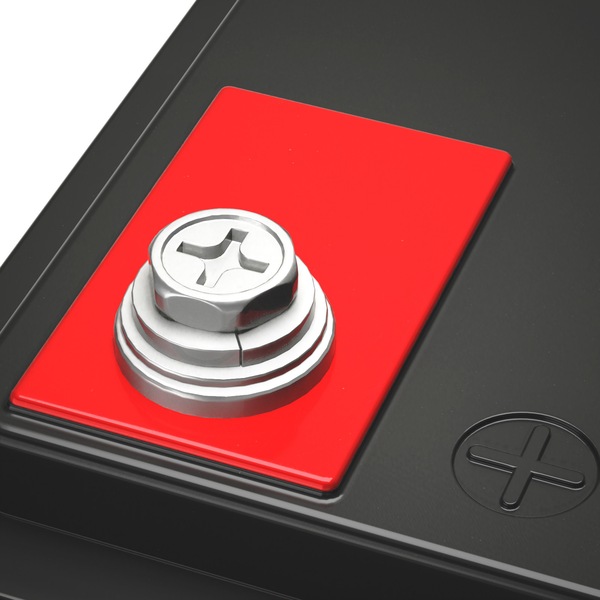

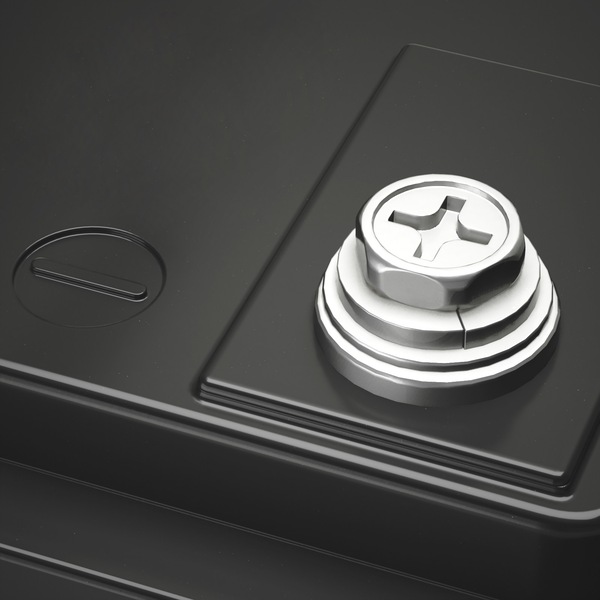

    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S2P
    • Parallel Connection: No
    • Series Connection: No

  • Dimensions & Weight

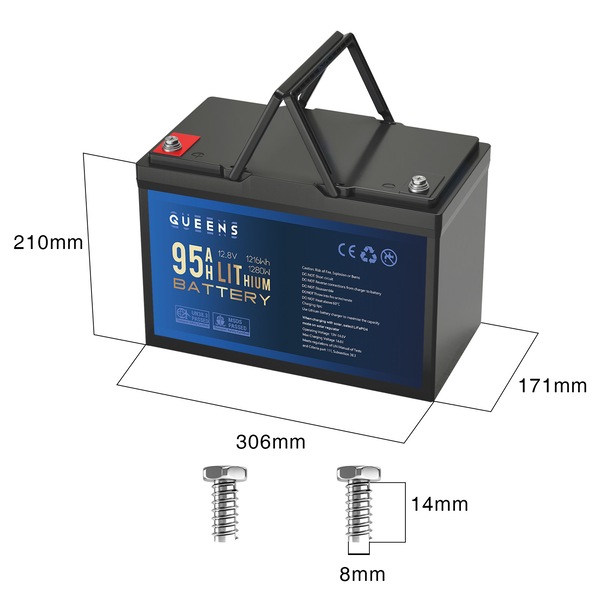

    • Product Size: L306 x W171 x H210mm
    • Package Size: L360 x W220 x H276mm
    • Bolt Terminal Size: Hexagon x 14mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 10.8kg
    • Gross Weight: 11.8kg

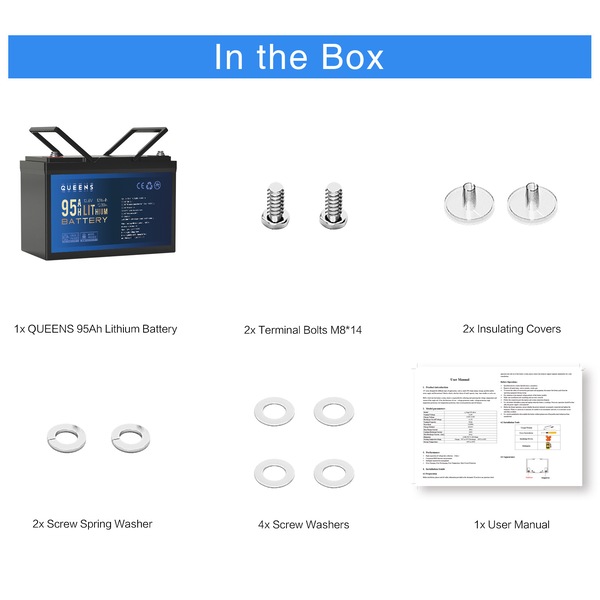

  • Package List

    • 1x QUEENS 95Ah Lithium Battery
    • 2x Terminal Bolts M8*14
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: VoltX 100W Solar Panel ETFE

  • Specifications

    • Maximum Power:100W
    • Max Power Voltage:18V
    • Open-Circuit Voltage: 22.4V
    • Short-Circuit Current: 5.88A
    • Cell Efficiency: 23.5%
    • Maximum System Voltage: 1000V
    • Temperature Range: -20°C to 65°C
    • Power Tolerance: 0-5%
    • Standard Test Conditions: AM=1.5,E=1000W/m², TC=25°C
    • Solar Cell: Mono Grade A
    • Net Weight: 3.1kg
    • IP Rating: IP65

    Product 3: 20A Regulator Charge Controller

  • Specifications

    • Rated charge current:20A
    • Rated discharge current:20A
    • Rated voltage: 12V/24V auto work
    • MPPT efficiency: Max:99%
    • Over load, short circuit protection: ≥1.5 rated current
    • No load current: <10mA
    • Over voltage protection:16V; x2/24V
    • Voltage of stop charging:14.7V; x2/24V
    • Discharge recovery voltage:12.0V; x2/24V
    • Over discharge voltage :10.8V; x2/24V
    • USB output: 5V 1A
    • Working temperature :-35°C~+55°C
    • Dimension of controller: 131x99.5x29.5(mm)(WxHxD )
    • Weight: 300g

    Product 4: Solar Charging Cable to Alligator Clamps Connector

  • Specifications

    • Long Cable: 14AWG solar extension cable, 2.4m long enough, it is very flexible and easy to store
    • Wide Usage: Used to connect battery or solar controller
    • High quality: High quality material ensures the transmission in the stable situation; The wiring is weatherproof and designed to withstand extreme heat and cold
    • Approximately 2.4m long
    • 14AWG Cable
    • With Fuse Holder

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348074499
