Collect 30 Everyday Rewards points
Dispatch in 2 business days

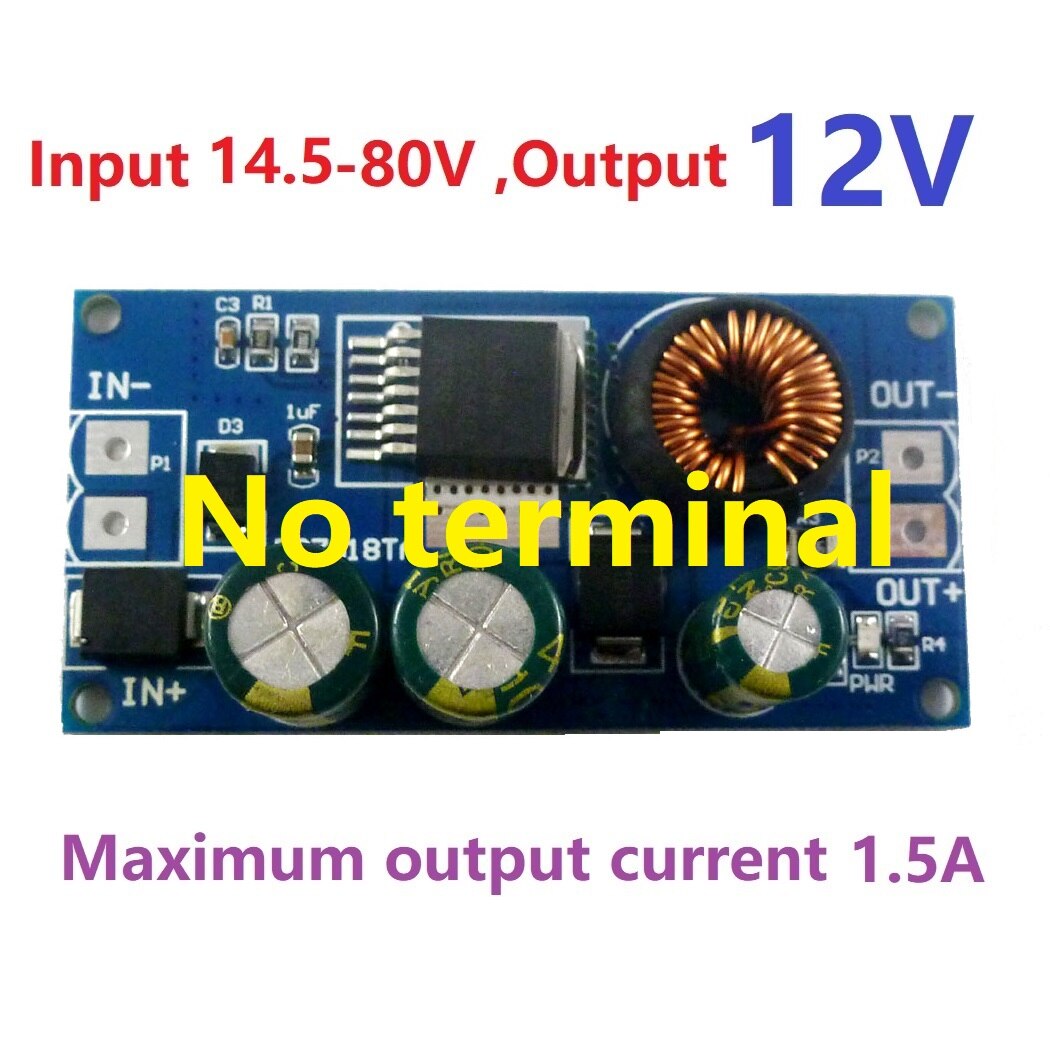

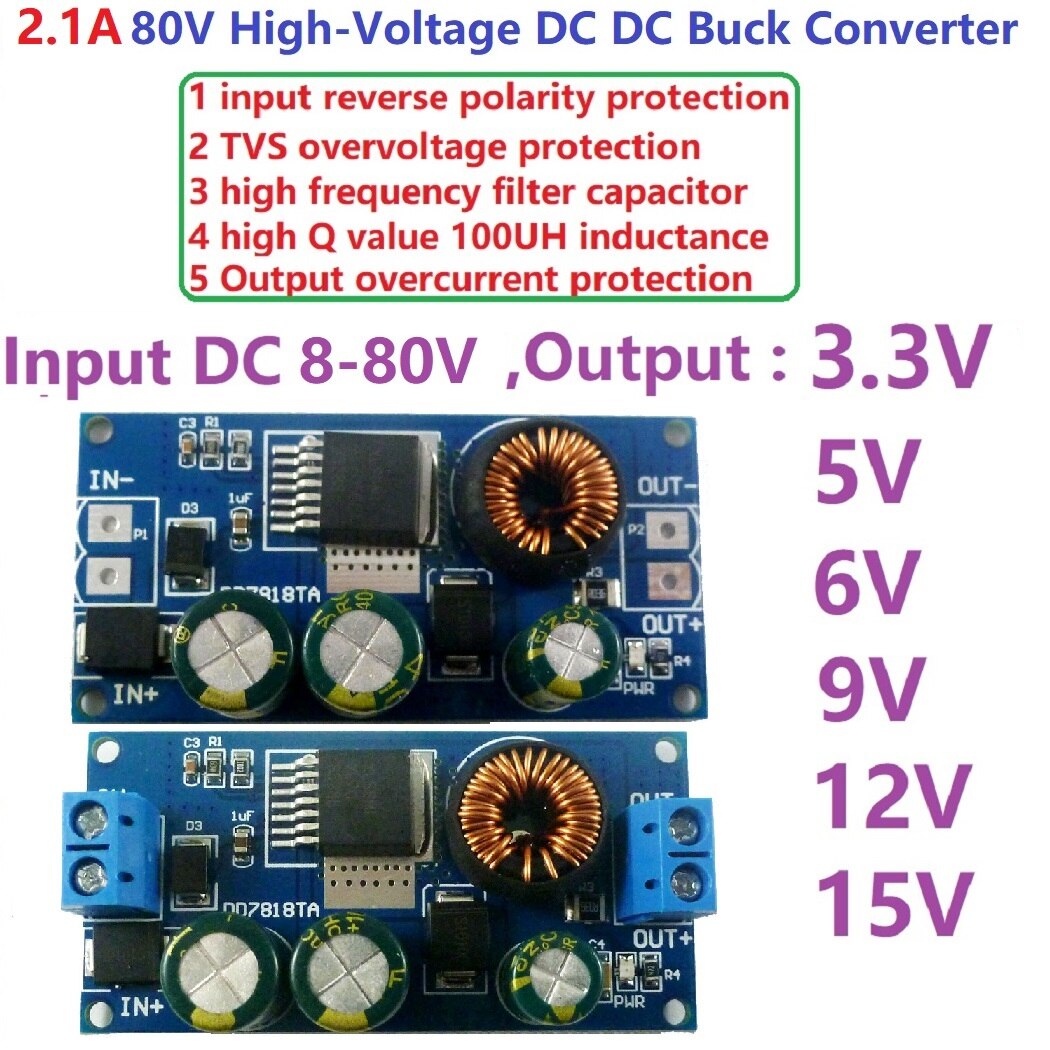

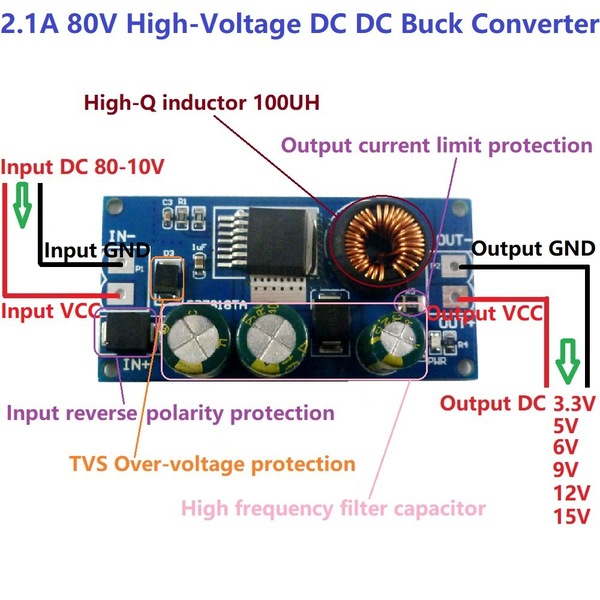

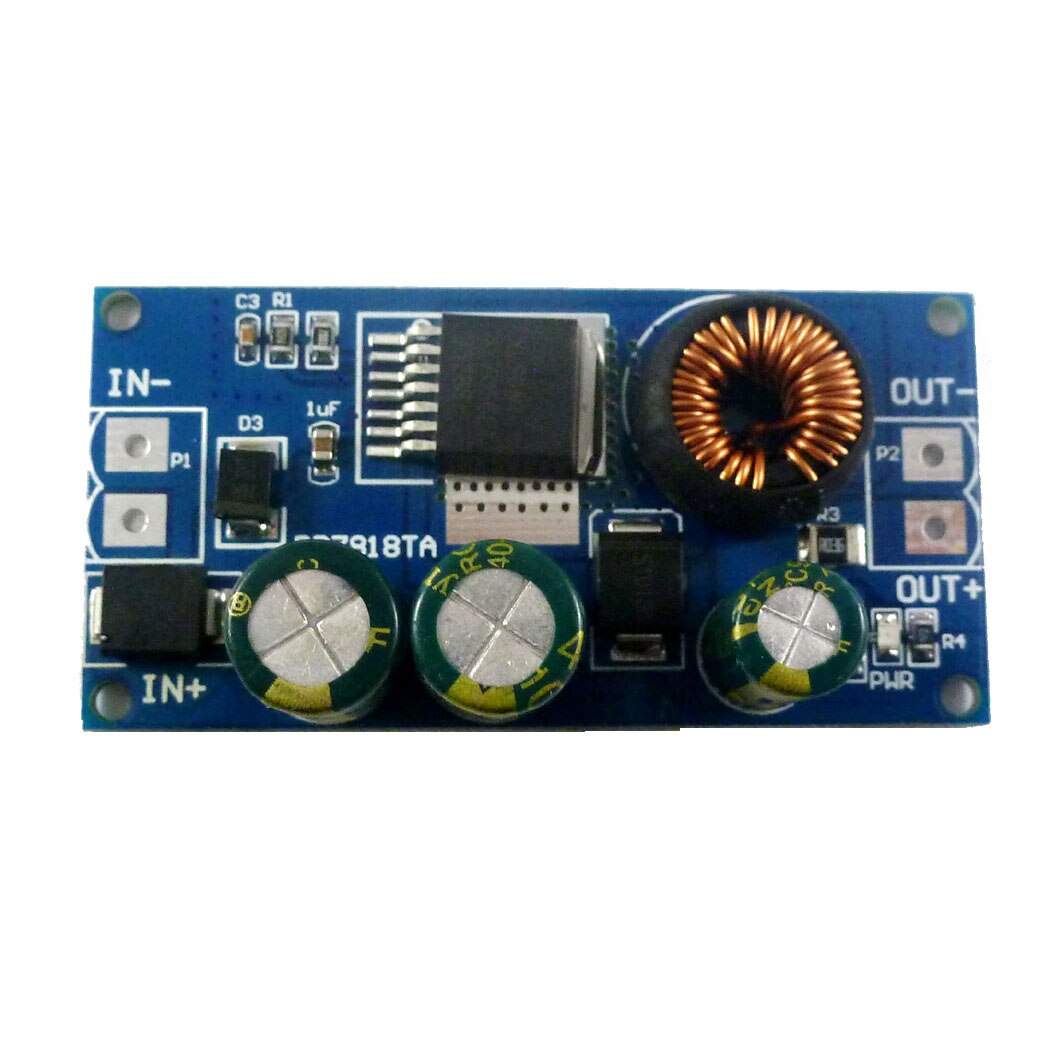

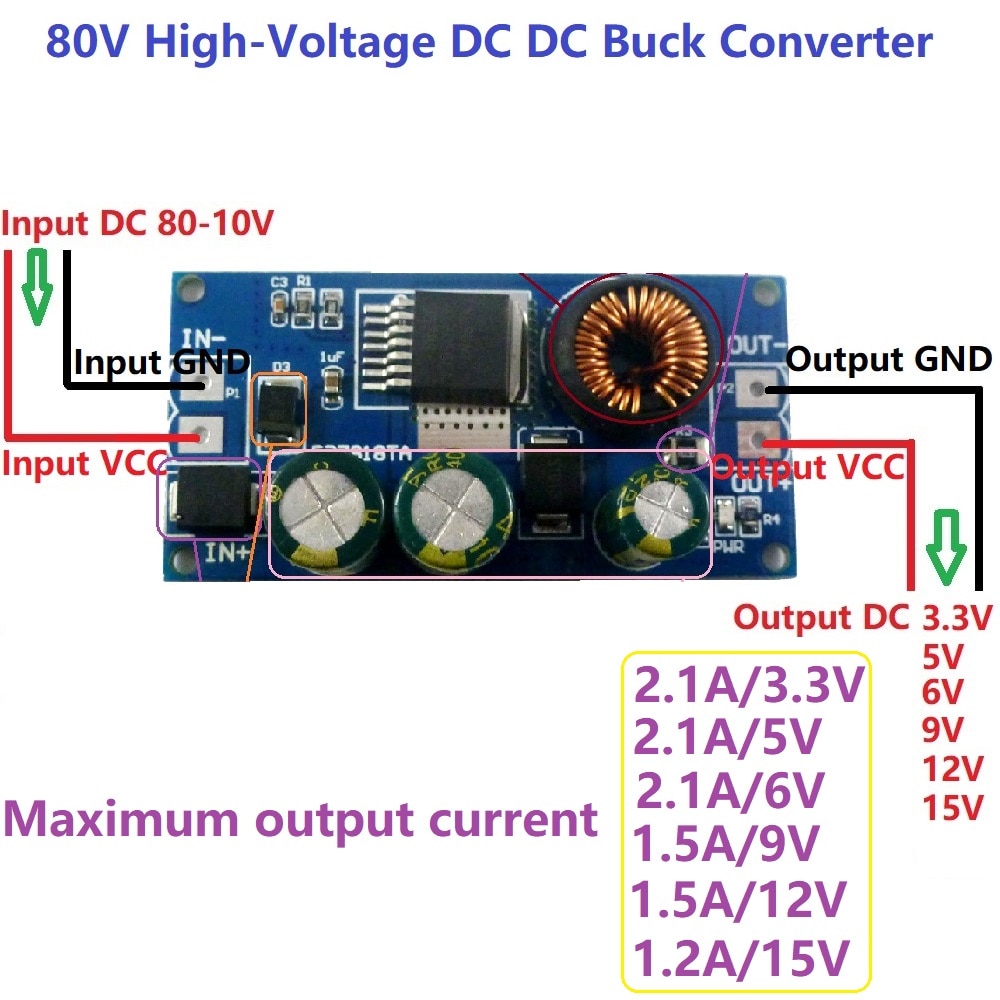

| Description: ? 1 input reverse polarity protection 2 TVS overvoltage protection 3 high frequency filter capacitor 4 high Q value 100UH inductance 5 Output overcurrent protection 6 Over temperature protection 7 Output short circuit protection ? 12V : Input voltage 14.5~80V,output 12V Maximum output current 1.5A DC-DC high-voltage Step-Down Converter module working frequency 100KHz. Maximum conversion efficiency is 93% . Quiescent current: about 2.5mA Operating Temperature : �C40��C to +85��C Size : 60 x 30 x 16mm Weight : No terminal 16.5g Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Applications: ? Electric bicycle EBike motorcycle DC 80V 72V 64V 60V 48V 36V 24V CCTV camera RS485 Modbus equipment Motor Toy Wifi Router Network equipment Multimeter instrumentation Electric toys Smart home / home automation Battery powered equipment |
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039897
