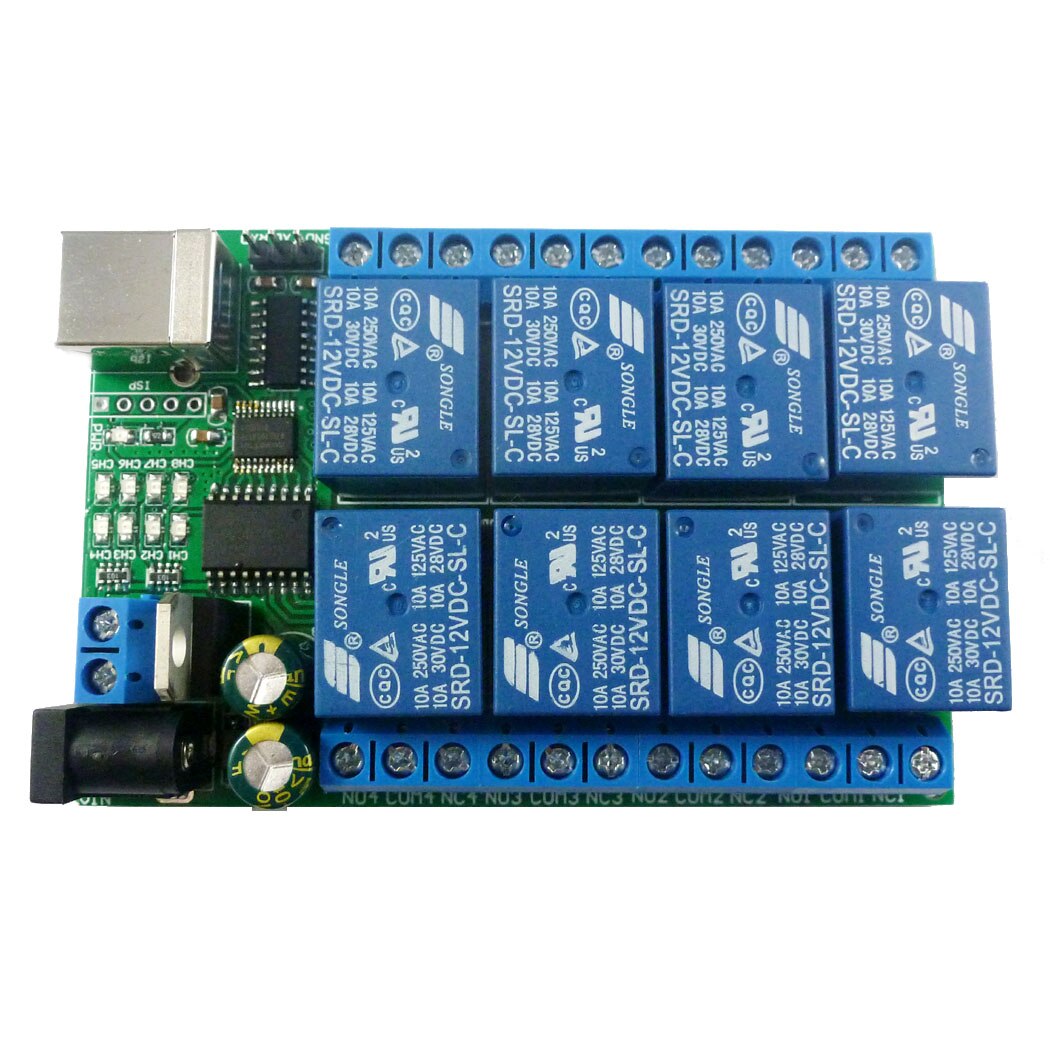

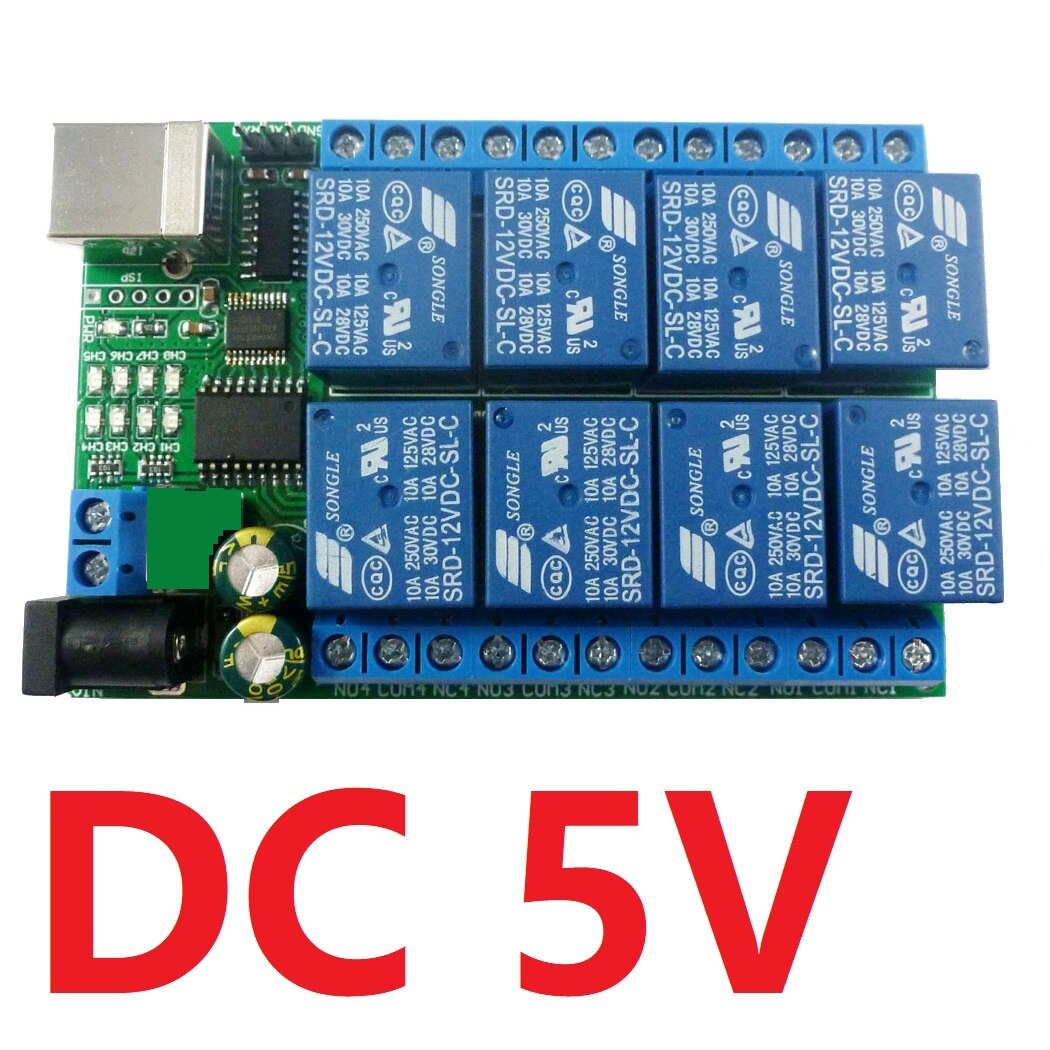

8ch USB Serial Port Relay Module UART RS232 TTL Switch Board CH340

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$28.41

Collect 28 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Zhongshan Junchang Mould Co Ltd (Direct Import)
Secure ways to pay at checkout
Description:

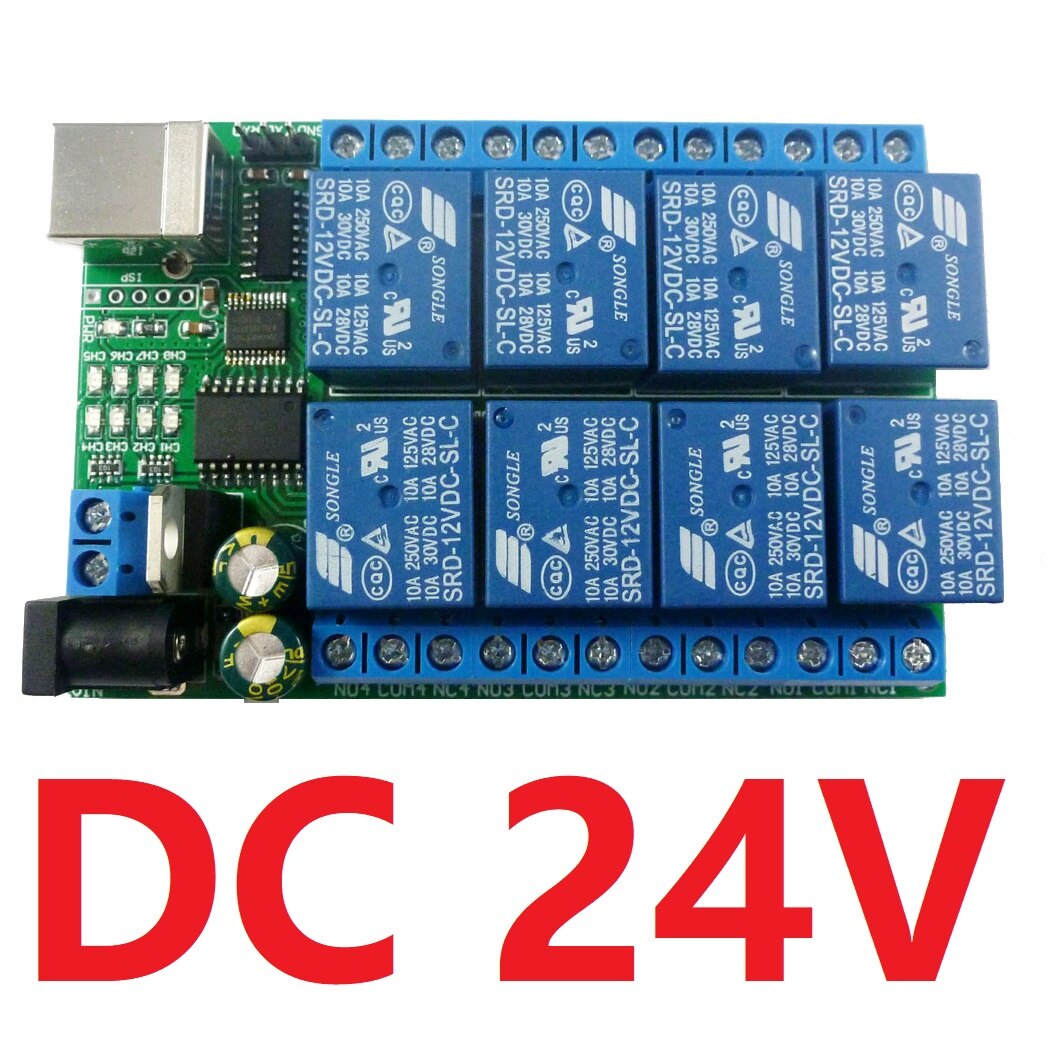

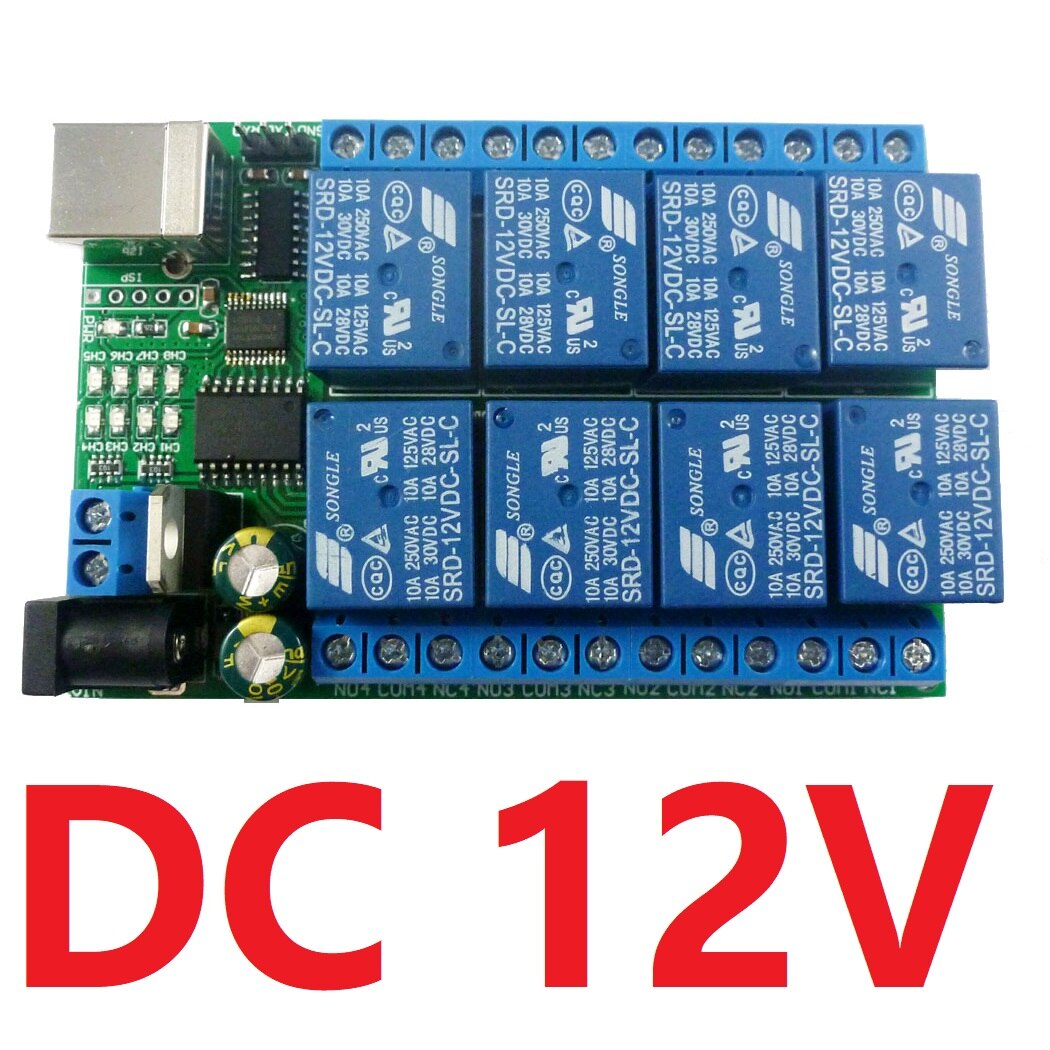

1: Working voltage: DC 5V/12V/24V optional
2: (DC12V)Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 67MA, 3 relays open 95MA,4 relays open 121MA,5 relays open 147MA,6 relays open 173MA, 7 relays open 198MA,8 relays open 223MA

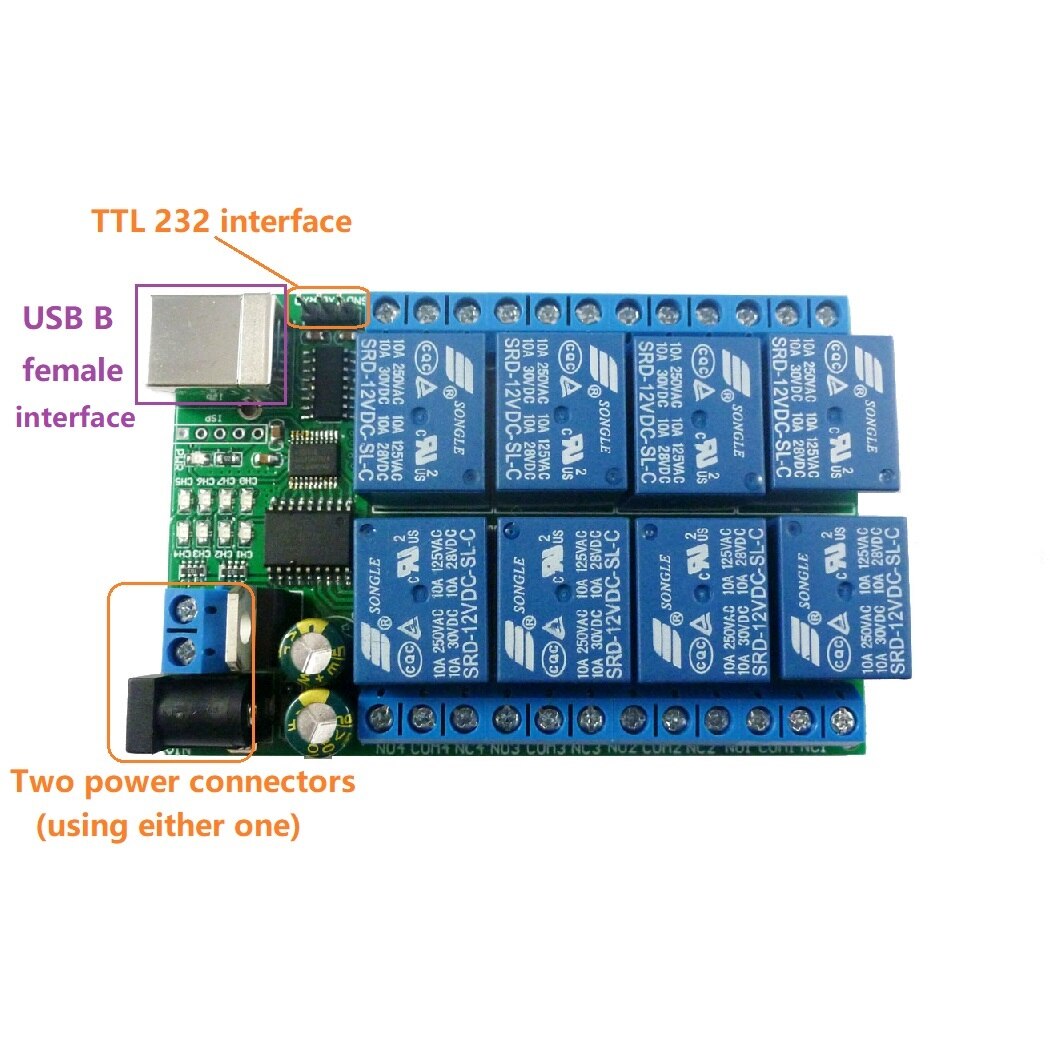

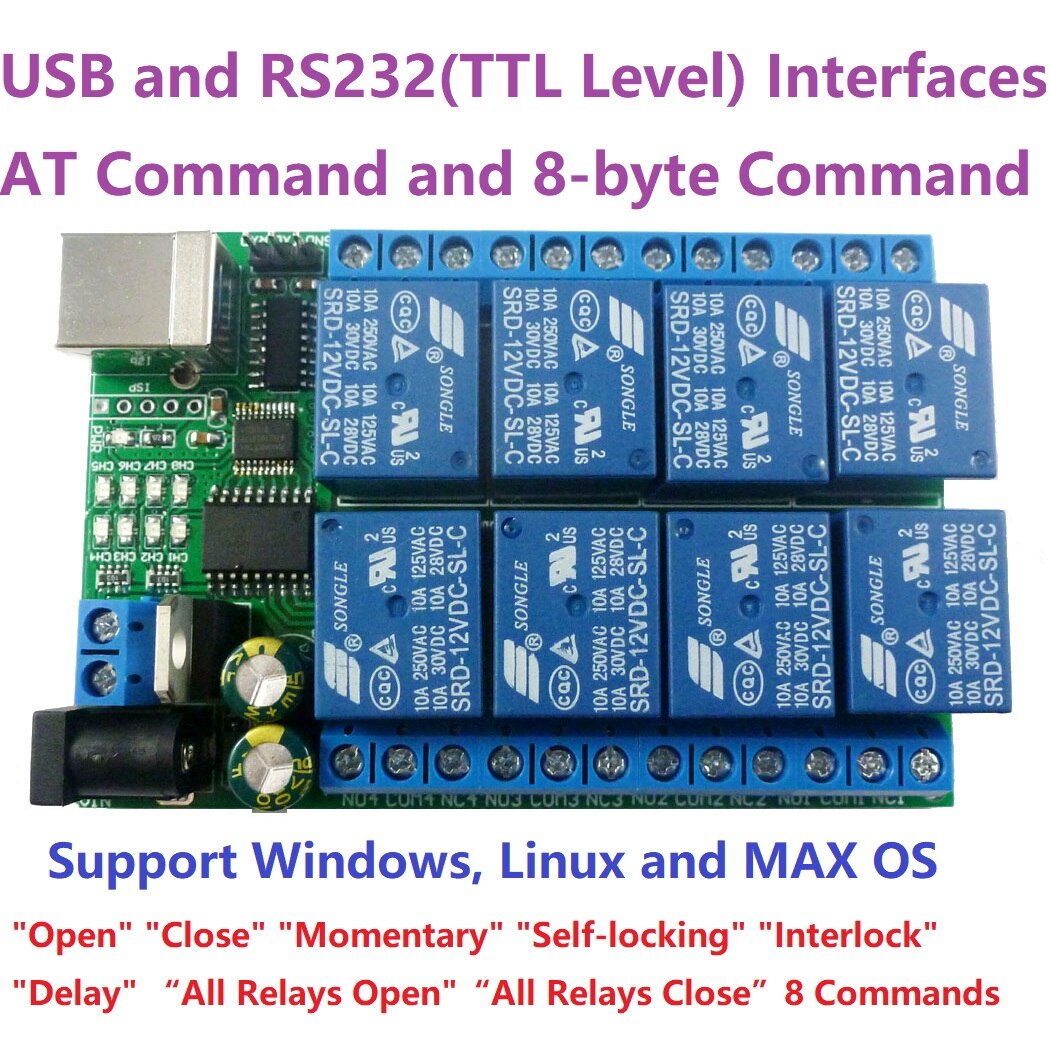

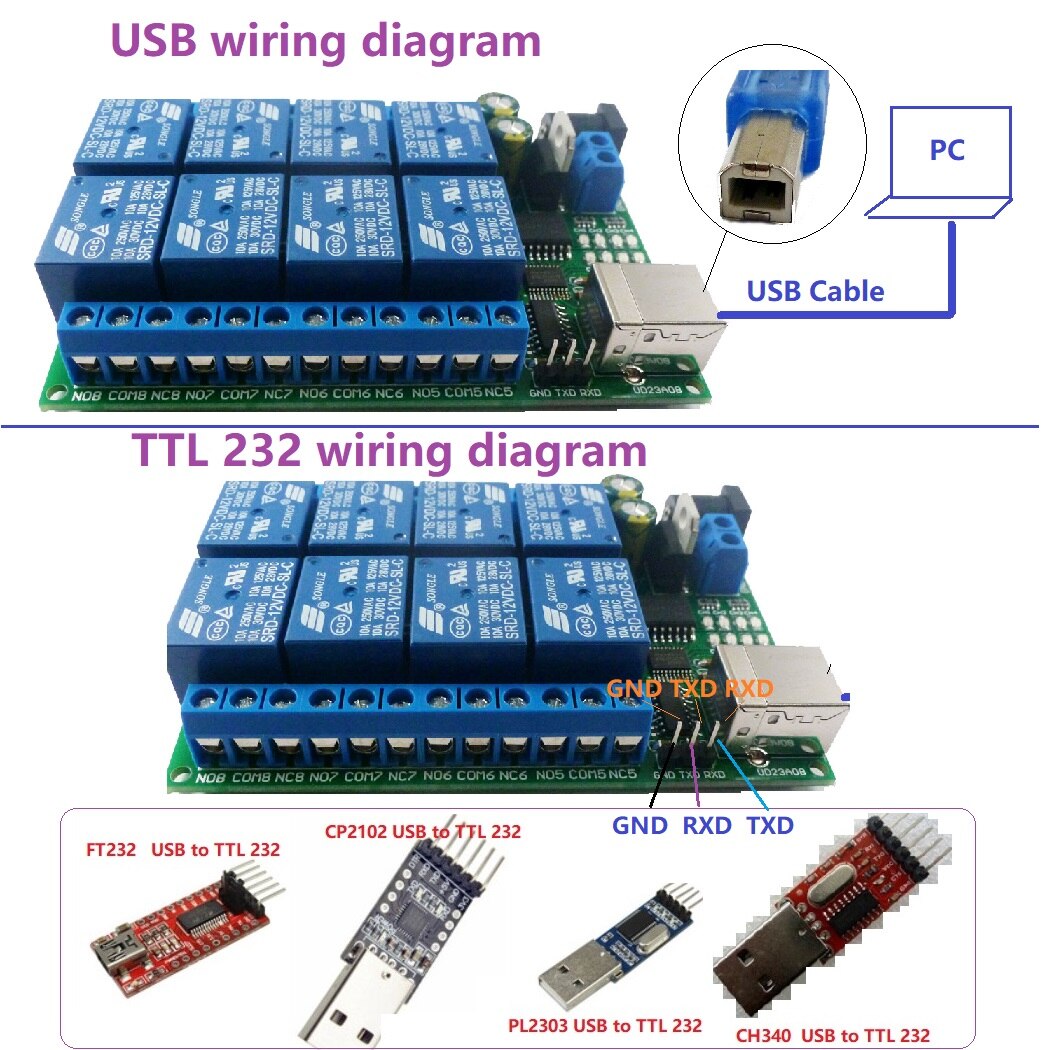

3 UART serial port protocol, support two interfaces, USB_B female interface (CH340 chip), RS232 interface (TTL level)
4 USB interface supports Windows, Linux and MAX operating systems
5: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''All Relays Open'' ''All Relays Close'' 8 Commands
6 Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
7: Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command)
8 Size: 90 * 62 * 19.5mm
9 Weight: 115 g
10 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Application??

Remote control, remote measurement system;
Wireless meter;
Smart Home,Home Automation ,Wiser Home;
Access control;
Identification system;
Data collection;
IT household appliance;
Intelligence household appliance;
Baby monitoring system;

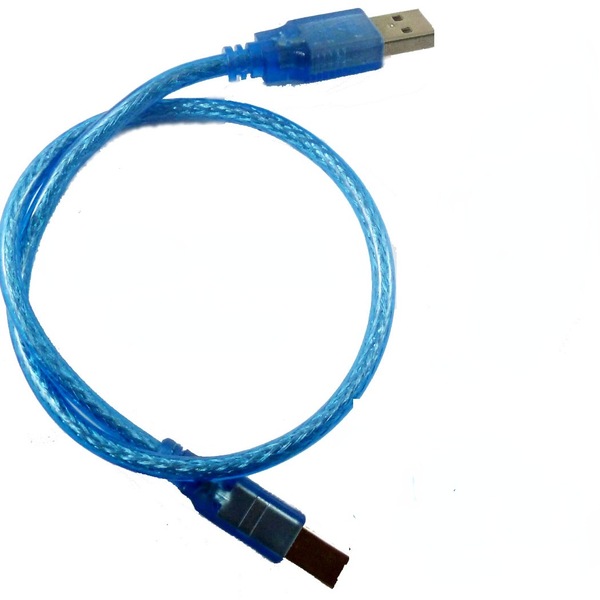

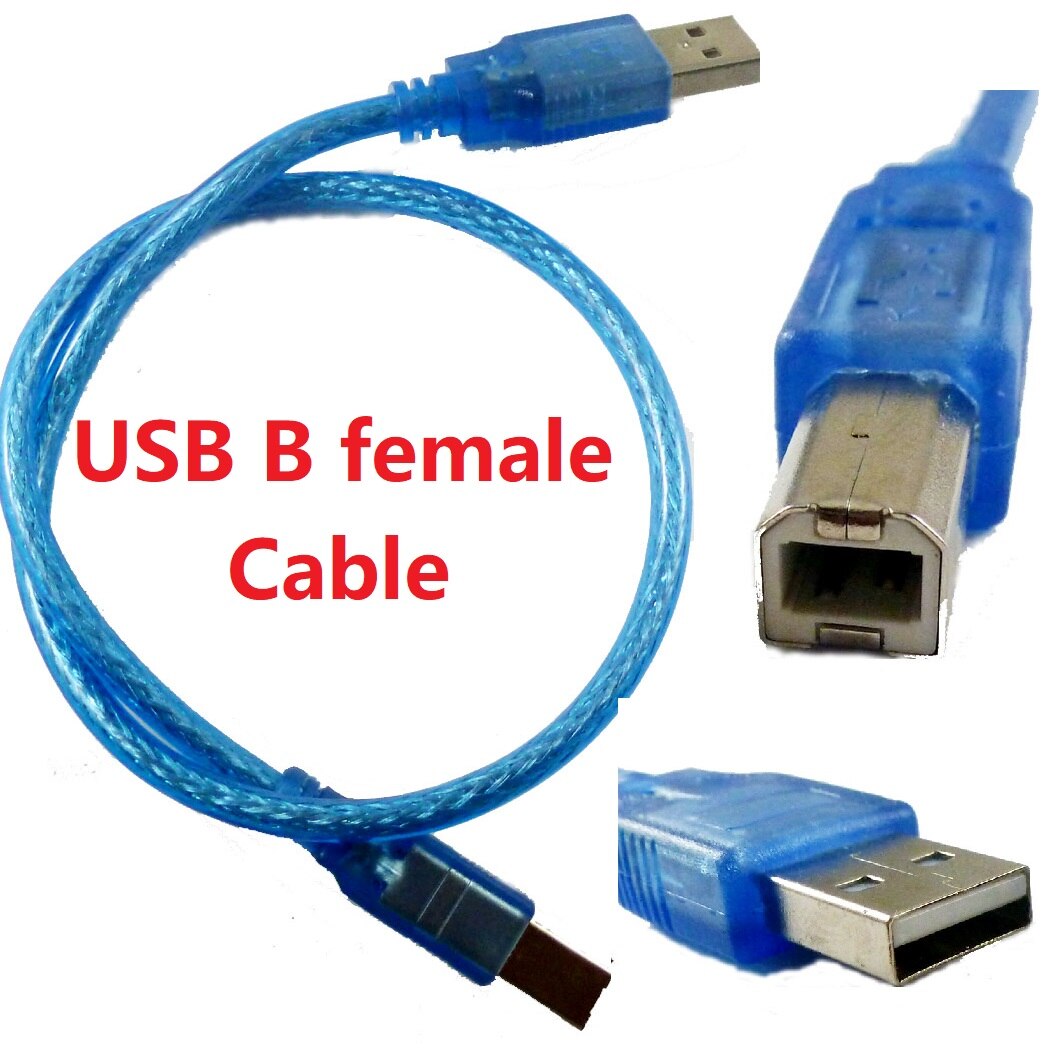

Package inlcuded:1pcs USB B cable

Estimated Delivery Time Frame:12-20 business days
