2 In 1 DC 12V Liquid Level Sensor Switch Relay Module for Motor Fish Tank

1 Review

Image 1
Image 2
Image 3
Image 4
Image 5
$27.62

Collect 27 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Secure ways to pay at checkout
Pay in 4 interest-free payments of $6.91 with Learn More
Description:

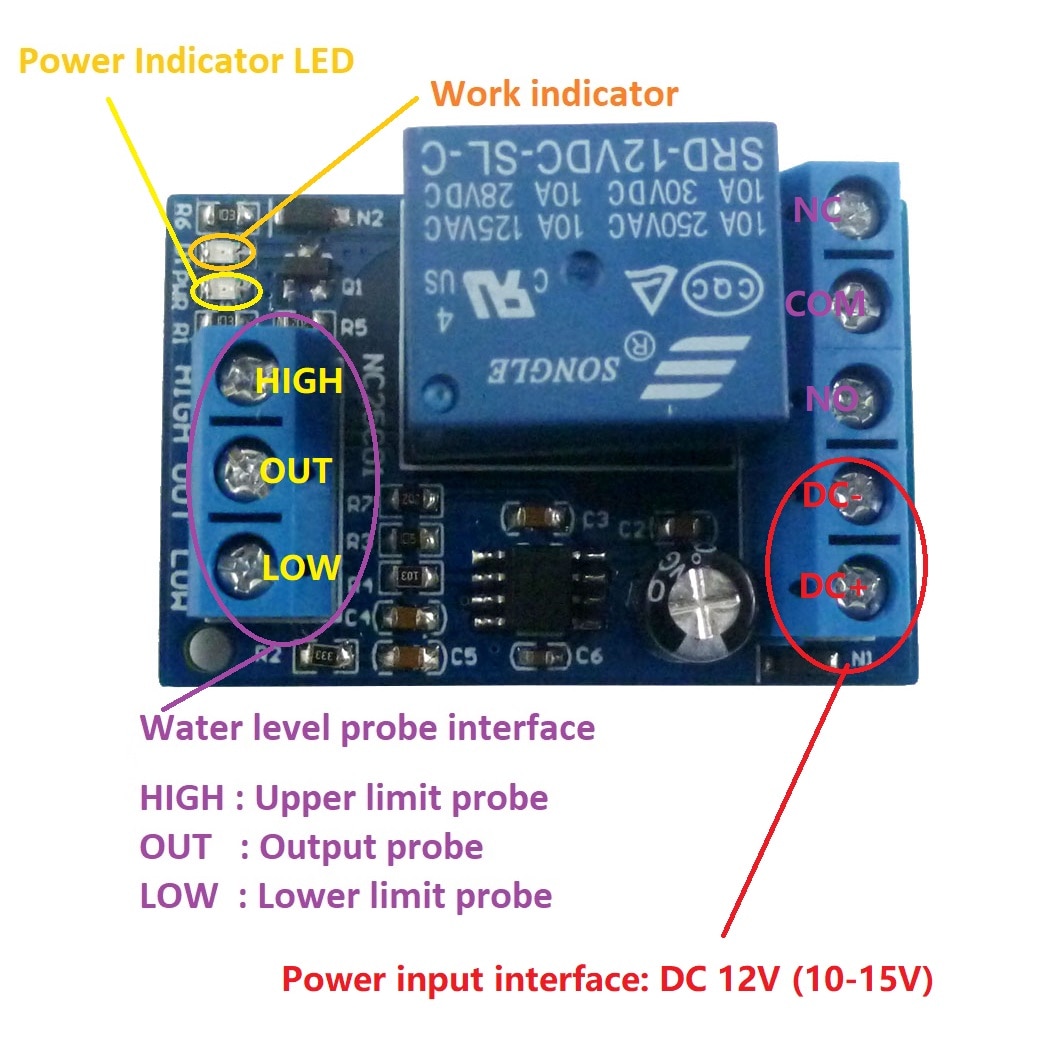

1 Working voltage: DC 12V(DC 10-15V)
2 Standby current 9MA
3 Working current 39MA
4 Size: 44mm X 29mm X 19mm
5 Weight: 19 g
6 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

There are two purposes for connecting the NO and NC ports of the relay:

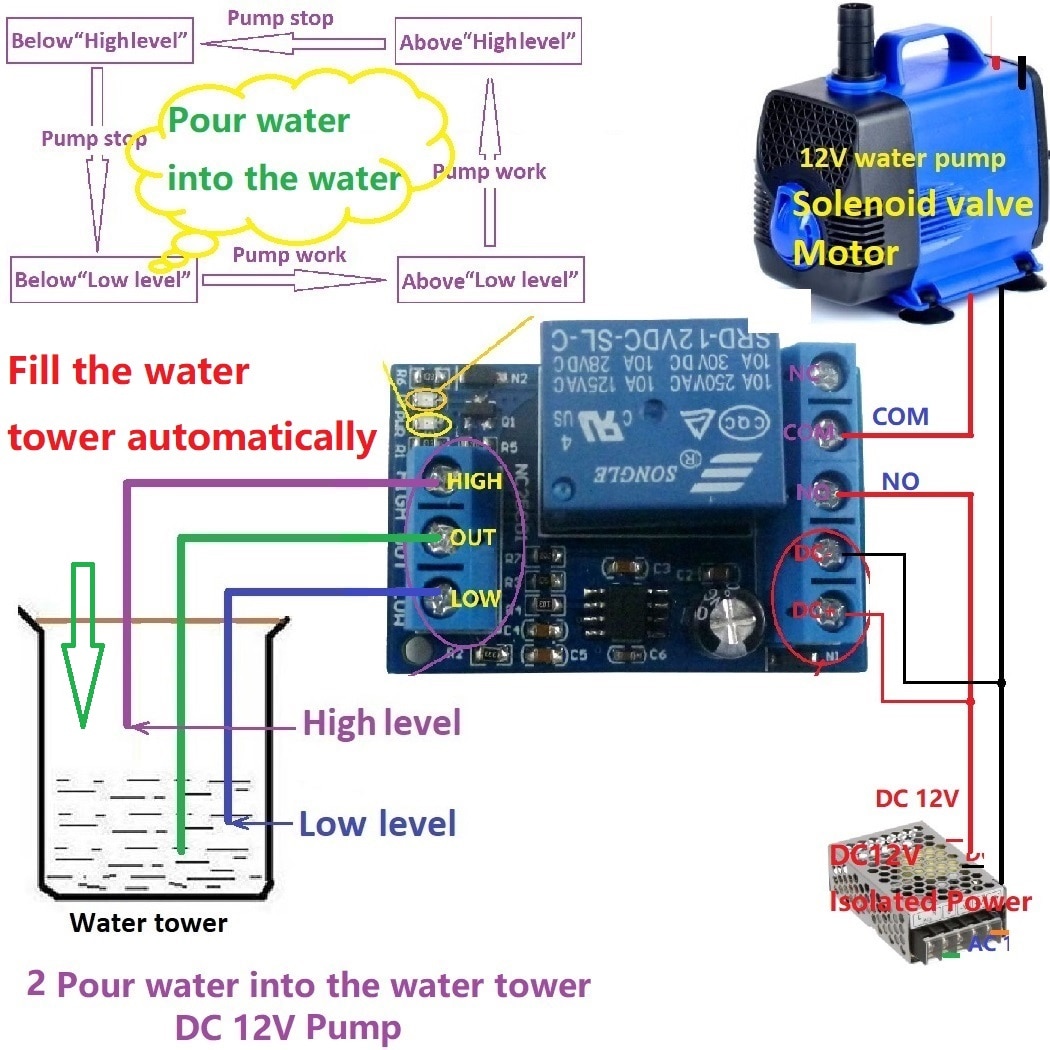

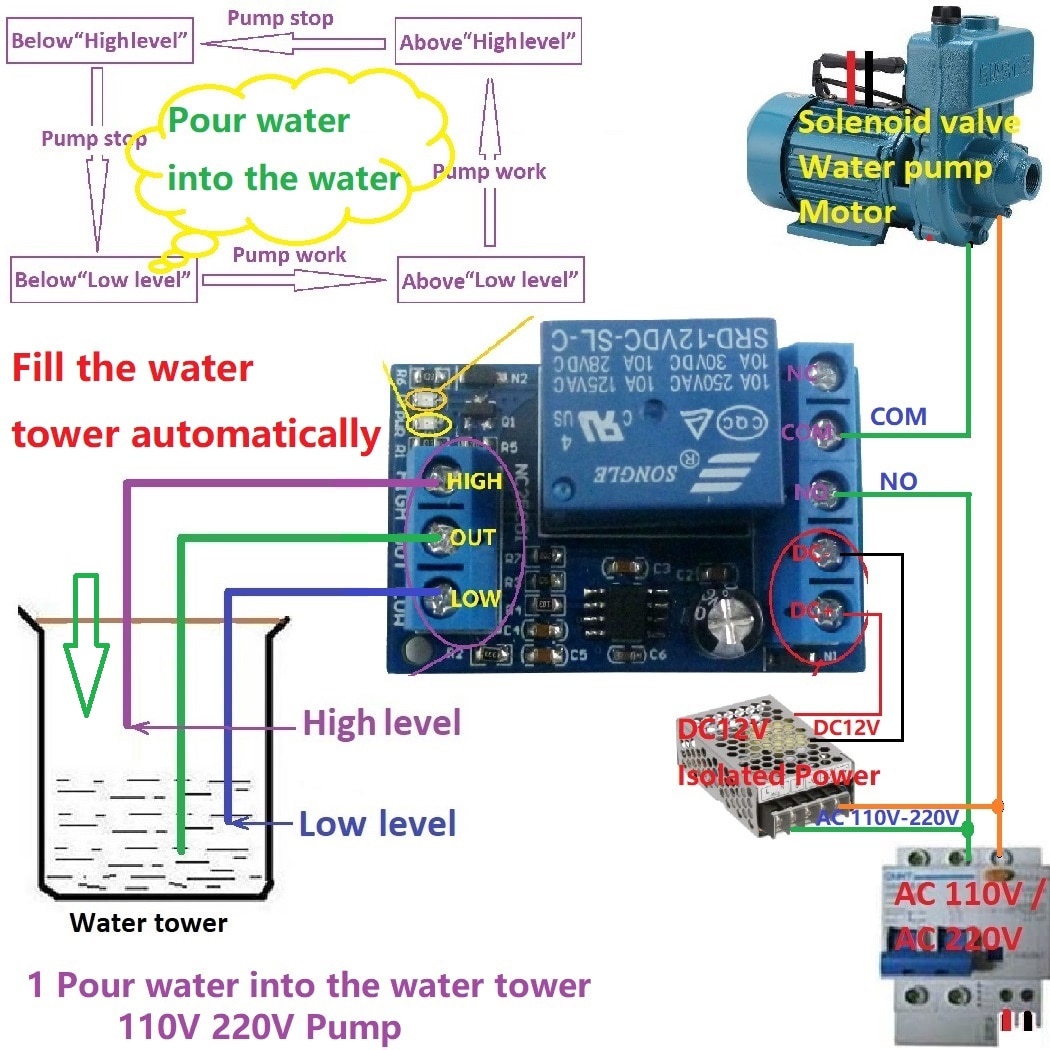

The water pump is connected to the COM NC port to automatically fill the water tower

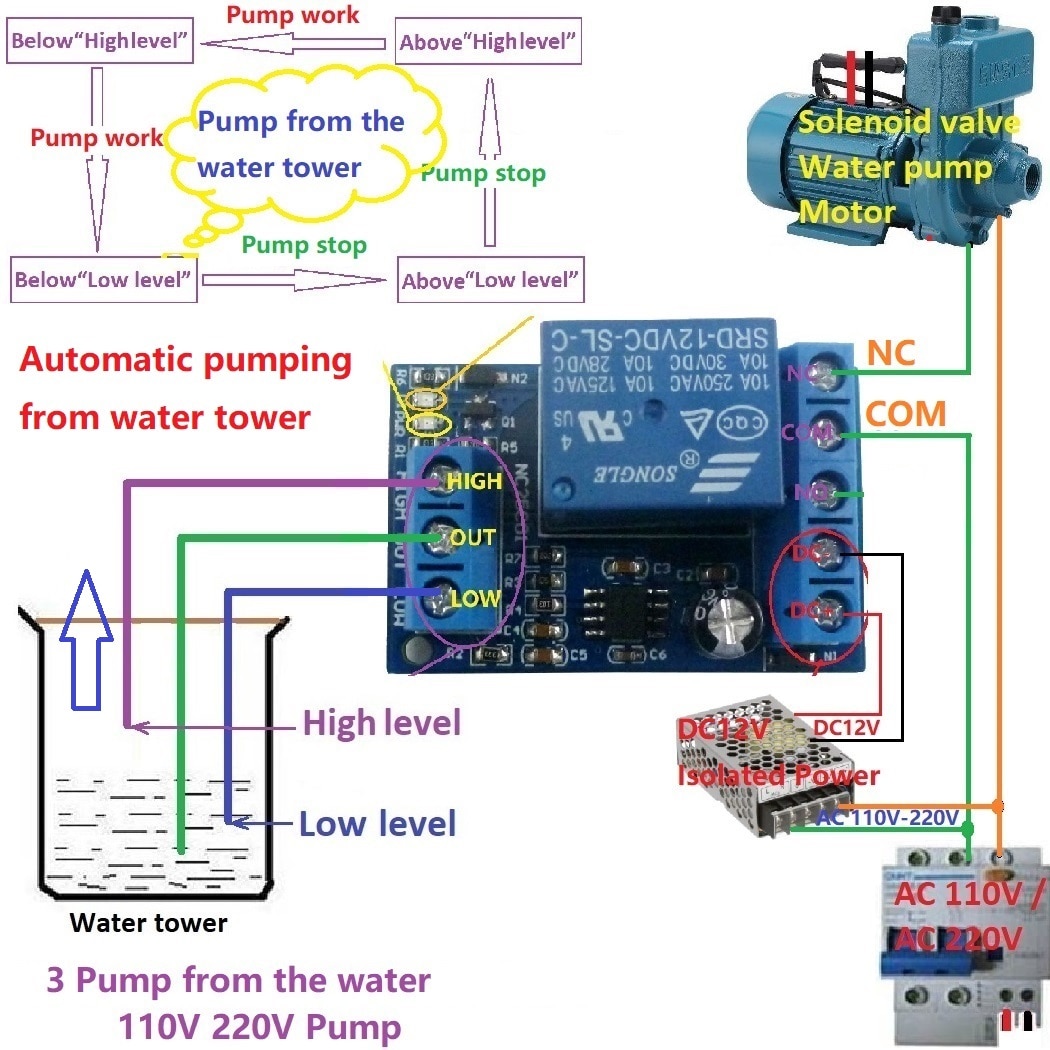

The water pump is connected to the COM NO port to automatically pump water from the water tower

Note:

Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires
For safety, use an DC power supply with good isolation

Application:

Home water tower automatic water supply system
Aquarium Fish tank Water Changer System
Fill the water tower automatically
Automatic pumping from water tower
Conductive liquid automatic control
Automatic feeding system for poultry and livestock
Farm automatic water supply system
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control

Package inlcuded:

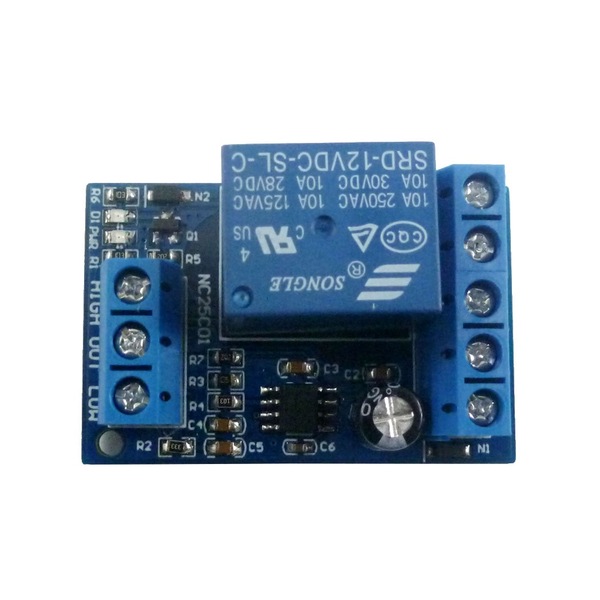

1 x DC 12V NC25C01 Automatic pumping and pouring controller Module

GTIN: 774048925198

Estimated Delivery Time Frame:12-20 business days

Ask a Question About This Product

Reference ID: 7039976
