Description:

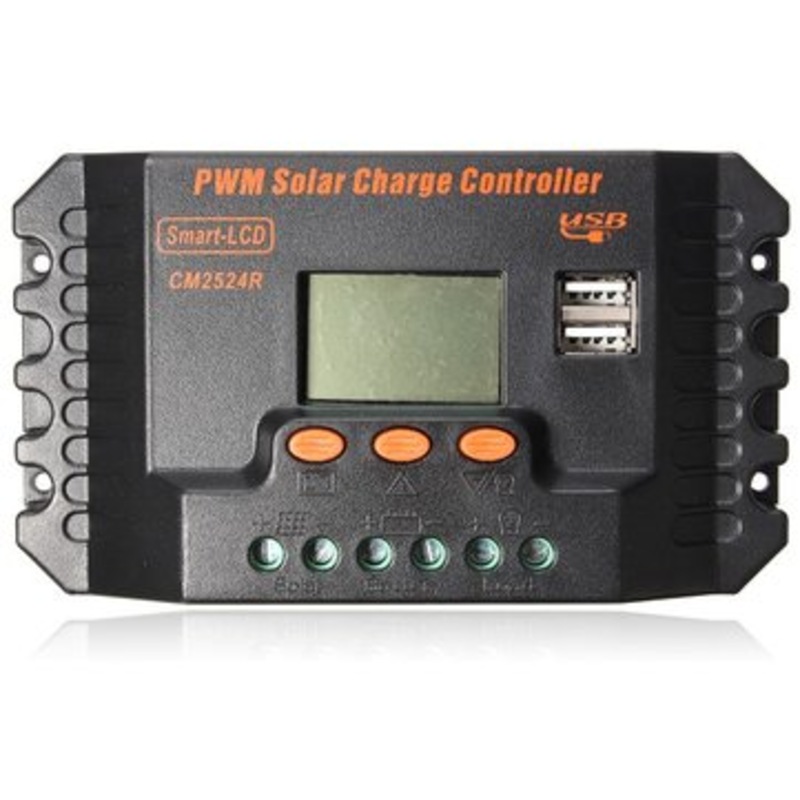

20 30A PWM LCD Dual USB Solar Panel Battery Regulator Charge Controller 12 24V

Features:

1.LCD Display, all ajustable parameter.

2.PWM Battery charging.

3.Build-in industrial micro controller.

4.Fully 4-stage PWM charge management.

5.Built-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

6.reverse current protection, low heat production.

7.Dual USB ports

Specifications:

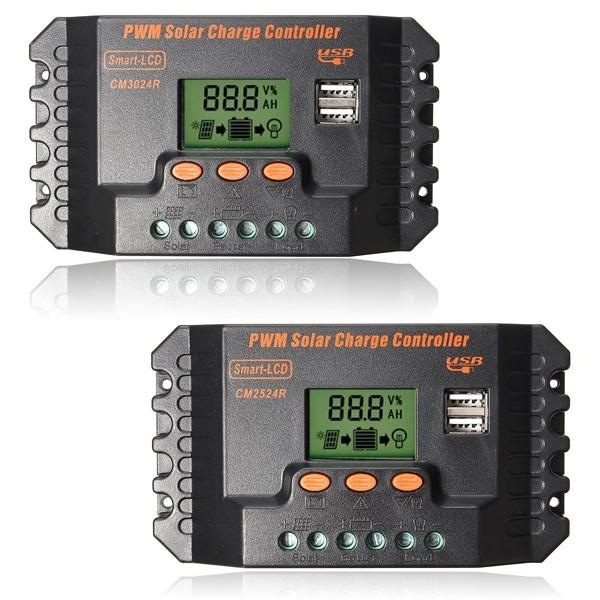

1.Voltage: 12-24V Current: 20A 30A Optional

2.Max Solar input: <50V

3.Float charg: 13.7V(defaul,ajustable)

4.Discharge stop: 10.7V(defaul,ajustable)

5.Discharge reconnect: 12.6V(defaul,ajustable)

6.USB output: 5V/3A

7.Self-consume: <10mA

8.Operating temperature: -35~+60°C

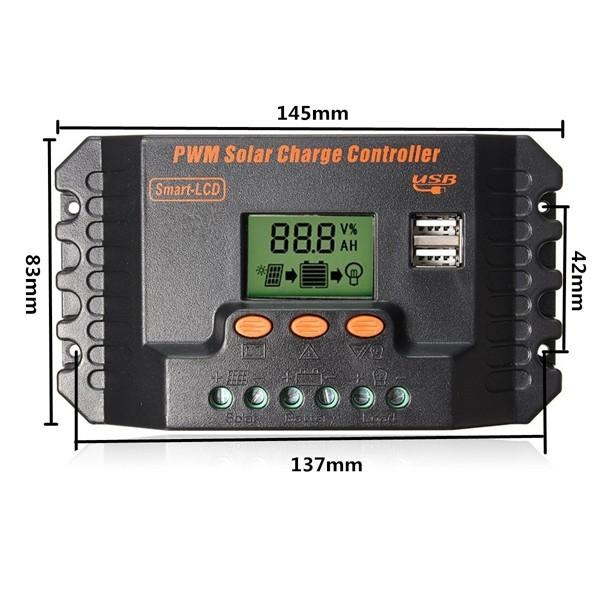

9.Size: As picture shown

Package Included:

1 x Solar charge controller

1 x English User Menu
