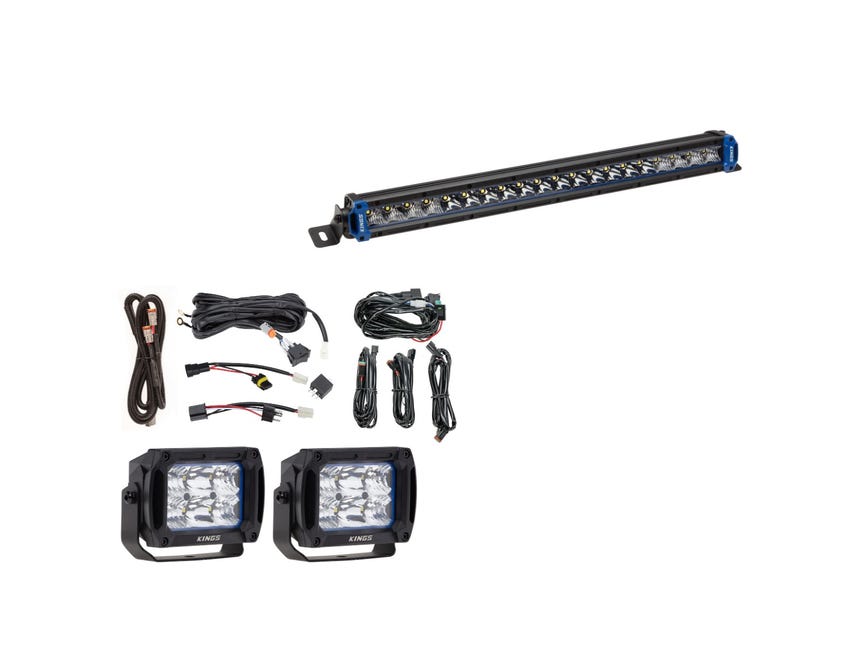

20" Outback Explorer Pack light bar + worklight and wiring harness

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$188.80

Collect 188 Everyday Rewards points

Log in to MyDeal to link your card
$30.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Adventure Kings Single Row 20” Light Bar range delivers an impressive lighting performance. Whether you're tackling rugged terrain or outback driving, these light bars offer a perfect blend of light for ultimate distance and spread. With the latest technology, they are the brightest compact light bars we’ve ever created, ensuring you get the visibility you need in any situation.

• Designed to enhance your driving experience, the Adventure Kings Lethal Light Bars offers ultra-smooth light colour that reduces eye strain and fatigue. This fine-tuned illumination provides a more natural light, improving visibility while minimising the discomfort caused by harsh lighting. It’s the perfect solution for long nights on the road or off the beaten path.

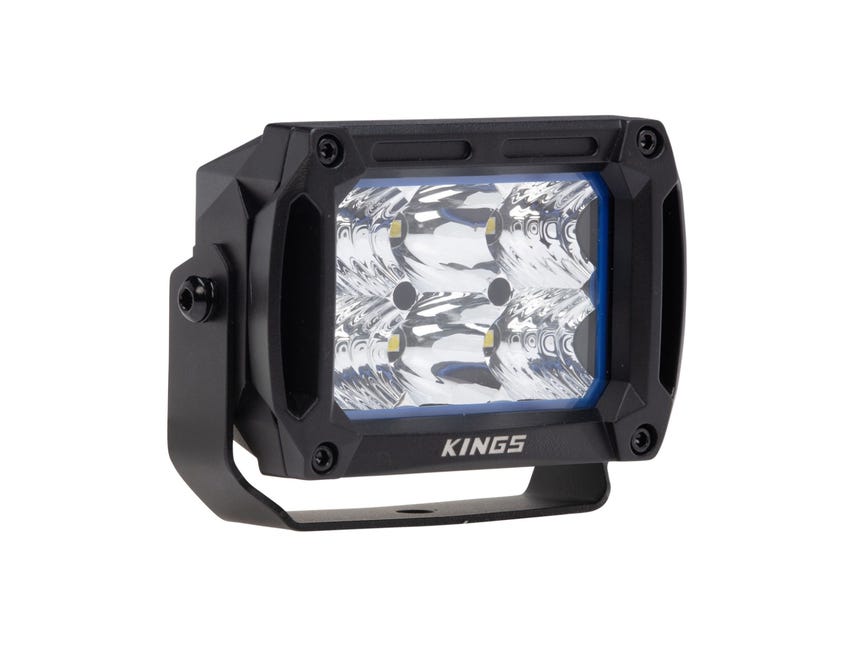

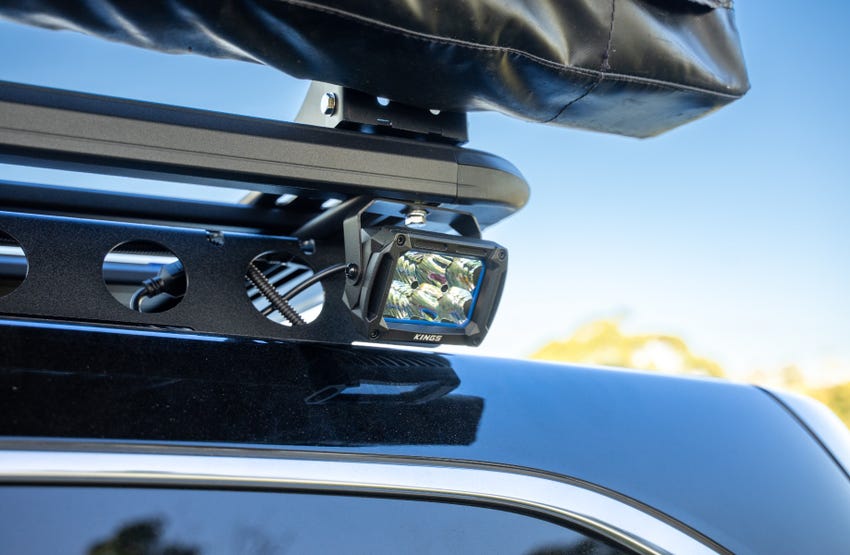

• The 4.4-inch work light has six LEDs and an optimized reflector design and provides greater flexibility and brighter illumination. Its perfect for working, camping, or reversing. Drawing less than 2 Amps each , Perfect for long nights at camp or extended work hours. With an IP67 water and dust-proof rating, these lights are rugged and durable.

• For setting up rear or side-mounted LED lights to use for camping, dark jobsites the Rear Lighting Wiring Harness is perfect. Similar to our driving light and lightbar harnesses, the key difference is the relay does not rely on a highbeam headlight trigger. Instead, you control your lights by turning the included flush-mount rocker switch on or off - it’s that easy.

• The Adventure Kings Plug N Play Wiring Harness solves all your wiring needs in one easy to install kit. Utilising thick 12AWG (3.31mm²) wire, the Plug N play will efficiently deliver power into your Adventure Kings Driving Lights or LED Light Bar. Protected by a replaceable in-line blade fuse along with weather and heat resistant cable protectors, which easily connect directly to your lights using waterproof Deutsch plugs.

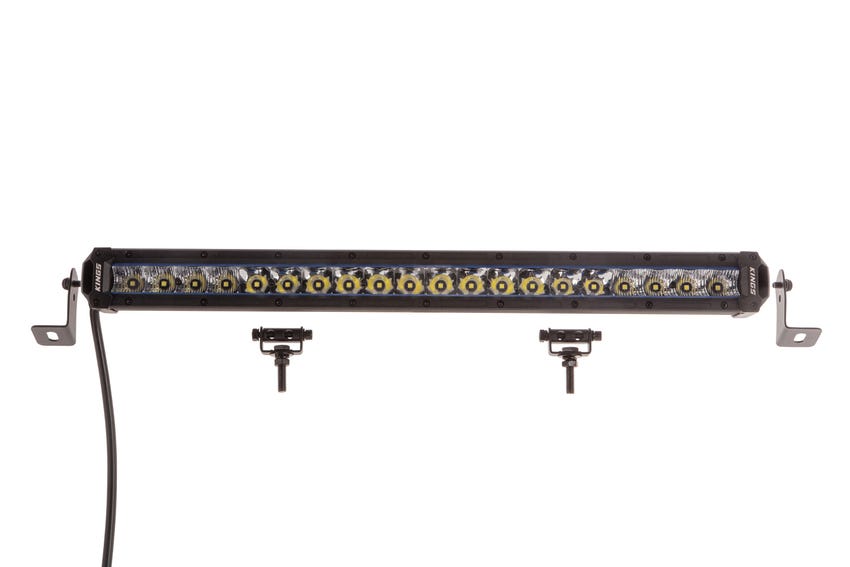

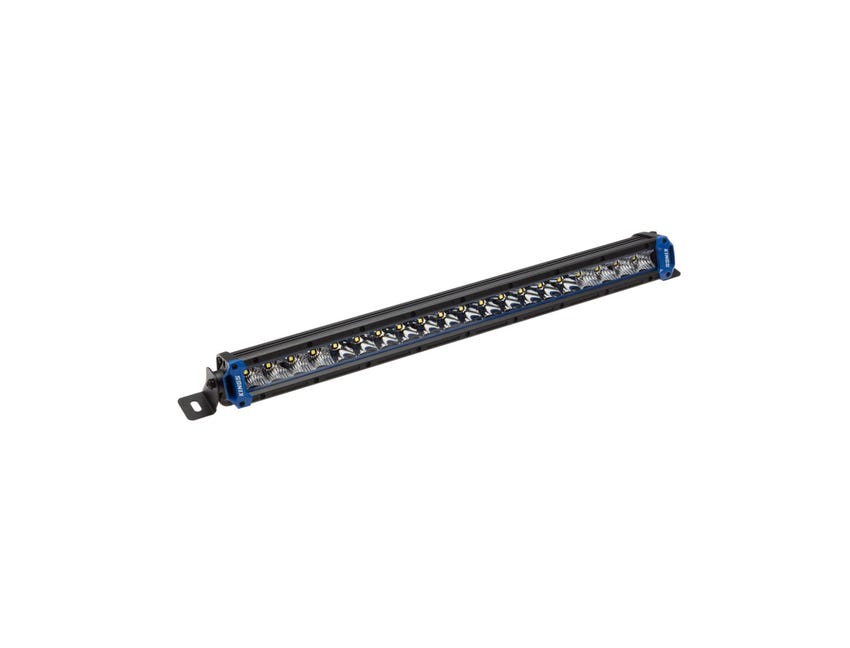

KINGS 20" LETHAL SINGLE ROW LIGHT BARK

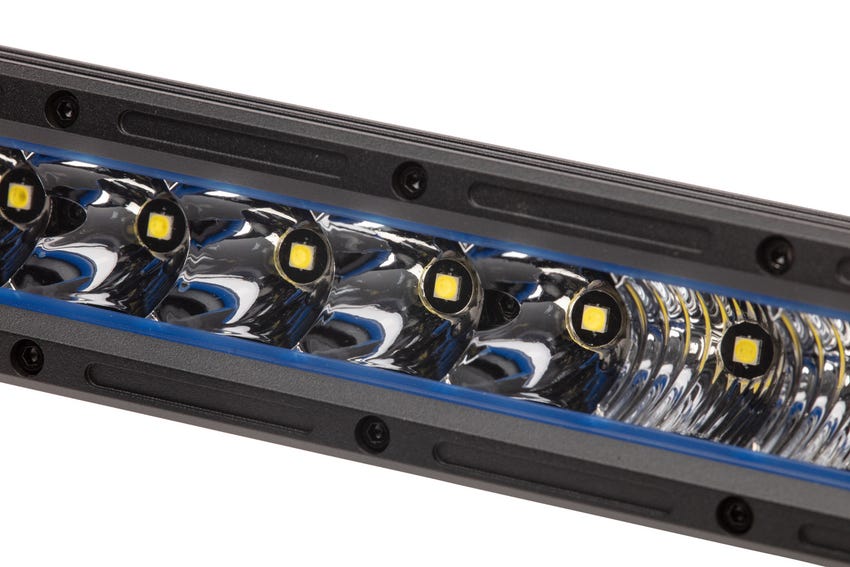

LEDs 20 x high-performance P8 LEDs
Lumens 6,519 Lumens
Lux 1 Lux @ 401m
Amp Draw 5.48 A@ 14.4V
Power Draw 78.9 Watts
IP Protection IP67
Color Temp 5,270K
Voltage Compatibility 12 & 24V
Housing Die-Cast Aluminium
Lens Material Polycarbonate

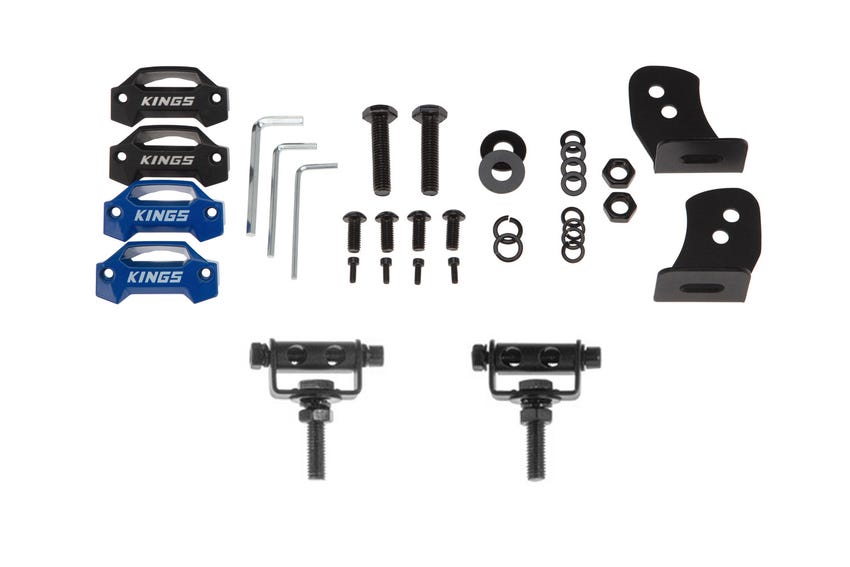

Mounting Included End and Sliding Brackets
Dimensions (with brackets) (LxWxH) 620mm x60 mm x 66mm
Weight 1.68kg





KINGS 4.4" WORK LIGHT






Lumens 2,310 Lumens
Lux 1 Lux @ 235m
Amp Draw 1.65A @14.4V
Power Draw 23.7W
Beam Pattern 2 x Spot and 4 x Spread
IP Protection IP67
Color Temp 5,647K
Voltage Compatibility 12 & 24V
Housing Die-Cast Aluminium
Connection 2 pin Water-proof Deutsch-style connector
Mounting Folded steel mounts with stainless steel bolt system
Dimensions 88mm x 117mm x 50mm
Weight 0.5KG (Each)

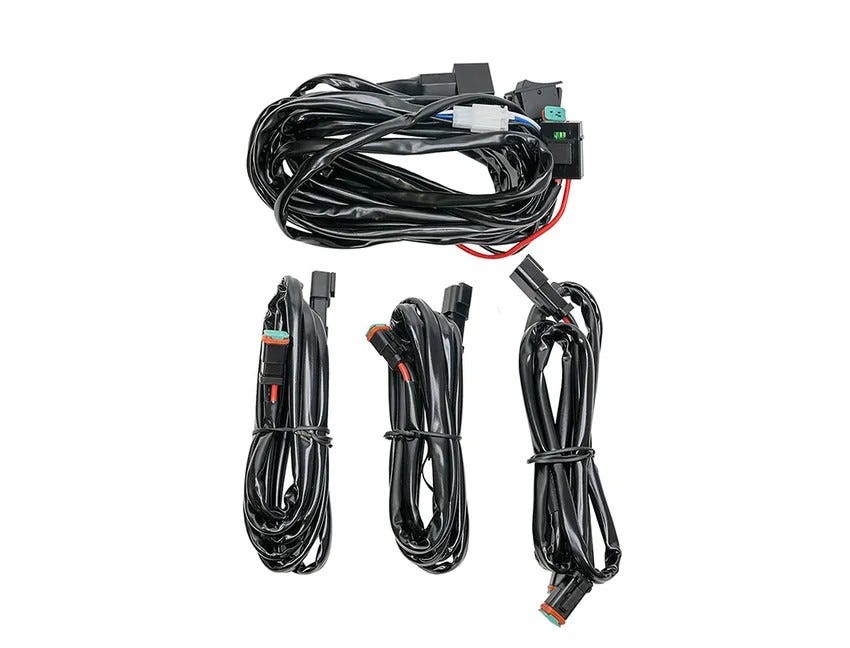

REAR LIGHTING WIRING HARNESS





• Cable Length (Relay to Switch): 2.7m


• Cable Length (Y-splitter): 1.3m


• Cable Length (Extension Cables x 2): 2.0m


• Wire Gauge: 12AWG


• Relay: 12v, 40A


• Fuse: 25A


• Battery Connectors: M8

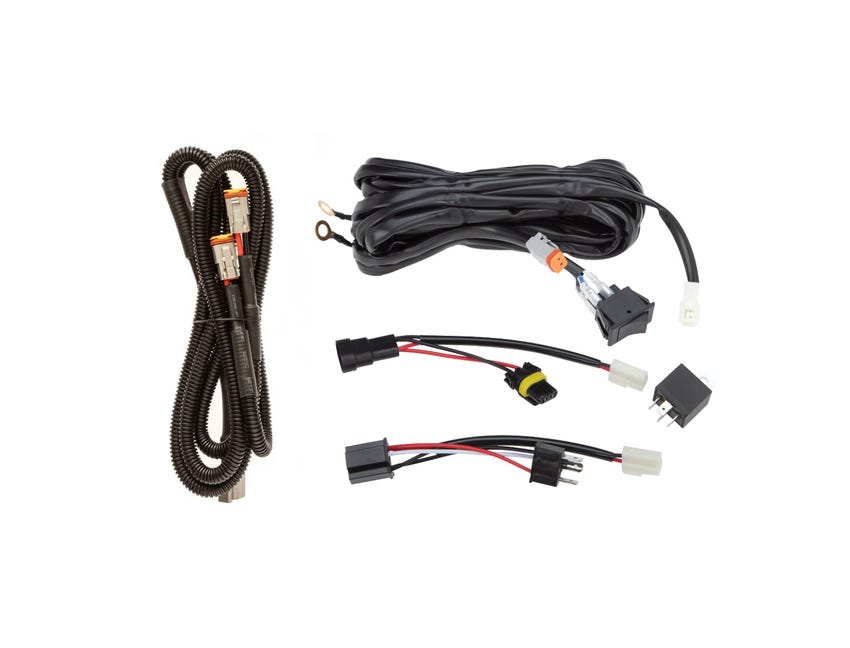

SPOTLIGHT WIRING HARNESS








• Live wire gauge: 12AWG


• Relay to Deutsch plug: 2700mm


• Relay to trigger (headlight): 2000mm


• Relay to switch: 2650mm


• Single to Double Splitter: 1000mm


• Fuse: 25A


• Relay: 40A





INCLUDES


• Wiring Harness


• 40A Relay


• Backlit LED Switch


• In-Line Fuse


• 2 to 1 Deutsch Splitter Cable


• H4 & HB3 Adapters


• M8 Terminals

MPN: SC-CO-20OBACKXPPACK
