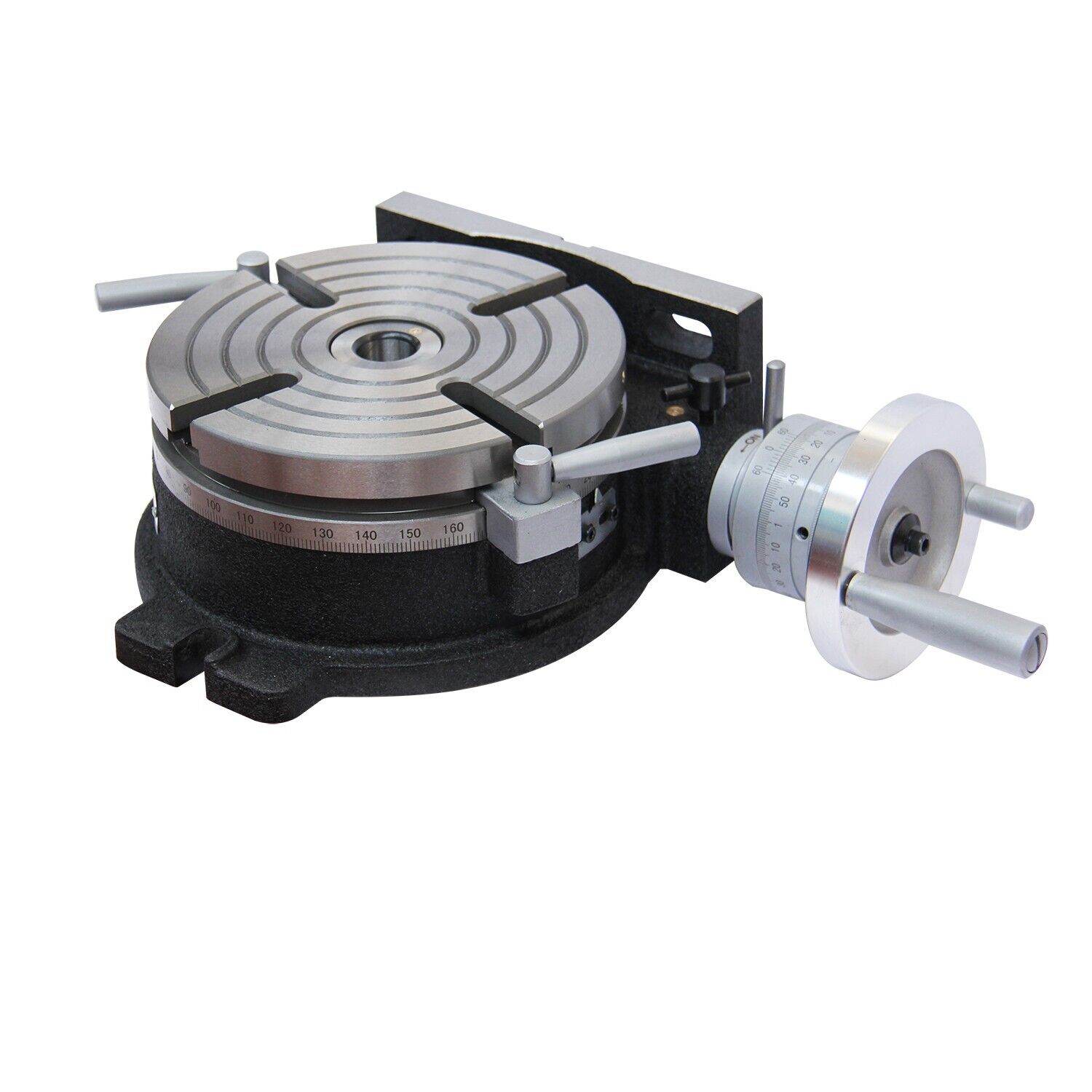

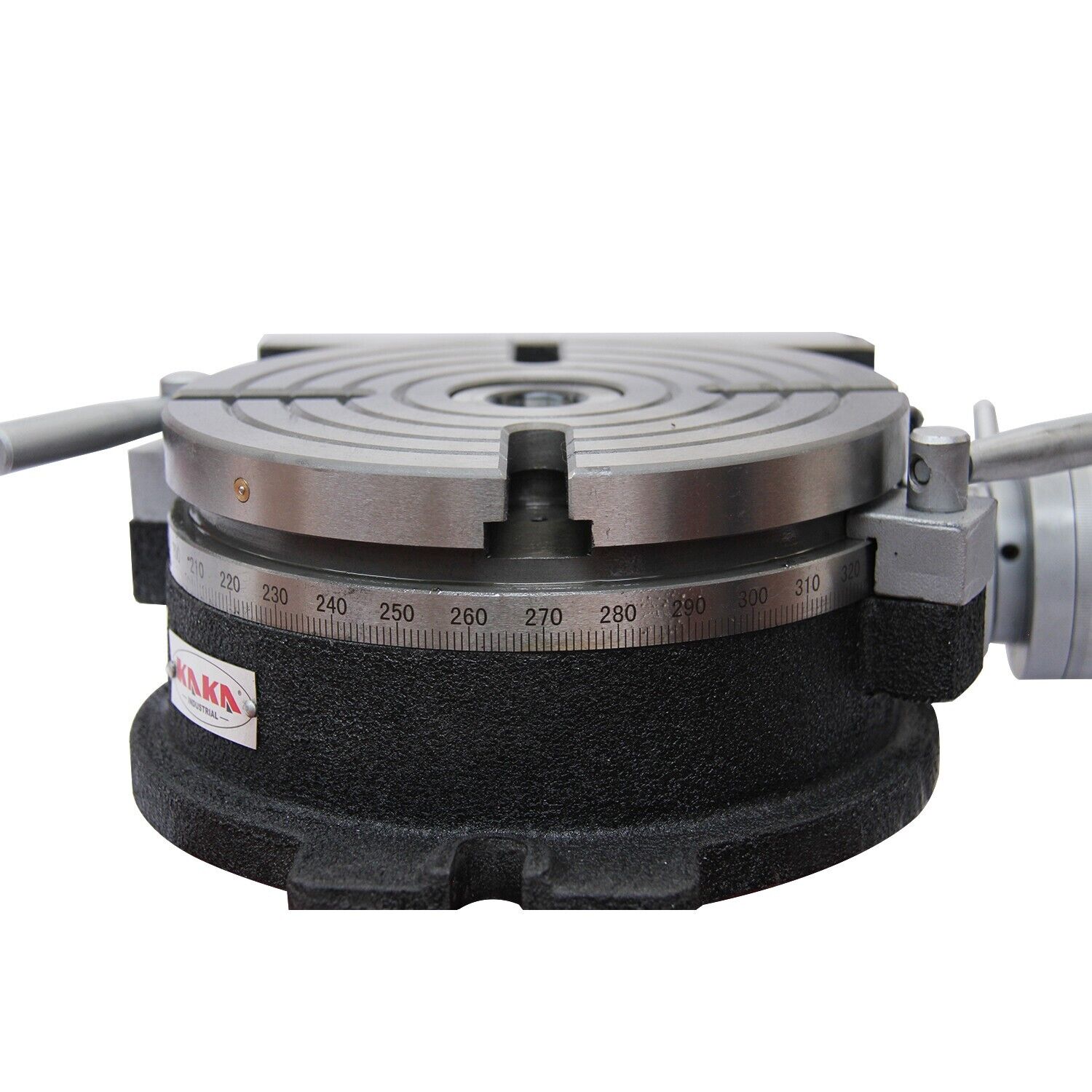

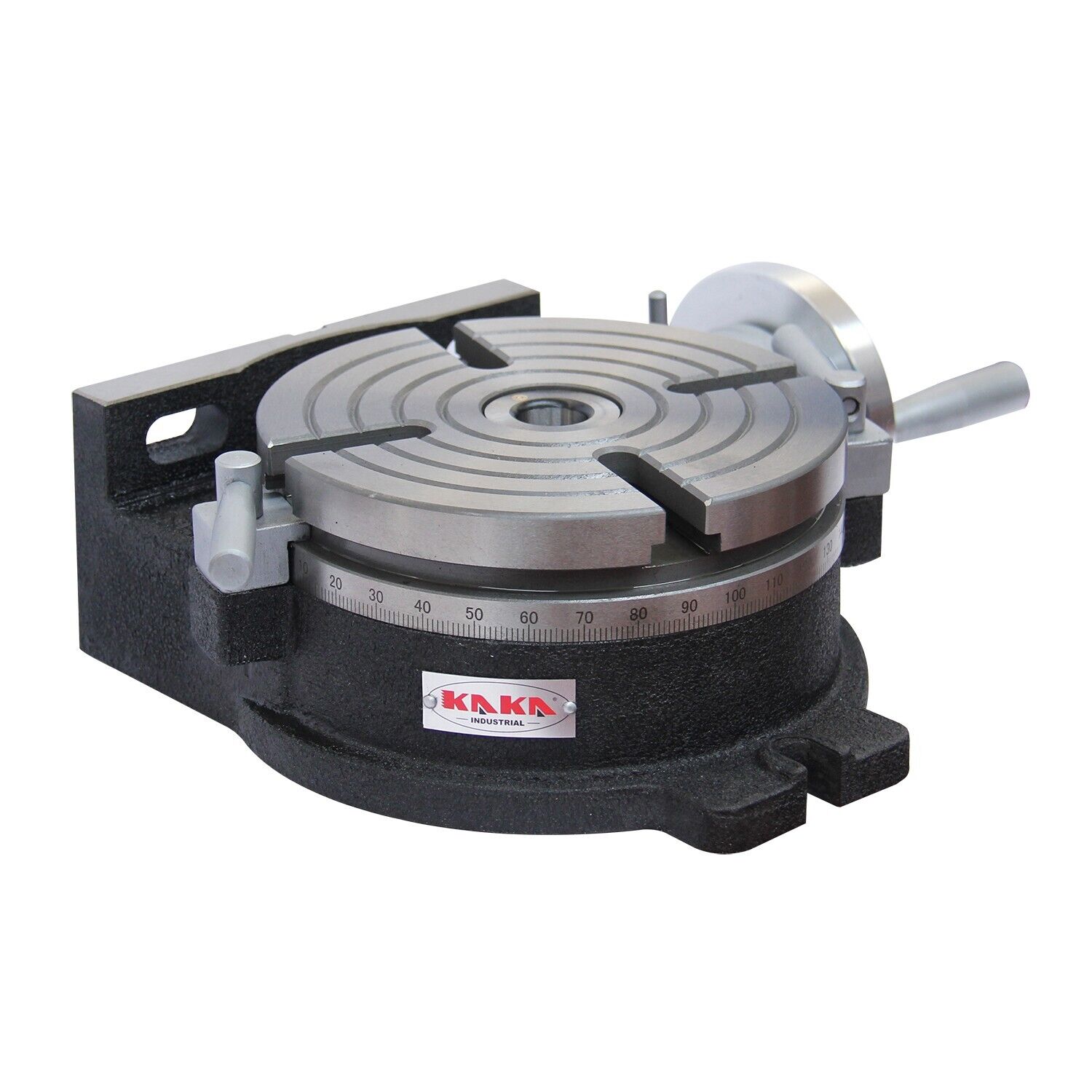

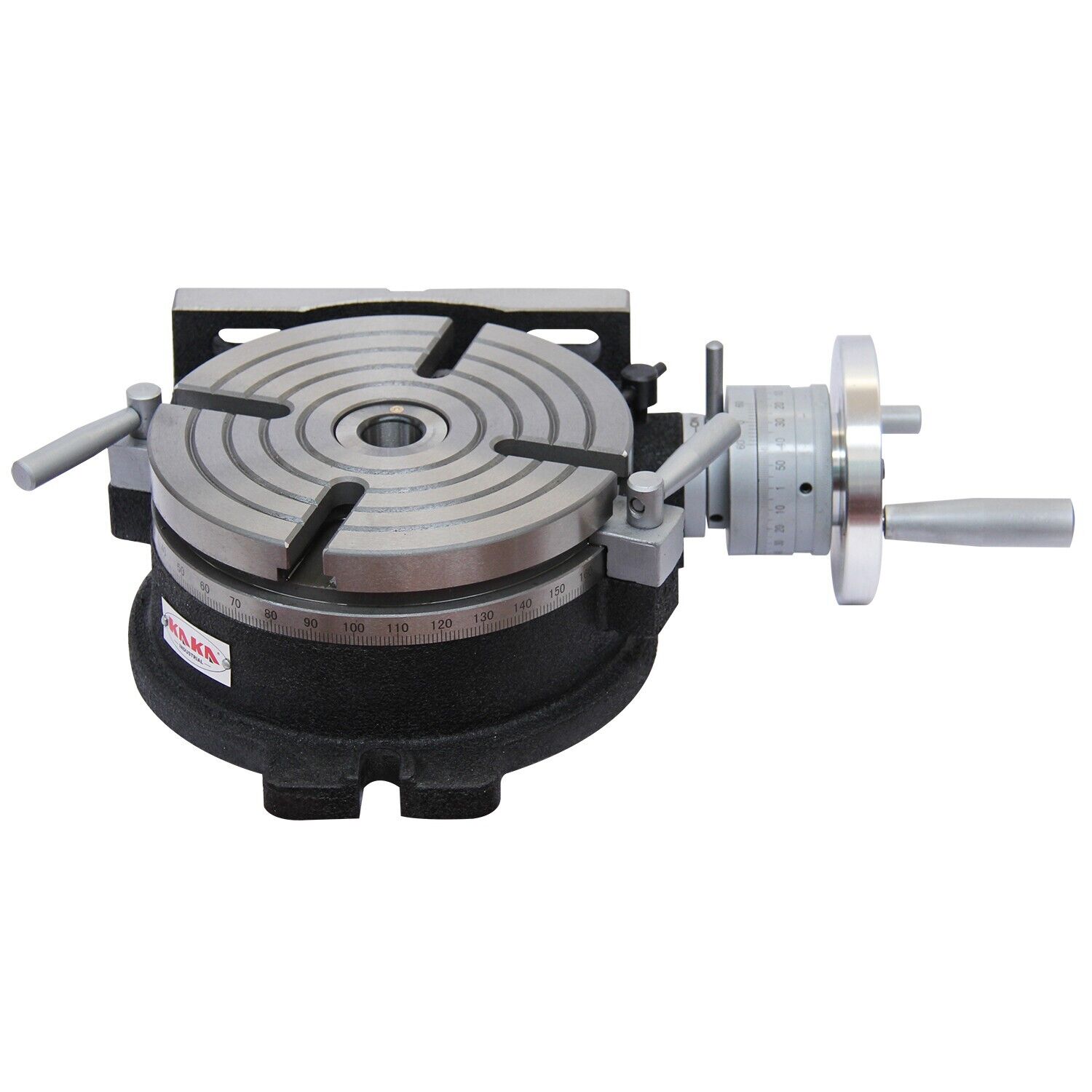

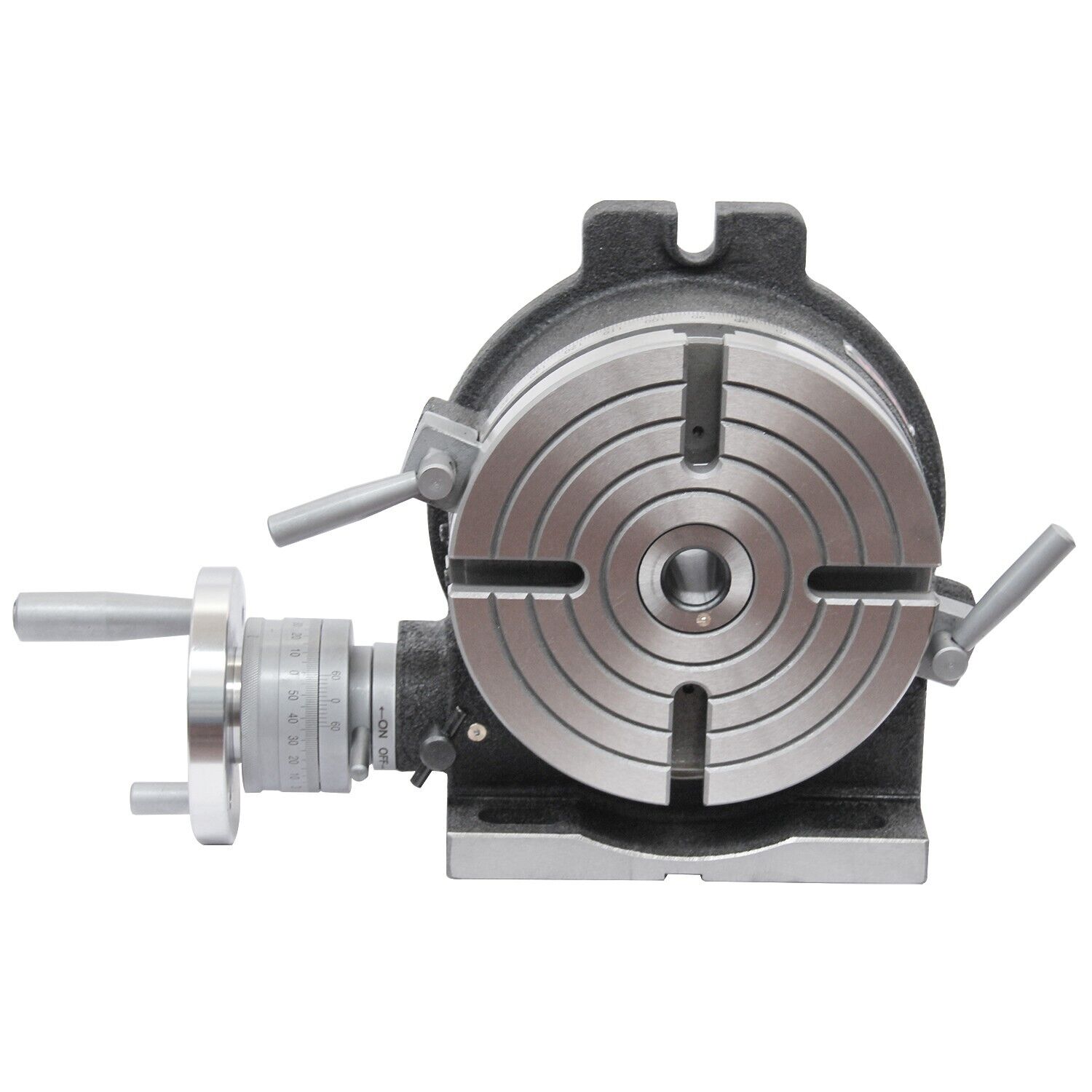

INDUSTRIAL Rotary Table HV-8ø200mm table, high-density cast iron rotary table. this table is essential for work requiring accurate indexing, mounting permits exceptional adaptability for boring, milling, tapping, grinding, circular cutting, angle setting, spot facing and many other applications, made of heavy duty cast iron with machined ground base, it is graduated with a 360°
| Model | HV-4 | HV-6 | HV-8 |
|---|---|---|---|
| Item No. | 161104 | 161106 | 161108 |
| Dia. of table | 110 mm | 150 mm | 200 mm |
| Morse taper | MT2 | MT2 | MT3 |
| Width of T-slot | 12 mm | 12 mm | 14 mm |
| Adjacent angle of T slot | 120° | 90° | 90° |
| Transmission ratio of the worm gear | 1:72 | 1:90 | 1:90 |
| Minimum value of vernier | 10" | 10" | 10" |
| Max. loading with table horizontal | 110kg | 110kg | 150 kg |
| Max. loading with table Vertical | 110kg | 110kg | 75 kg |
| Packing size | 19x10x12 cm | 26x24x13 cm | 38x31x18 cm |
| N.W./G.W. | 7/9 kg | 13/15 kg | 31/38 kg |
