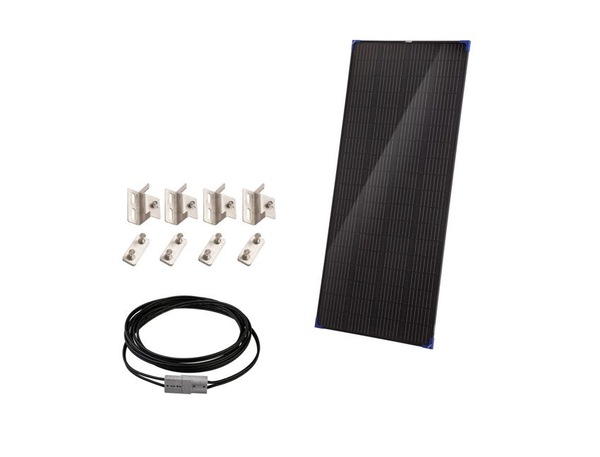

200W Fixed Glass Solar Panel Grade A cells 1.8cm Slim Frame+ 6m Extension Lead + Solar Panel Mounting Brackets

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$118.90

Collect 118 Everyday Rewards points

Log in to MyDeal to link your card
$50.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
the 200W panel is the perfect choice for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats! 3.2mm thickened glass panel with a reinforced custom aluminum frame. This ensures durability when fixed mounted on a vehicle, guaranteeing years reliable power

• The slimline custom extruded frame not only reduces wind resistance to boost fuel efficiency but also lowers the overall height of your vehicle so you can fit into those tight spaces. The black finish seamlessly blends with most common roof racks, adding a clean, finished look to your vehicle.

• The 200W Solar panel is super compact and will fit neatly on most vehicle roof racks, measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors. Even better, two side by side will perfectly fill the roof rack of most common wagons and hard shell roof top tents

• Designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

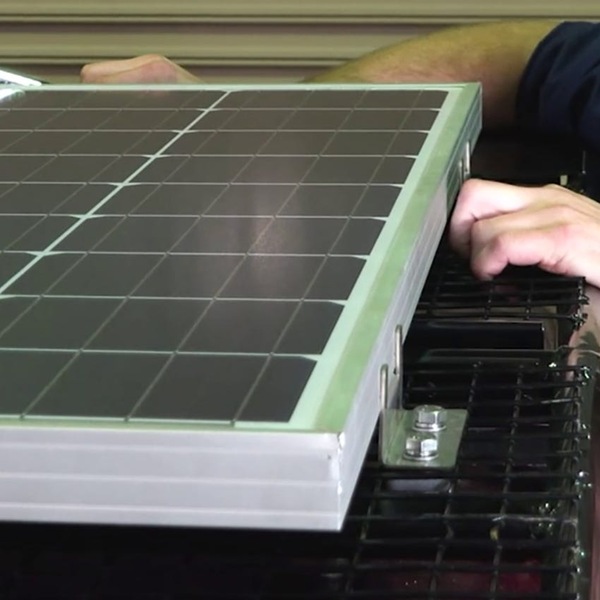

• STAINLESS STEEL BRACKETS - Made with tough stainless steel and using threaded alloy blocks they're strong and neat. If you want to permanently mount your Solar Panel , this is the easiest and neatest way to do it! Raises the solar panel approx. 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days.

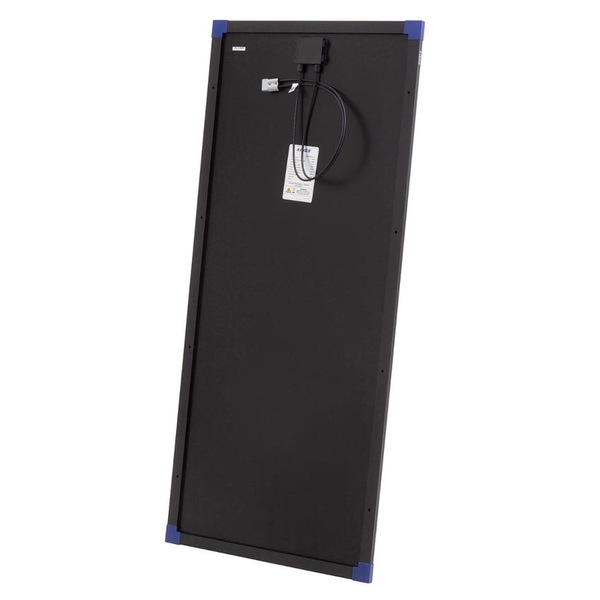

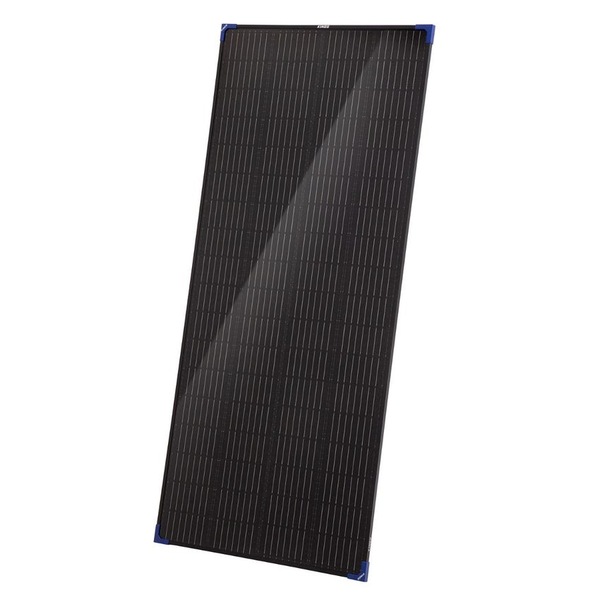

KINGS 200W FIXED SOLAR PANEL
Up to 16.67A of charge at 12V | Grade A cells | 1.8cm Slimline Frame


The 200W panel is the perfect cost-effective choice for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats!


The slimline custom extruded frame not only reduces wind resistance to boost fuel efficiency but also lowers the overall height of your vehicle so you can fit into those tight spaces.


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 70 x 156.5 x 1.8 cm
Weight 11.6 kg

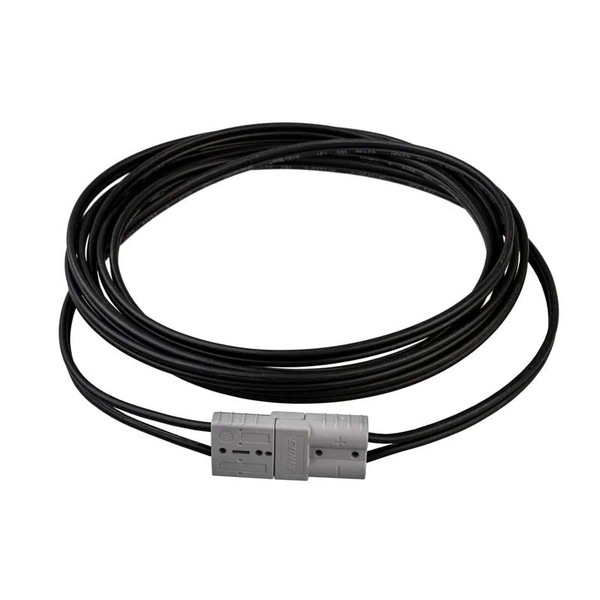

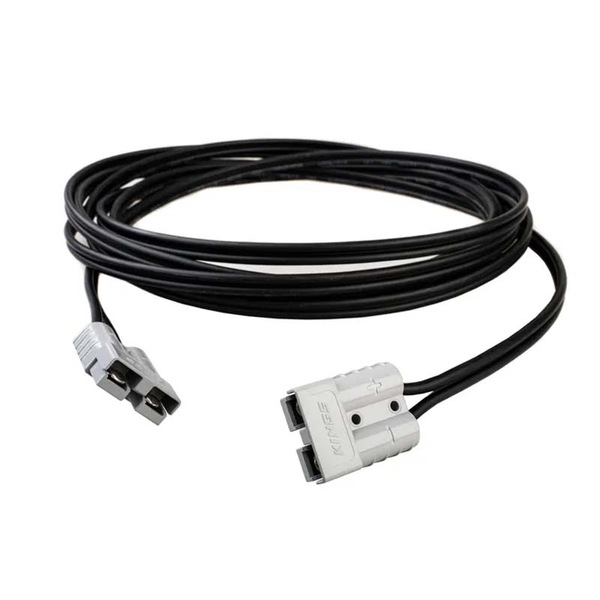

ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 COPPER


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°

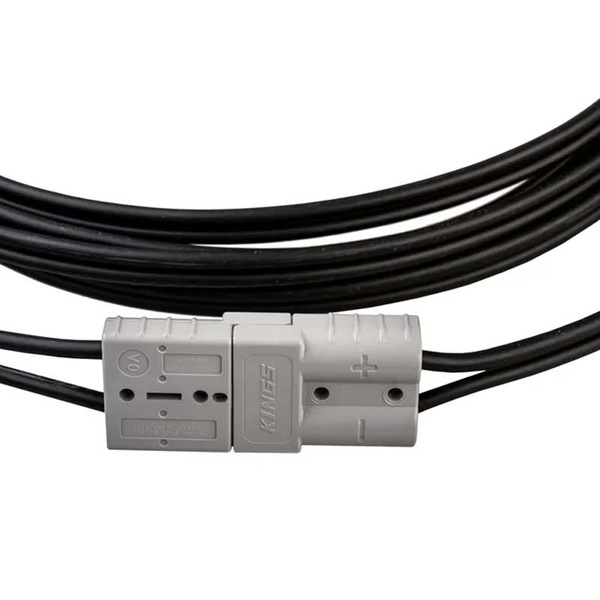

Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

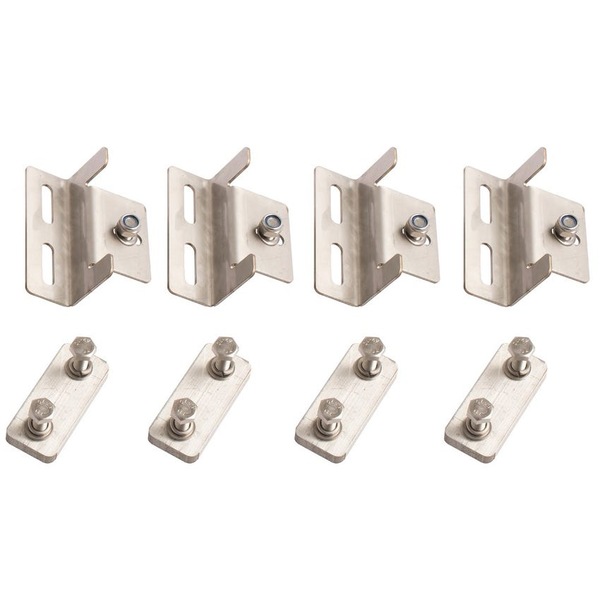

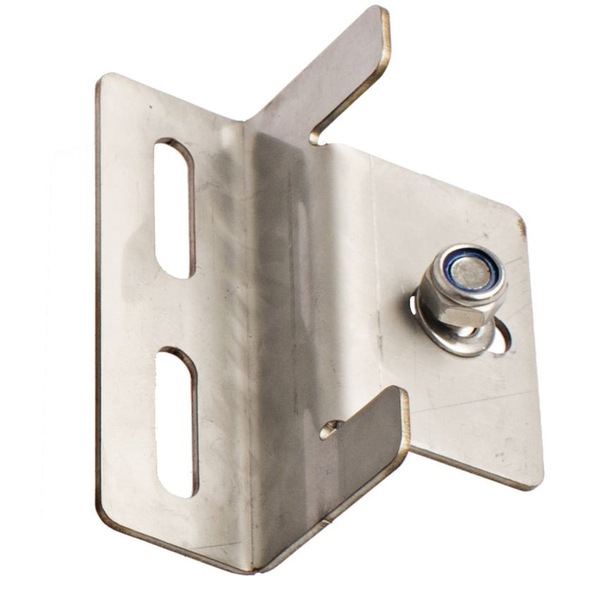

SOLAR PANEL MOUNTING BRACKETS


Easily and securely mount your Adventure Kings 200W Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit!





• Bracket Material: Folded Stainless Steel


• Mounting Hardware: Stainless Steel


• Weight (four brackets combined): 800gm

MPN: SC-CO-200WFX-6MLEAD-110WBRACKET
