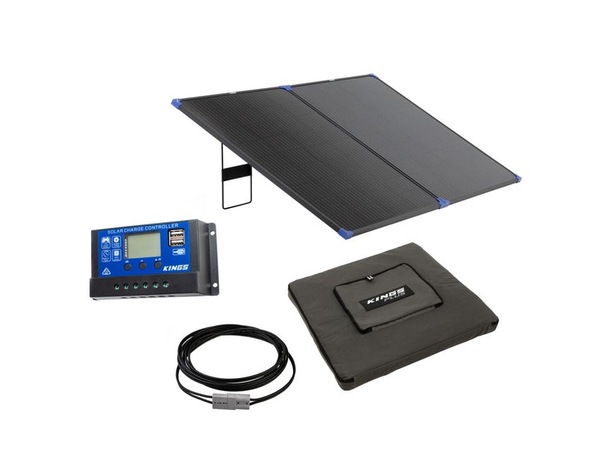

200W Folding Solar Panel + 6m Extension Lead + Folding Solar Panel Bag + 15A PWM Solar Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$263.85

Collect 263 Everyday Rewards points

Log in to MyDeal to link your card
$35.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

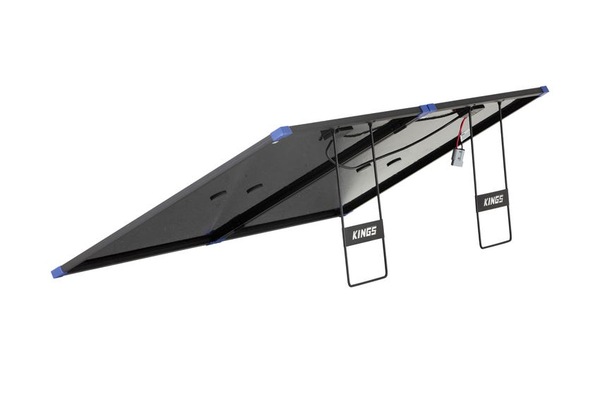

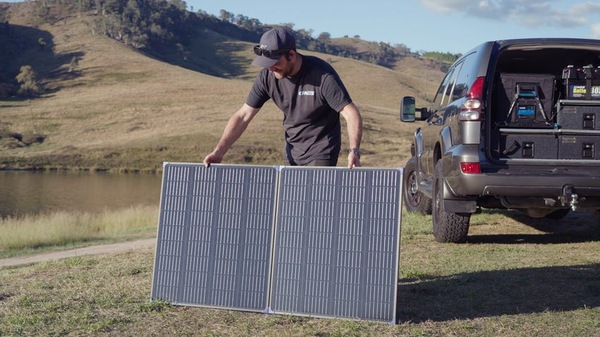

The Adventure Kings 200W Folding solar panel is perfect for capturing power from the sun. With legs designed to capture maximum sun exposure all day, this panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.

• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup.

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

• Protect your Adventure Kings folding solar panel from the harshest conditions with our dedicated protective cover. This simple yet effective accessory acts as affordable insurance for your solar panel, ensuring it remains in top condition for many years to come.

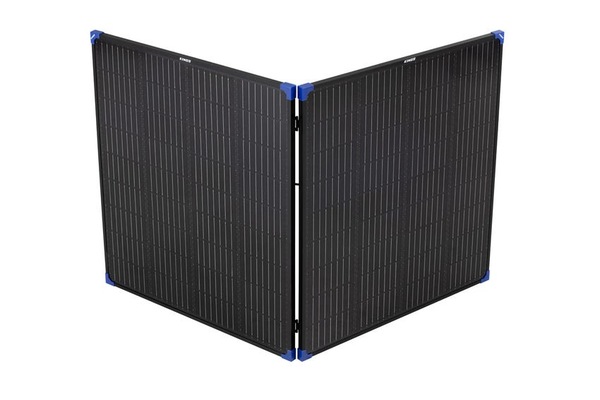

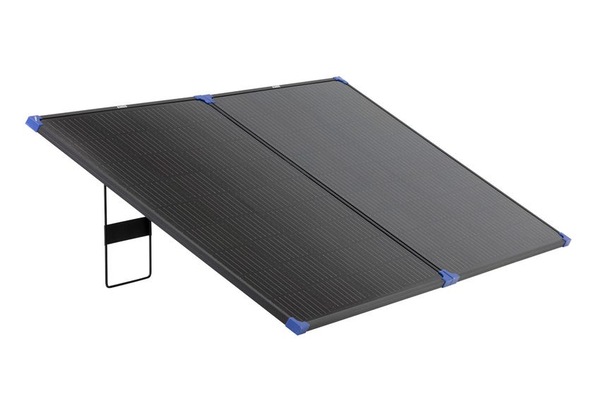

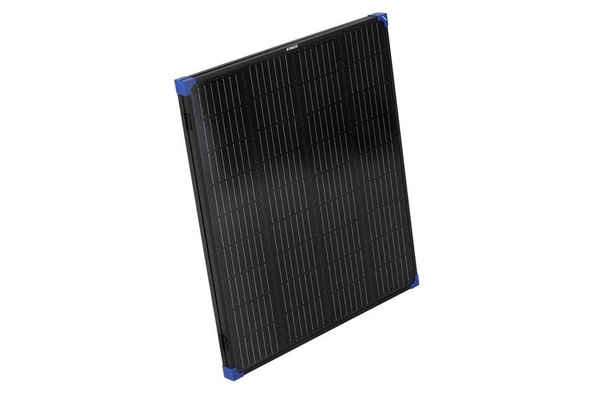

KINGS 200W FOLDING SOLAR PANEL


This panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit) 24.20V
ISC (Short Circuit) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Max Power) 20.40V
IMP (Maximum Power) 9.90A
ISC Temp Coeff 0.05%/°C
VOC Temp Coeff -0.39%/°C
Pmax Temp Coeff -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dim 141 x 80 x 1.8 cm
Folded Dim  70 x 80 x 4 cm
Weight 8.9 kg

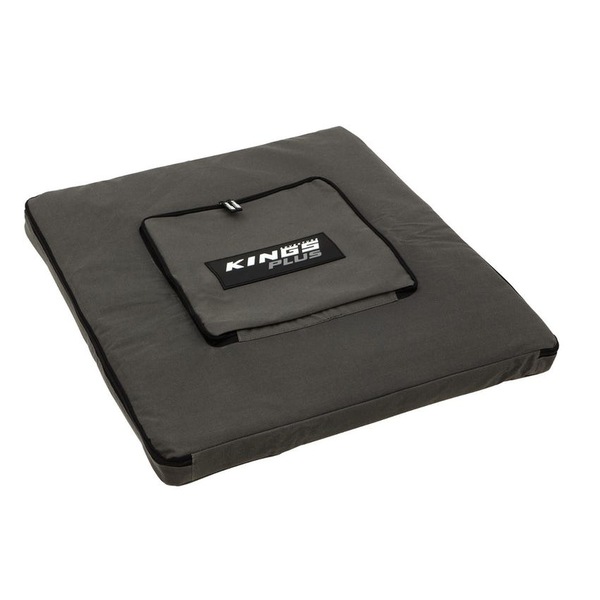

KINGS FOLDING SOLAR PANEL BAG-Protect Your Folding Solar Panels


Material 370GSM gray canvas


Dimensions Internal 70 x 80 x 6.5 cm


Weight 1.4 kg

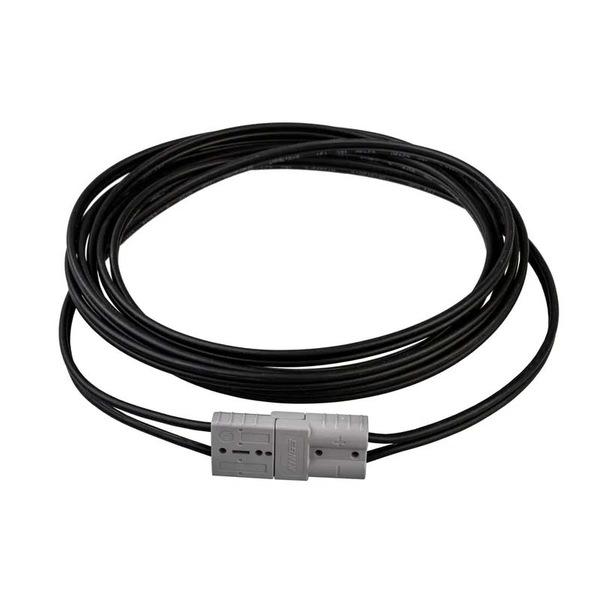

ADVENTURE KINGS 6M SOLAR EXTENSION LEAD


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

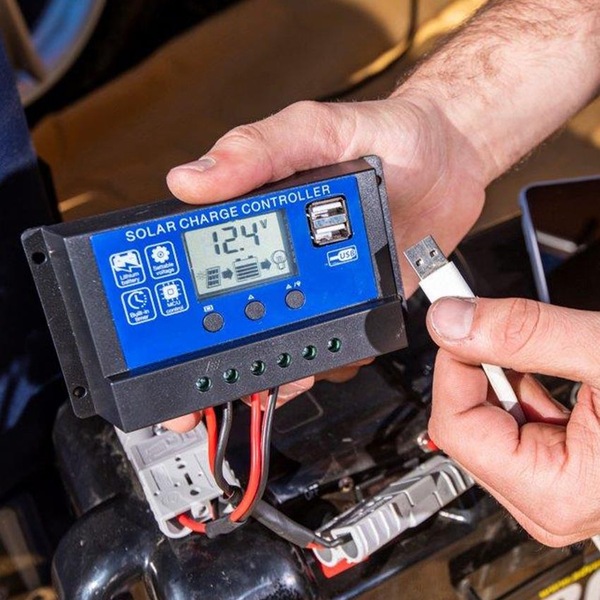

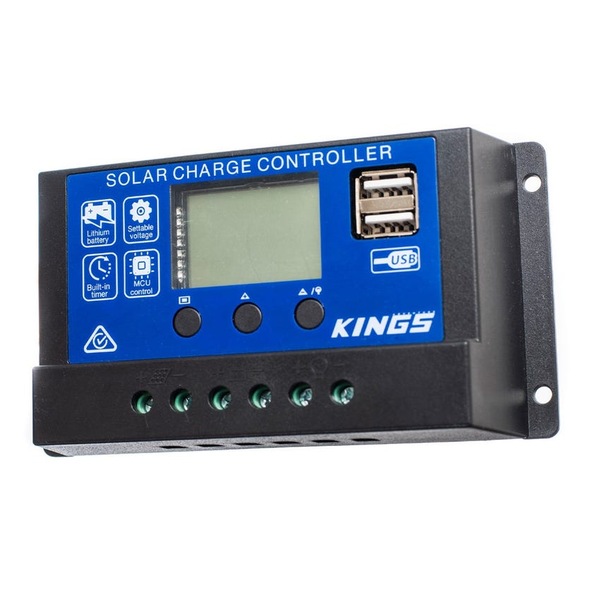

15A PWM SOLAR CONTROLLER





Specifications:


• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable


• USB Output: 5V / 2A


• Weight: 154g

MPN: SC-CO-200WF-6MLEAD-BAGL-PWNREG
