XTOOL X100 MAX2 Diagnostic Scanner Description

XTOOL X100 MAX2 J2534 ECU Car Key Programmer & Diagnostic Scanner - 2025 Upgraded Model
Product Overview

The 2025 XTOOL X100 MAX2 is a professional-grade automotive diagnostic scanner and key programmer, designed for locksmiths, mechanics, auto repair shops, and car dealers. As an upgraded successor to the X100 PAD3 and IK618, it offers J2534 ECU programming, advanced key programming with the included KC501, 42+ maintenance services, and bi-directional control. Powered by Android 10.0, a 4-core 1.5GHz processor, 4GB RAM, and 128GB storage, it delivers fast diagnostics on a 9.7-inch 1024x768 touchscreen. With WiFi/Bluetooth connectivity, intelligent topology mapping, and support for CAN FD, DoIP, and FCA AutoAuth, the X100 MAX2 covers a wide range of vehicles up to 2024/2025.

Vehicle Coverage

The X100 MAX2 supports a vast array of vehicles worldwide, covering models from Asia, Europe, America, China, and Brazil up to 2024/2025. It includes CAN FD for GM 2020+ (e.g., Chevrolet Tahoe, Cadillac Escalade) and DoIP for BMW E/F/G chassis, Jaguar, and Land Rover. Below is the supported brand list:

Asia
  • Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SsangYong, Proton
Europe
  • Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Renault, Lada, Russian Renault, Perodua (Malaysia), Proton (Malaysia), Renault Megane III (France)
America
  • GM, Cadillac, Buick, Chrysler, Ford, Lincoln
China
  • Great Wall, Chery, Brilliance-Auto, Geely, Lifan, Hafei, Changan, Landwind, BYD, JAC
Brazil
  • Brazil GM, Brazil Chevrolet, Brazil Fiat, Brazil Ford, Brazil VAG

Note: Not all models are supported for every function; confirm compatibility with the seller using your vehicle’s VIN.

Key Features and Benefits

The X100 MAX2 combines advanced diagnostics, programming, and key fob capabilities:

  • J2534 ECU Programming: Online for BMW, Benz, VW, Audi, Skoda; offline for Ford, Lincoln, Mazda.
  • Advanced Key Programming: Includes KC501 for Benz, BMW, VW, Toyota all-key-lost, and more.
  • 42+ Maintenance Services: Covers oil reset, ABS bleeding, injector coding, and more.
  • Bi-Directional Control: Performs active tests like injector balance, A/C clutch, and window tests.
  • Intelligent Topology Mapping: Visualizes module communication, improving efficiency by 60%.
  • CAN FD & DoIP Support: Compatible with GM 2020+, BMW E/F/G, Jaguar, Land Rover.
  • FCA AutoAuth: Accesses 2018+ Chrysler, Jeep, Dodge, Fiat without a 12+8 cable.
  • Pre/Post Scan & Report V2.0: Generates customizable diagnostic reports with shop logos.
  • WiFi/Bluetooth Connectivity: Faster, longer-range diagnostics (30–100m) compared to cables.
  • AutoVIN & Auto Scan: Quickly detects vehicle details for efficient diagnostics.
  • 15 Languages: English (default), German, Spanish, French, Polish, Portuguese, Russian, Italian, Turkish, Traditional Chinese, Japanese, Korean, Vietnamese, Arabic, Finnish (send S/N to seller for others).
  • 2-Year Free Updates: Expands vehicle coverage and features; device remains functional post-update.
  • Full Adapter Kits: Includes all necessary cables and connectors for immediate use.
Advanced Key Programming with KC501

The included KC501 key programmer makes the X100 MAX2 a top choice for locksmiths, offering 3X faster IMMO and key fob programming compared to the X100 PAD3.

  • Functions:
    • Read PIN/CS (all-key-lost), key generation, key learning, remote learning.
    • IMMO ECU reset/adaptation/refresh/coding.
    • Transponder read/write, EEPROM/MCU read/write.
    • Remote frequency detection, chip type/ID reading.
  • Supported Vehicles:
    • Benz FEM/BDC key learning/ECU adaptation, 3rd Gen add key/all-key-lost via OBD.
    • BMW CAS1/2/3/3++ key learning and matching.
    • VW/Audi/Skoda/Seat IMMO III/IV/V, MQB (VDD & JCI), A4/A5/Q5 2015+ add key/all-key-lost.
    • Toyota/Lexus 94, 98, 88, A8, A9, 39 simulation key generation, all-key-lost via OBD.
    • Volvo smart key learning, Land Rover 2015+ smart key write.
    • Fiat 500, Palio, Honda, GM, Ford, and more.
  • KC501 Capabilities:
    • Read/write MCU/EEPROM, MC9S12 encrypted chips.
    • Mercedes-Benz infrared key read/write.
    • IC card read/write, control frequency detection.
  • Optional Adapters (Not Included):
    • KC100: VW, Audi, Skoda, Seat, Bentley 4th/5th, MQB IMMO.
    • M822: Benz, Toyota 4A/8A all-key-lost.
    • KS-1: Toyota smart key all-key-lost, 94 chip.
    • SK-1: 2013–2022 Toyota/Lexus 8A/4A smart keys, add key/all-key-lost, emergency start.
  • Use Case: Program a new smart key for a 2020 Toyota Camry in an all-key-lost scenario.
  • Note: Key programming varies by model; confirm with the seller using VIN.
J2534 ECU Programming and Coding

The X100 MAX2 with the V208 VCI box supports advanced ECU programming and coding for module replacement and performance optimization.

J2534 ECU Programming
  • Online Programming: For BMW, Benz, VW, Audi, Skoda to replace software/firmware, reflash new ECUs, or fix drivability/emission issues.
  • Offline Programming: For Ford, Lincoln, Mazda to copy codes or perform Programmable Module Installation (PMI) after ECU swaps.
  • Pass-Through Mode: Works with PC and OEM software for J2534 protocol diagnostics.
  • Use Case: Reflash an ECM on a 2021 BMW X5 to resolve emission faults.
Advanced ECU Coding
  • Matches/relearns replaced ECU modules, changes factory settings, or unlocks hidden features (VW, Audi, Skoda only).
  • Examples: Disable seat belt alarm, enable mirror folding, adjust speed limiter.
  • Use Case: Code a new TCM on a 2020 Audi A4 for compatibility.
PMI (Programmable Module Installation)
  • Initializes or replaces modules for Ford, Lincoln, Mazda.
42+ Maintenance Services

The X100 MAX2 offers over 42 maintenance and reset functions for comprehensive vehicle care. Note: Functions vary by vehicle; confirm with seller using VIN.

  • Oil Reset: Resets oil life (e.g., 2022 Ford F-150).
  • EPB Reset: Resets electronic parking brakes.
  • SAS Calibration: Resets steering angle sensors (e.g., 2021 VW Jetta).
  • BMS Reset: Registers new batteries.
  • Throttle Relearn: Resets throttle settings.
  • Injector Coding: Codes new injectors (e.g., 2020 Honda Civic).
  • ABS Bleeding: Removes air from ABS systems (e.g., 2021 Chevrolet Silverado).
  • IMMO Reset: Resets immobilizer settings.
  • TPMS Reset: Resets tire pressure sensors.
  • Headlight Adjustment: Aligns headlights.
  • Window Initialization: Calibrates windows.
  • Seat Calibration: Adjusts seat settings.
  • Power Balance: Balances engine performance.
  • ABS Initialization: Initializes ABS modules.
  • VSC Yaw Rate: Calibrates stability control.
  • SWS Calibration: Calibrates steering wheel sensors.
  • Fuel Alcohol Content Reset: Resets fuel composition.
  • Trans Fluid Counter Reset: Resets transmission fluid life.
  • Idle Relearn: Resets idle settings.
  • Gearbox Match: Matches transmission settings.
  • Suspension Calibration: Adjusts suspension settings.
  • ECU Configuration: Configures new ECUs.
  • A/F Settings: Adjusts air/fuel ratios.
  • Start/Stop Reset: Disables auto start/stop.
  • Airbag Repair: Resets airbag data.
  • Instrument Cluster: Calibrates gauges.
  • Language Change: Adjusts display language.
  • Transport Mode: Disables transport settings.
  • Tire Upgrade: Updates tire size data.
  • Gear Learning: Relearns gear settings.
  • EEPROM: Reads/writes EEPROM data.
  • Electronic Pump Activation: Activates pumps.
  • ADAS Calibration: Calibrates driver-assistance systems.
  • Speed Limit: Adjusts speed limiter.
  • Clutch Adaptation: Relearns clutch settings.
  • SRS: Resets supplemental restraint systems.
  • EGR Relearn: Relearns exhaust gas recirculation.
  • FRM Reset: Resets footwell modules.
  • NOx Reset: Resets NOx sensor data.
  • VIN Write: Updates vehicle identification number.
  • VGT Relearn: Relearns variable geometry turbo.
  • HV Battery: Services hybrid batteries.
  • A/C Relearn: Relearns air conditioning settings.
  • Rain/Light Sensor: Calibrates sensors.
  • Reset Control Unit: Resets modules.

Use Case: Reset oil light and calibrate SAS on a 2021 Toyota Corolla.

OE-Level Full System Diagnostics

The X100 MAX2 provides dealership-level diagnostics across all vehicle modules.

  • Modules Covered: PCM, ECM, TCM, BCM, SCCM, ABS, airbags, SAS, DPF, EVAP, TPMS, BMS, EPB, and more.
  • Functions: Read/clear codes, view live data in 8-in-1 graphing, record/replay data, view freeze frame, perform active tests, coding, adaptation, reflash hidden functions.
  • VAG Guided Functions: Step-by-step instructions for VW, Audi, Skoda, Seat, Man LD maintenance and coding.
  • Use Case: Diagnose a 2020 Chrysler Pacifica’s airbag fault with live data.

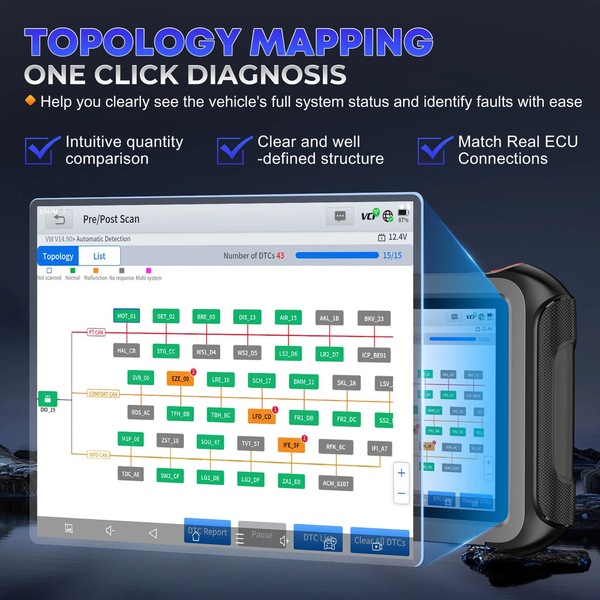

Intelligent Topology Mapping
  • Displays color-coded module communication structure for 60% faster diagnostics.
  • One-click access to fault codes, executive functions, and live data graphing.
  • Use Case: Map a 2021 Ford F-150’s modules to pinpoint an ABS fault.
  • Note: Not available for all vehicles; confirm with seller.
Bi-Directional Control
  • Commands components like injectors, A/C clutch, cooling fan, windows, wipers, sunroof, ABS pump, and more.
  • Tests: EVAP test, idle relearn, injector test, fuel trim reset, fuel composition reset.
  • Use Case: Test fuel injector balance on a 2020 Honda Accord.
  • Note: Test availability varies by vehicle age/model.

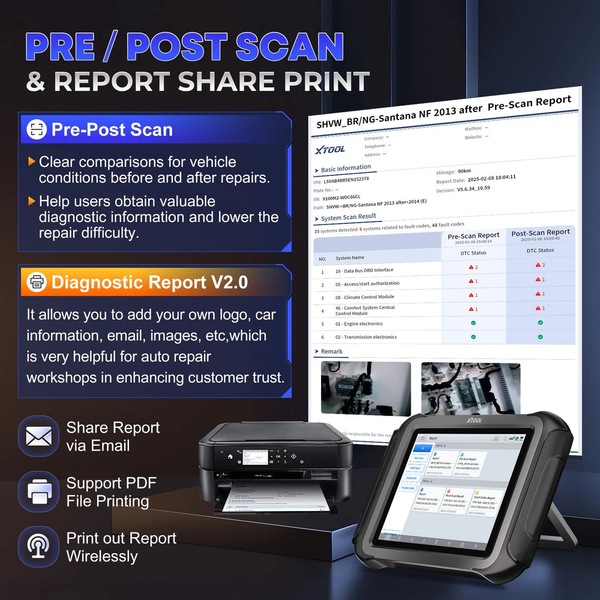

Pre/Post Scan & Diagnostic Report V2.0
  • Pre-Scan: Identifies current/historical DTCs for repair planning.
  • Post-Scan: Verifies codes cleared and systems normal post-repair.
  • Report V2.0: Customizable with shop logo, vehicle info, and issue images.
  • Use Case: Generate a report for a 2021 GM Sierra’s brake repair.
Additional Professional Functions
  • Reflash Hidden Functions: Unlocks features like mirror folding or disables seat belt alarms for BMW, VW, Audi, Skoda, Toyota, Lexus, Scion, Mazda, Ford, Lincoln (confirm compatibility).

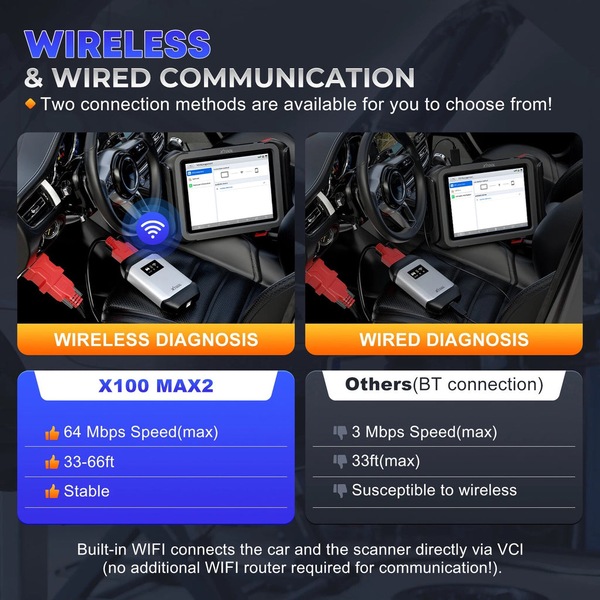

  • WiFi/Bluetooth Diagnostics: 30–100m range for cable-free operation.
  • CAN FD & DoIP: Supports GM 2020+, BMW E/F/G, Jaguar, Land Rover.
  • FCA AutoAuth: Accesses 2018+ Chrysler, Jeep, Dodge, Fiat 2017+ (requires user FCA account).

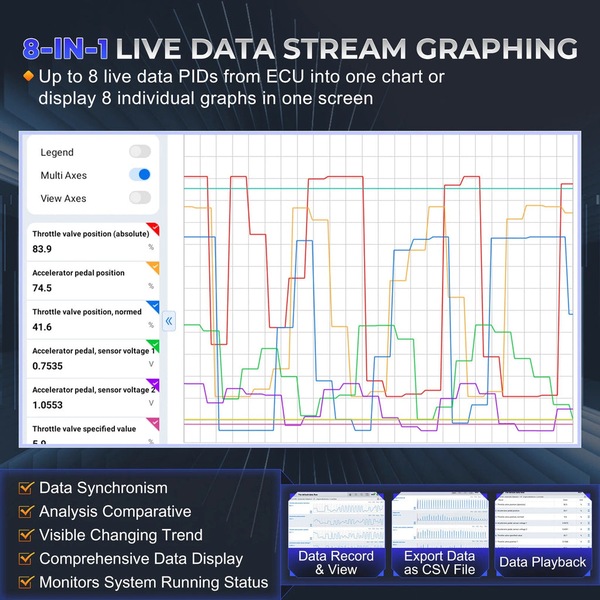

  • 8-in-1 Live Data Graphing: Merges up to 8 data streams (e.g., engine RPM, coolant temperature).

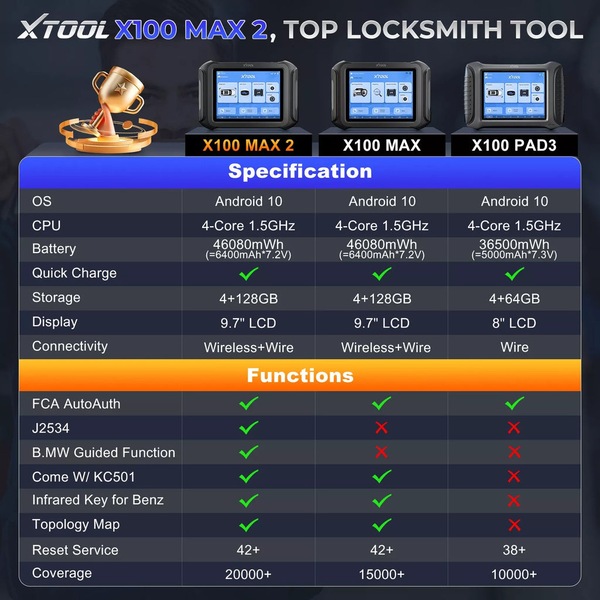

Hardware Specifications
  • Operating System: Android 10.0
  • Processor: 4-core 1.5GHz
  • Memory: 4GB RAM, 128GB storage
  • Display: 9.7-inch touchscreen, 1024x768 resolution
  • Battery: 6400mAh, 7.2V
  • Connectivity: WiFi, Bluetooth, USB (V208 VCI box)
  • Adapters: Full kit included for immediate use
Practical Use Cases
  • Key Programming: Add a new key for a 2019 VW Tiguan using KC501.
  • ECU Programming: Reflash a PCM on a 2022 Mercedes-Benz C-Class.
  • Maintenance: Reset oil light and bleed ABS on a 2021 Chevrolet Silverado.
  • Diagnostics: Use topology mapping to diagnose a 2020 Audi Q5’s TCM fault.
Technical Notes and Limitations
  • Compatibility: Functions like key programming, topology mapping, and ECU coding vary; confirm with VIN.
  • FCA AutoAuth: Requires user-registered FCA account for 2018+ vehicles.
  • Language Setup: Default English; send S/N to seller for other languages.
  • Adapters: KS01, M822, SK1 not included; confirm requirements.

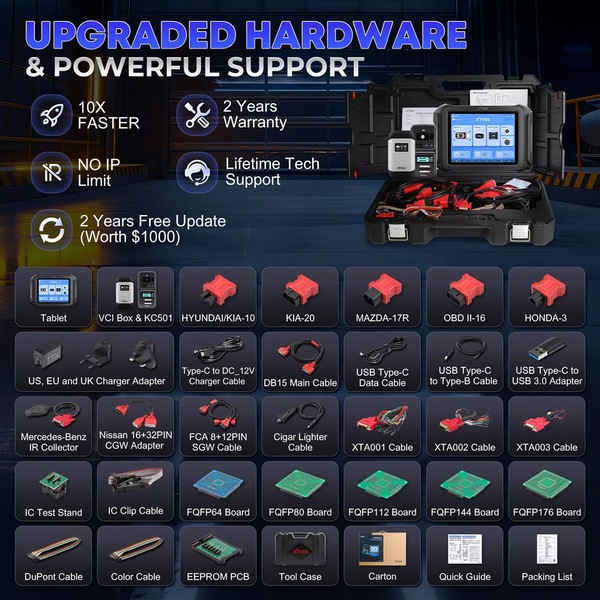

Specifications:

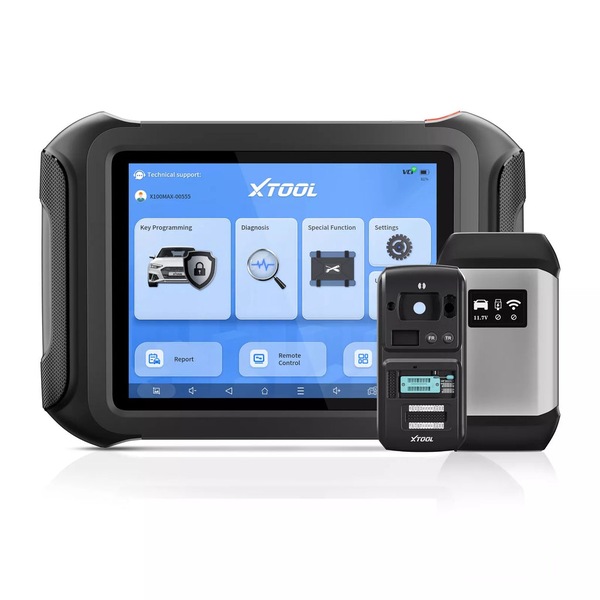

  • XTOOL X100 MAX2 tablet
  • VCI Box
  • KC501 key programmer
  • For Honda-3
  • For Kia-20
  • For Mazda-17R
  • Hyundai/Kia-10
  • For Nissan 16+32PIN CGW Adapter
  • FCA 8+12PIN SGW Cable
  • OBDII-16
  • DB15 Main Cable
  • Infrared Collector
  • PCBA EEPROM
  • FQFP64 /FQFP80 /FQFP112 /FQFP144 /FQFP176 Board
  • IC Test Stand
  • Color Cable
  • IC Clip Cable
  • DuPont Cable
  • XTA001/XTA002/XTA003 Cable
  • Type C to Type A cable
  • Type C USB cable
  • Power charger
  • Type C to USB 3.0 Adapter
  • Regional Power Adapter – Type G

  • Regional Power Adapter – Type C

  • Packing list
  • Quick start guide
