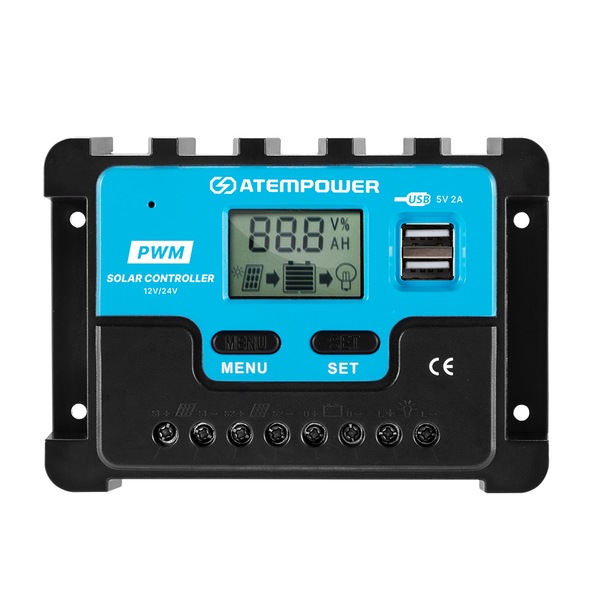

ATEM POWER 20A Solar Charge Controller 12V 24V Lithium Battery Panel Regulator 2 USB LCD

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 19 items left!
$18.95

Collect 18 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Sunyee
Secure ways to pay at checkout
DESCRIPTION
If you are looking for a solar controller to charge your battery and keep unnecessary damages at bay, please look no further, this PWM solar controller must be the one you are looking for. This solar controller is ideal for off-grid applications on 12V-24V systems and it uses a 3-stage algorithm---bulk, absorption and float---to increase the lifespan and performance of batteries accordingly to battery type lead acid battery(flooded, GEL and AGM) and lithium battery ( Li(LiCoMn)O2 and LiFePO4). And this is further enhanced by the programmable voltage it integrates. In addition, this solar controller can be connected to 2 solar panels, which can increase charging efficiency. It also offers a built-in LCD display, through which you can have a real-time view of the system status. And an array of built-in protections-low/over voltage, short circuit, overcharge/ overdischarge, overcurrent, overload and reverse polarity protection-offer an extra layer of protection.

FEATURES

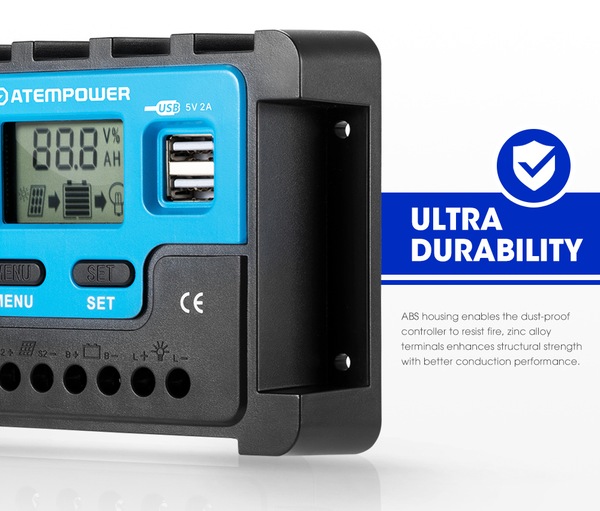

Ultra Durability: ABS housing enables the dust-proof controller to resist fire, zinc alloy terminals enhances structural strength with better conduction performance.
3-Stage Charging: A PWM 3-stage algorithm, bulk, absorption and 100% float charge, is designed to enhance efficiency and ensure battery lifespan.

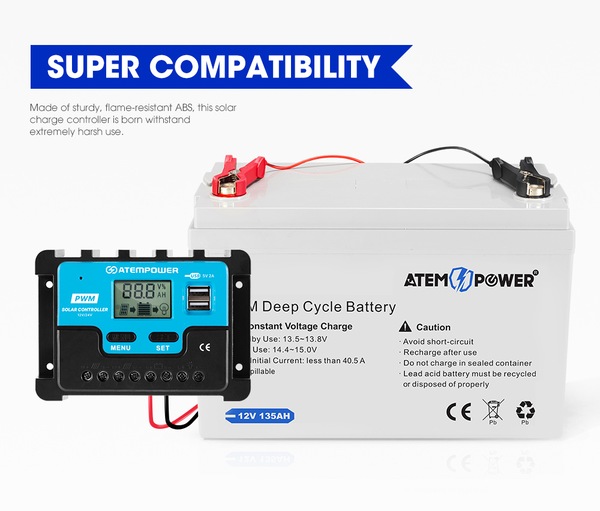

Super Compatibility: It is compatible with lead acid battery(flooded, GEL and AGM) and lithium battery ( Li(LiCoMn)O2 and LiFePO4).
Electronic Protection: Low/over voltage, short circuit, overcharge/ overdischarge, overcurrent, overload and reverse polarity protection are integrated.
Dual Solar Connection: This solar controller is designed to be connected to 2 solar panels simultaneously to increase charging efficiency.
Programmable Voltage: The voltage of this PWM solar controller is programmable to ensure the safety and longevity of different batteries.
Strengthened Boards: Our PCB and backplane boards are 1.2mm and 1mm in thickness which are fracture proof VS 0.8mm and 0.6mm offered by competitors.

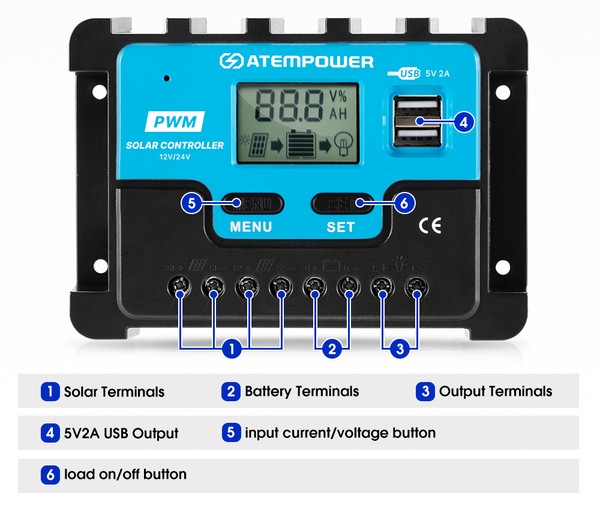

Simple Operation: LCD display provides a real-time view, 2 buttons for easy setting and 2 USB ports power your lamps or work as a phone charger.
Temperature Compensation: This mechanism is designed to automatically adjust charge & discharge voltage to enhance battery’s lifespan.

SPECIFICATIONS
Input Voltage:9V-32V
Battery Voltage:12V/24V(Auto Distinguish)
Rated Charge Current:20A
Rated Discharge Current:20A
Maximum Solar Panel Voltage:50V
Float Voltage For AGM (Default):13.8V (Programmable)
Cut-Off Voltage For AGM(Default):14.4V(Programmable)
Discharge Recovery Voltage For AGM (Default):12.6V (Programmable)
Battery Type: Lead Acid Battery(Flooded, GEL and AGM) & Lithium Battery(Li(LiCoMn)O2 and LiFePO4)
USB Port:5V/2A
Standby Current:<10.7mA
Ambient Temperatures:-20°C-+55°C
Charge Mode:PWM

PACKAGE INCLUDES
1 x Solar Charge Controller
1 x User Manual

WARRANTY
12 months warranty

GTIN: 9356307004472

Estimated Delivery Time Frame:3-8 business days
