Item Description
Our LED light bar is a versatile creation to help you out in driving at night, on low light conditions or on a rainy weather. It Features Osram LEDs which produce incredible amount of luminous flux while maintaining low power consumption, maximize the fuel economy of the vehicle. New TRIPLE row spot beam configuration offering a staggering long distance penetration,Unique DOUBLE row spread beam offers 170° super wide horizontal projection on both ends of the light bar, lighting up all the surrounding which could not be seen on standard high beam or traditional 60° spread light bars. It Features IP68 dust/particle tight and waterproof up to 3 metres depth,which made of Industrial grade heavy duty Diecast Aluminium body with 3mm PMMA lens will ensure that the light bar will survive long in harsh outback condition. With an Ultra-low amp draw stabiliser for maximum lifespan, to double up your savings on your pocket.
Features
Triple rows combo reflector cups design.

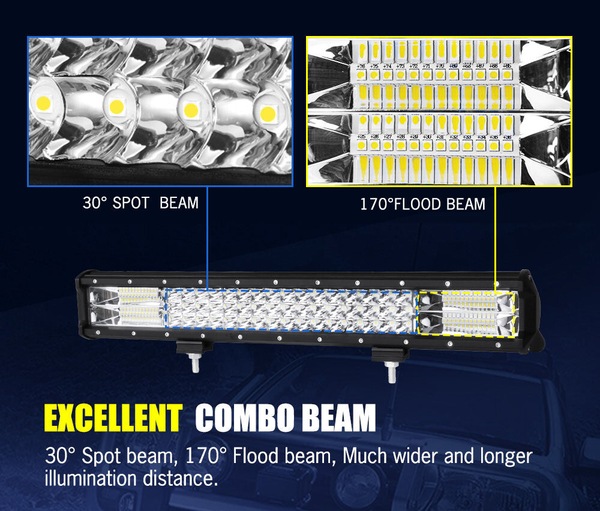

30°spot and 170°flood Combo Beam provide wider vision and longer illumination distance Triple Row & Nest Reflector Cup Design Pushes Lighting Efficiency To The Max.
IP68 High-grade anti-corruption diecast aluminium housing. 100% waterproof, dustproof & quakeproof for extreme environment.
Two-bolt mounting system make it is possible to install for a perfect beam. Easy to install with Integrated design & multiple fixing points.
Specifications
Operating Voltage: 9-32V DC
Waterproof Rate: IP 68
Amp Draw: 7.5 @13.6v
LEDs: 96x Osram LED
Base Color: Black
Color Temperature: 6500K
Material : Diecast aluminum housing
Lens material: PMMA Mounting
Bracket: Alu firm bracket
Beam Type: spot & flood (24F/48S/24F)
Life Span: 30000+hours
Dimensions: 20 inch
Theoretical Lumens Output: 29800LM
Distance: 1 Lux @ 480 Meters
Size(W+D+H): 625mm x 160mm x 115mm
Weight: 2kg
What's In Box
1 x 20Inch LED Light Bar
1 x Black Plate Frame
1 x Wiring Kit
