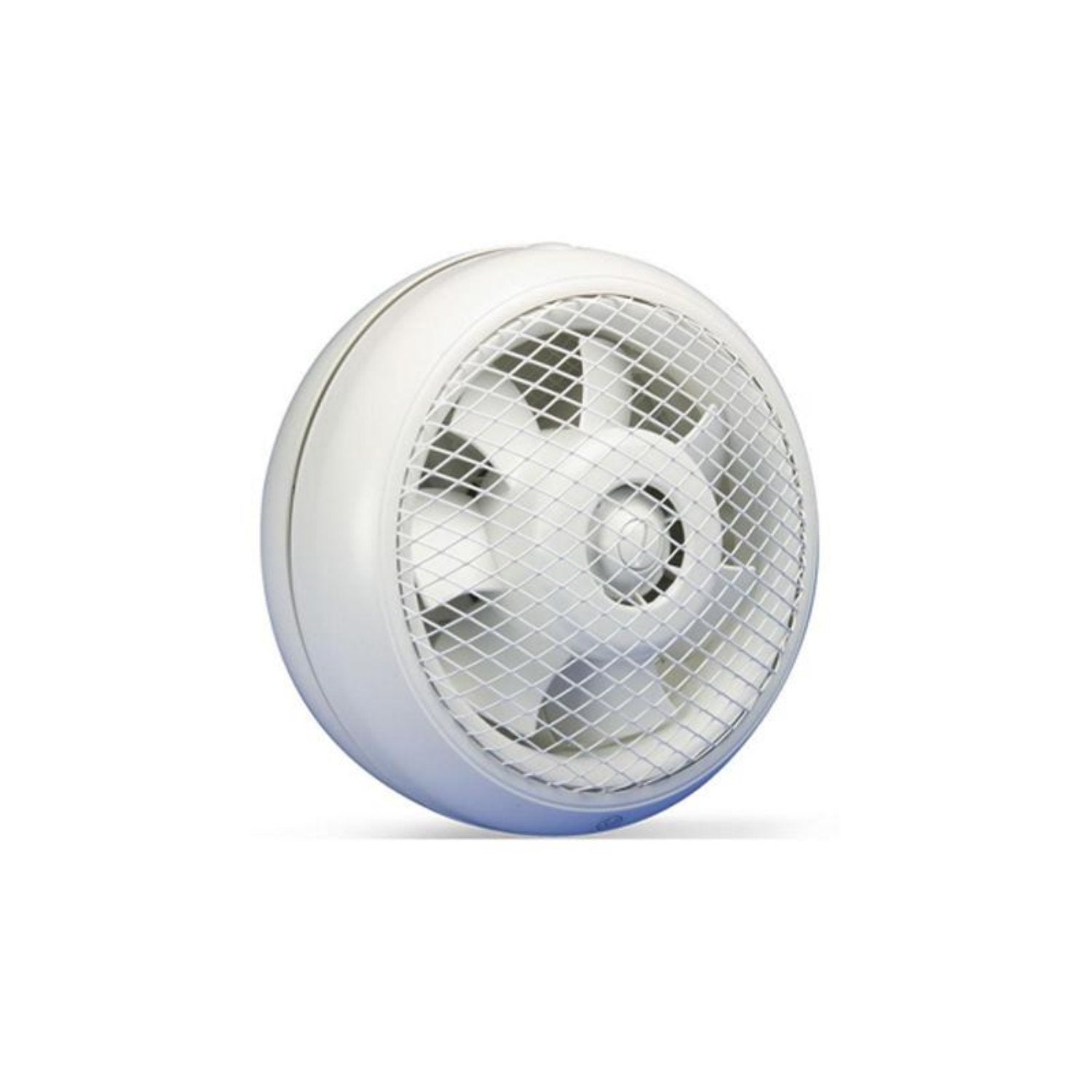

210/380/630m³/h HCM Series Wall/Window Mounted Fan

Image 1
Image 2
Image 3
Image 4
Image 5
Shop More Products

Description:
The HCM Series can be wall or window mounted. It is designed specifically for exhausting air from domestic and commercial installations such as kitchens, bathrooms, store-rooms and all types of small or confined areas.

Features:

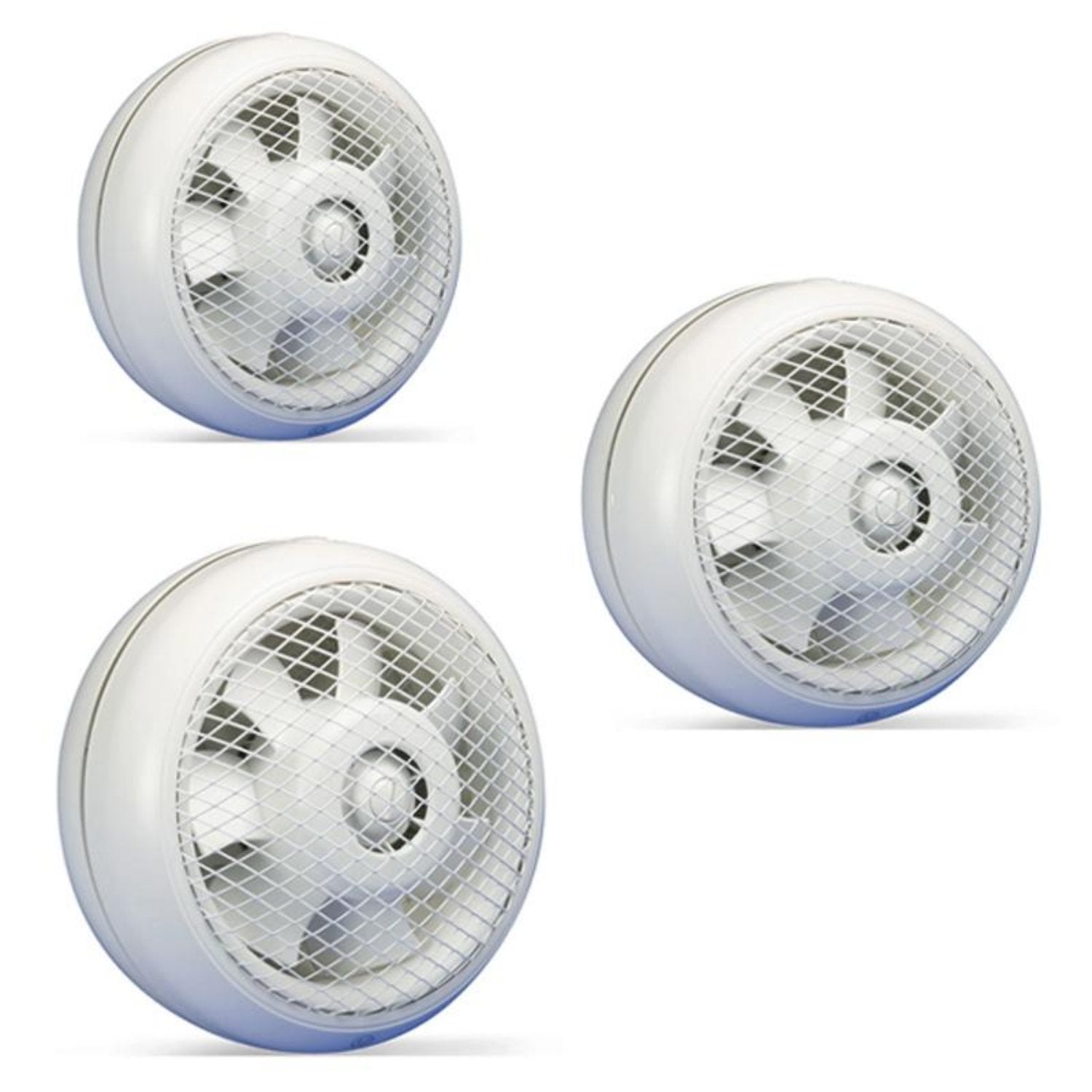

  • Available in 3 sizes for 230V supply.
  • All models incorporate air operated shutters.
  • Impeller blades are sickle shaped for high performance.
  • Quiet operation.
  • IPX4 rated.
  • Weather Cap optional for protection against harsh external conditions.
  • Suitable for mounting on vertical plain only.
  • For wall mounting, a kit of threaded “wall rods” and sleeves can be supplied as an optional extra. Caters for walls ranging in thickness from 25 to 300mm.

Construction

  • Weather and impact resistant plastic housings.

Motors

  • Type-squirrel cage, capacitor run.
  • Electricity supply - single-phase 230V, 50Hz.
  • Bearings - sleeve.
  • Class B motor, IPX4 rated.

Internal Thermal Protection

  • Fuse type

Testing

  • Air flow to ISO5801:1997
  • Noise to BS848:Part 2, 1985

Suggested Specification

  • The wall/window fans shall be of the HCM Series as supplied by Fantech Pty Ltd and be of the model numbers shown.

Note: Must not be mounted directly above heat sources such as an oven.

Reference ID: 1148877
