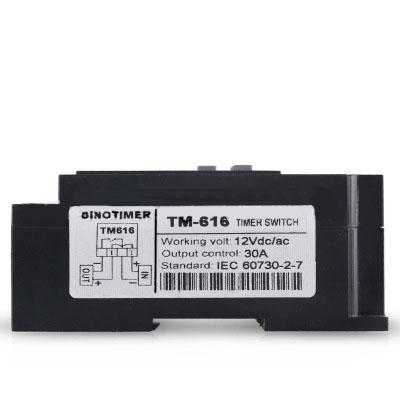

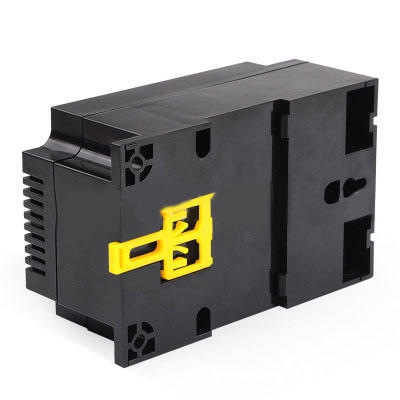

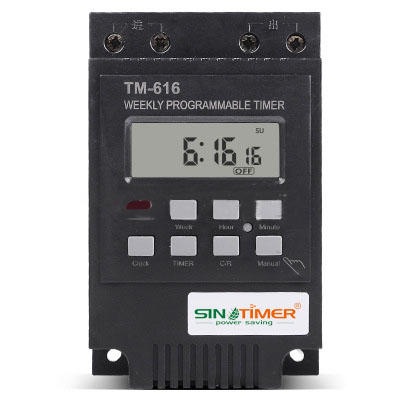

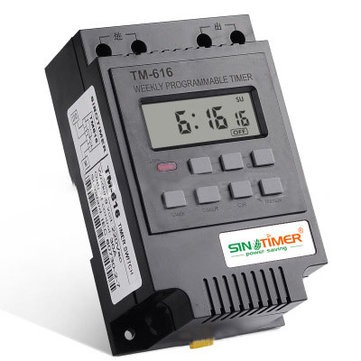

220V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control

Why choose SinoTimer TM616?
?

ONE: ?Simple wiring,220V input, 220V output, no need to ask an Electrical Engineer,you can do it by yourself at home.

TWO: Excellent load capacity, upto 6500Watt,30AMP@250Vac.

THREE: Easy program, everyone can program it after he reads the manual JUST one time.

FOUR: Stable performance because of professinal manufacturing in power saver since 2002.

Five: Confirm to CE approval, LVD and EMC passsed.?

?

Feature :
?

* You can use the tier to SWITCH ON/OFF any elctrical equipments at a preset timer

* Ideal for household use in DB Boards

* 6500 Watt / 30 Amps

* 24 hours / 7 days a week programmable

* Built-in battery for backup the memory (save the programs you set)when power failure

* Auto time error correction +/- 30 sec, weekly

* Repeat programs with 17 on/off settings, and setting on/off manually

?

Specification :?
?

Model : TM616

Temp.range: -20°C+50°C

Ui:220~240V, 50/60Hz

Power consumption 4.5 VA (MAX)

Display: LCD

Switching contact: 1 changeover switch

Programs:17 on/off each day or week

Hysteresis 2 sec/day (25°C)

Mini interval: 1min

Capacity: 30(16) 250V AC

Black-out: 60 days

Timer range: 1min~168hr

Recharge battery: 1.2V 40Ma

Average error: 1s/24h, 25°C

Weight: 0.39kg

Package included:
?

1 x Programmable Timer

1 x English User Manual
