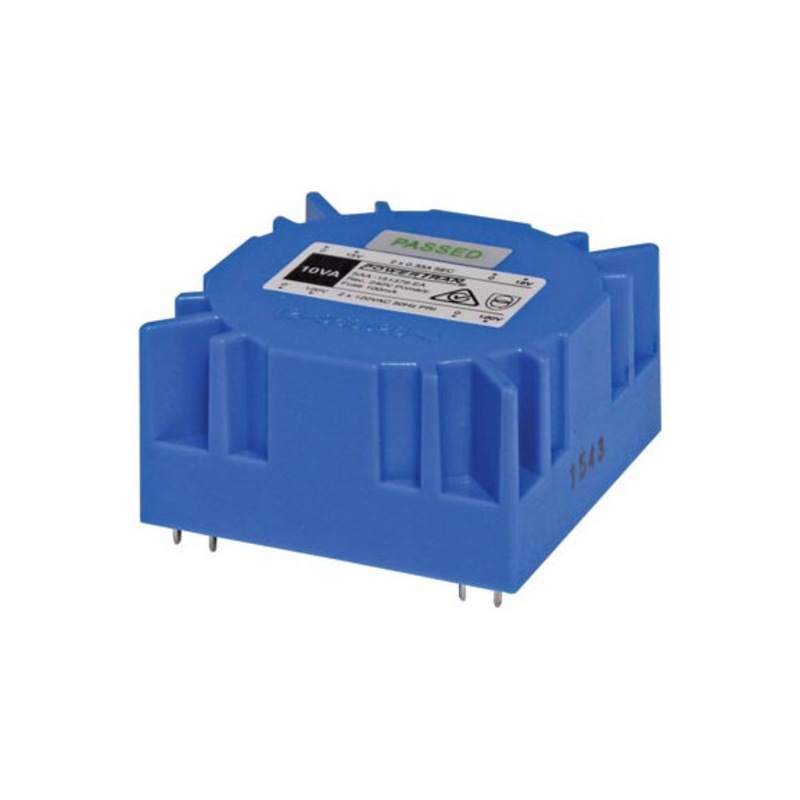

Powertran 12 + 12 PCB 10VA Toroidal Transformer

Image 1
Shop More Products

The transformer is “potted” in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.

  • Sec. V: 24+24
  • Sec. Parallel: 0.82A
  • Sec. Series: 0.41A
  • Primary voltage: 2 x 120V AC
  • Total VA rating: 10VA
  • Insulation: Class A (105°C)
  • Magnetising current: <20mA
  • Temperature rise: <65°C
  • Recommended AC Fuse: 100mA
  • Regulation: ˜20%
  • Weight: ˜210g
  • PCB hole size: 1.2mm
  • Note: Must be used with a standard 100mA external AC fuse

Specifications:

12 month warranty

GTIN: 9321758174685

Reference ID: 1430388
