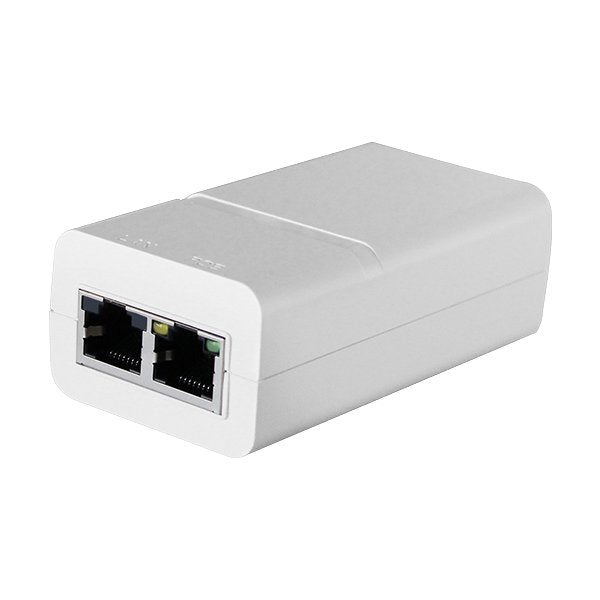

24V DC 30 WATT GIGABIT PASSIVE POWER OVER ETHERNET SUPPLY
Procet 24V DC 30 Watt Gigabit Passive Power over Ethernet Supply. The EN30G-24 is an indoor rated PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 24Vdc, 1.2A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 28W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. Compliant with Level VI Energy Efficiency requirement.
FEATURES
Output: 24Vdc 1200mA 30W
Transmission Rate: 10/100/1000Mbps
Power Pin:4/5(+),7/8(-)
SPECIFICATIONS
Manufacturer's Product Code: PT-EN30G-24
Standards: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet,
IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance
Input: 100-240Vac 1.0A 50/60Hz
Output: 24Vdc 1200mA
Power Pins: 4/5(+), 7/8(-)
Data Speed: 10/100/1000Mbps
Operating Temperature: 0 deg C to 40 deg C
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20 deg C to 70 deg C
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: Up to 2000meters
AC Surge Protection: Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV
LED Indicator: Power Indicator: Yellow, PoE Load Indicator: Green
Case: Plastic
Color: White
IP Rated: IP40
Size: 95.3mm X 51mm X 34.5mm
Weight: 150g
PACKAGE CONTENTS
1 x 24V Dc 30 Watt Gigabit Passive Power Over Ethernet Supply
1 x NZ 3 Pin Clover Lead
SKU: PT-EN30G-24
