250A AMP Circuit Breaker Wild Surface IP67 Waterproof 12V 48V Manual Reset

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
$42.99

Collect 42 Everyday Rewards points

Log in to MyDeal to link your card
$8.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by HandB Warehouse Pty Ltd
Secure ways to pay at checkout

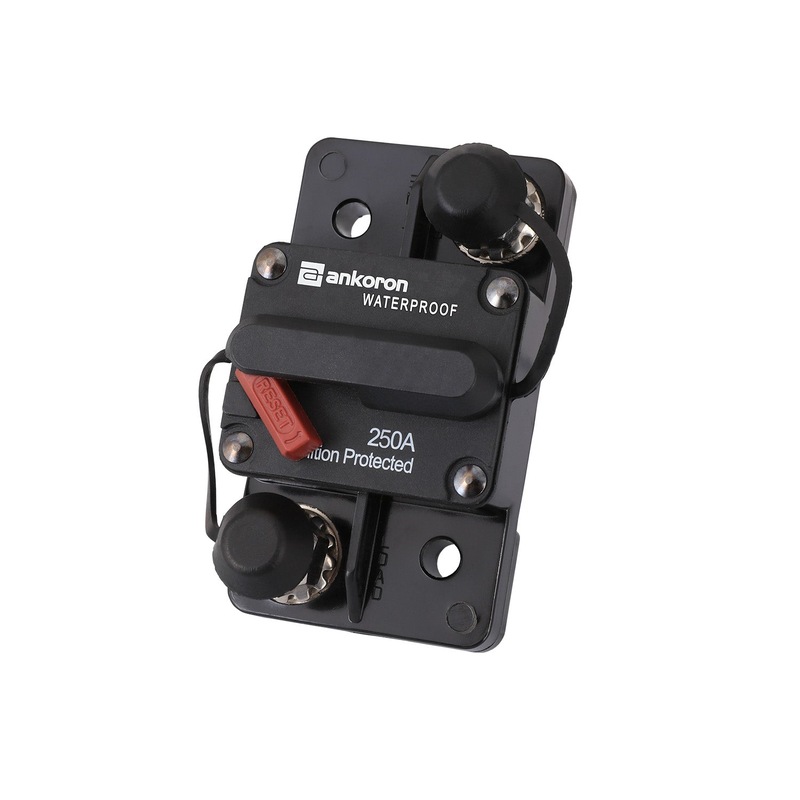

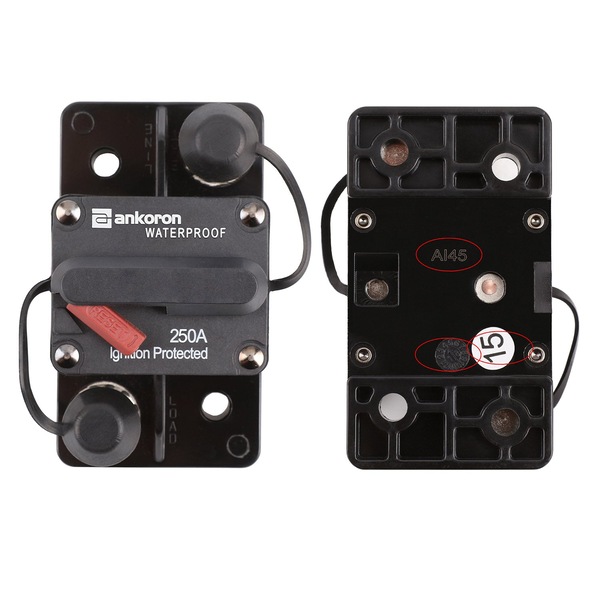

  • Product Name: 250 AMP Wild Surface Mount Circuit Breaker
  • Stock No.: T1174
  • High-current circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection. Widely used in special vehicles, off-road vehicles winch, yachts and ships electrical control.
  • Specification
  • Single pole thermal type circuit breakers
  • Rated Current: 250 AMP
  • Voltage: 48 Vdc
  • Interrupt Rating: 3KA@42VDC
  • Mounting: Wide surface Mount

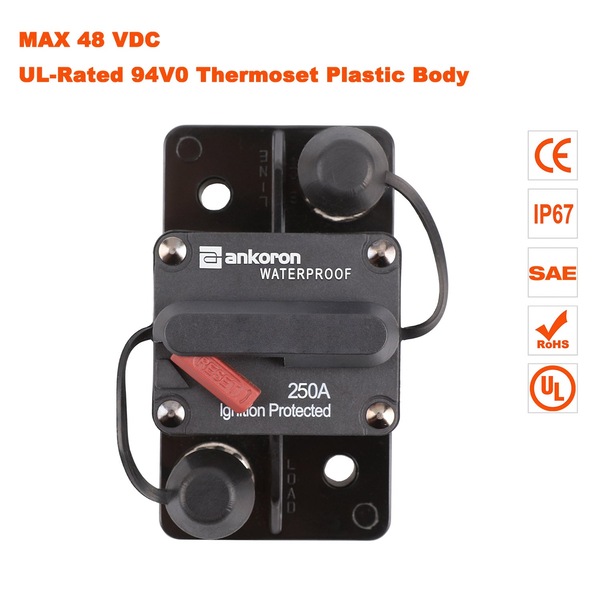

  • Housing is thermal plastic UL rated 94V0
  • Splash and dust proof at IP67 grade.
  • Operating temp: -32°C to 82°C (-25°F to 180°F)
  • Storage temp: -34°C to 149°C (-30°F to 300°F)

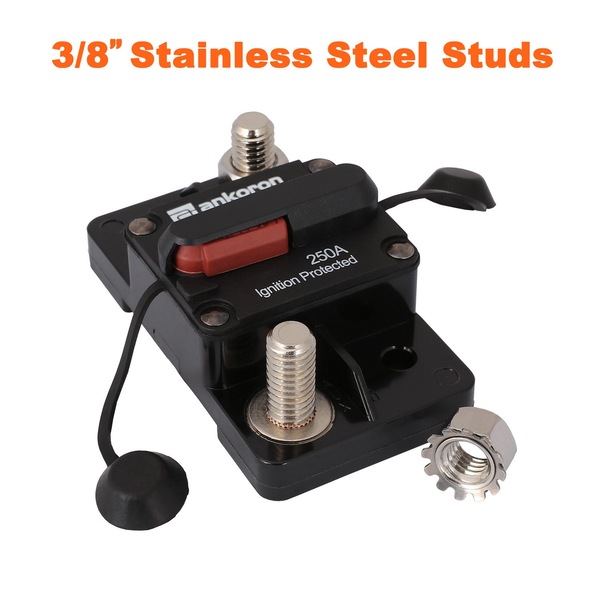

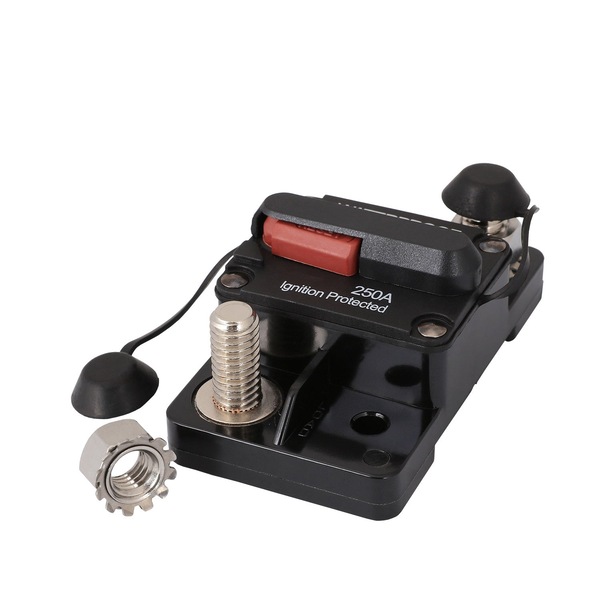

  • Stud size: 3/8" Stainless Steel Studs
  • Body: UL-Rated 94V0 thermoset plastic
  • Compliance
    • Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11
    • Ignition protected: SAE J1171, UL1500
    • Endurance: SAE J1625; SAE J553
    • Shock, Vibration, Corrosion, Humidity: Mil-STD-202

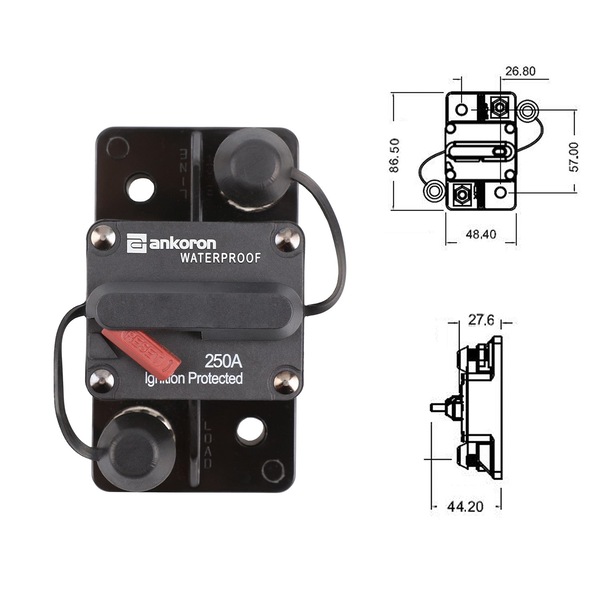

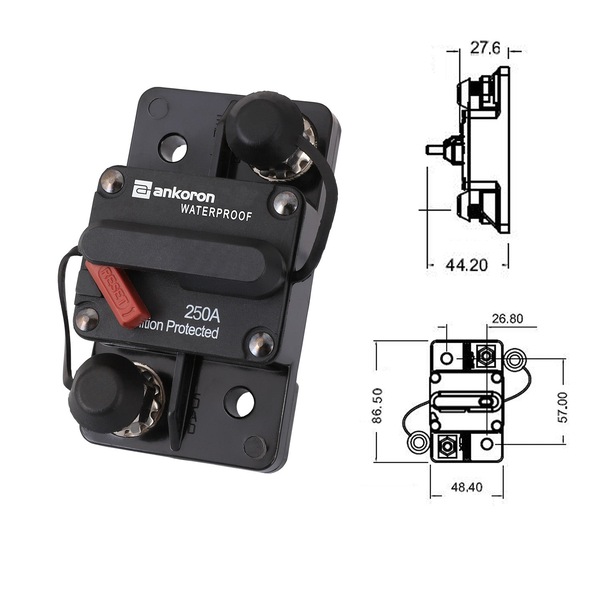

  • Demension:
    • Length: 86.5mm
    • Width: 48.4mm
    • Hight: 44.2
  • Expanded Test
    • 100% Max. voltage drop test
    • 135% & 200% overload trip test
    • Effective current limitation (T1) Test
    • 400% in 10 mins voltage breakdown test (T1&T2 only)
    • No current trip/reset temperature test
    • 400% rated current endurance test
    • Environmental extremes test
    • Transient current cycling test
    • Interrupt capacity test (12Vdc, 24Vdc, 48Vdc)
    • -40°C to +85°C, 4 cycled, 96H temperature test
    • 10 days 38°C, 95% RH humidity test
    • Salt mist 5%, 35°C, 48H salt fog test

SKU: T1174
