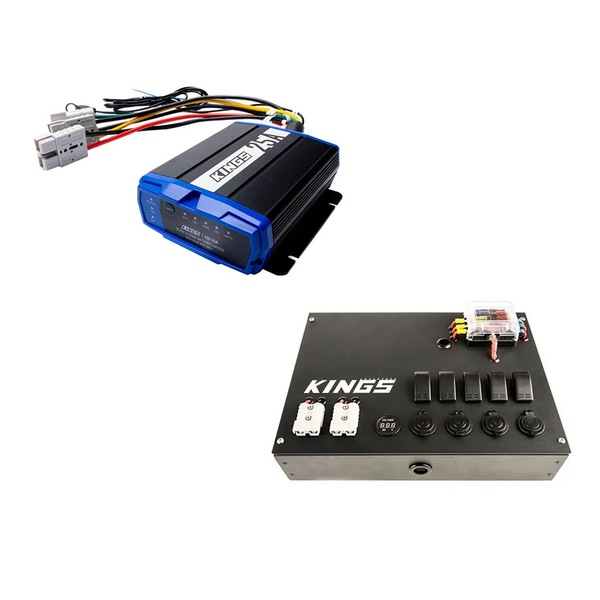

Adventure Kings 25A 12V DC to DC Charger and Control Box

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$228

Collect 228 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
25A Multi-Stage Battery Charger, Built-in MPPT Solar Regulator with Solar Priority Charging

• Push Button Battery Type Selection for Lithium or AGM,

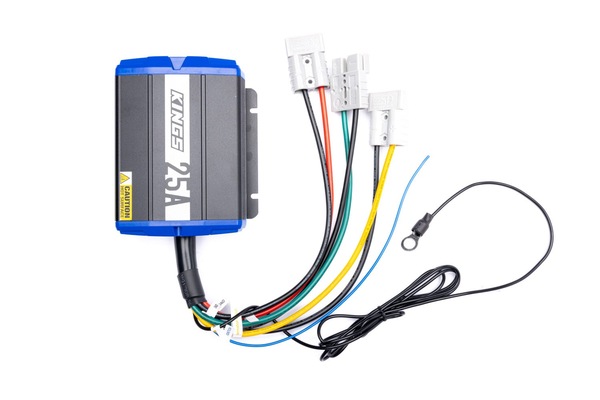

• Quick Connect Plugs make wiring super easy, 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

• Control all your 12V Equipment, 5x 16A pre-wired switches, 3x Cig Sockets, and 2x USB ports

• Digital Voltage Indicator, Ideal for your 4WD, Canopy, Caravan or Cargo Area

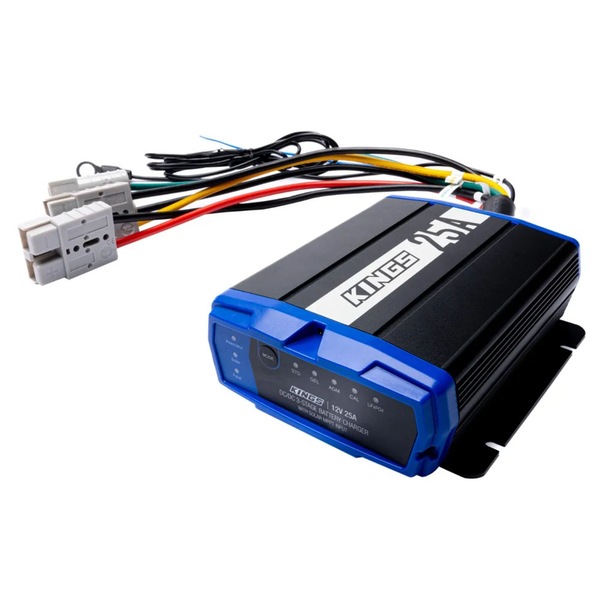

Kings 25A DCDC Charger


The DC Charger with built in MPPT regulator is the best way to install a dual battery system in your vehicle



Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions  151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Housing Powder coated aluminium

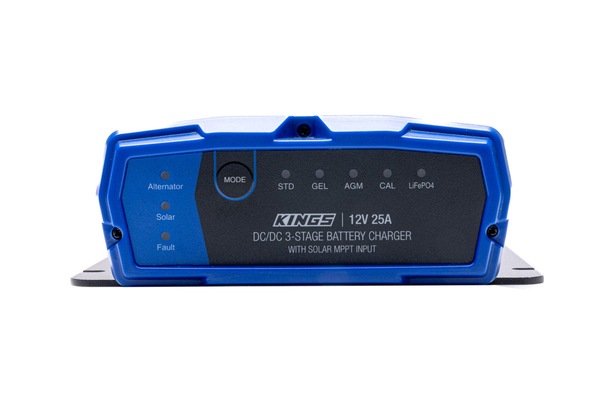

LED Indicator lights Yes – for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

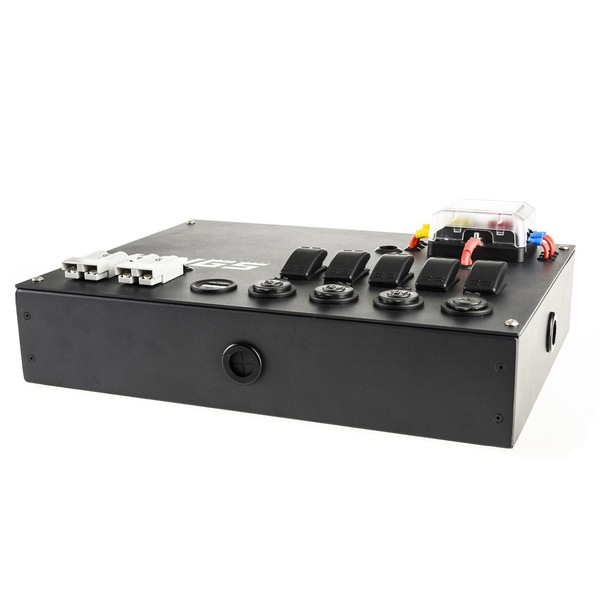

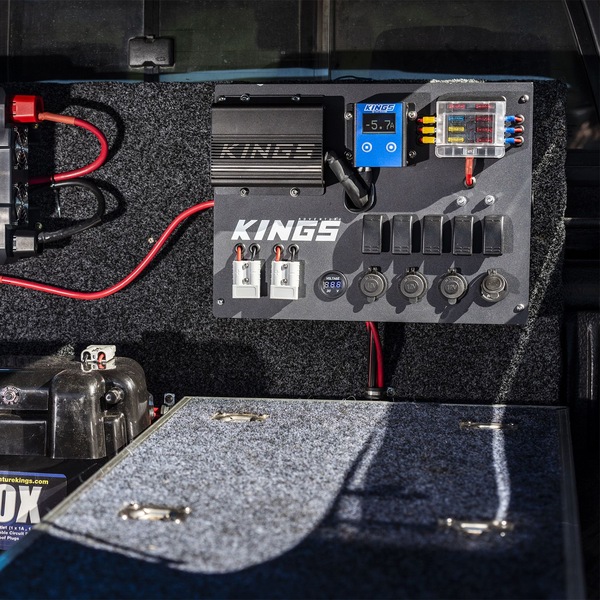

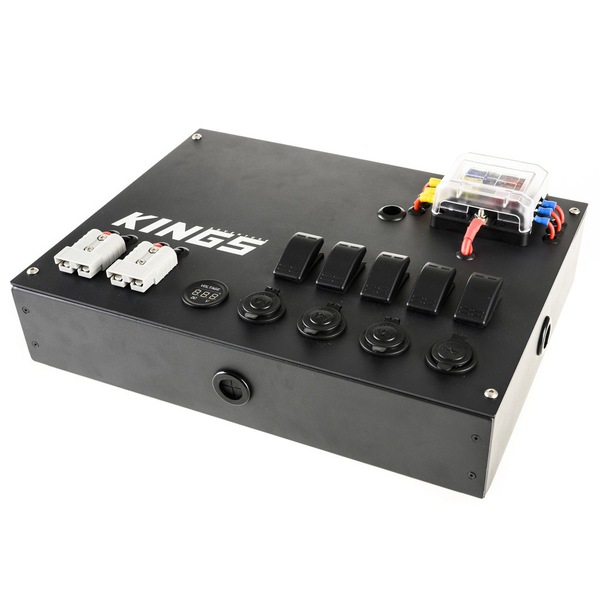

12V CONTROL BOX



Box Material: Black powder coated laser cut aluminium
Box Size: 400 x 305 x 80mm
Weight: 2.74kg
Lid Thickness: 2mm
Box Thickness: 1.5mm

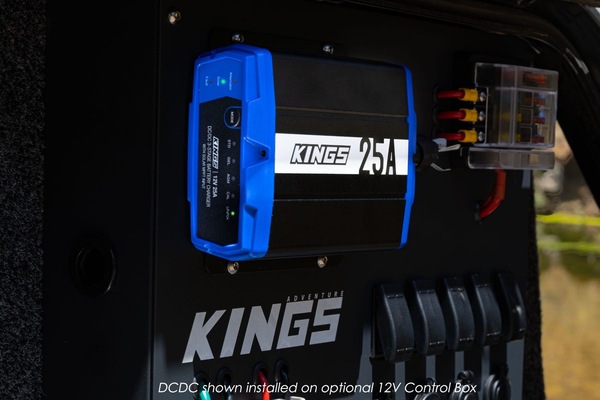

DCDC Charger: Provisions for DCDC Charger
Coating: Black Powder Coating
Recommended Fuse Size for Batteries: 40A
Recommended Cable Size for Batteries Depending on Length:0-1m = 8 Gauge Battery Cable
1-3m = 6 Gauge Battery Cable

MPN: SC-CO-DC25A02-CONTROLBOX

Estimated Delivery Time Frame:5-10 business days
