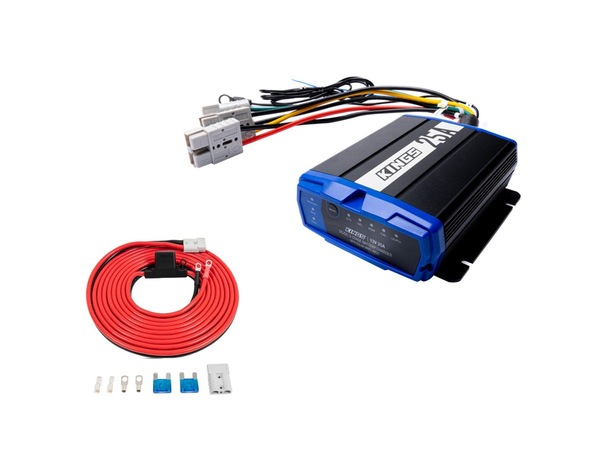

Adventure Kings 25A 12V DC to DC Charger with 50 A 6m Wiring Kit 6 AWG 16 mm2

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$213

Collect 213 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
25A Multi-Stage Battery Charger, Built-in MPPT Solar Regulator with Solar Priority Charging

• Push Button Battery Type Selection for Lithium or AGM,

• Quick Connect Plugs make wiring super easy, 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

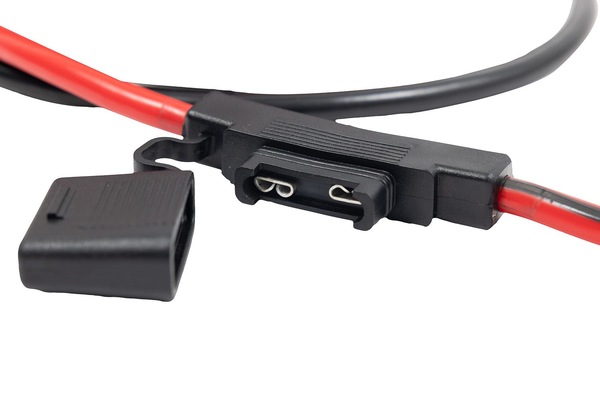

• 6m of 6AWG 16mm2 twin-core wire allows for high current with low voltage drop, Pre-connected in-line fuse holder with 50A fuse, M8 Eye terminal connections for easy wiring direct to battery terminals

• Ideal for DIY dual battery setups or trailer power wiring

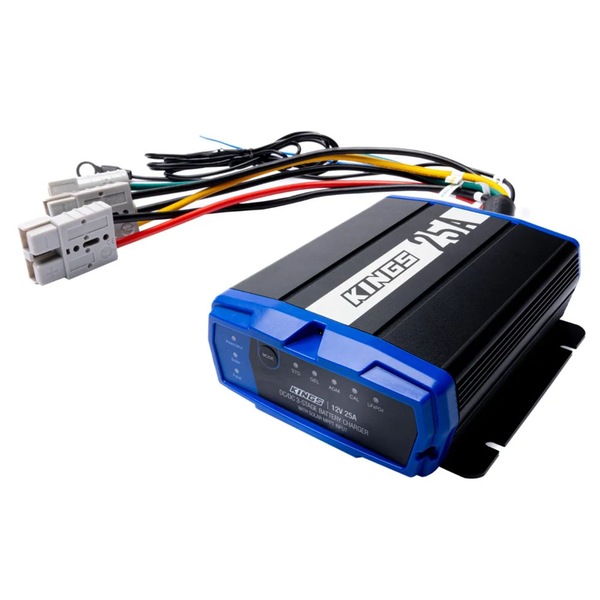

THE KINGS 25A DCDC CHARGER BUILT IN HIGH-EFFICIENCY MPPT SOLAR REGULATOR





The DC Charger with built in MPPT regulator is the best way to install a dual battery system in your vehicle





Kings 25A DCDC Charger
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)

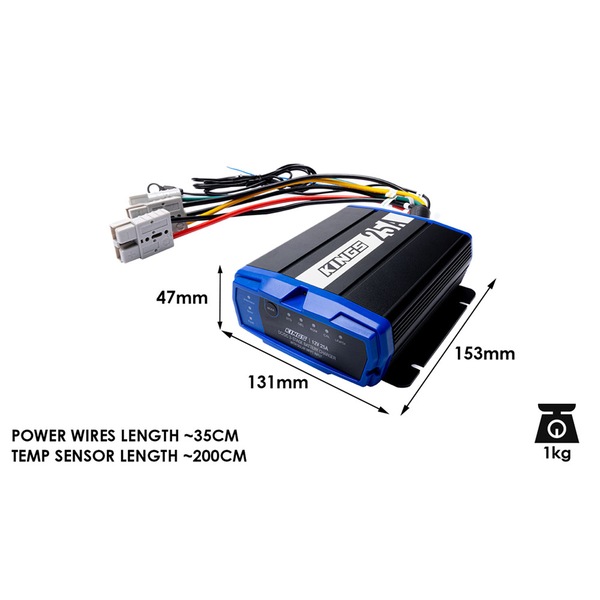

Weight ~1kg
Temperature Compensation Yes ±18mV/°C

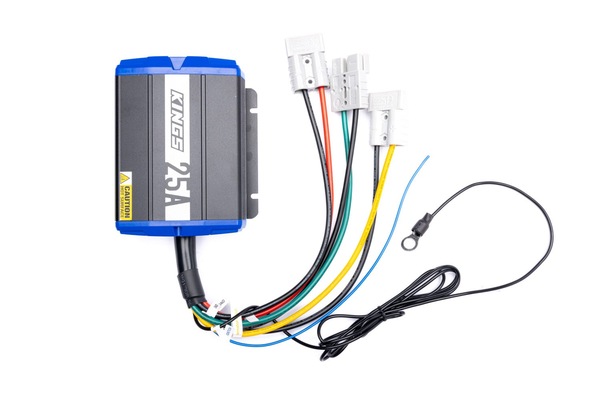

Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Housing Powder coated aluminium

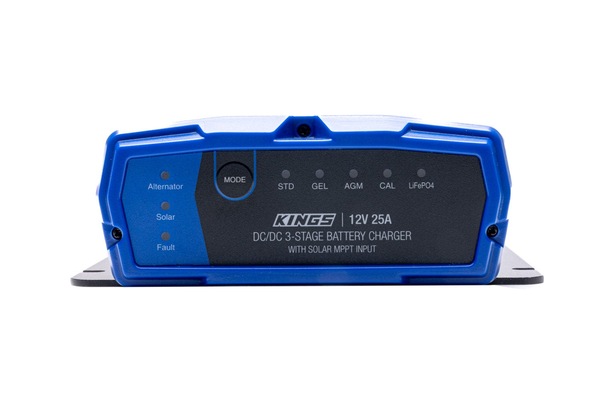

LED Indicator lights Yes – for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection
Warranty 12 Months

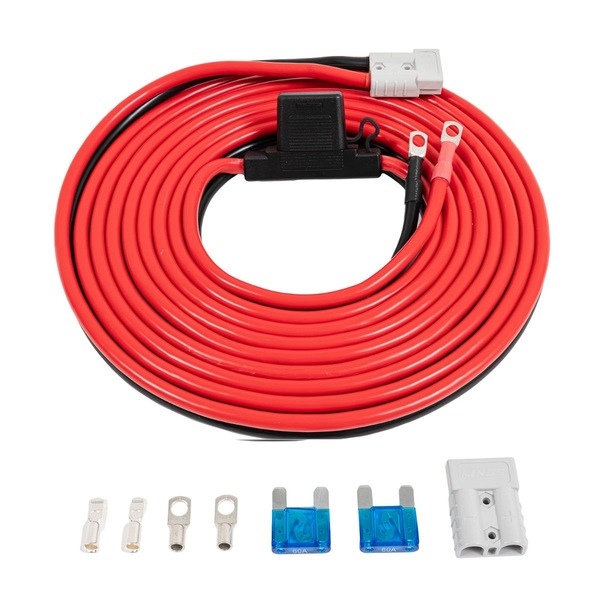

KINGS 50A WIRING KIT | QUICK CONNECT ANDERSON COMPATIBLE PLUG |INCLUDES TERMINALS AND IN LINE FUSE





Wire Length 6m
Wire gauge Twin Core 6 AWG (16mm2)

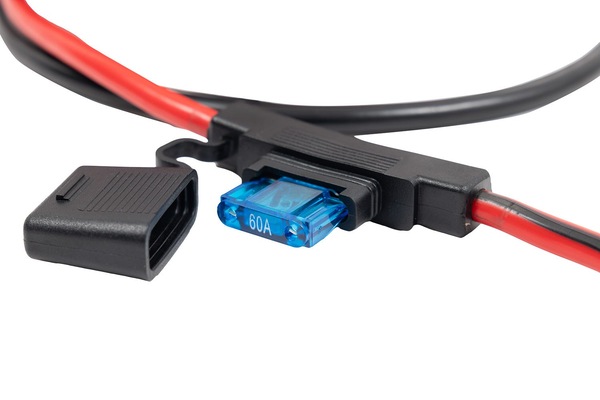

Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted plug/ terminal types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra terminals included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Spare Fuse included 2 x 60A maxi blade fuses

MPN: SC-CO-DC25A02-WIRING50A
