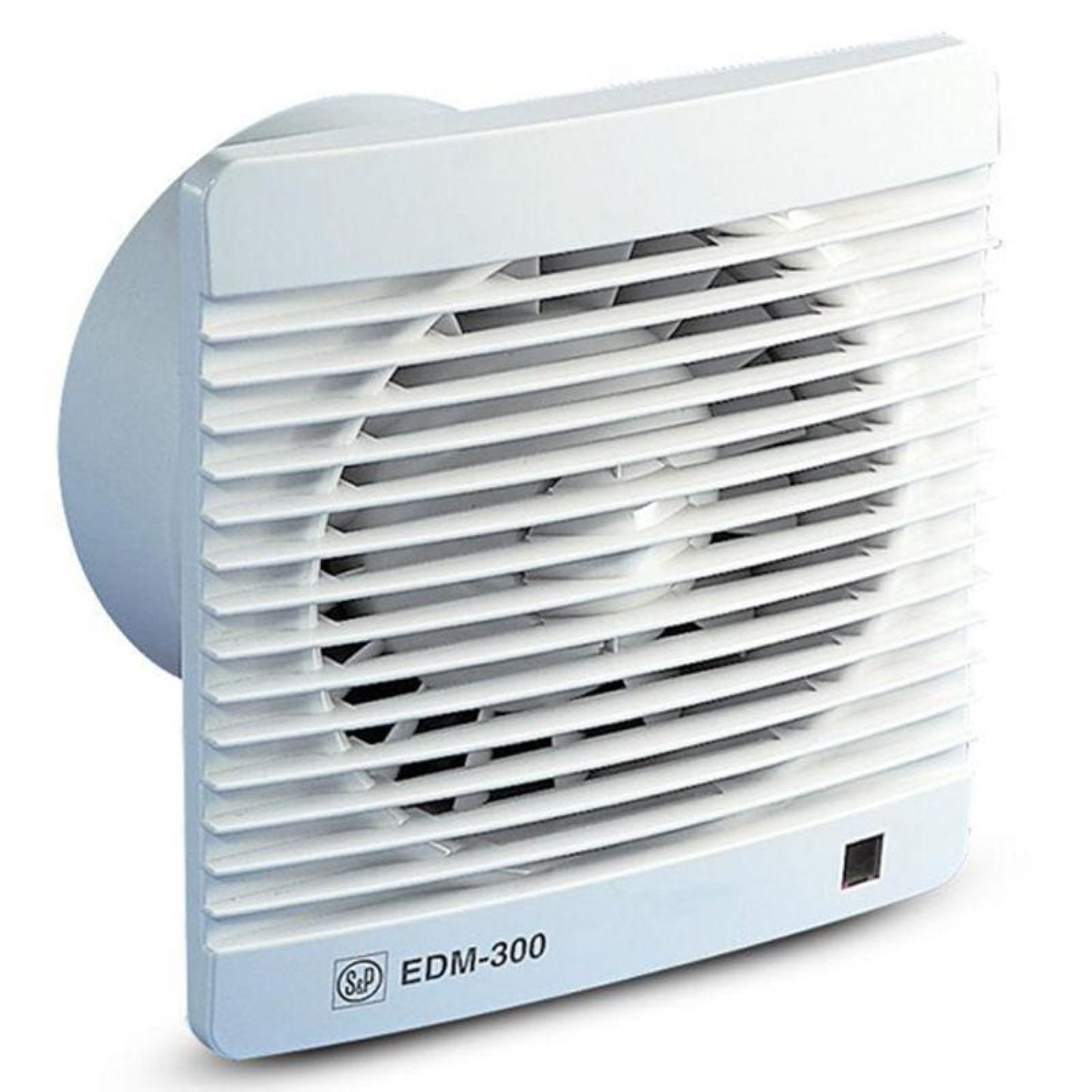

EDM-300 Series - 288m³/h EDM Wall/Ceiling Exhaust Fan Series

Image 1
Image 2
$269.28

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by The Lighting Outlet
Description:
The EDM Series can be wall or ceiling mounted and is designed to exhaust stale and moist air from bathrooms, toilets, laundries etc. They are also suitable for ventilating all types of small or closed areas.
.
Features:
• Type - shaded-pole induction motor.
• Electricity supply - 220-240V, single-phase, 50Hz
• Bearings - sleeve
• Maximum ambient temperature - 40°C

Internal Thermal Protection:
• Model 100 - impedance
• Model 200 & 300 - fuse

Special Features:
• ‘S’ Range - Standard unit (without shutters); all sizes.
• ‘C’ Range - Standard unit with shutters; all sizes.
• Low Voltage 12V - Unit suitable for wet areas (IPX7), requires low voltage transformer; size 100 only.
• All ranges can be used to exhaust along a short duct, air flows in this situation are reduced.

Order Code:
• FANEDM-300C - 240V 35W 2P 41DBA@3M 150mm Ceiling/Wall with Shutter
• FANEDM-300S - 240V 35W 2P 41DBA@3M 150mm Ceiling/Wall Standard

Description Diameter Speed kW Amps AVG db(A)
@3m
Max Pressure Max Volume
240V 35W 2P 41DBA@3M 150mm Ceiling/Wall with Shutter ø150mm 37 0.035 0.21 41 57 288m³/h
240V 35W 2P 41DBA@3M 150mm Ceiling/Wall Standard ø150mm 37 0.03 0.21 41 57 288m³/h

Reference ID: 1148955
