2PCS 10W Dual Output DC Buck Step-Down Converter Module DC 12V 5V

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
$41.57

Collect 41 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Secure ways to pay at checkout
Description:

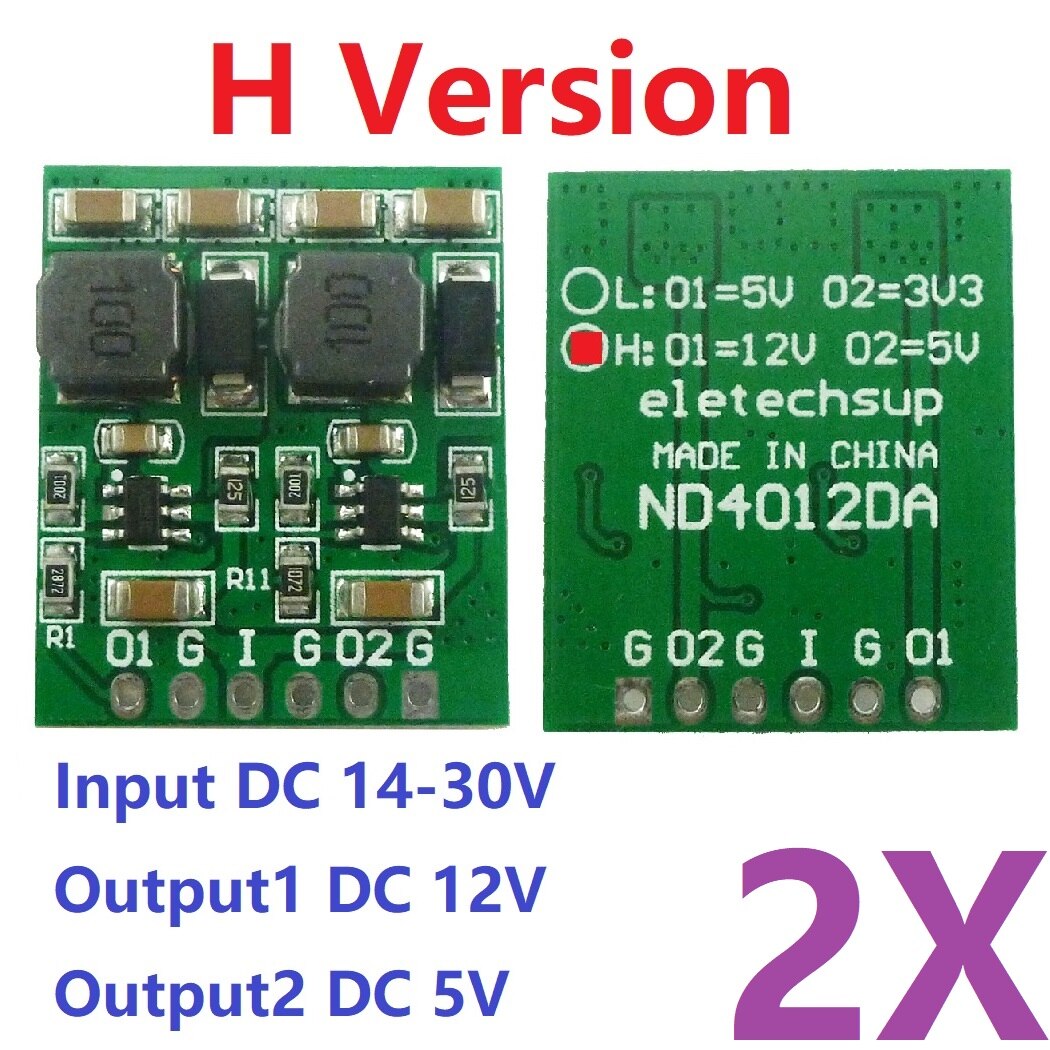

H Version:Input DC 14-30V,Output1 DC 12V/Output2 DC 5V
H Version Maximum Output Current : 12V/0.5A;5V/1A
DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .
Quiescent current: about 1MA
Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.
2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly
Size : 25mm x 21mm x 5.8mm(Small)
Weight : about 3g(Light)

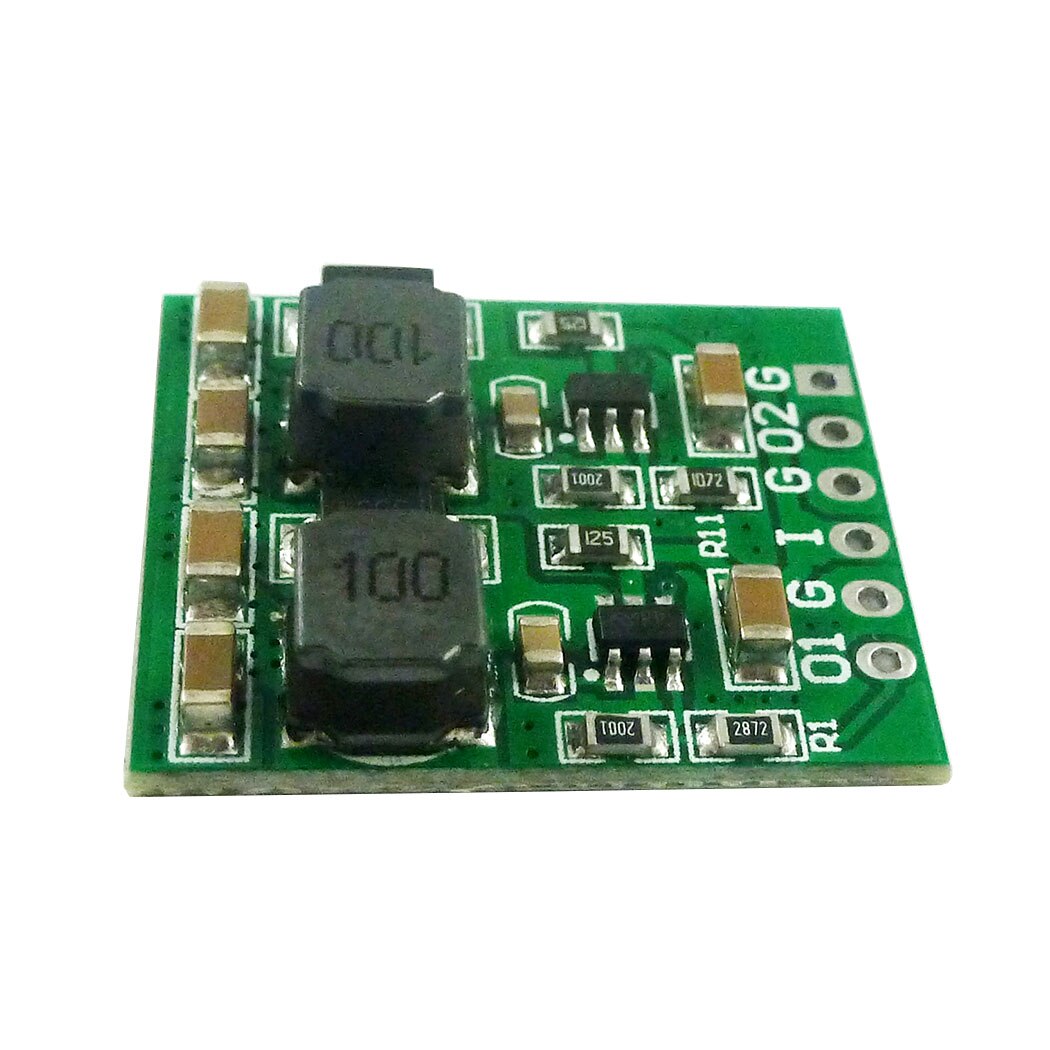

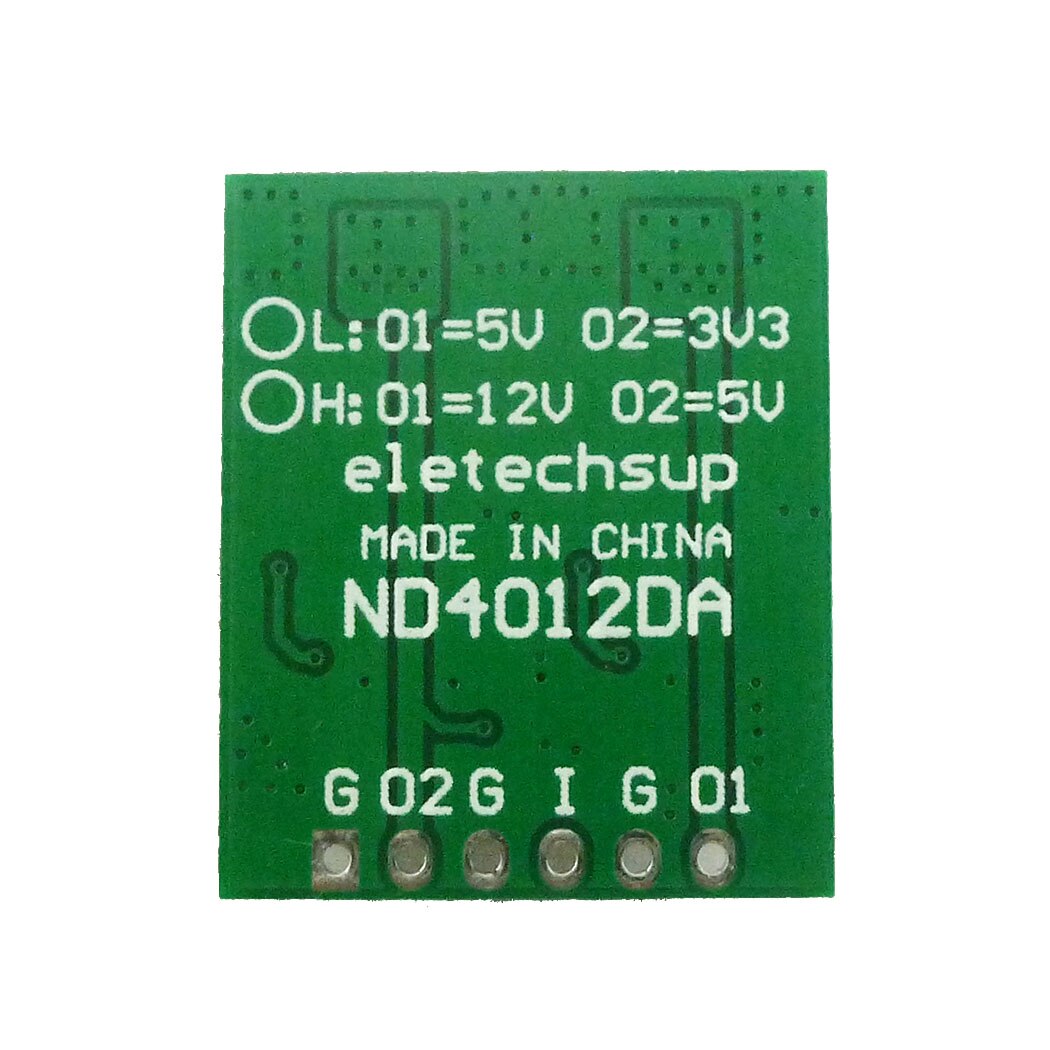

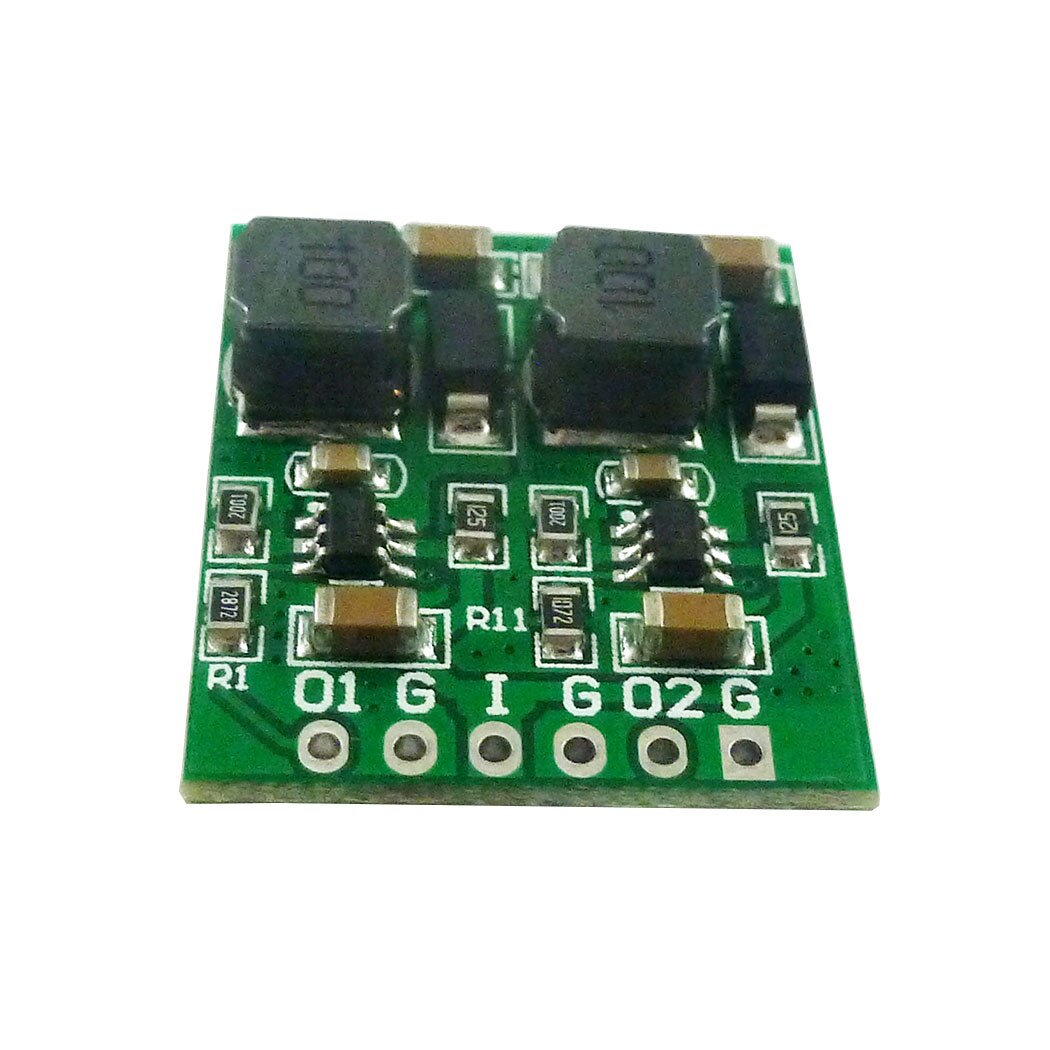

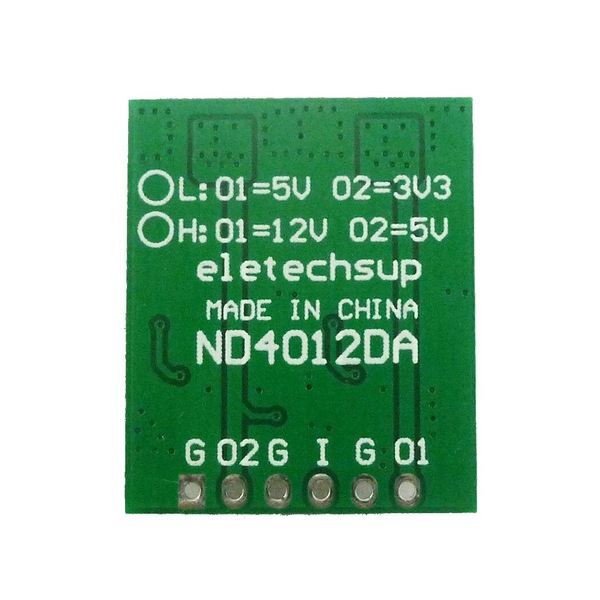

Pin description:

O1 : Output 1 positive +
G : Output 1 negative -
I : Input positive +
G : Input negative -
O2 : Output 2 positive +
G : Output 2 negative -

Attention :
?
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

3.3V 5V MCU ARM CPU FPGA/CPLD
12V 5V 3.3V lithium battery-powered systems
Small Motor Toy
WIFI esp8266 HC-12 Bluetooth Module
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier

Packing list:2 PCS 10W Dual output DC DC Buck Converter

Estimated Delivery Time Frame:12-20 business days
