2Pcs ESP32 SX1276 LoRa 868MHz bluetooth WI-FI Lora Internet Antenna Development Board

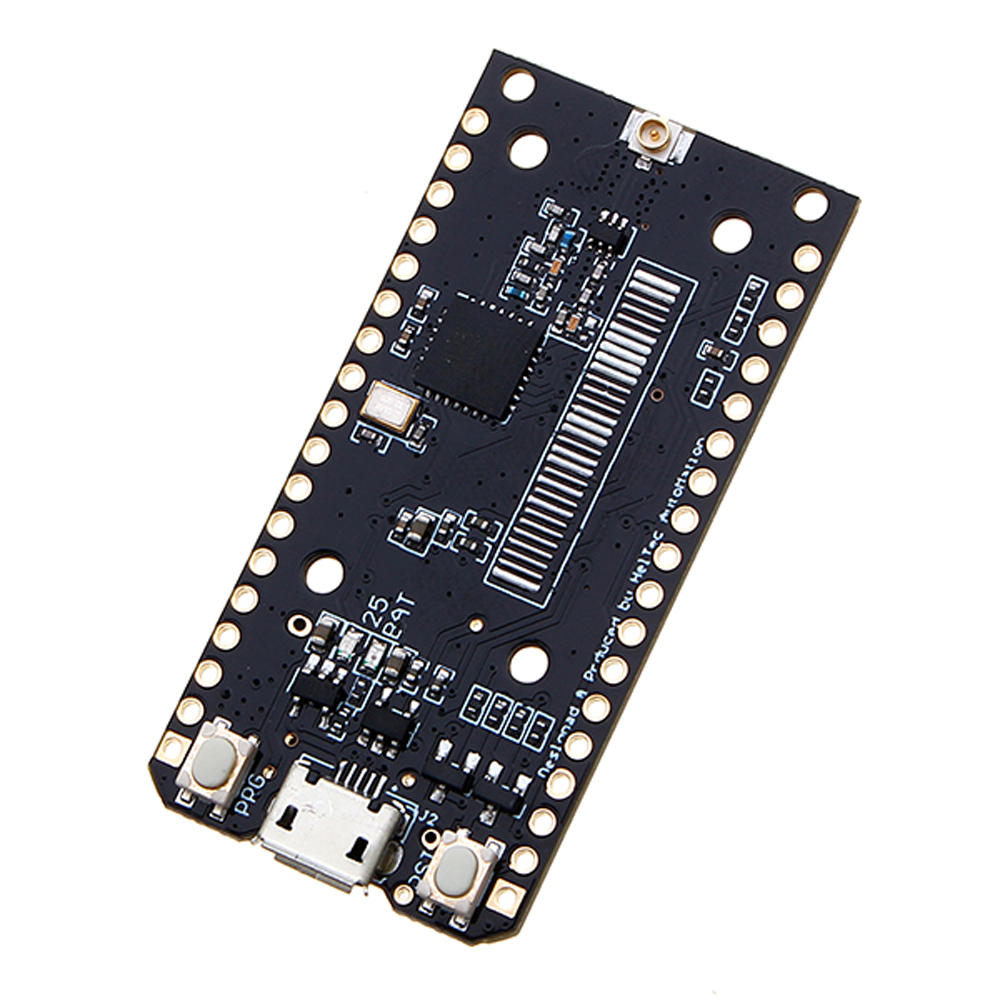

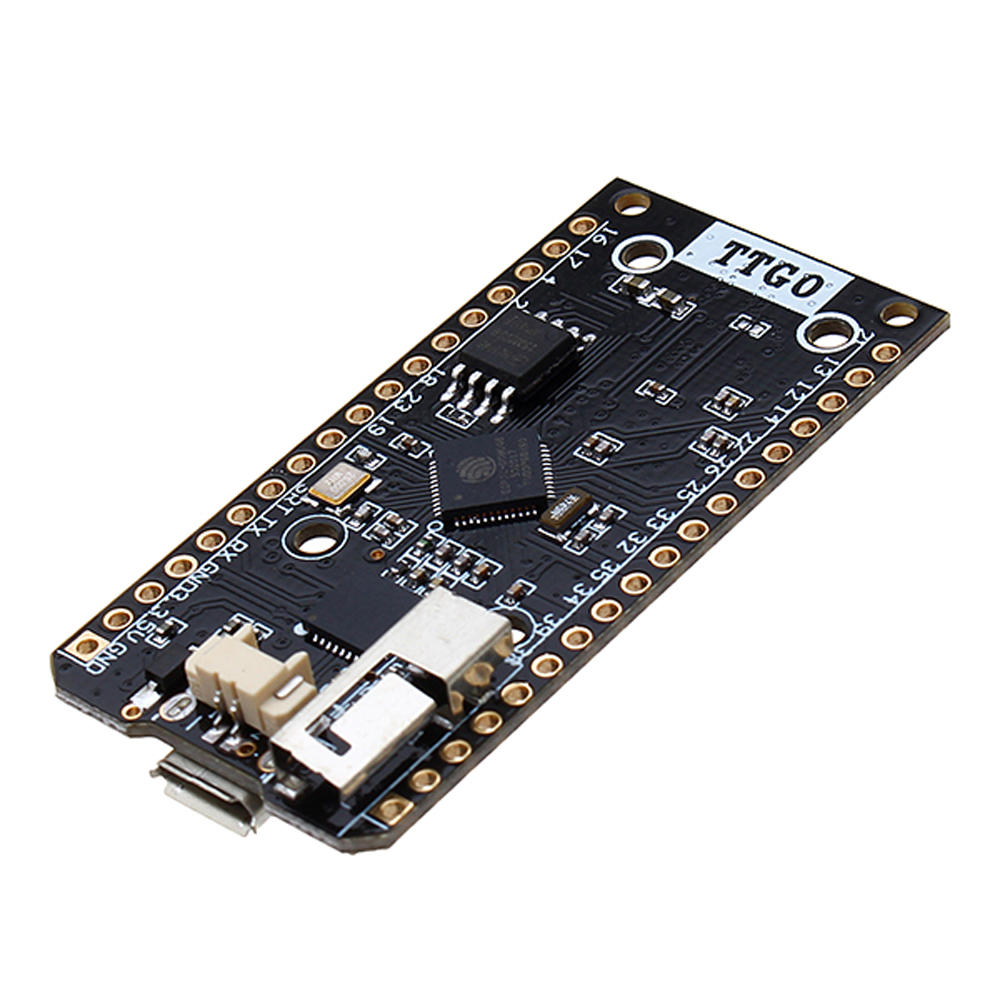

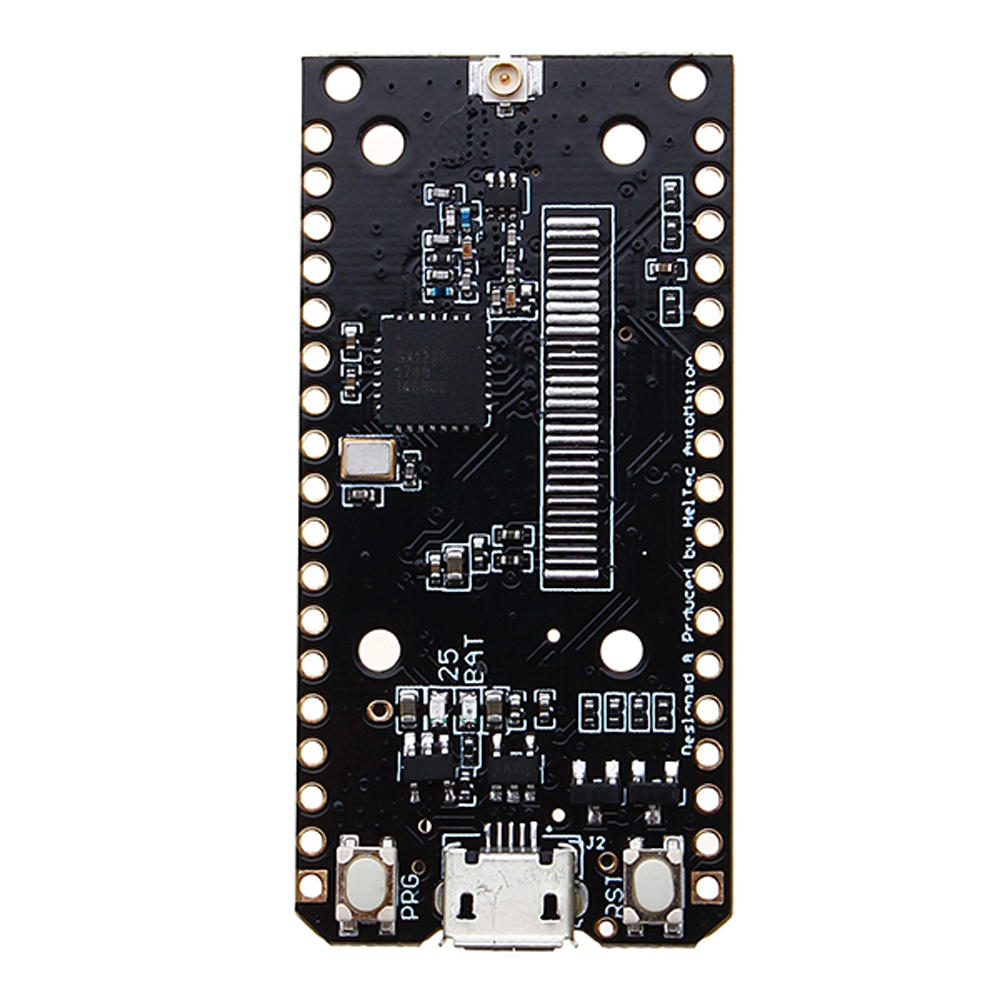

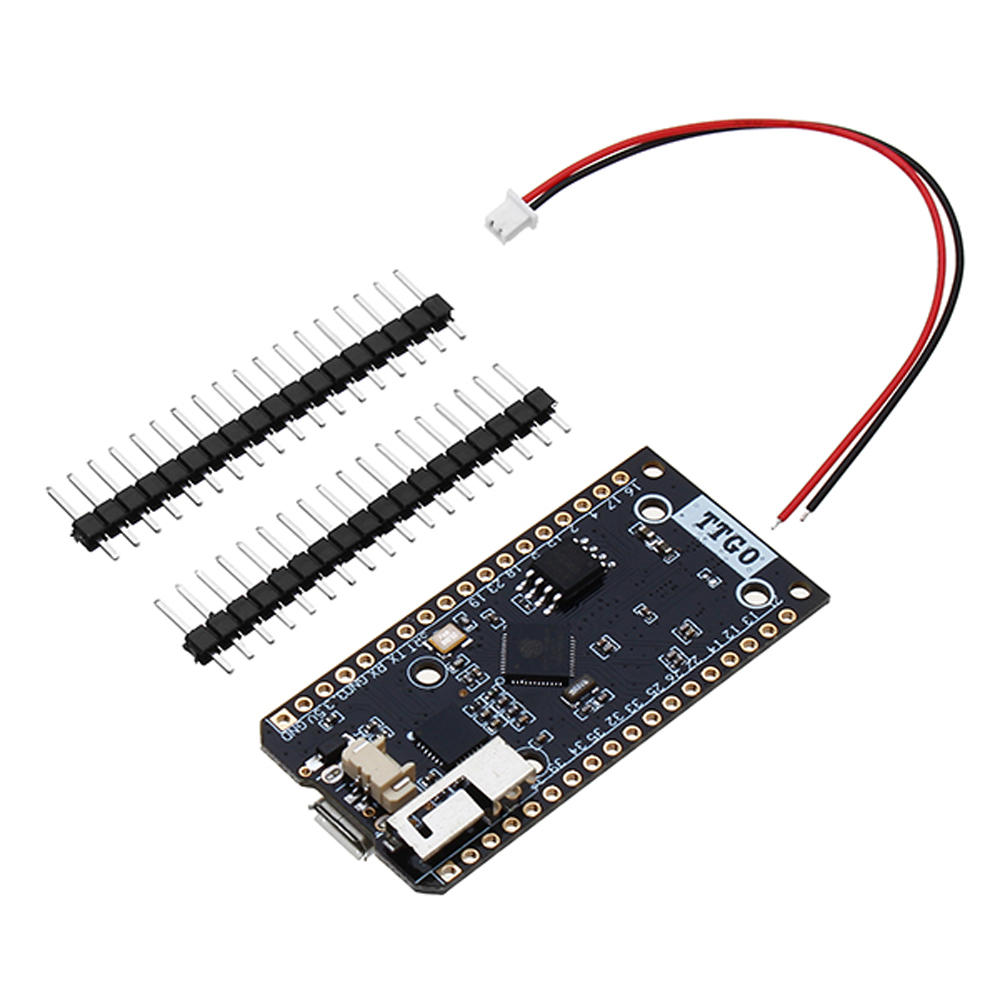

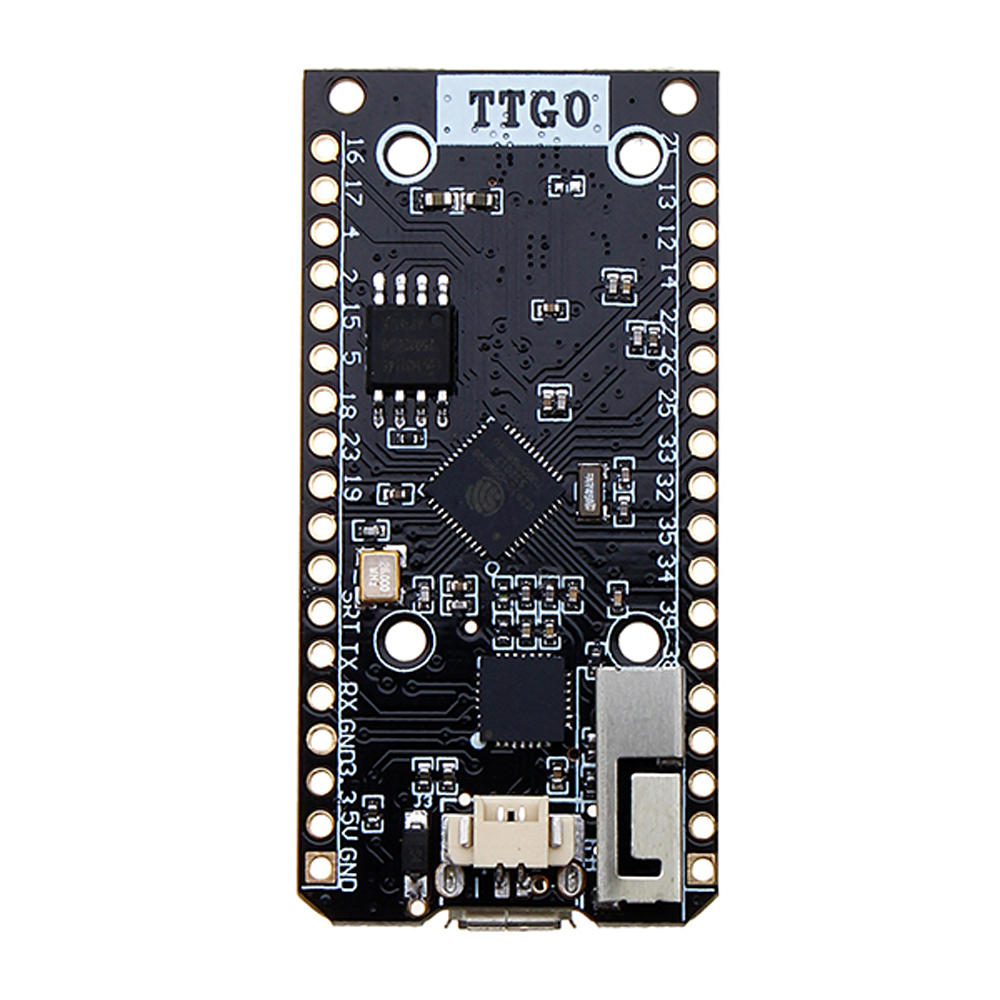

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Shop More Products

Description:

 The main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode bluetooth (traditional bluetooth and BLE low power bluetooth).
 This product is based on the WIFI 32 added SX1276 chip, that is, LoRa ™ remote modem, 868MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability.
 Onboard 128MByte Flash, Wi-Fi antenna,  lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for  development environment, can be very simple and fast for program verification and product development.

 Pin diagram:

 Operating voltage: 3.3V to 7V
 Operating temperature range: -40 ° C to + 90 ° C
 Supports Sniffer, Station, softAP and Wi-Fi Direct modes
 Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
 Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
 Receiver sensitivity up to - 98 dBm
 UDP continues to throughput by 135 Mbps

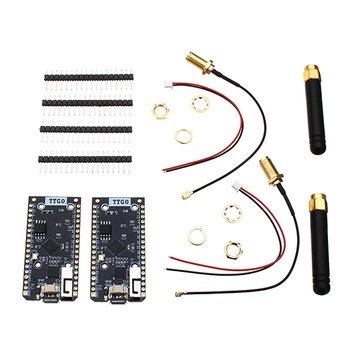

 Package included:



2 x SX1276 LoRa ESP32 868MHz

2 x Antenna

2 x Line

4 x Pin




GTIN: 4151093660810

Reference ID: 4420401
