Description:
?
?The main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode bluetooth (traditional bluetooth and BLE low power bluetooth).
?This product is based on the WIFI 32 added SX1276?chip, that is, LoRa â„¢ remote modem, 868MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability.?
?Onboard 128MByte Flash, Wi-Fi antenna, ?lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for ?development environment, can be very simple and fast for program verification and product development.
?

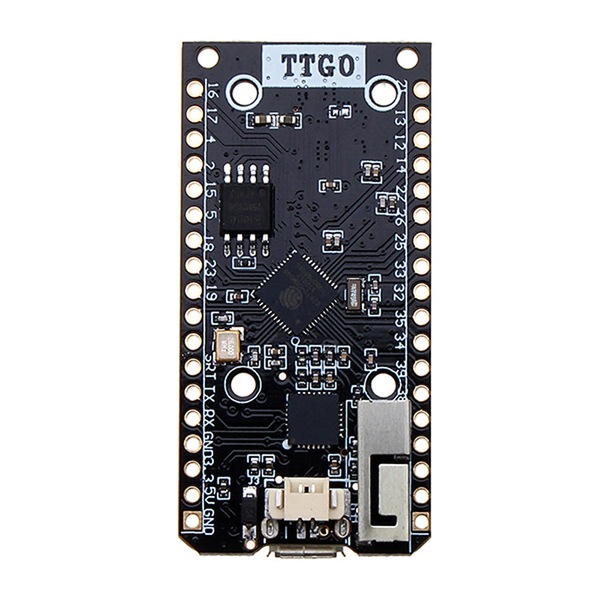

?Pin diagram:
?
?Operating voltage: 3.3V to 7V
?Operating temperature range: -40 ° C to + 90 ° C
?Supports Sniffer, Station, softAP and Wi-Fi Direct modes
?Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
?Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
?Receiver sensitivity up to - 98 dBm
?UDP continues to throughput by 135 Mbps
?

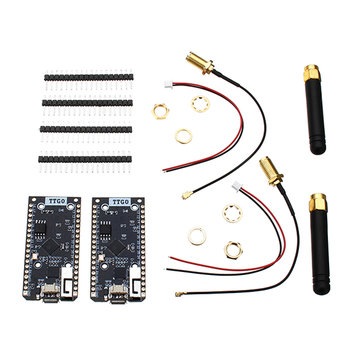

?Package included:
?
?
2 x SX1276 LoRa ESP32 868MHz
2 x Antenna
2 x Line
4 x Pin
?
?
