2x 120A AMP Circuit Breaker Dual Battery IP67 Waterproof 12V 24V Fuse Reset

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 12 items left!
$49.99

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card
$8.00 Australia-wide (per-item)

Dispatch in 24-48 hours

Sold & shipped by HandB Warehouse Pty Ltd
Secure ways to pay at checkout

Popular Products

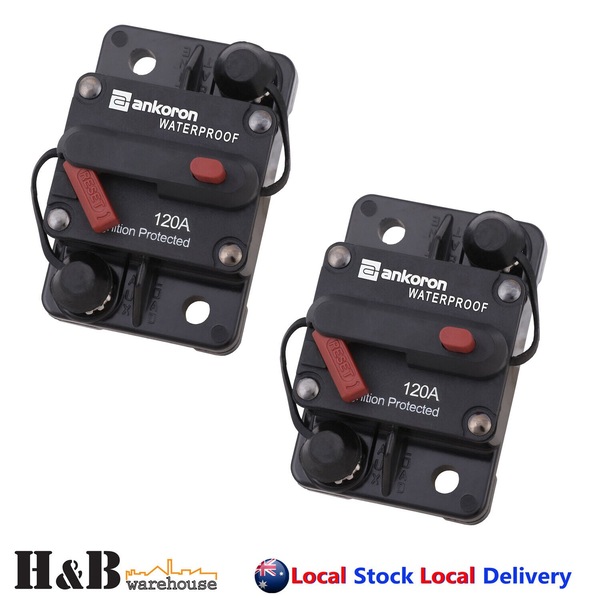

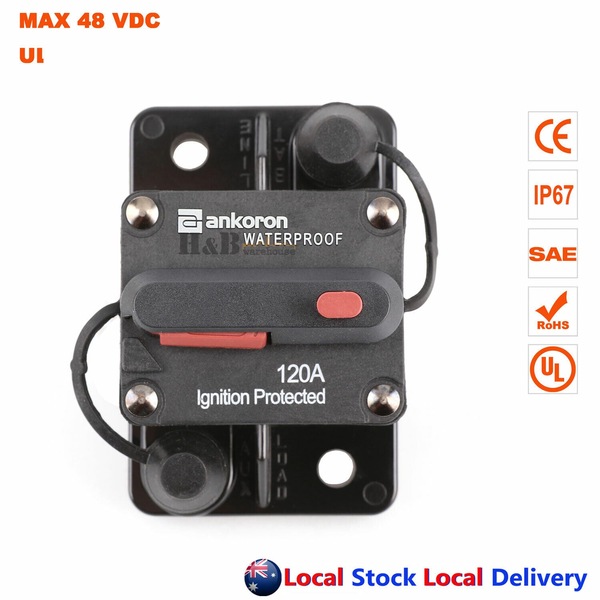

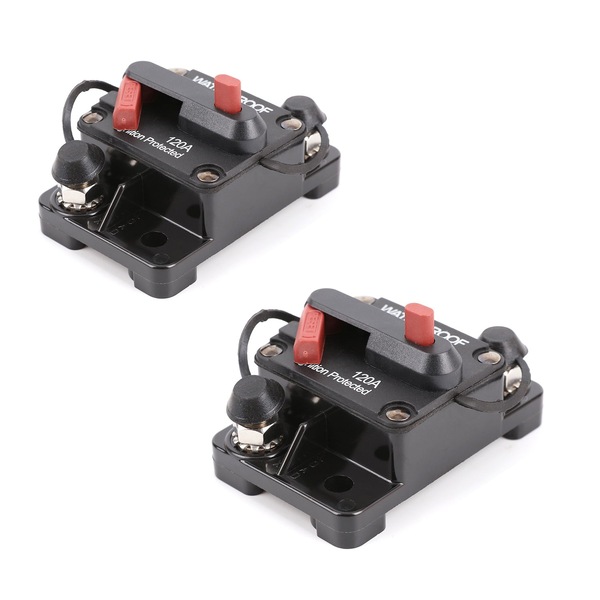

  • Product Name: 2x 120 AMP Surface Mount Circuit Breaker
  • Stock No.: T0840
    • High-current circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection. Widely used in special vehicles, off-road vehicles winch, yachts and ships electrical control.

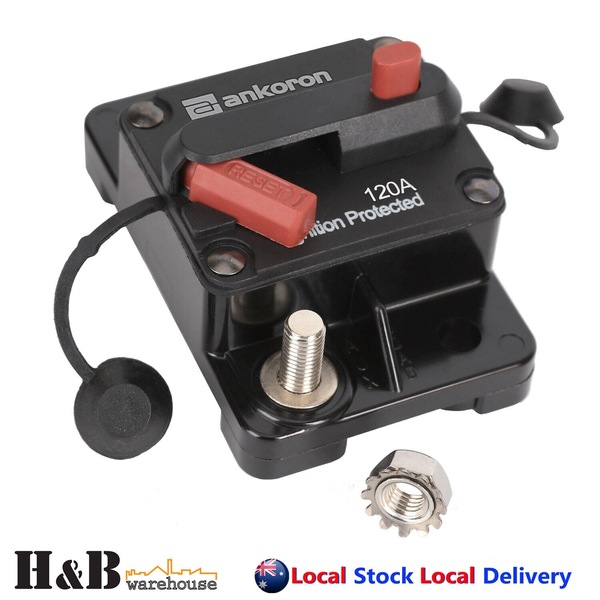

    • Surface mount and protective stud insulators included.
    • Rated Current: 120 AMP
    • Interrupt Rating: 3KA@48VDC

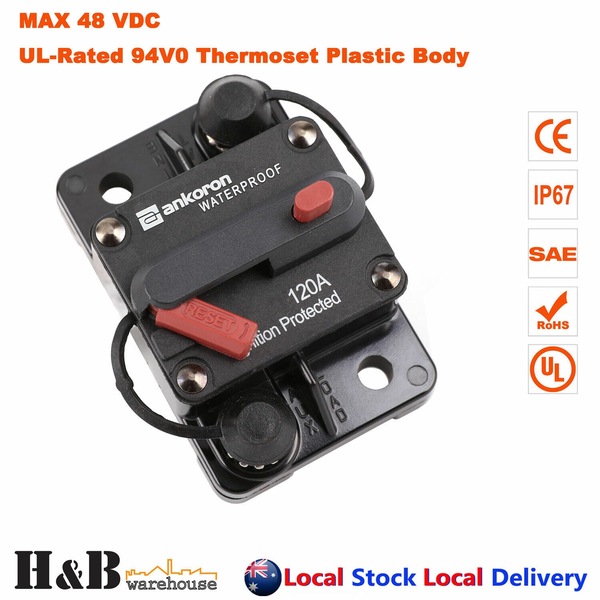

    • Housing is thermal plastic UL rated 94V0
    • Splash and dust proof at IP67 grade.
    • Operating temp: -32°C to 82°C (-25°F to 180°F)
    • Storage temp: -34°C to 149°C (-30°F to 300°F)

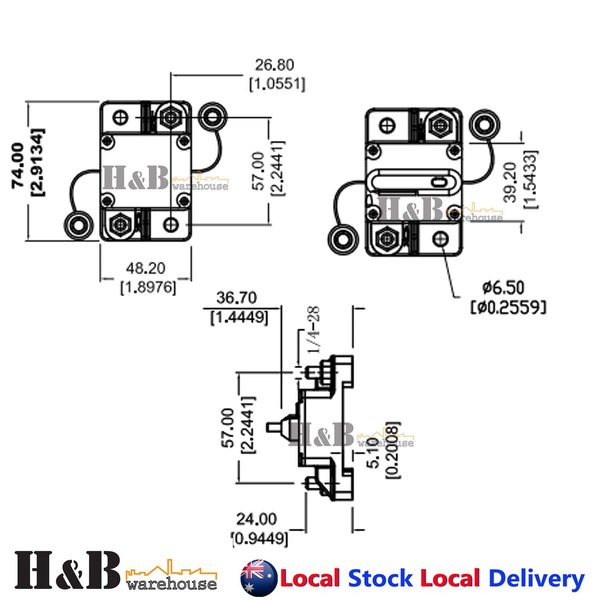

    • Stud size: M6 and 1/4"-28 threads per inch.
    • Compliance SAE J1625; SAE J1171, UL1500 Ignition Protect.
    • Expanded Test
      • 100% Max. voltage drop test
      • 135% & 200% overload trip test
      • Effective current limitation (T1) Test
      • 400% in 10 mins voltage breakdown test (T1&T2 only)
      • No current trip/reset temperature test
      • 400% rated current endurance test
      • Environmental extremes test
      • Transient current cycling test
      • Interrupt capacity test (12Vdc, 24Vdc, 48Vdc)
      • -40°C to +85°C, 4 cycled, 96H temperature test
      • 10 days 38°C, 95% RH humidity test
      • Salt mist 5%, 35°C, 48H salt fog test

SKU: T0840
