2PCS EV1527 Keyfob DC 12V 2Ch RF Timer Delay Relay Remote Switch

Image 1
Image 2
Image 3
Image 4
Image 5
$54.03

Collect 54 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Secure ways to pay at checkout

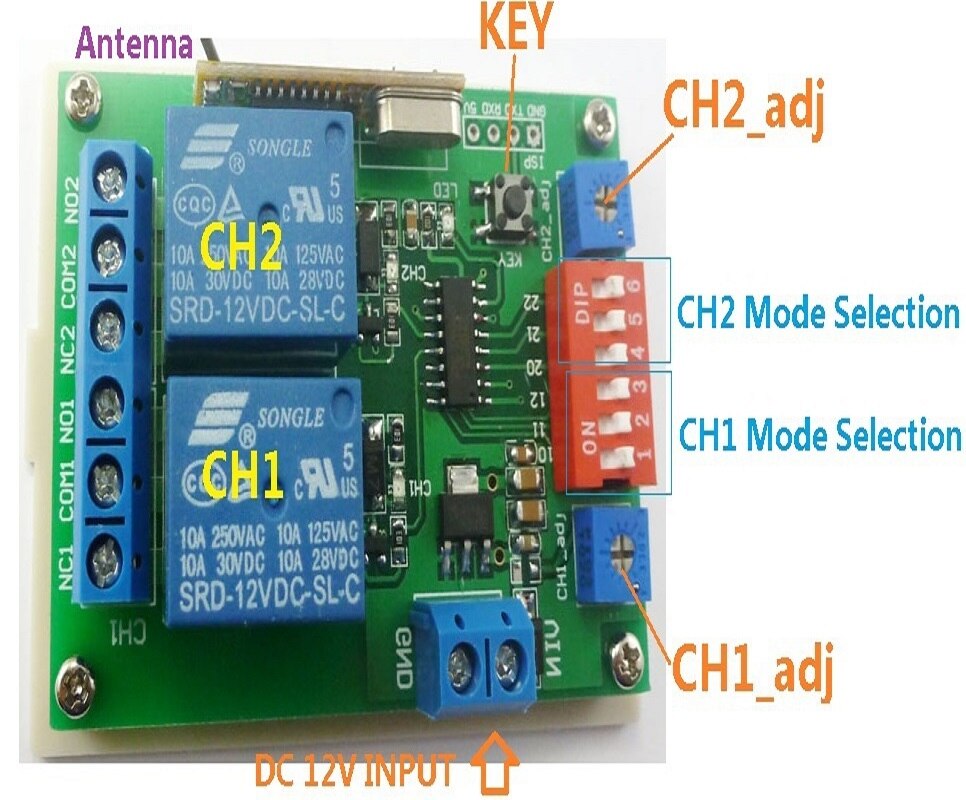

Technical indicators:

Operating voltage : DC 9-13V (recommended DC 12V);5V version can be customized
Operating Current : All relays close,about 14MA; one relay open,about 43MA;two relay? open,about 71MA
Operating frequency : 433.92M; 315M version can be customized
Receiver sensitivity? : -108dB;

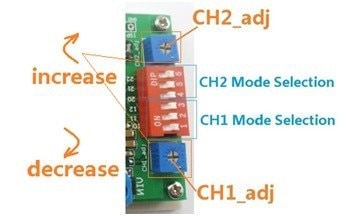

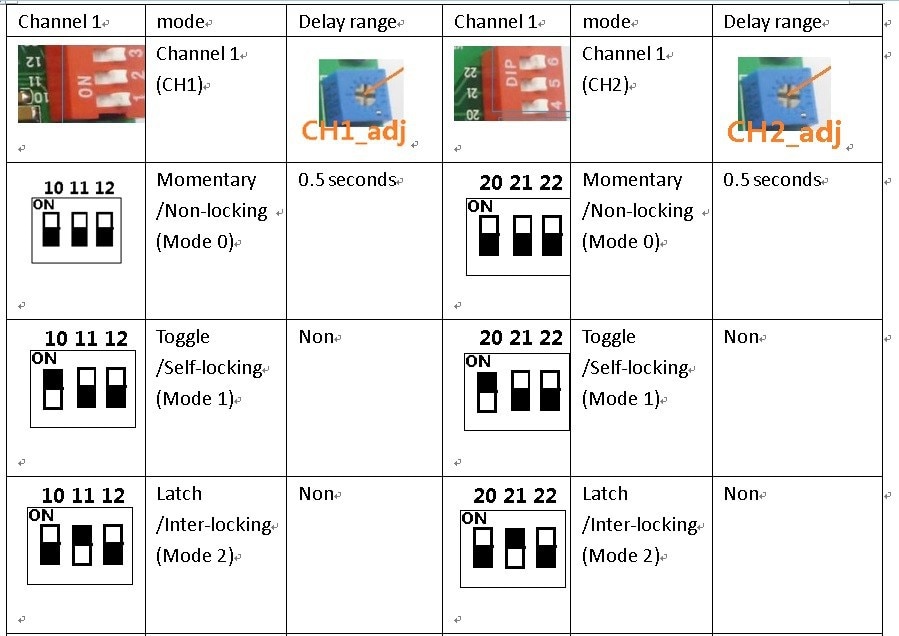

Work mode?????? : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch),? Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay
Size(Including housing)? : 75*54*28mm
Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );
Max load : 500W;
Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Typical applications:

DC 12V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360
?
Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V

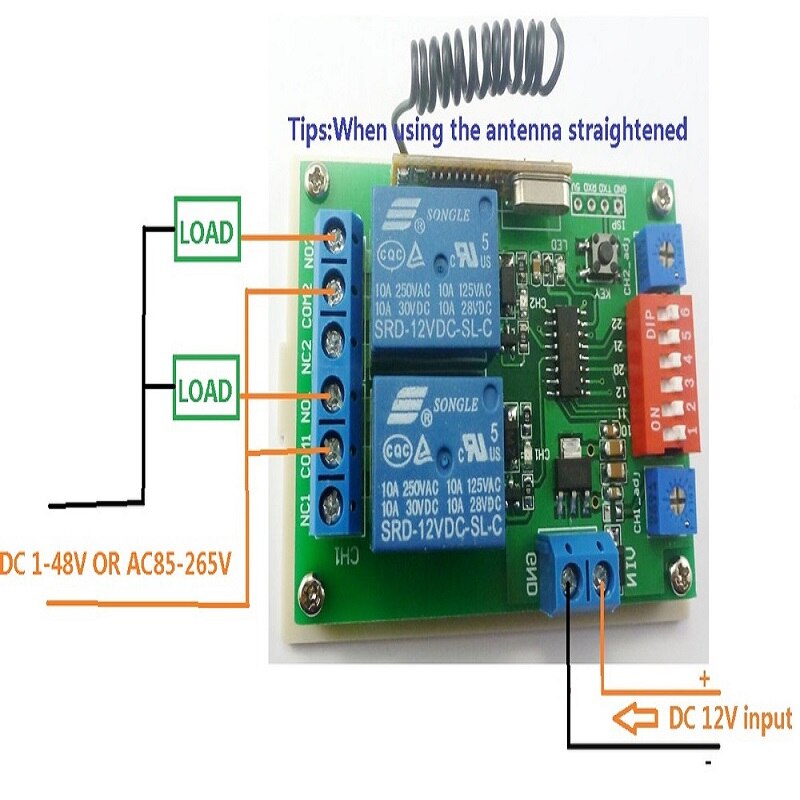

Wiring Diagram 2:
DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

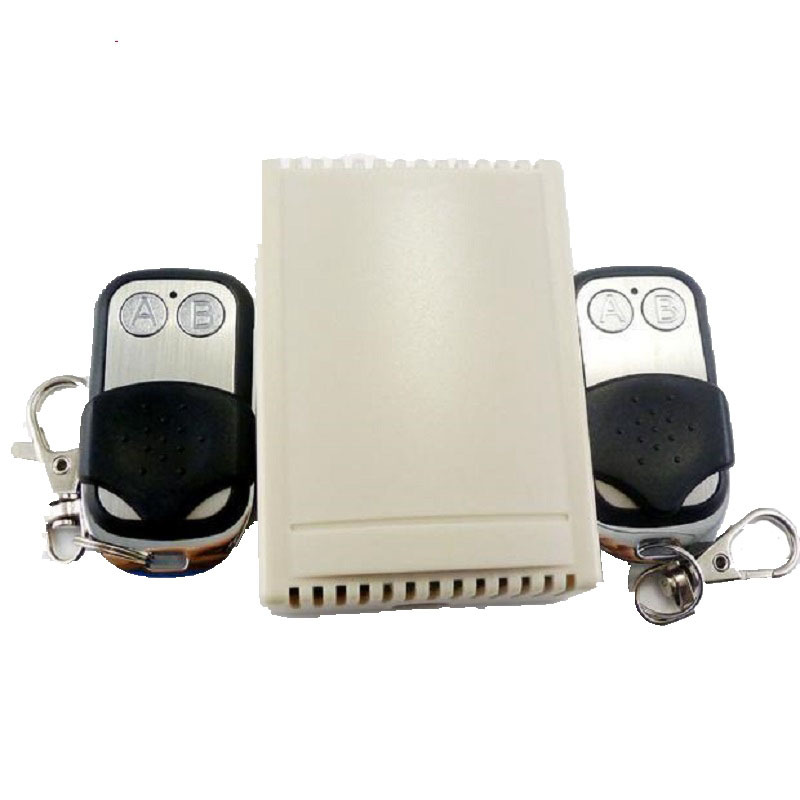

Packing list:1 PCS433M DC 12V 2 Channel Multifunction Wireless Controller ??2 PCS? 433M Large Power 2 Button SC 2262 Remote Control (USE 12V 27A battery,Batteries not included)

GTIN: 774048925884

Estimated Delivery Time Frame:12-20 business days
