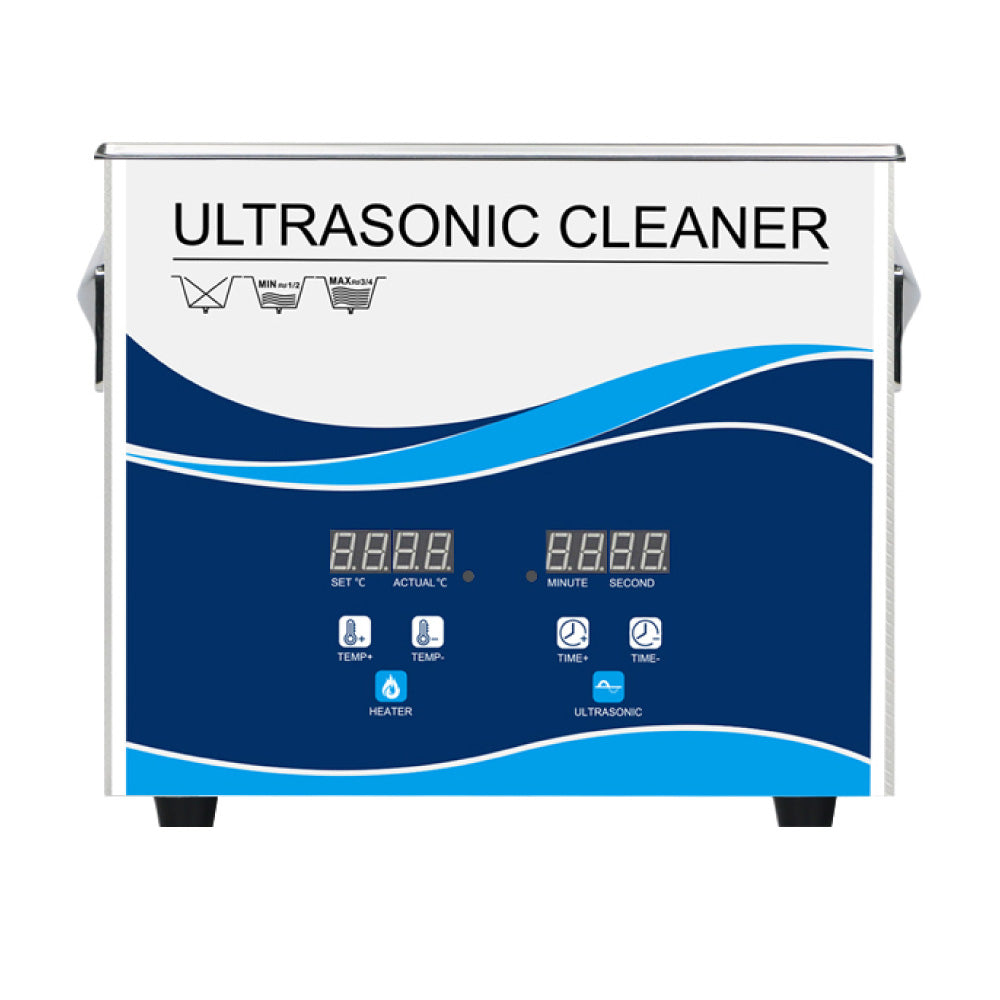

The ultrasonic cleaner is a RCM compliant as per Level 1 electrical equipment that is classified low risk or unknown risk and is any in-scope electrical equipment.

It is a microprocessor-controlled device that uses ultrasonic or high frequency sound waves to clean jewellery and other delicate items. The vibration of ultrasonic waves in the liquid will cause strong cavitation and emulsification. Millions of cavitation bubbles can be generated per second.

Under sound pressure, these bubbles are rapidly produced and continuously violently blasting, producing a strong impact and suction force to remove stubborn dirt and kill bacteria and viruses.

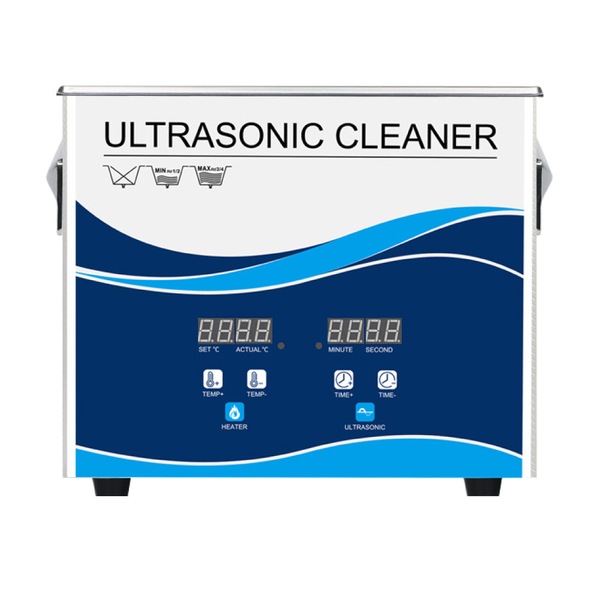

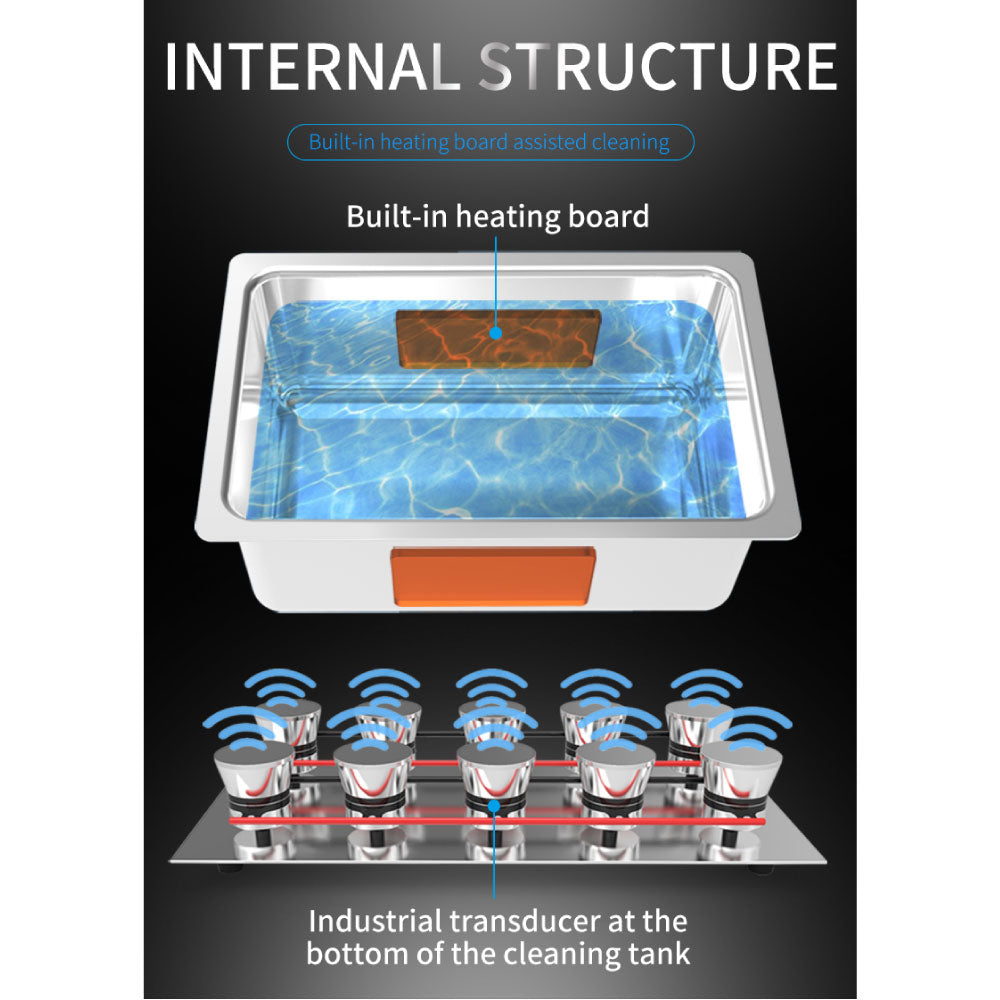

Built-in powerful transducers can strengthen the ultrasonic power and produce a superior cleaning outcome. Utilise the digital program to control the unit, according to the quantity and condition of the items to be cleaned and to choose a working cycle time.

As a result, it is more convenient and efficient than hand wash, steam cleaners, high pressure water jet cleaning, or other machines.

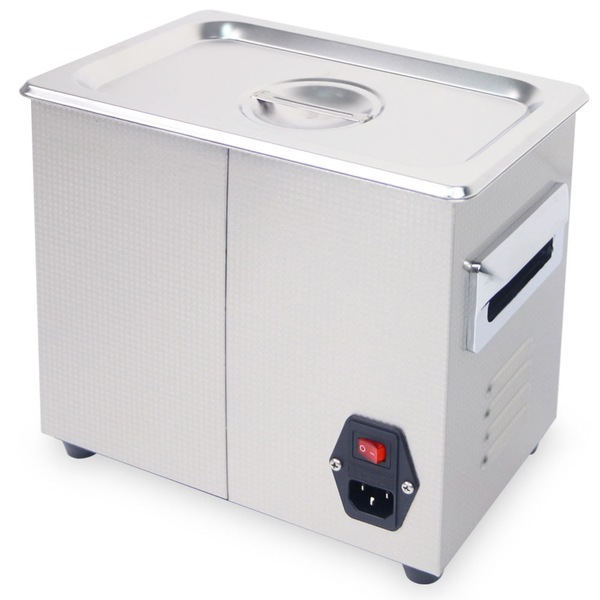

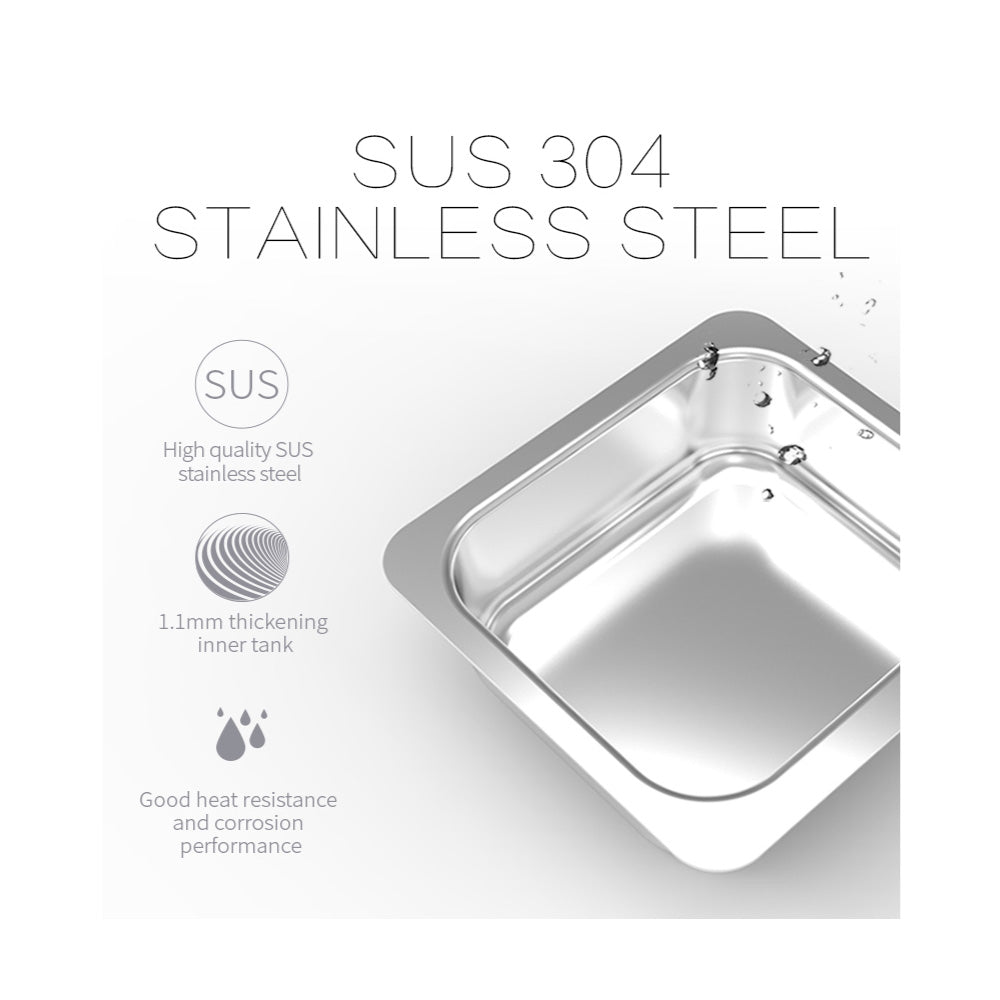

Advanced brushed stainless steel 304 cleaning tank to avoid corrosion and water stains and to keep the tank looking always new.

Specifications:

• Capacity: 3.2 L



• Material: SUS 304 Grade Stainless Steel



• Transducers: 2 pieces



• Power: 120W



• Voltage: 220v - 240v



• Heating Power: 150W



• Heater: 20-80oC



• Frequency: 40 KHz

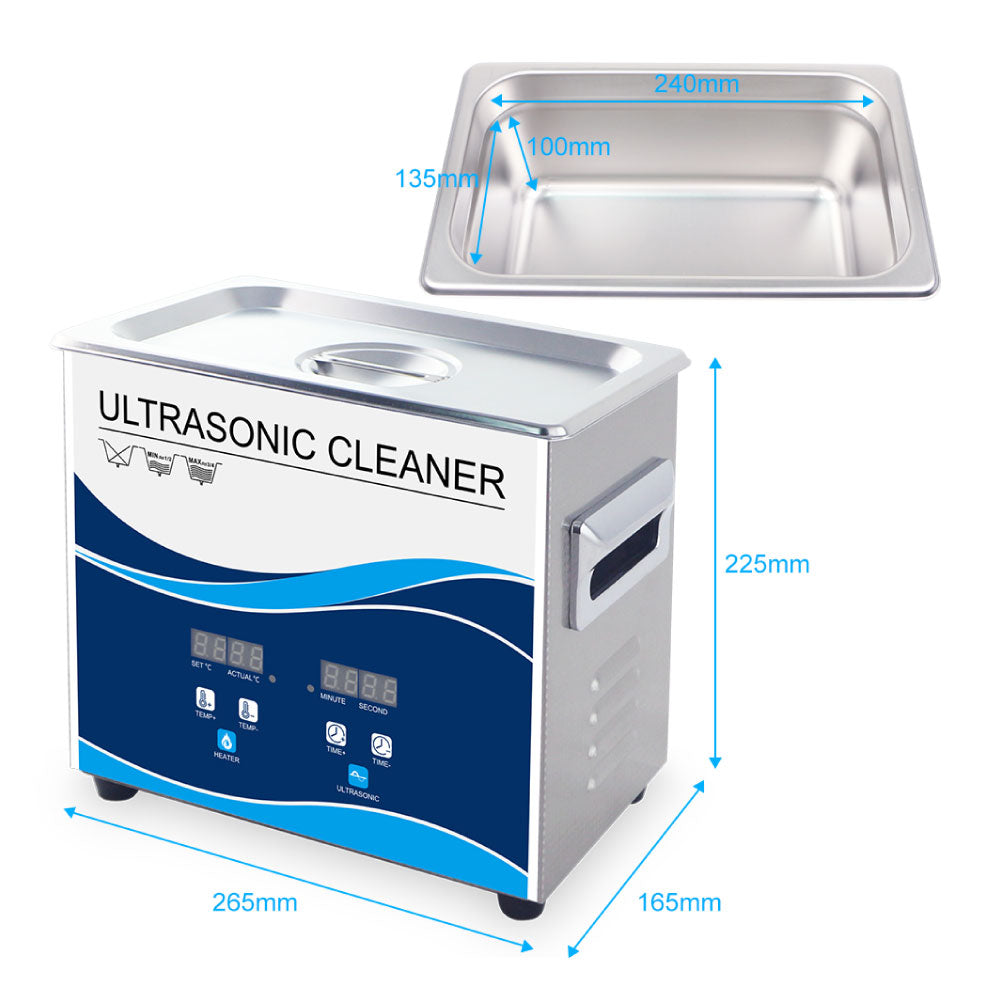

• Tank Size (mm): 240(L) x 135(W) x 100(H)



• Unit Size (mm): 265 (L) x 165 (W) x 225 (H)



• Time: 0-30 minutes



• Weight: 3.5 kg



• AU Plug






  • Warning







  • Never turn on the machine while its empty



  • Always make sure that you fill the container to more than 1/2 capacity and less than 2/3 capacity.



  • Failure to follow these warnings might damage the machine and void the warranty.









Features:

• Durable Stainless steel construction





• Degas function



• Heating and ultrasonic functions



• Ultrasonic cleaning and heating can be used at the same time



• High efficiency cleaning for small blot particles



• RCM, CE, FCC, and RoHS Approved

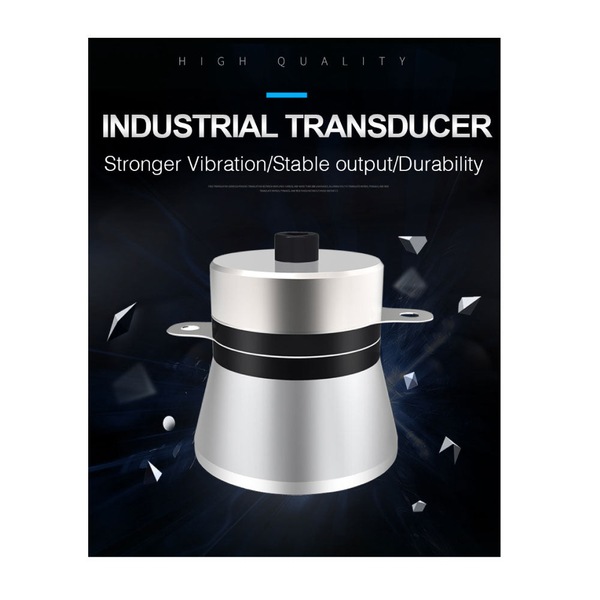

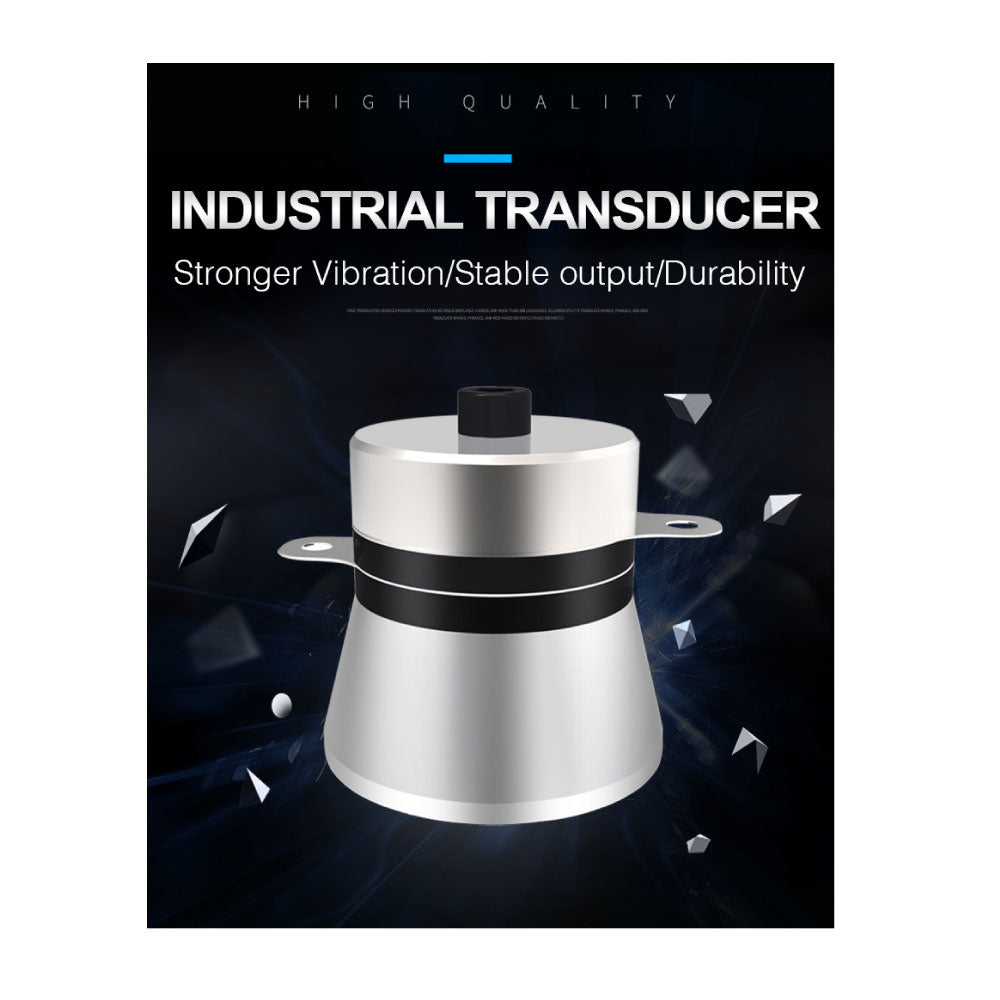

• Built-in powerful transducer can strengthen the ultrasonic power to produce a superior cleaning outcome.

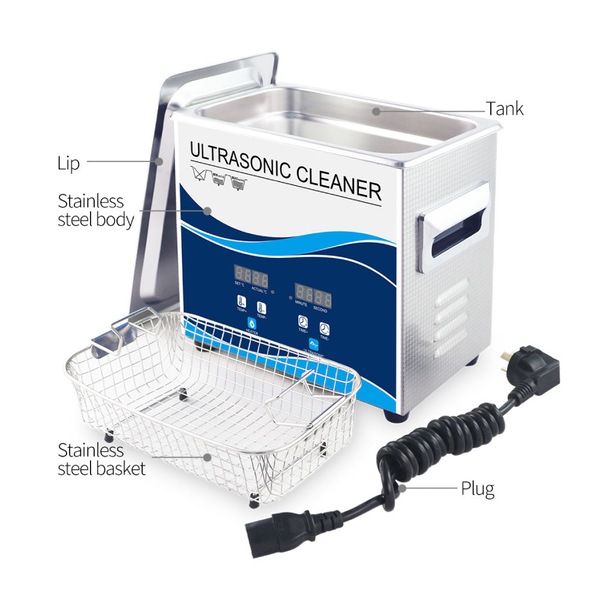

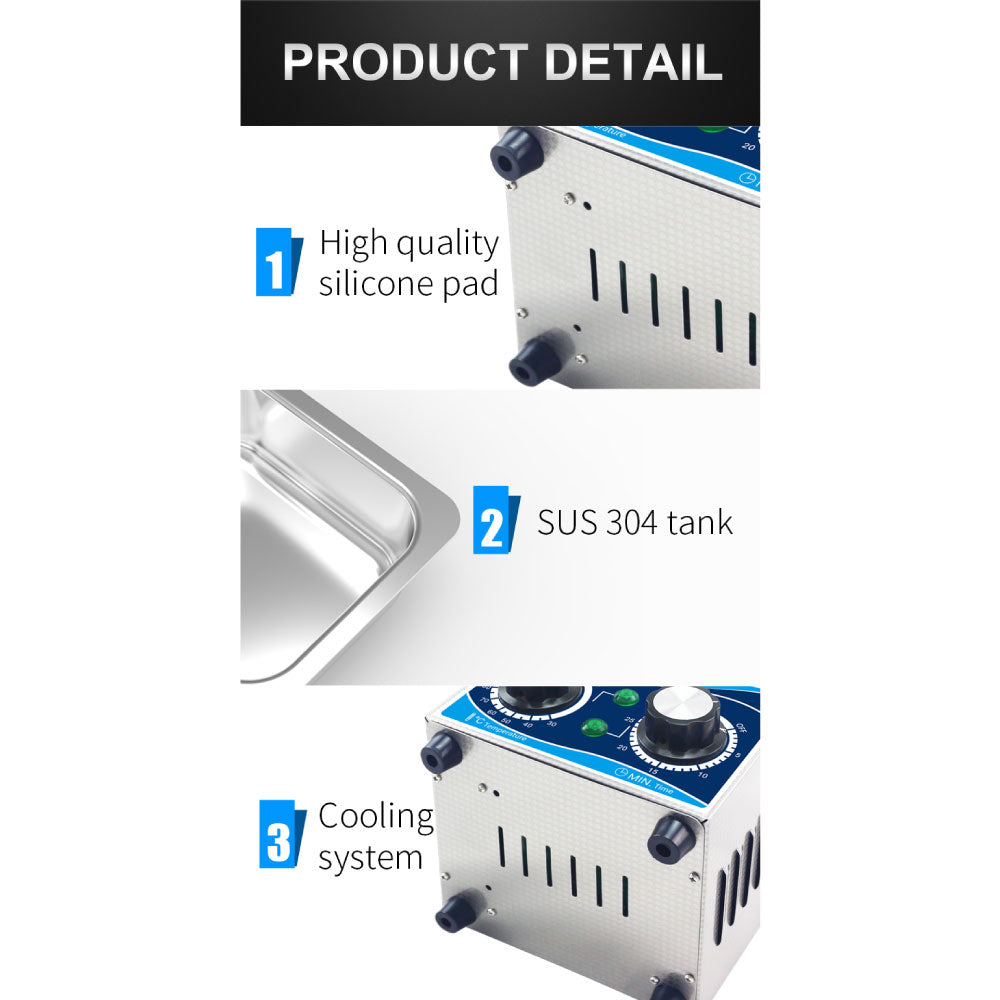

• Stainless steel cleaning basket for cleaning some small objects that need less friction. It can reduce the friction between the small objects and the tank.



• Stainless steel tight-fitting lid with handle to prevent water heat from diffusing.



• Drains with tray

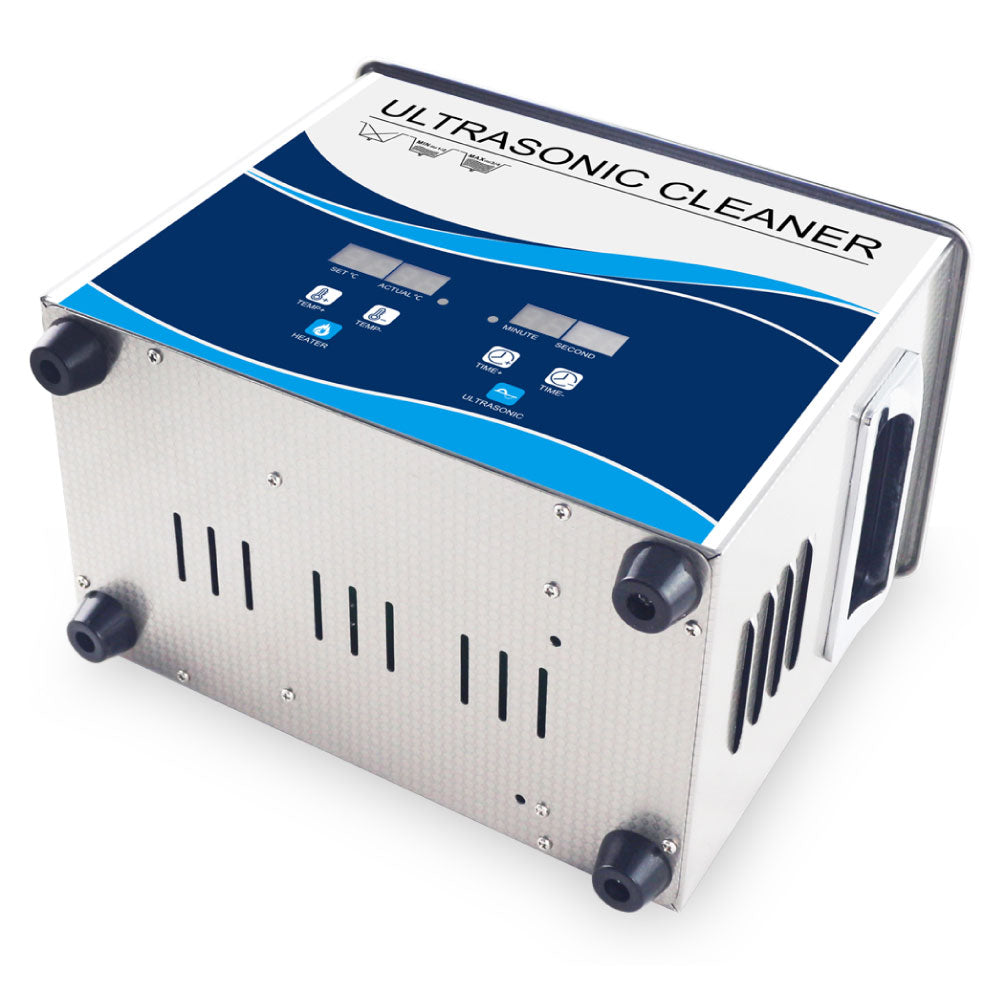

• Skidproof rubber feet



•
  Use tap water only for general cleaning; you also can add about 5-10 ml of detergent into the water to enhance the wash result when needed.

Applications:

•
  Household supplies: such as gold and silver jewelry, jewelry, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools and milk bottles, nipples, and fruits like grapes, cherries, and strawberries. While cleaning the object, it can also be sterilised.





•
  Electronic appliances: switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fibre, relay, capacitor, alarm, memory, LCD, solder, oil stains, turpentine, preservatives, paraffin, oxide, and rust on the hard disc components.



•
  Watches and Jewellery industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on jewellery, necklaces, jade articles, watches, glasses, etc.



•
  Chemical and biological industry: cleaning, disinfection, and sterilisation of chemical instruments and laboratory vessels. Accelerates the emulsification, decomposition, and extraction



•

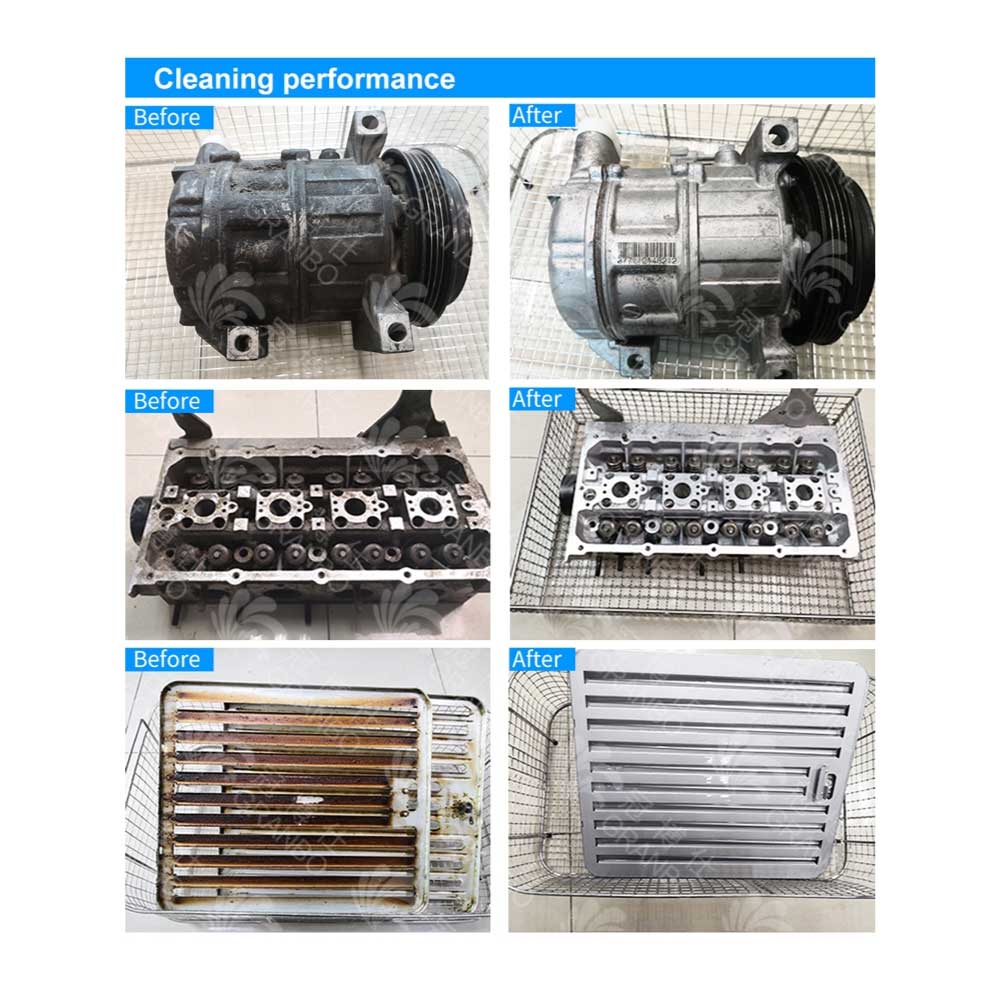

  Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasives, and graphite from valves, ignition plugs, fuel pumps, oil tanks, battery electrodes, piston rings, and machine control disc parts.



•
  Optical Industry: Remove oil, sweat, and ash on the Optical instruments and all kinds of lenses.



•
  Aviation industry: Remove oxide, dust, rust, carbon, and scale on fuel filter, flow control equipment, Gyroscopes, satellites, and aviation hydraulic systems.



•
  Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories



•
  Printing and textile industry: Remove stains, ink marks, fingerprints, oil, and dyestuff on the rotary machine, spinneret, polyester filter core, and textile spindle.



•
  Power industry: Remove ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head



•
  Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on lenses, resin sheet, glas...
