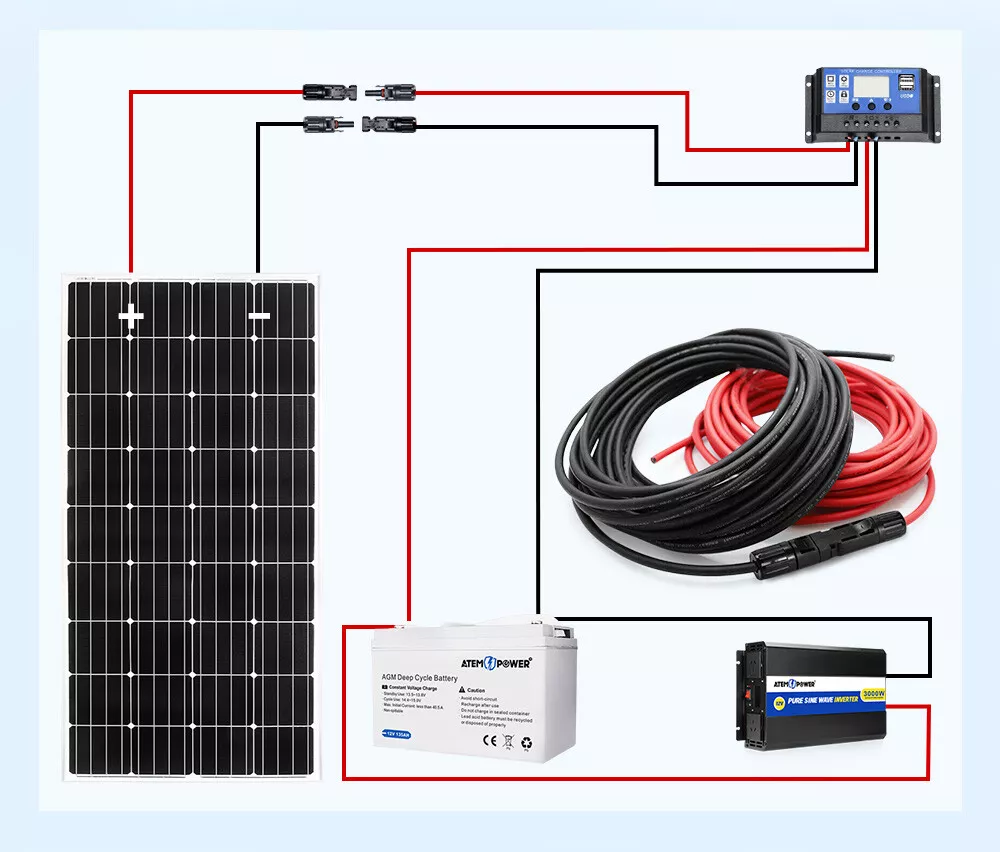

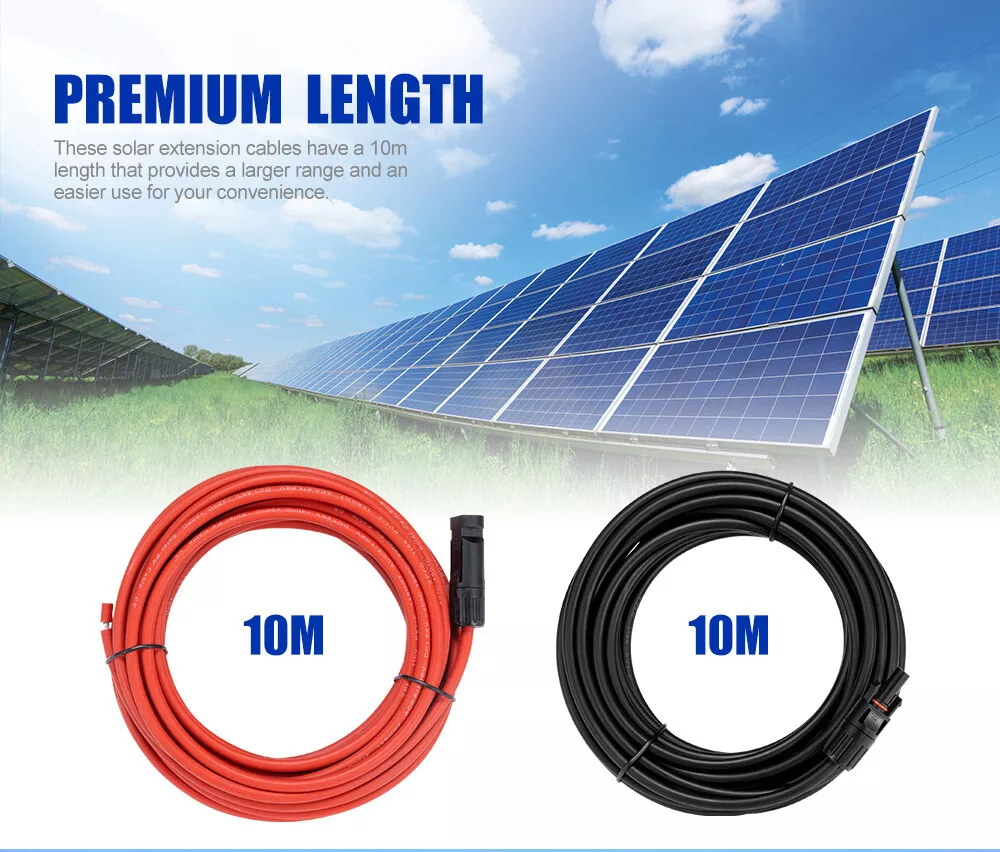

Solar Extension Cable allows you to make spatial adjustments to your solar power system in one simple step. This extension cable runs between the solar panel and the charge controller or between two solar panels, allowing for greater space between both items. Like all other Solar Extension Cables, this product allows for greater customization of the solar power system.

• TUV tested cable
• Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment
• High current carrying capacity
• Resistance against UV, water, fluids, oil, salt and general weathering

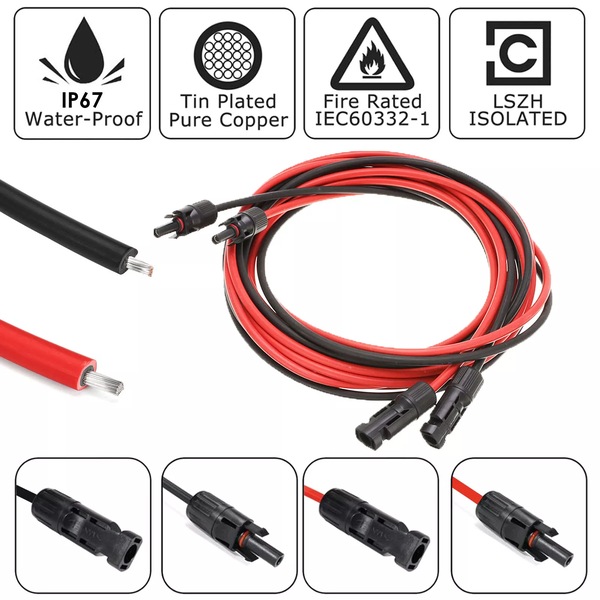

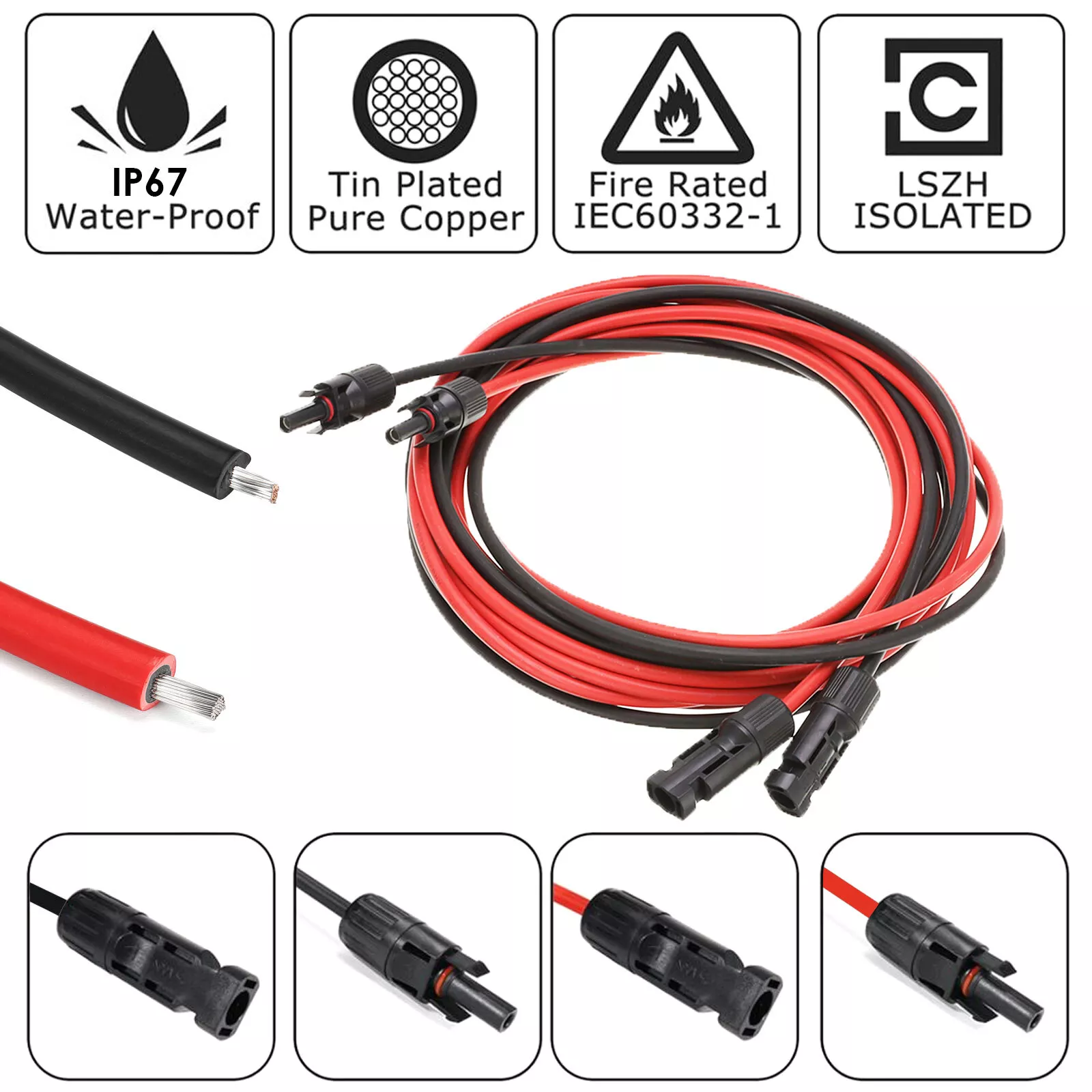

• Hard plastic connectors at each end. Suitable for use in solar panels, DC circuits and inverter wiring
• Designed for long life and outdoor applications. Good abrasion resistance, excellent softness and stripping performance
• Warranty: 1 Year
• Test voltage:  6kV (50 Hz)

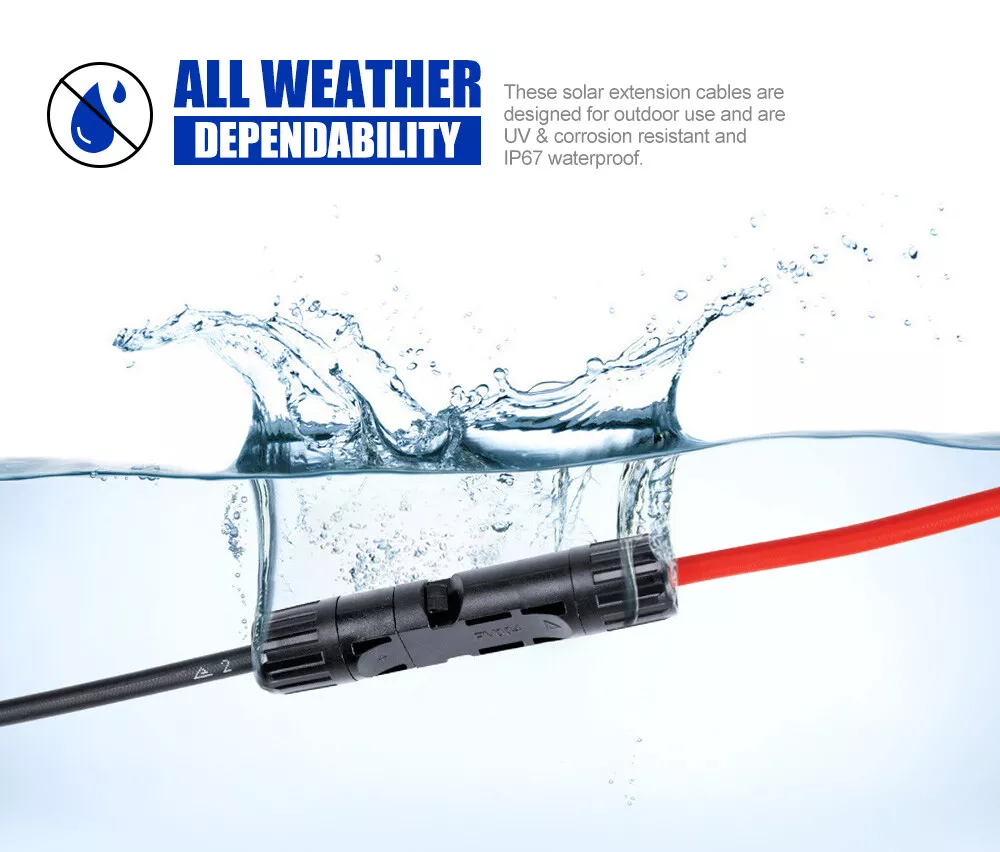

• Approvals: IP67 protecting grade, safety class ii, flame class UL94-V0
• Contact resistance: ≤5mΩ
• Insertion/withdrawal force: ≤50N / ≥50N

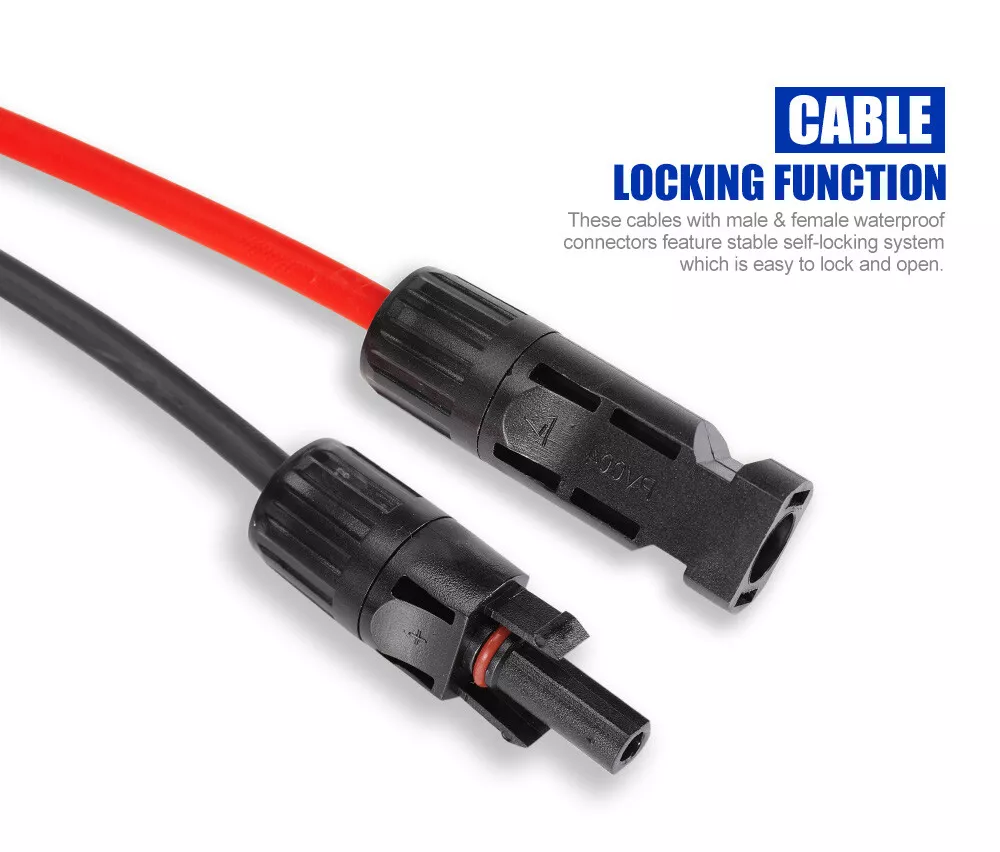

• Locking system: Snap-in

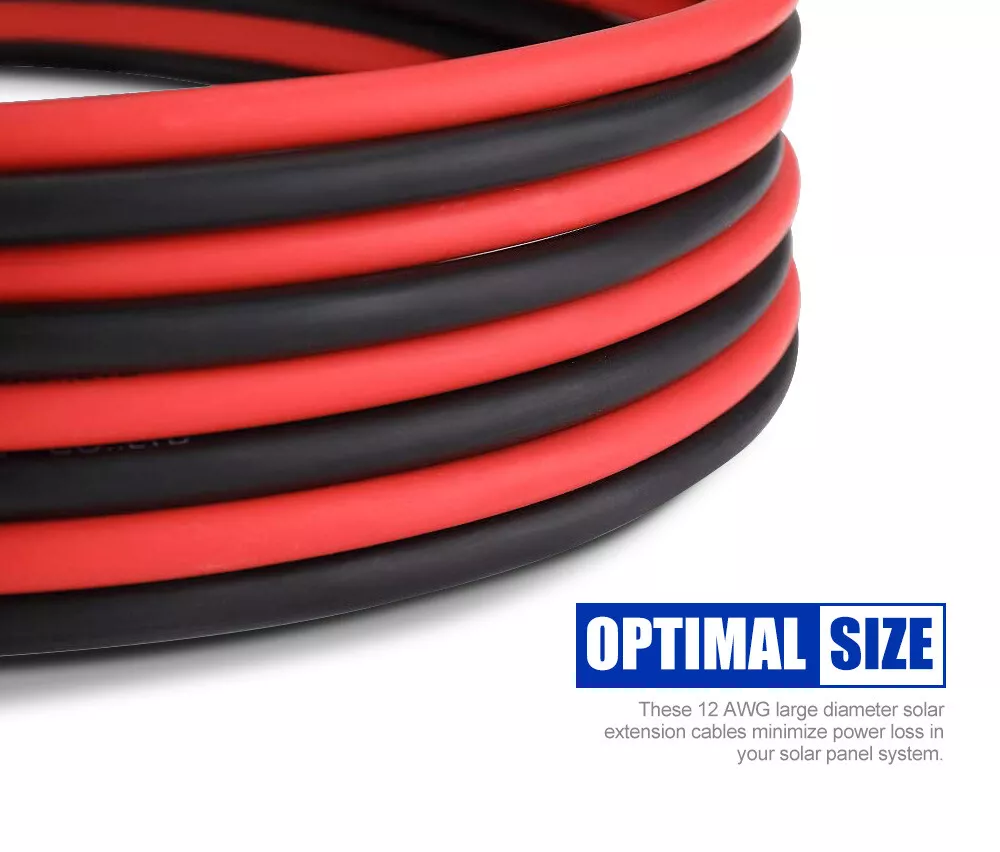

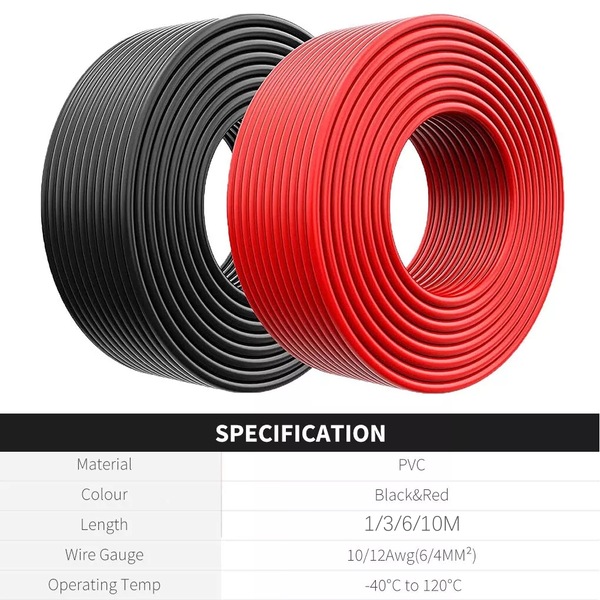

• Diameter: 4mm² / 6mm²
• Max. amps per conductor: 55A  / 70A
• Max. voltage: 600V
• Temperature rating: -40°C to 120°C
• Colour: Black & Red
• Connectors insulation material: PC/PA
• Connectors contact material: copper, silver-plated

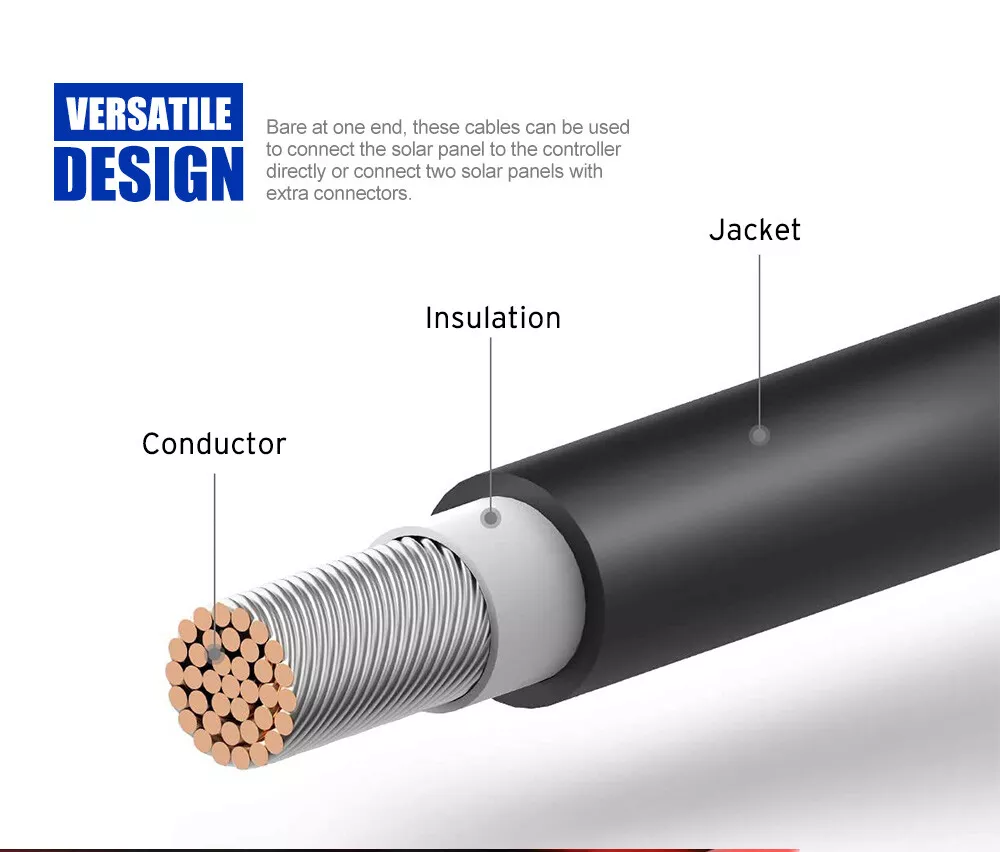

• Wire conductor material: bare copper
• Wire insulation material: cross-linked Polyethylene (XLP)

Package Includes:

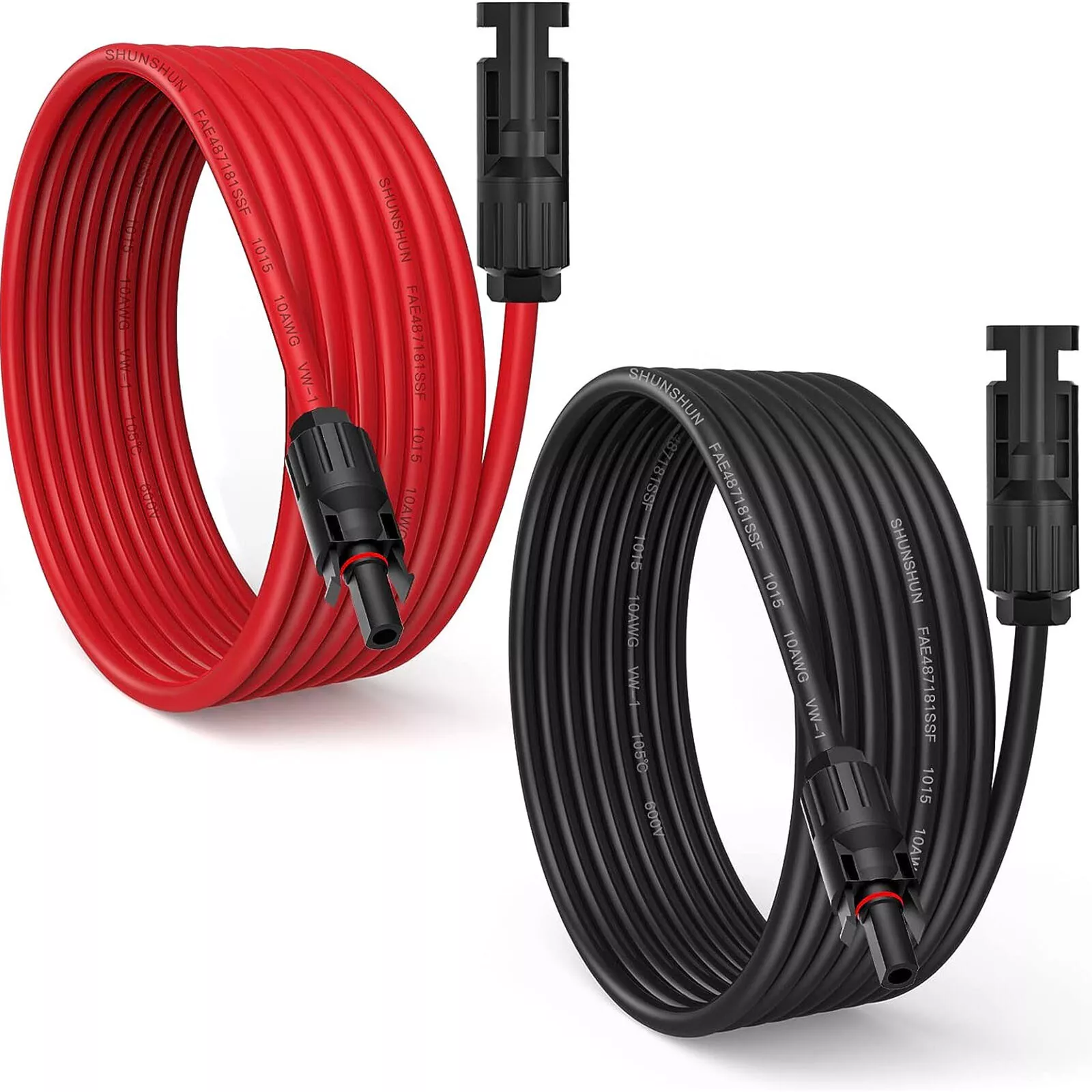

1x (Black) Solar Panel Extension Cable With Connector
1x (Red) Solar Panel Extension Cable With Connector
