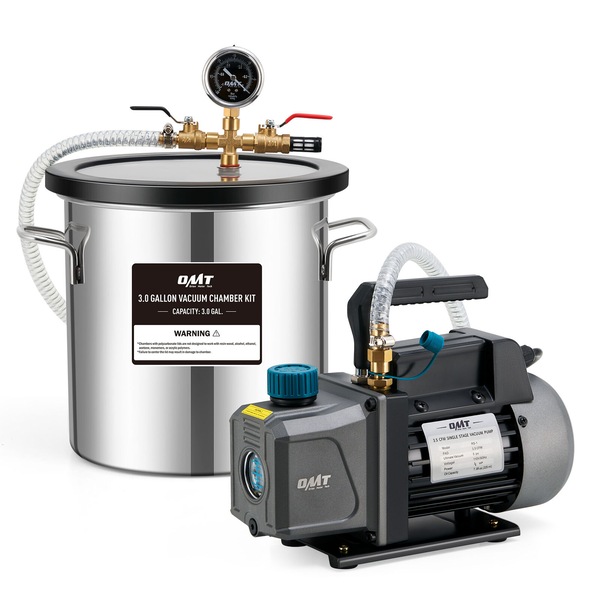

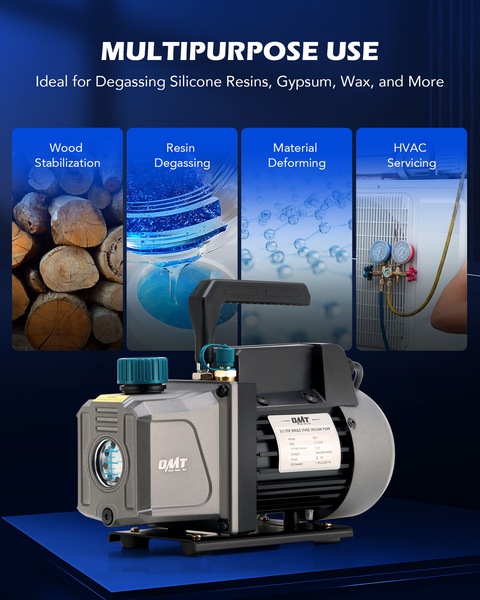

This comprehensive degassing kit by Orion Motor Tech includes a powerful 1/4 hp vacuum pump, a 3 gallon chamber, a wire hose, and all the accessories needed for easy wood stabilization, silicone degassing, and various molding and casting applications.

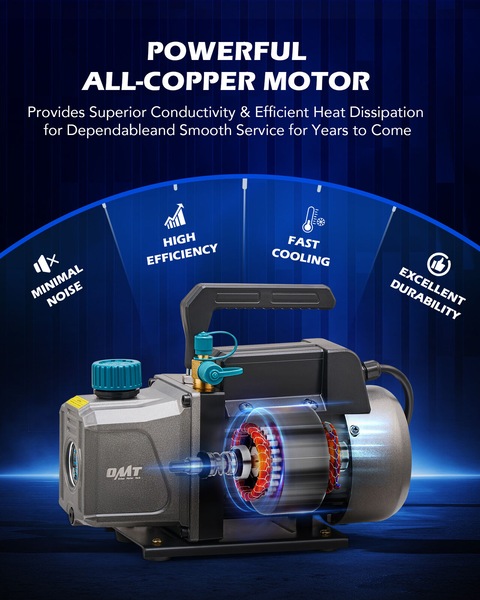

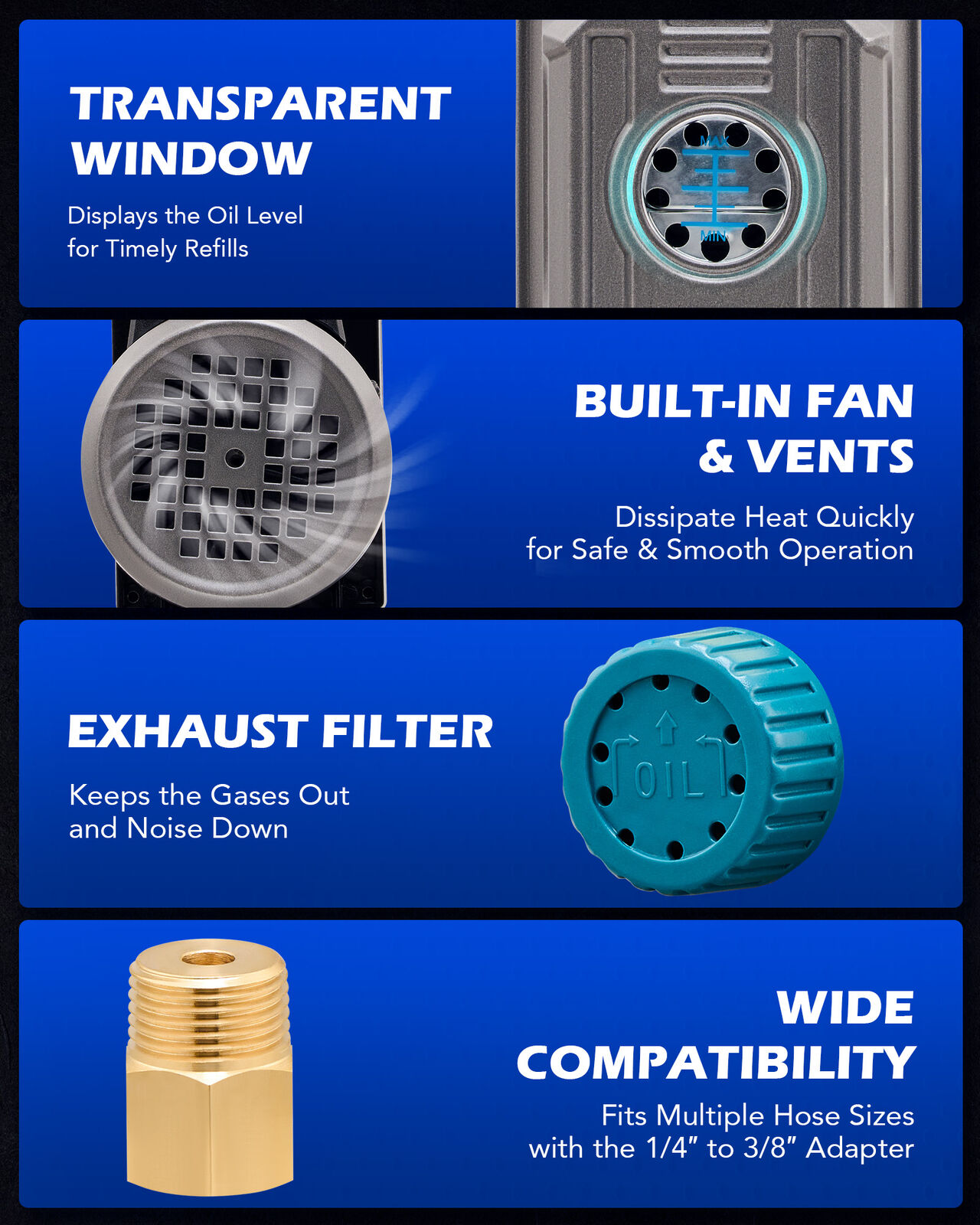

Equipped with a robust all-copper motor, this vacuum pump ensures efficient evacuation at a 3.5 cfm flow rate. Its reinforced aluminum alloy casing efficiently dissipates heat and resists corrosion, and brass-fitted tethered safety caps prevent oil leaks during transport.

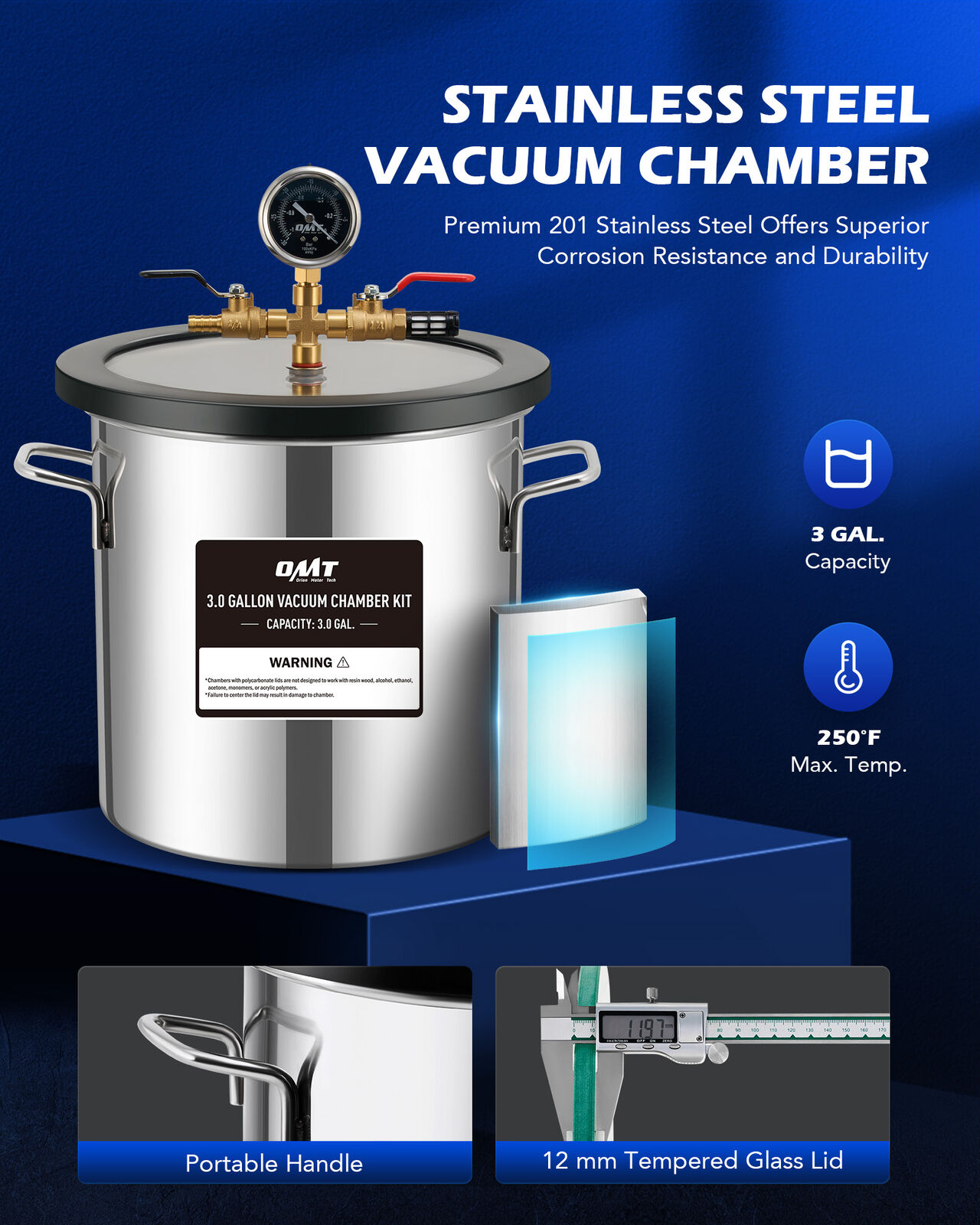

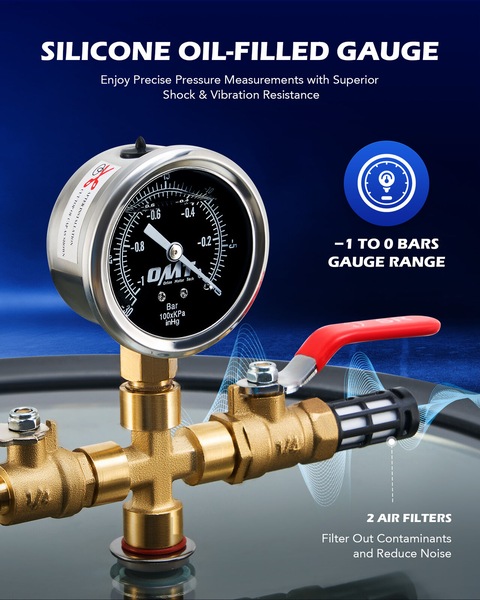

Made of brushed 201 stainless steel, this vacuum chamber withstands pressure, corrosion, and heat up to 250°F. The transparent tempered glass lid and liquid-filled gauge allow easy monitoring of the degassing process, while two air filter and a nonslip pad help minimize noise.

Simply connect the hose from the pump to the chamber, and easily manage the degassing process using two user-friendly ball valves. Stay in control by monitoring the vacuum level with the attached pressure gauge for precise control. Plus, a detailed manual is included for your convenience.

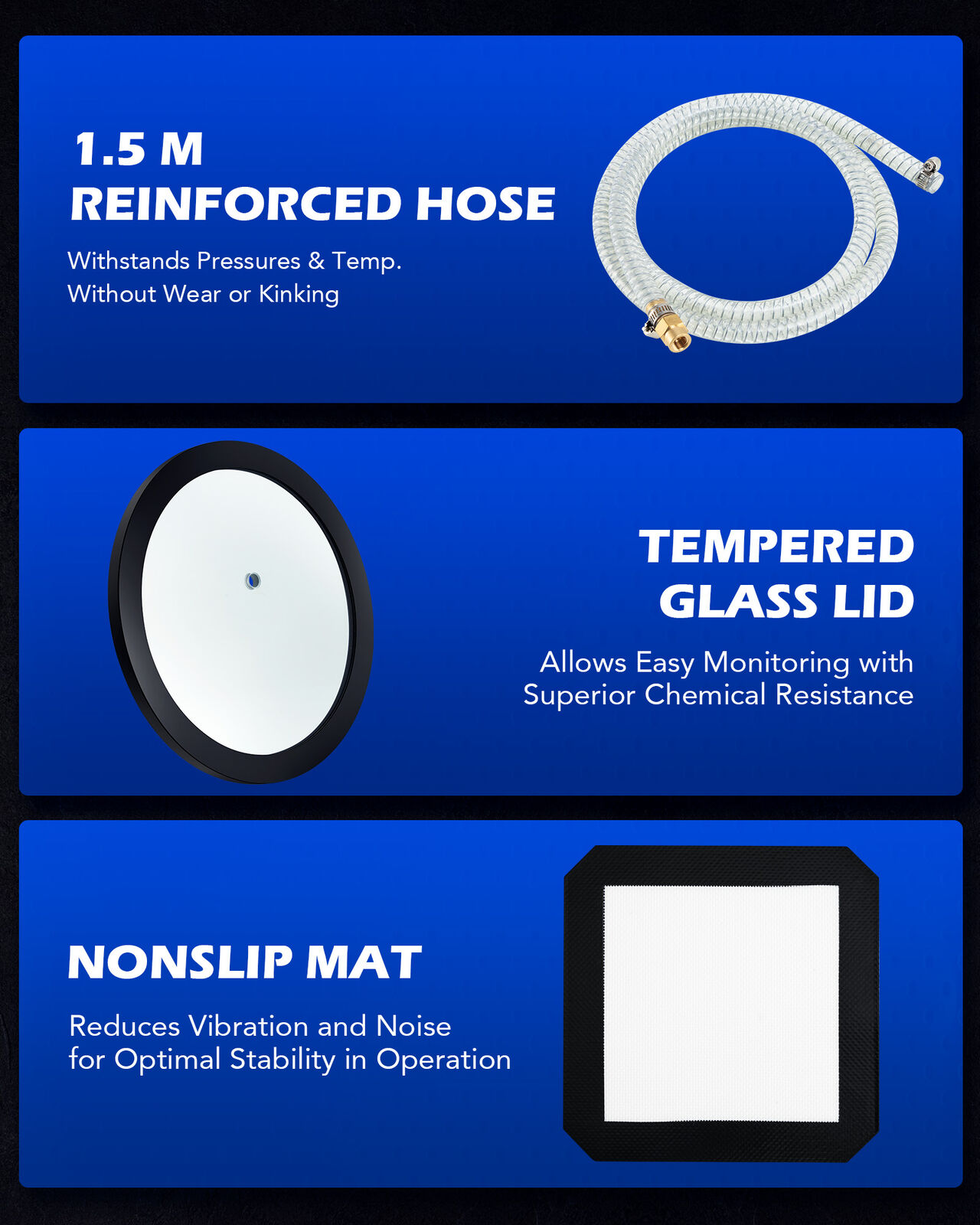

Our vacuum pump and chamber set comes with the necessary lubricating and absorptive oil for the pump, a 5-foot reinforced hose, and various fittings for a solid connection. With pump inlets and the included adapter, it easily works with 1/4, 3/8, and 1/2-inch HVAC hoses for all your service needs.

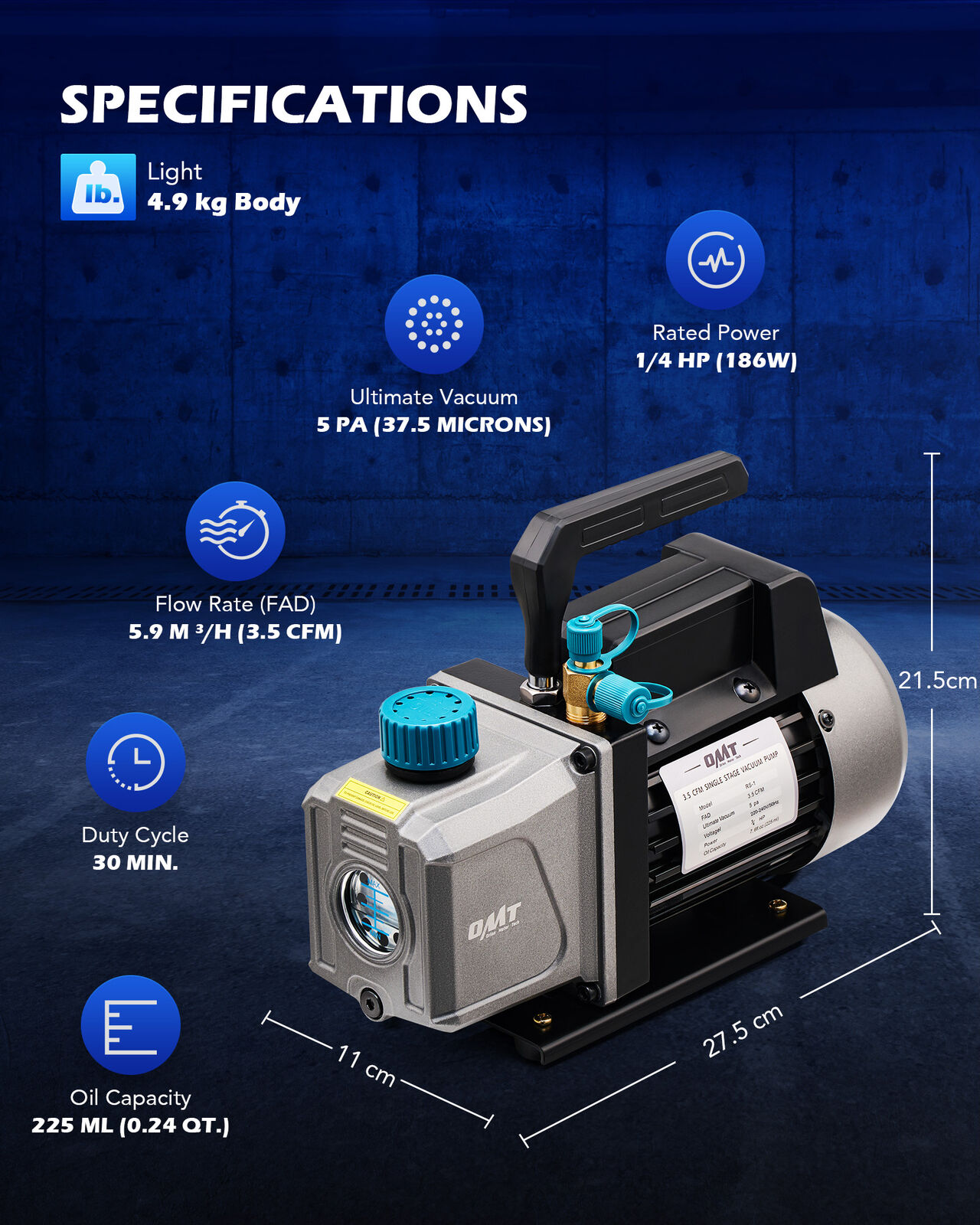

• Material: 201 Stainless Steel, Aluminum Alloy, Copper, Tempered Glass, Silicone, PVC
• Rated Power: 1/4 hp (186W)
• Flow Rate (FAD): 3.5 cfm (5.9 m3/h)
• Ultimate Vacuum: 37.5 Microns (5 Pa)
• Chamber Capacity: 3 Gal. (11.4 L)
• Pressure Range: -30 to 0 inHg (-1 to 0 bar)
• Max. Temperature: 250°F (120°C)
• Pump Intake: 1/4 in., 1/2 in.
• Hose Compatibility: 1/4 in., 3/8 in., 1/2 in.
• Hose Length: 5 ft. (1.5 m)
• Pump Oil Capacity: 0.24 qt. (225 mL)
• Pump Oil (incl.): 0.26 qt. (250 mL)
• Duty Circle: 30 min.
• Pump Dimensions: 10.8 x 4.3 x 8.5 in. (27.5x11x21.5 cm)

• 1x Vacuum Pump
• 1x Vacuum Chamber
• 1x Vacuum Gauge
• 2x Air Filters
• 1x 1/4" to 1/2" Adapter
• 1x Wire Hose
• 2x Hose Clamps
• 4x Gaskets
• 1x Nut
• 1x Nonslip Pad
• 1x Vacuum Pump Oil
• 1x Teflon Tape
• 1x M17 Wrench
• 1x Screwdriver
• 1x Pair of Gloves
• 1x Instructions
