3 Ton Heavy Duty Arbor Punch Press, 280mm Height for Bearings & Bushings

Hurry! 15 items left!

$664.99

Collect 664 Everyday Rewards points

Log in to MyDeal to link your card

Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals

Secure ways to pay at checkout

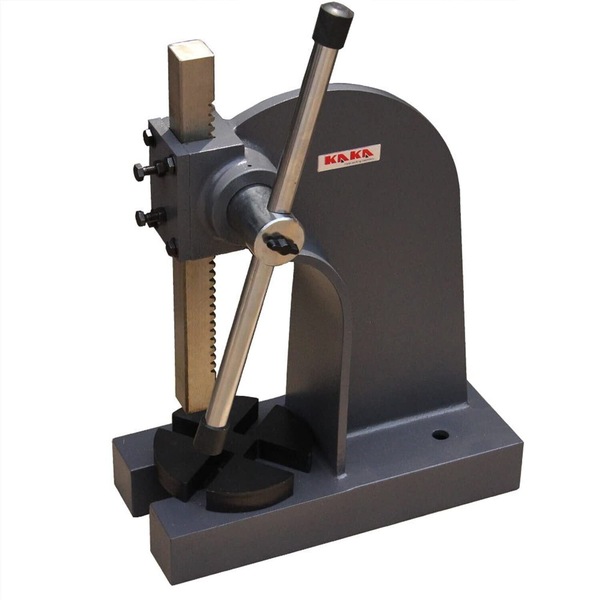

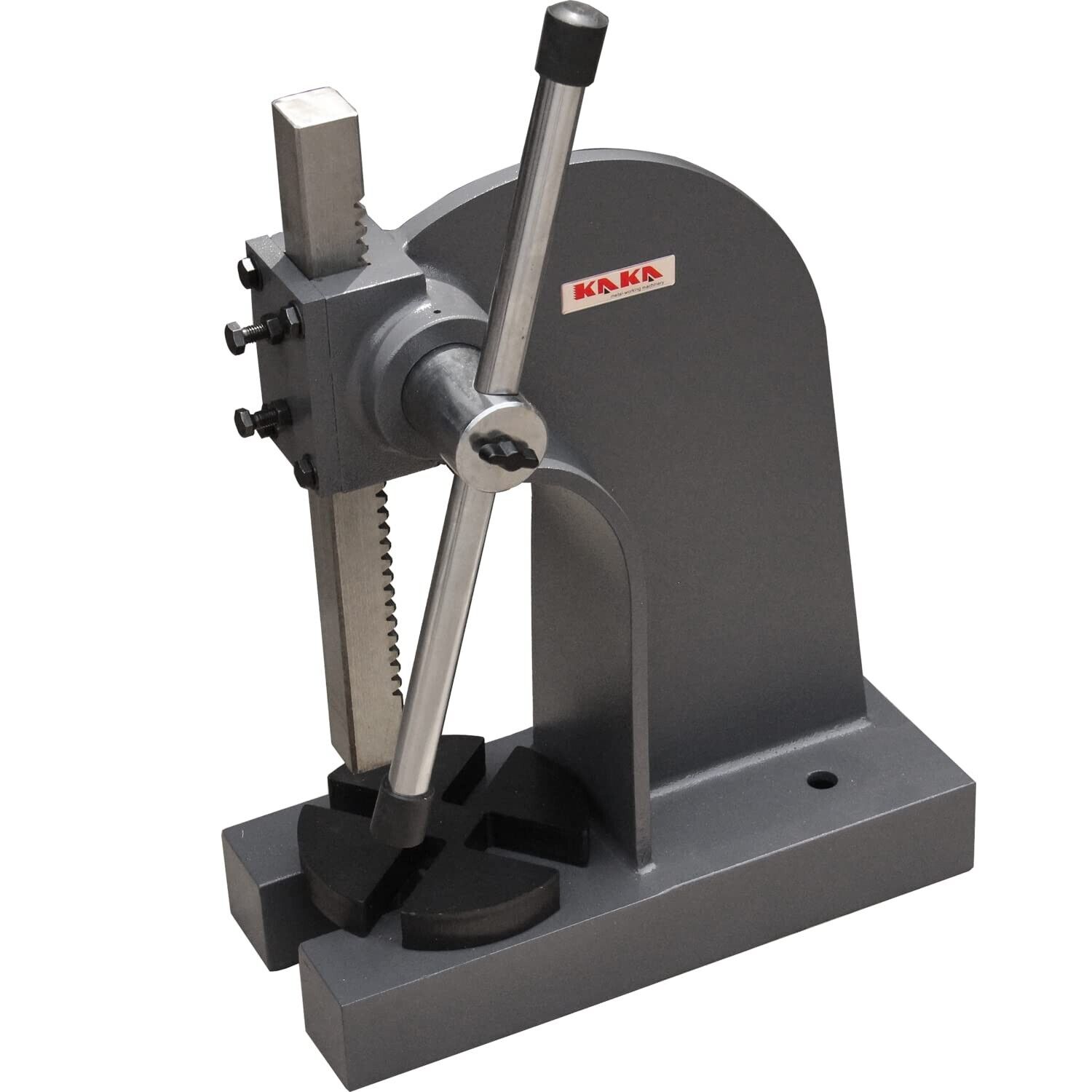

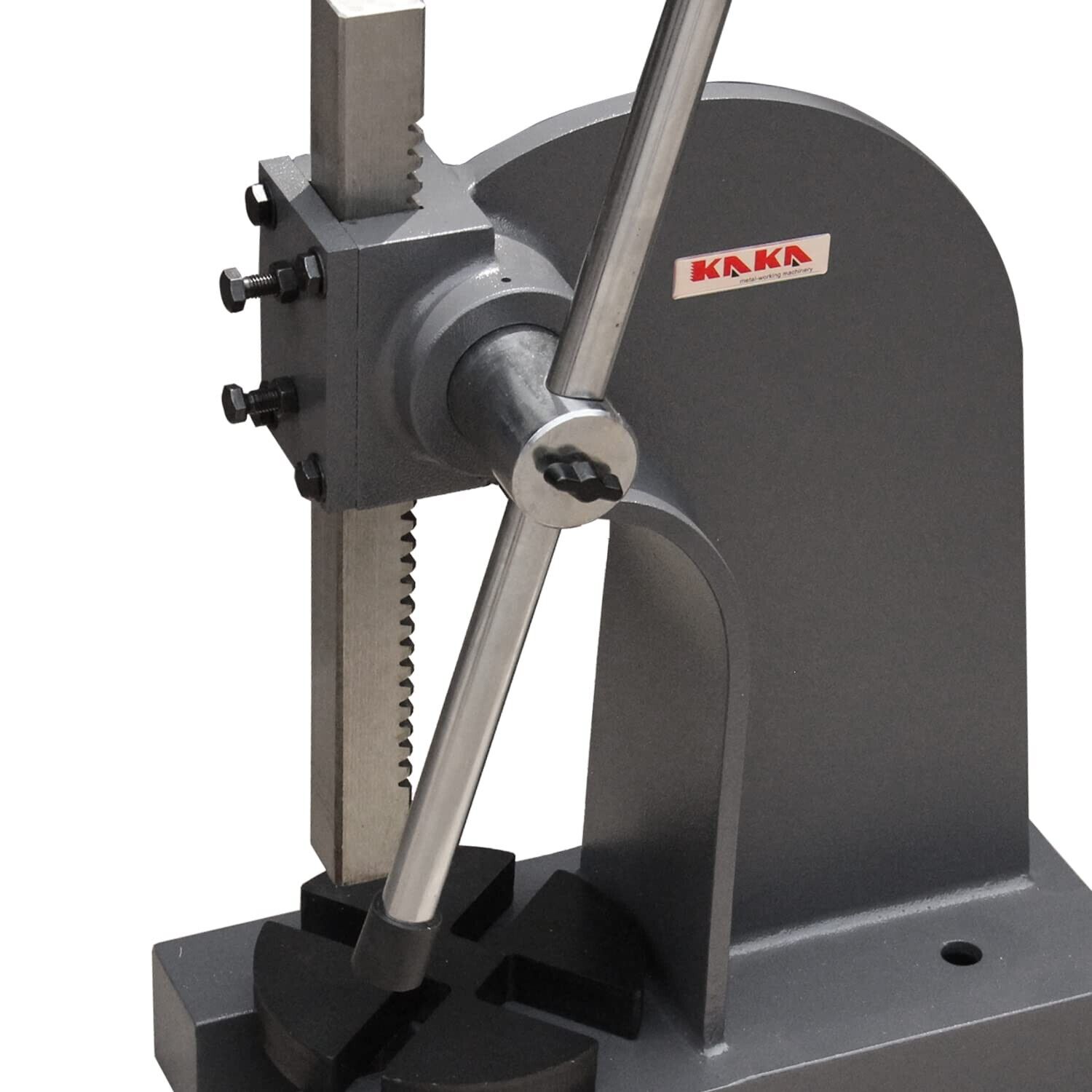

Industrial 3 Ton Arbor PressIdeal tools for pressing bearings and bushings or broaching keyways in fabrication or machine shop, home use also.

Features

Versatile: Throat depth of 163 mm and accepts material height up to 285 mm, allowing for a wide range of applications.

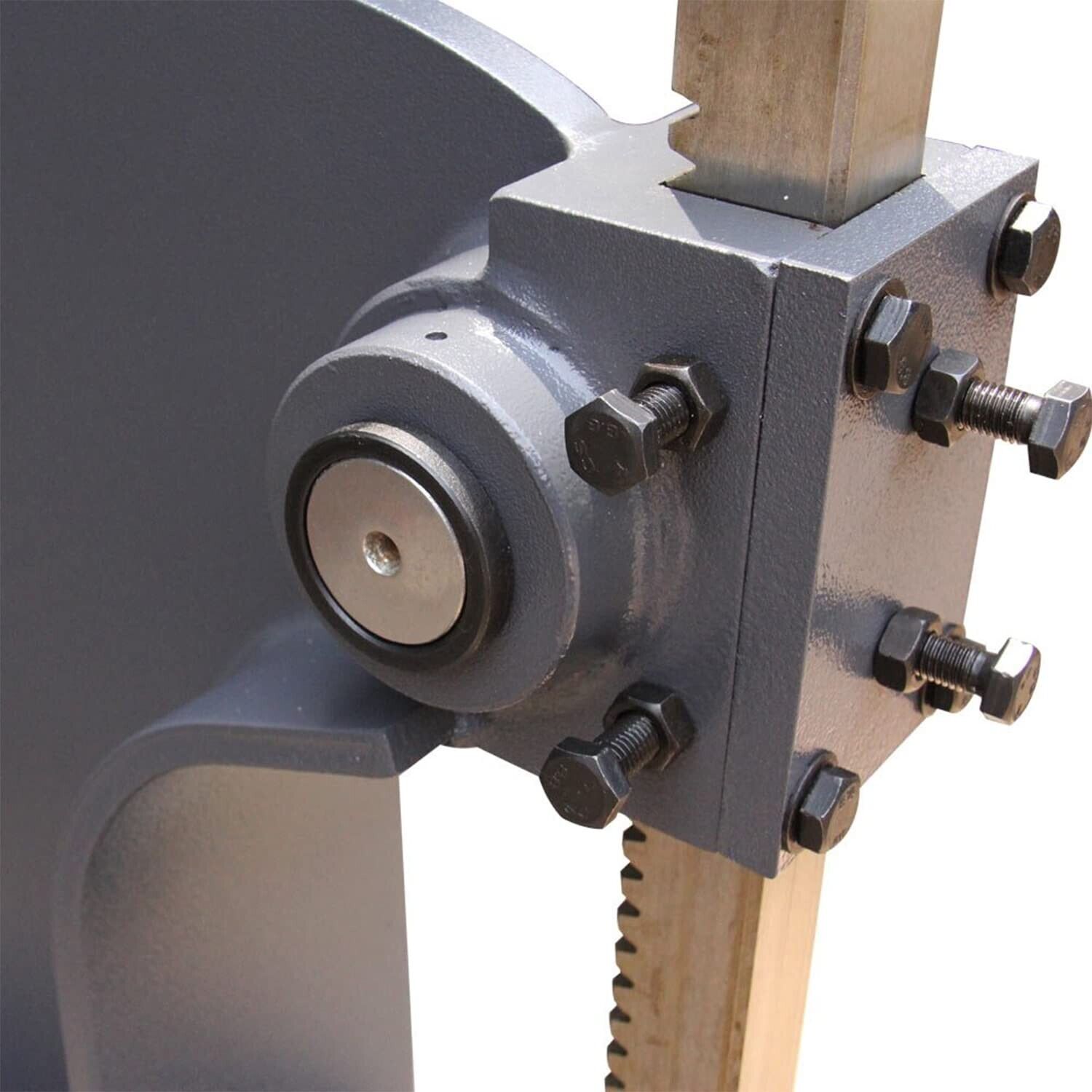

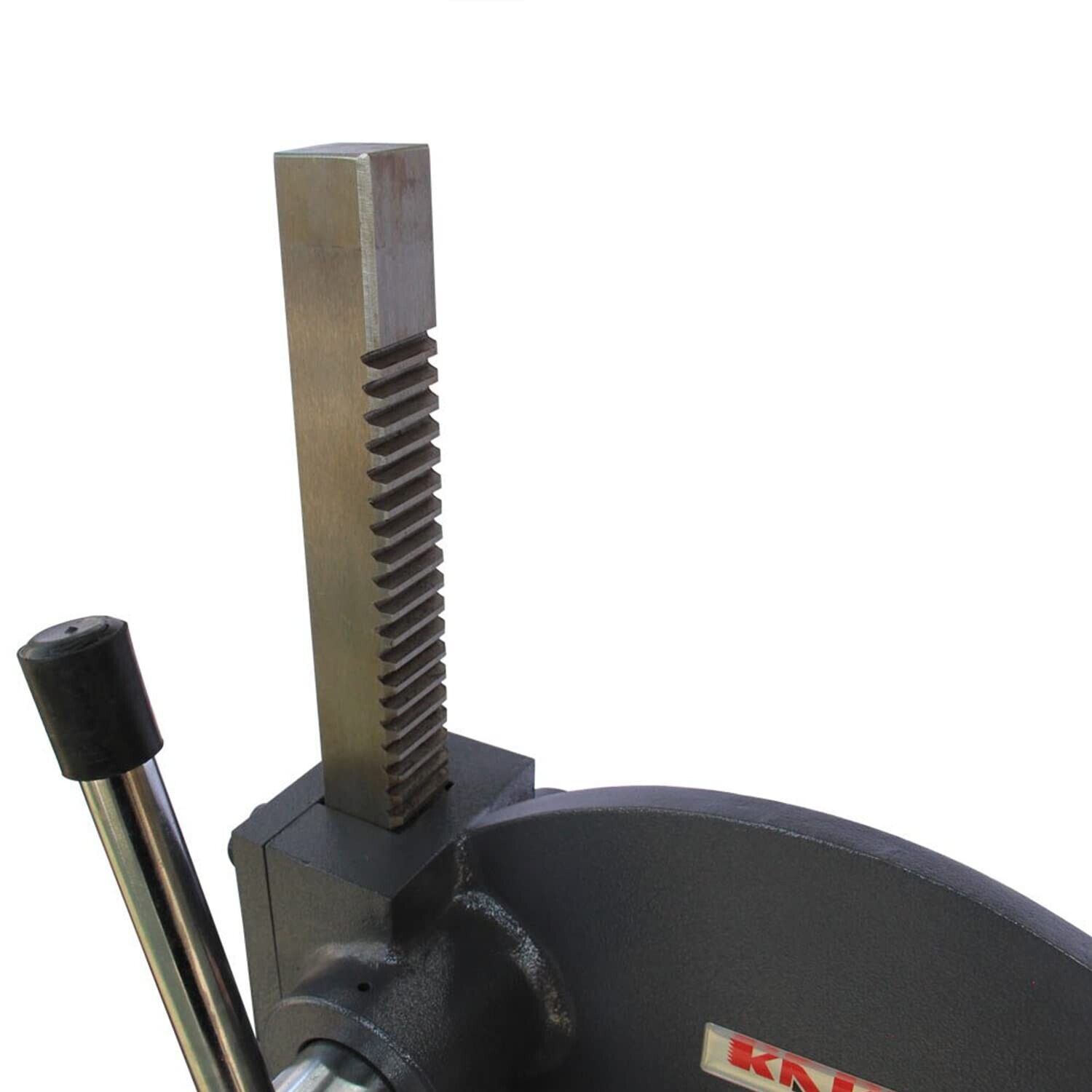

Powerful: Features a hardened 38x38 mm ram for efficient transfer pressure, ensuring excellent performance.

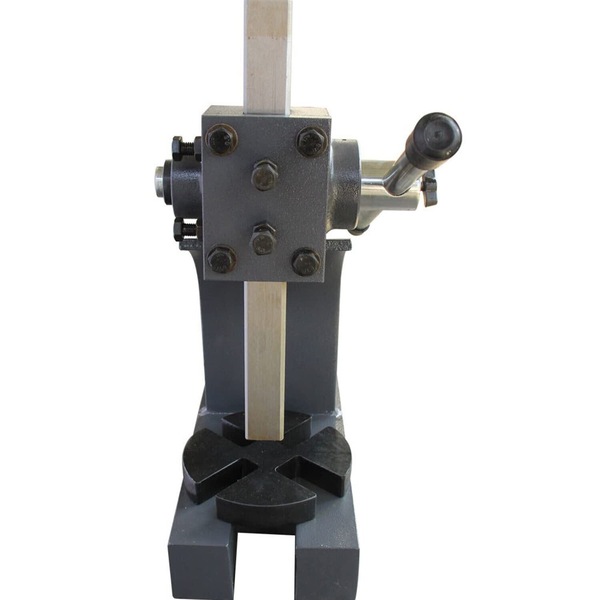

Flexible: Comes standard with a 4-position bottom die plate, offering secure fitment for various broach sizes.
Easy to use: Can be conveniently bench mounted for enhanced stability and ease of operation.
Multiple options: Available in different working capacities including 1/2T, 1T, and 2T to cater to different needs.

Specifications

Model	Capacity	Max. height & dia.	Largest arbor	Table size	Ram square	Press Ht.	Base size	Packing size	N.W./G.W.
AP-1/2	1/2 Ton	90x80 mm	26 mm	ø95mm	19x19 mm	280 mm	240x170 mm	26x12x29 cm	7/8 kg
AP-1	1 Ton	110x100 mm	29 mm	ø 120 mm	25x25 mm	355 mm	268x190 mm	29x14x35 cm	11/12 kg
AP-2	2 Ton	180x123 mm	40 mm	ø 155 mm	32x32 mm	445 mm	432x260 mm	46x20x48 cm	30/31 kg
AP-3	3 Ton	285x163 mm	44 mm	ø 185 mm	38x38 mm	615 mm	455x300 mm	46x24x61 cm	45/47 kg

Item specifics

Model	Capacity	Handle power	Travel	Table size	Packing size	N.W./G.W.
AP-1S	10 KN	200 N	150+60 mm	200x120 mm	44x24x21 cm	11/12 kg
AP-2S	20 KN	200 N	200+80 mm	200x150 mm	44x24x21 cm	16/17 kg

SKU: 166261119504
