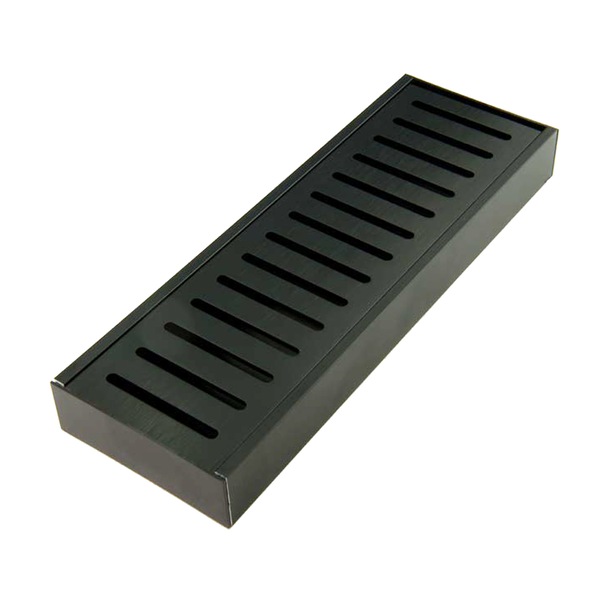

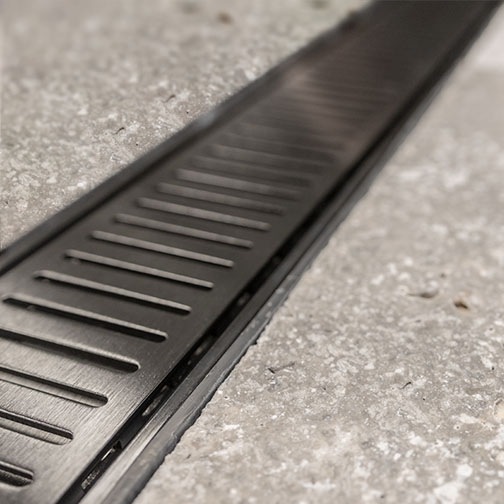

Lauxes Floor Grates are carefullydesigned and manufactured from tripleanodised aluminium to create a robust, costeffective and versatile drainage solution forany indoor and outdoor wet area.With Lauxes Floor Grates there is nocompromise on functionality or style whencreating designer living spaces.
Specifications:
Specifications:
Size (mm): 5600L x 70W x 23H
4 Waste Sizes: 40/50mm
Color: Black
Rust proof
Lightweight
Top grate easily removed for cleaning
Different colour choices to suit application
Easy to cut to desired length
No welding required
No major plumbing involved as waste can be positioned anywhere along the bottom tray
Perfect use for indoor/outdoor applications
Lifetime: Rustproof Warranty
Package Contents:
1 x Floor Drain
1 x Waste
1 pair of end cap
Cutting & Assembly Instructions:
For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
