ACA 300-3900mm Lauxes Aluminium Slimline Tile Insert Floor Grate Drain Waste Any Size Indoor Outdoor

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Shop More Products

Lauxes Floor Grates are carefullydesigned and manufactured from tripleanodised aluminium to create a robust, costeffective and versatile drainage solution forany indoor and outdoor wet area.With Lauxes Floor Grates there is nocompromise on functionality or style whencreating designer living spaces.


Specifications:

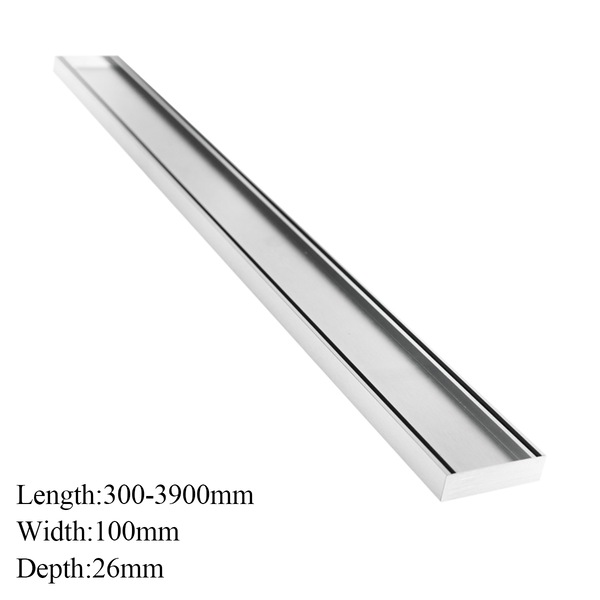

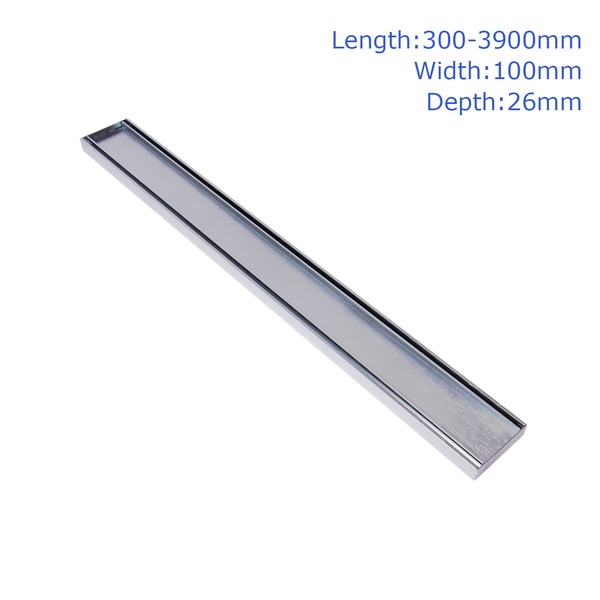

  • Size (mm): 5600L x 100W x 26H
  • 4 Waste Sizes: 40/50/72/80mm
  • Color: Silver
  • Rust proof
  • Lightweight

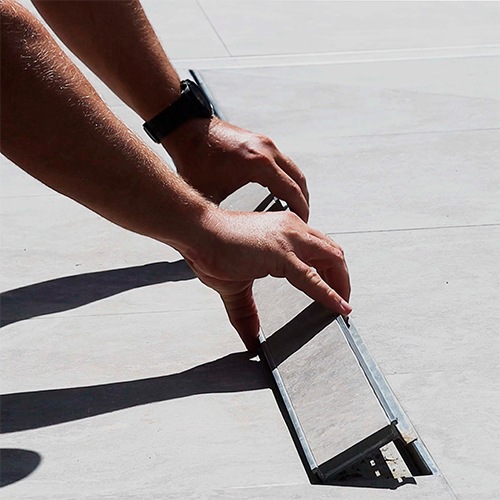

  • Top grate easily removed for cleaning
  • Different colour choices to suit application
  • Easy to cut to desired length
  • Easy to clean (easy to roll out system)
  • No welding required
  • No major plumbing involved as waste can be positioned anywhere along the bottom tray
  • Perfect use for indoor/outdoor applications
  • Lifetime: Rustproof Warranty

Package Contents:

  • 1 x Floor Drain
  • 1 x Waste
  • 1 pair of end cap

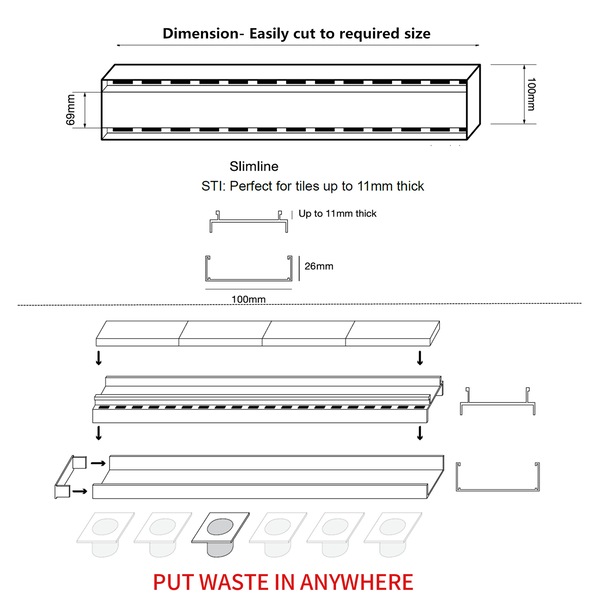

Cutting & Assembly Instructions:

For easy cutting of floor grate we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

  • 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
  • 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
  • 3.Using the suitable size hole saw for your pop waste drill out the hole at the required position to align with the waste pipe in the floor
  • 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
  • 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Reference ID: 399316
