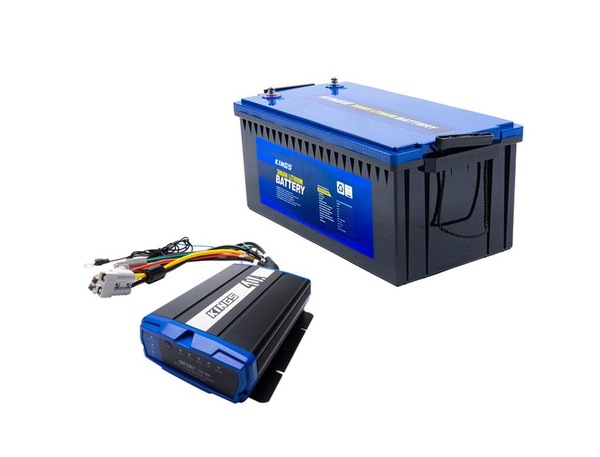

Adventure Kings 300AH Lithium LiFePO4 Battery Prismatic Cell+ 40A DCDC Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$978

Collect 978 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The 300Ah capacity allows you to truly create your ultimate off grid set up to help power all of your power hungry creature comforts without the fuss of needing to wire up multiple batteries in series or in parallel to achieve the same capacity. The Adventure Kings 300Ah Deep Cycle lithium battery is perfect for power hungry setups, including large fridges, camping lights, induction cooktops, and inverters that will run your 240V appliances off grid.

• The BMS ensures safe and reliable operation. intelligently monitors each individual cell and balances their use to ensure your battery is charging and discharging evenly. The quality BMS in this Adventure Kings 300Ah deep cycle lithium battery is rated to output a continuous 300 amps, meaning you can easily connect and power any Kings inverter to run any 240V gear without a worry in the world!

• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) PARALLEL AND SERIES CONNECTION You can connect up to 2 deep cycle lithium batteries together in parallel to double the rated capacity, or connect up to 4 lithium batteries in series for increased voltage, the choice is yours!

• 40 Amp Multi-Stage Battery Charger, Built-in MPPT Solar Regulator with Solar Priority Charging

• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

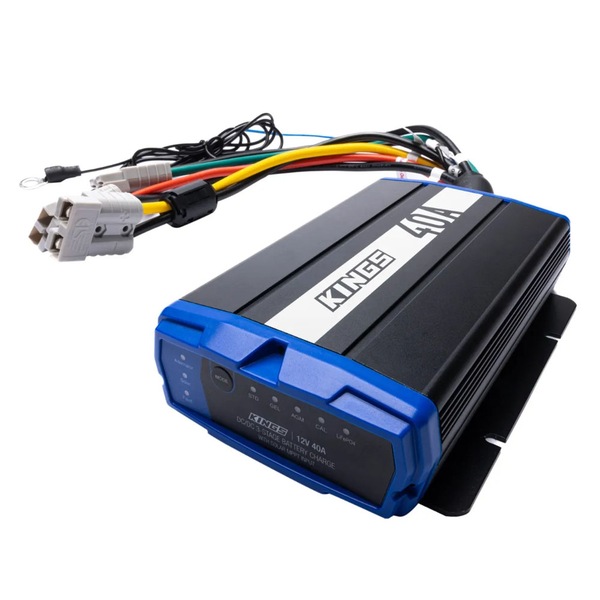

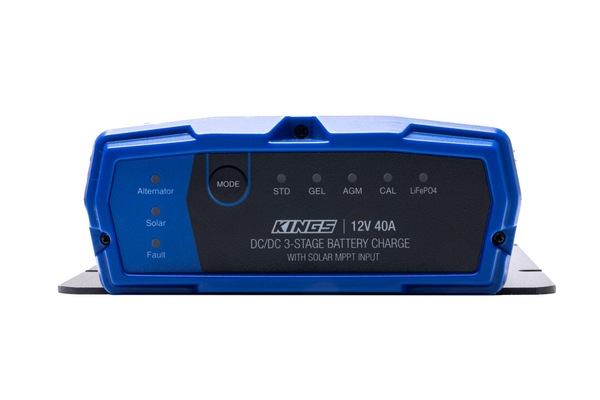

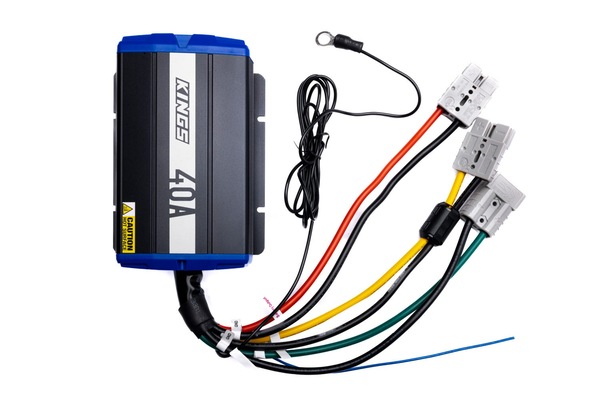

KINGS 40A DCDC CHARGER KINGS 40A DCDC CHARGER


Max. Continuous Charging Current 40AMax. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C

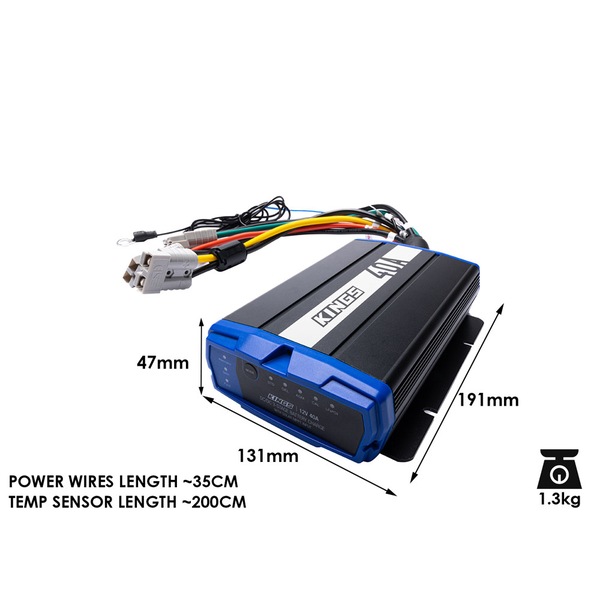

Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

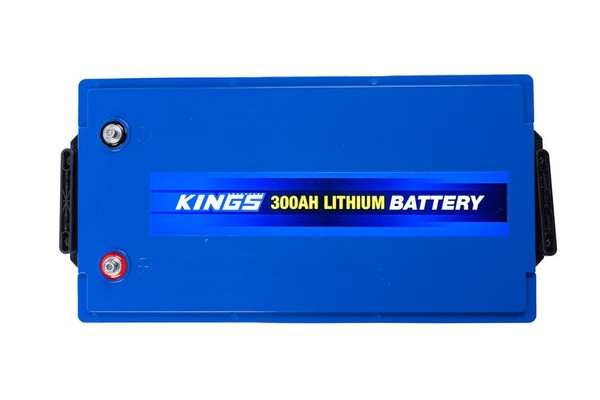

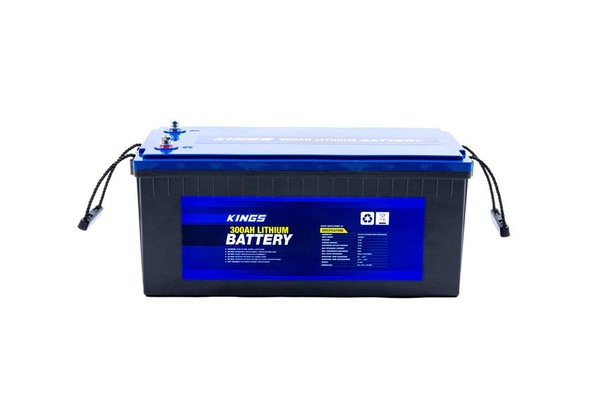

KINGS 300AH LITHIUM LIFEPO4 BATTERY



Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 300Ah
Rated Energy 3840Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Rated Float Charge Voltage 14.4V
Discharge Cut off Voltage  10V
Max Continuous Discharge Current 300A
Max Pulse Discharge (5 Seconds) 360A
Operating Temperature - Charging  0 - +50°C
Operating Temperature - Discharging -20 - +60°C
Cell Construction  Prismatic
Case Material ABS

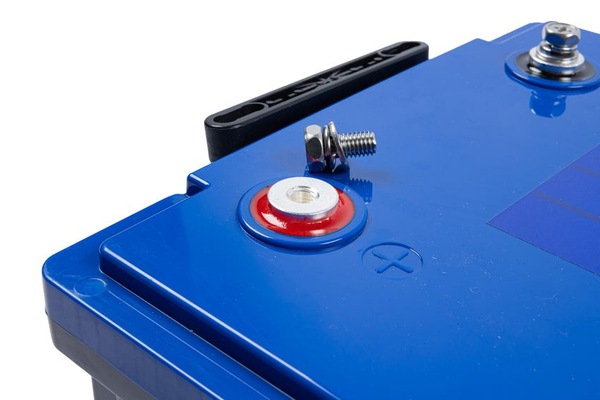

Terminals M8 Threaded
Allowed Batteries Connected in Series Bank (Same Batch)  4
Allowed Batteries Connected in Parallel Bank (Same Batch) 2
Dimension (LxWxH) +-1cm  ~520 x 269 x 220mm
Weight +-3kg  ~38.2kg

MPN: SC-CO-BATLITH300-DC40A
