300m³/h Silent Design Exhaust Fan Wall Mounted in Silver/White

300m³/h Silent Design Exhaust Fan Wall Mounted in Silver/White

Hurry! 2 items left!
Earn 3x points and collect 1392 Everyday Rewards points. Promotion ends 01/08/2024.
Log in to MyDeal to link your card
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
Maximum item limit (2) has been reached.

The Silent Design Series exhaust fans bring style and elegance to any contemporary bathroom, ensuite and toilet. They can be wall or ceiling mounted and feature an advanced vibration absorbing design that ensures quiet operation. Sizes to fit 100, 125 and 150mm duct are available and models with a run-on timer and humidistat are included in the range.


  • Quiet operation due to its noise and vibration absorbing design
  • Ideal for modern homes and commercial application
  • Suitable for wall and ceiling installations

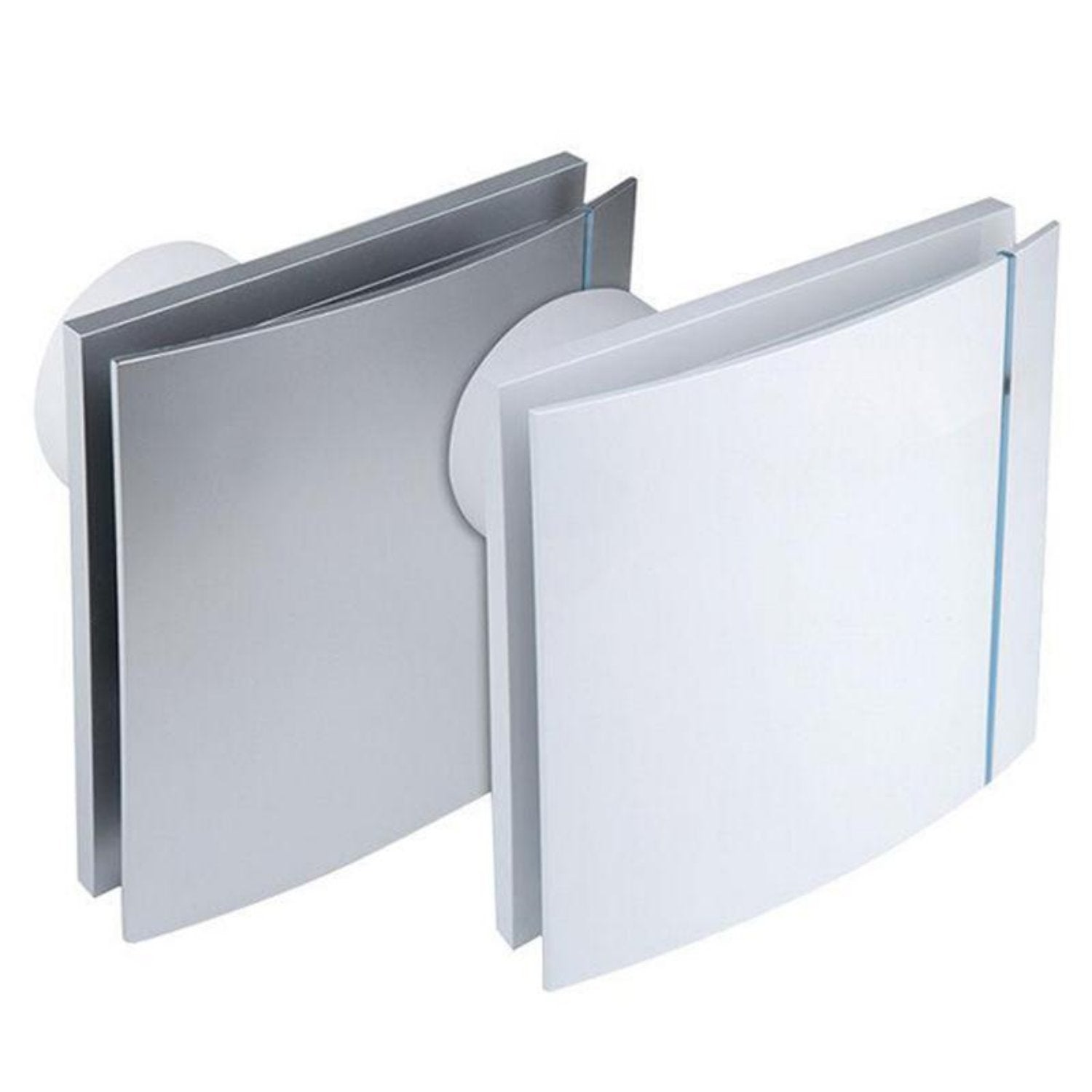

  • To complement room fixtures all models are available in white and silver finish - other colours also available.*
  • Comes with 4 interchangeable colour bars to match room décor.
  • Backdraft damper is standard on all models
  • All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application
  • Class B motor, IP45 rated
  • CZ' Range - Includes backdraft damper
  • CRZ' Range - Includes backdraft damper and 1-30 minute adjustable run-on timer
  • CHZ' Range - Includes backdraft damper, 1-30 minute adjustable run-on timer and adjustable humidistat
  • Available in spigot diameter sizes to suit 100, 125 and 150mm duct.
  • * 10 business days lead time applies


  • Type - shaded-pole induction motor
  • Electricity supply - single-phase 230V, 50Hz.
  • Bearings - Ball.
  • Maximum ambient temperature - 40°C
  • Class II insulation, IP45 rated

Internal Thermal Protection

  • All 100 models - impedance
  • All 200 and 300 models - fuse

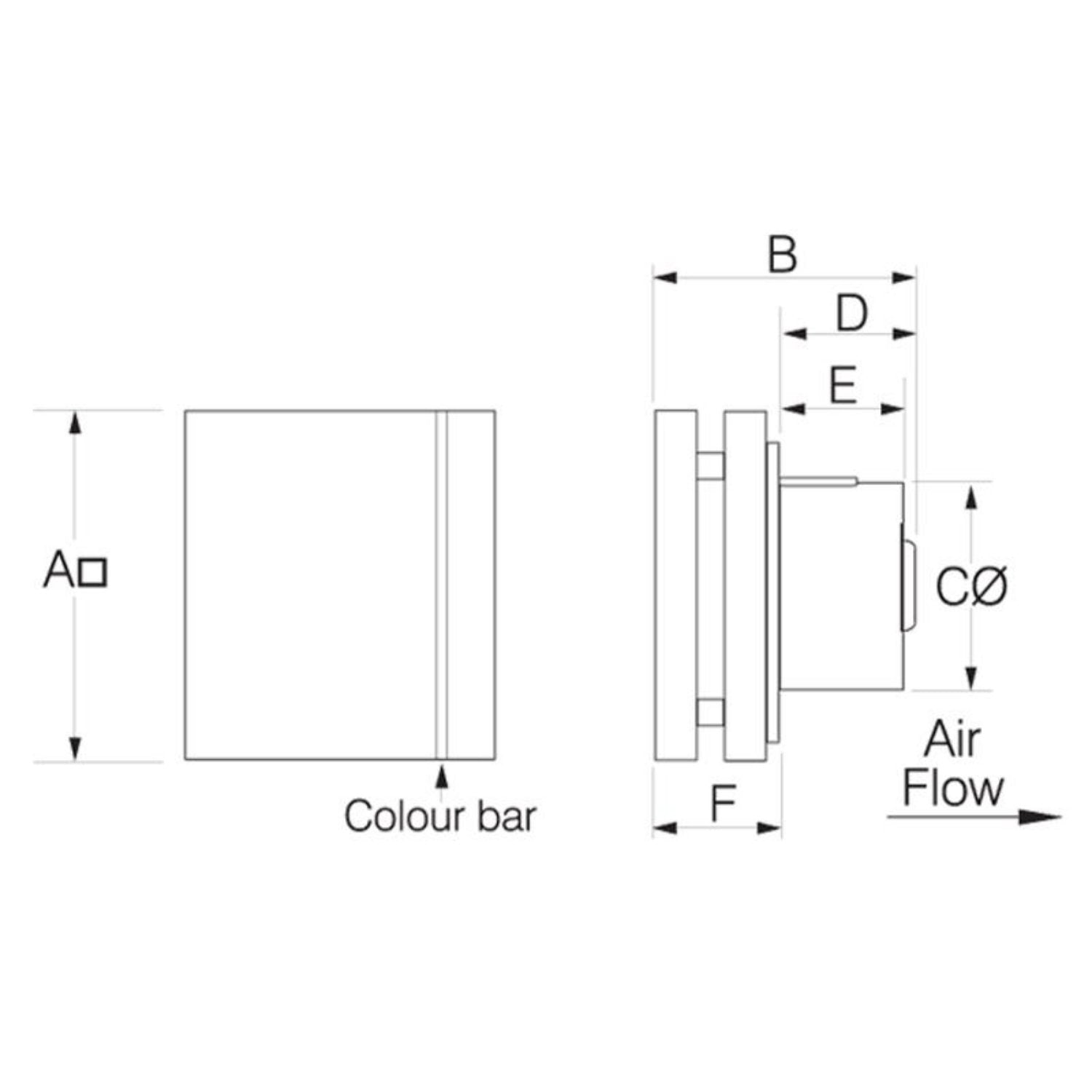

Model No. Duct Size A□ B D E F
SILDES300.. 150 247 179 146 112 95 67
Backdraft Damper Humidistat Run-on Timer m³/h L/sec Fan speed rpm Avg. db (A) Watts Volts IP Rating
Yes No No 300 83 2150 42A 22w 240v IP45
Yes No No 300 83 2150 42A 22w 240v IP45
Yes No Yes 300 83 2150 42A 22w 240v IP45
Yes No Yes 300 83 2150 42A 22w 240v IP45
Yes Yes Yes 300 83 2150 42A 22w 240v IP45
Yes Yes Yes 300 83 2150 42A 22w 240v IP45
