Specification:

Size:

(1)Dimensions: 170 * 42 * 92mm

(2)Weight:320g

Function:

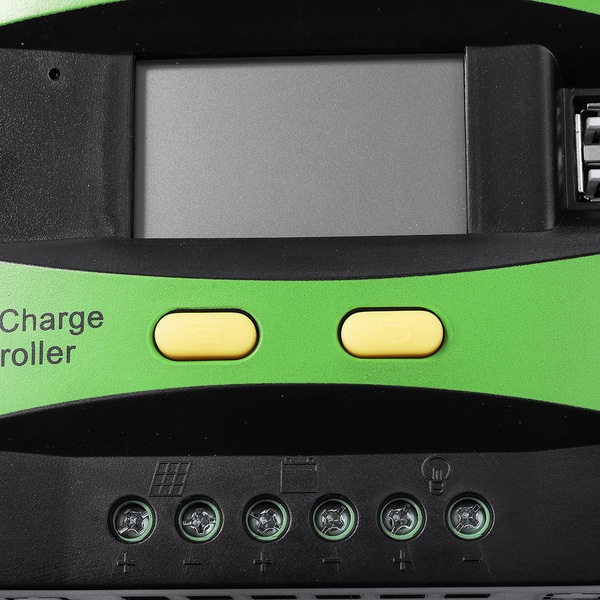

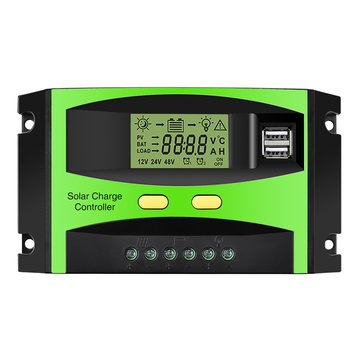

1.Large LCD display

2.Support light control and time control

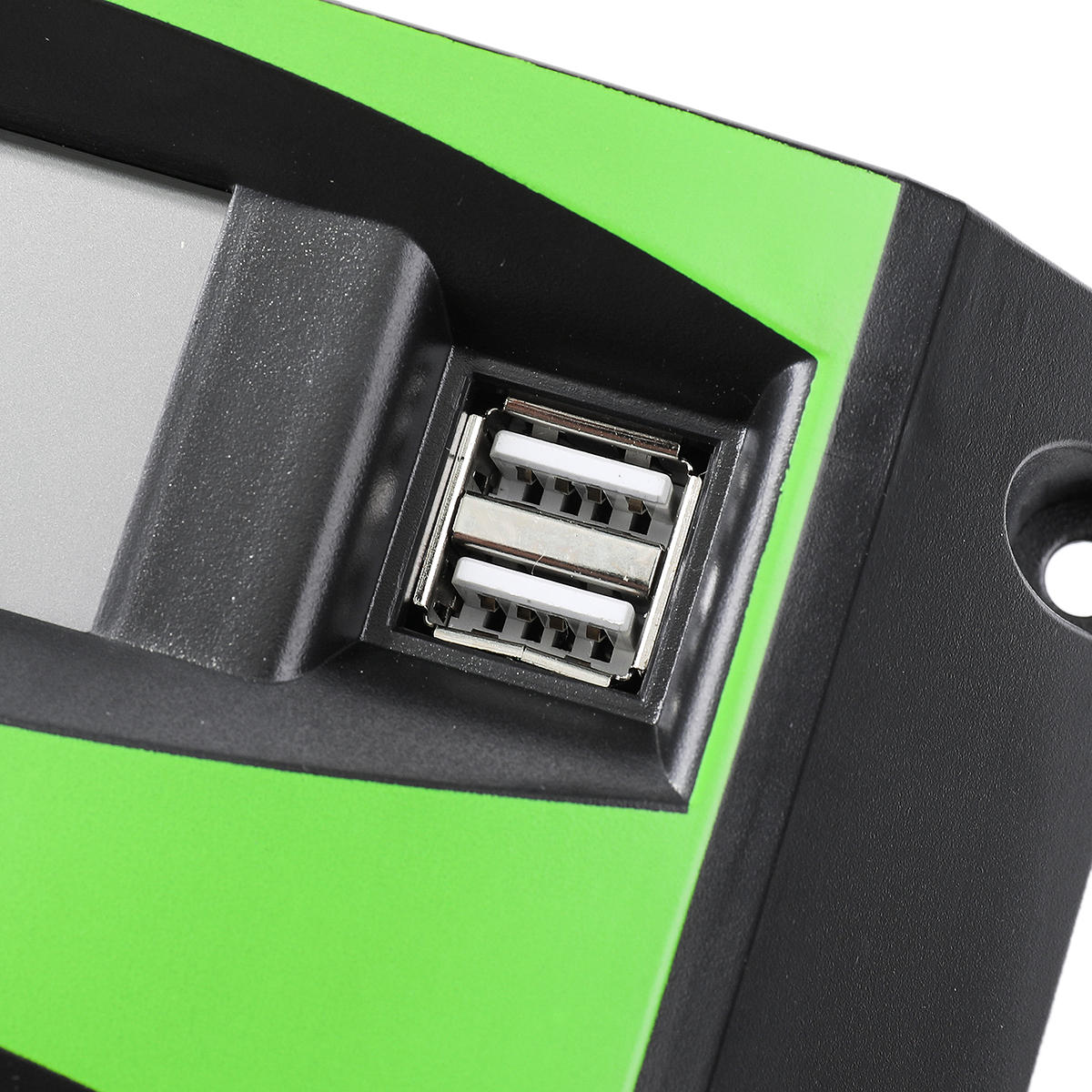

3.Dual USB 5V 3A output (5V/1.5A each)

4.System voltage 12V/24V automatic identification

5.Intelligent PWM charging mode

6.Battery reverse discharge protection

7.Battery overvoltage protection

8.Battery undervoltage protection

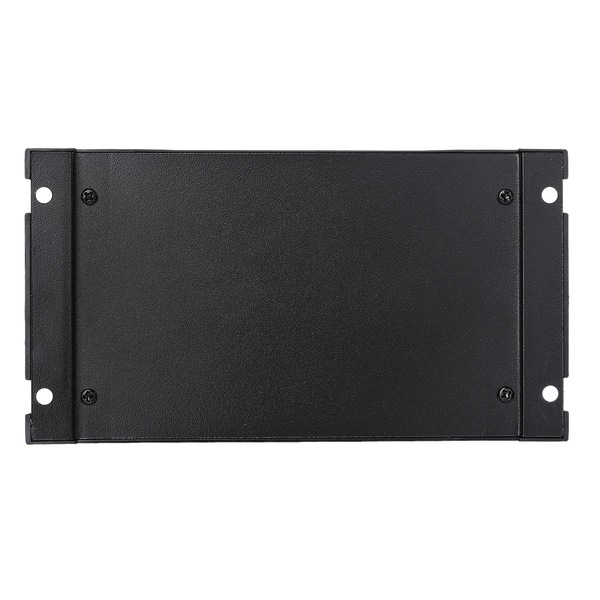

9.Dual bottom design, easy to setup

Specification:

(1)Rated charging current:30A

(2)Rated load current:30A

(3)Working voltage:12V/24V auto

(4)Float charging voltage:13.8V/27.6V (Adjustable)

(5)Undervoltage protection:10.7V/21.4V (Adjustable)

(6)Over voltage protection:16.5V/33V

(7)Low voltage recovery:12.6V/25.2V (Adjustable)

(8)Solar panel voltage:≤50V

(9)Boost voltage:14.4V/28.8V

(10)USB Output:5V/1.5A each

(11)No-load loss≤10mA

(12)Waterproof: IP32

(13)Short circuit or overload (1.25 times rated current in 60s or short circuit): battery icon flashes, regularly try to restore automatically

(14)Charge Mode: 3 kinds of charge control (directly charge, boost charge, floating charge)

(15)Temperature Compensation: -4mV/Cell/°C

(16)Installation line number: ≤5# AWG(6mm2)

(17)Operating temperature -35 �?-60 �?/span>

(18)Storage temperature -40 �?-70 �?/span>

Package Included:

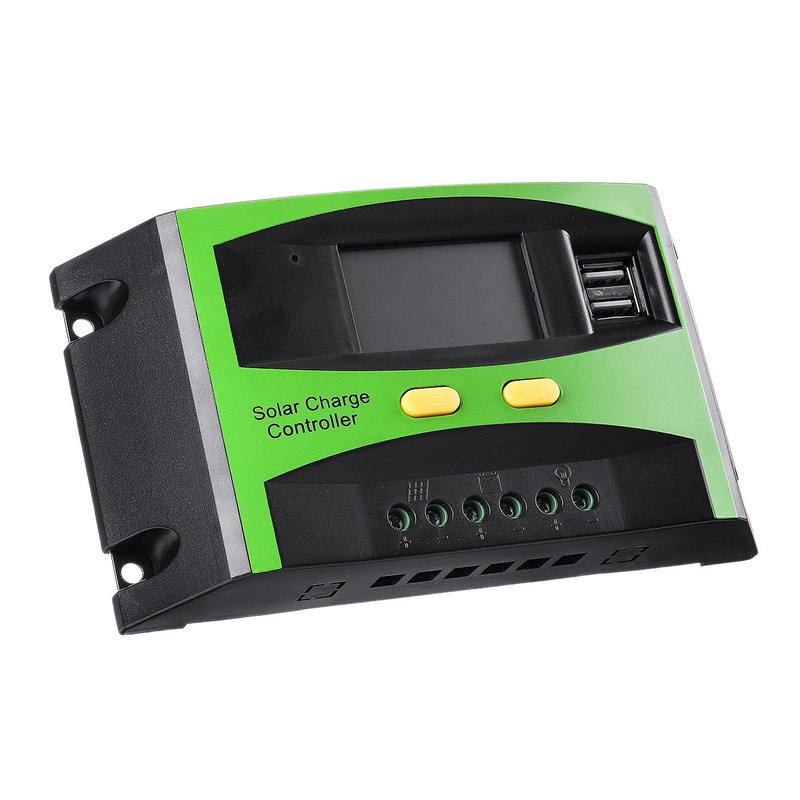

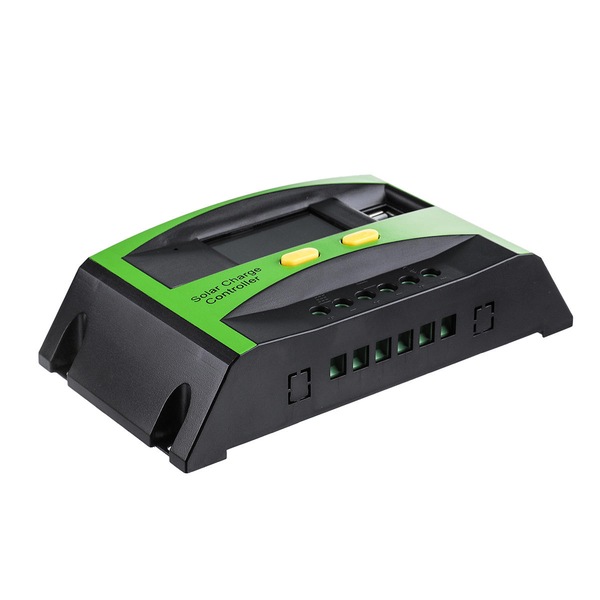

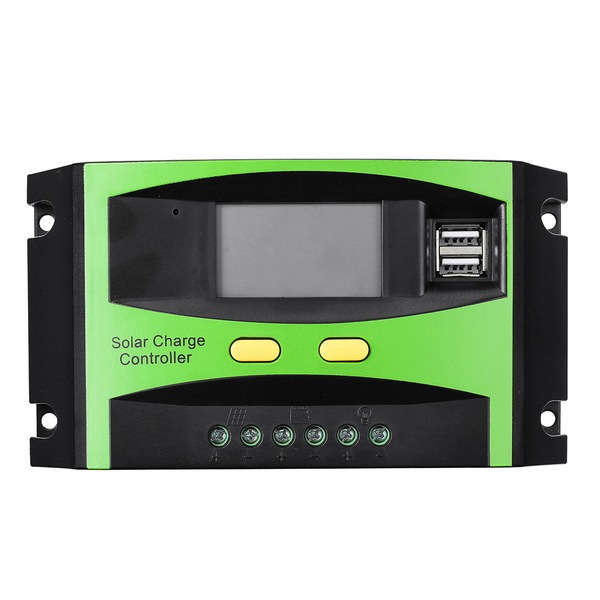

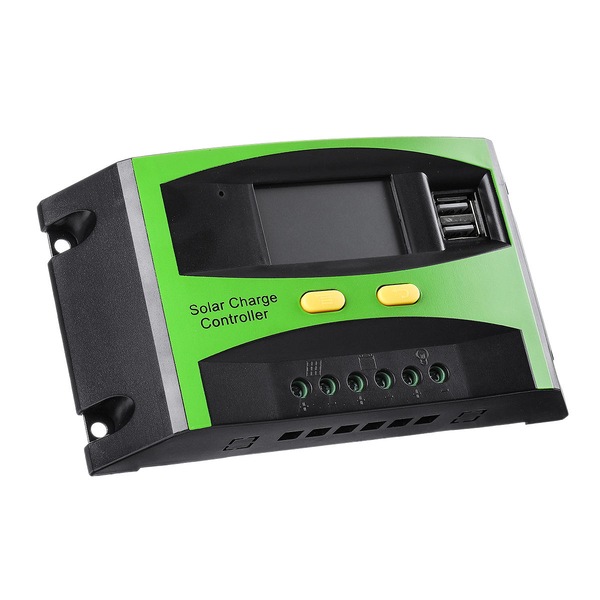

1 x Solar Panel Controller
