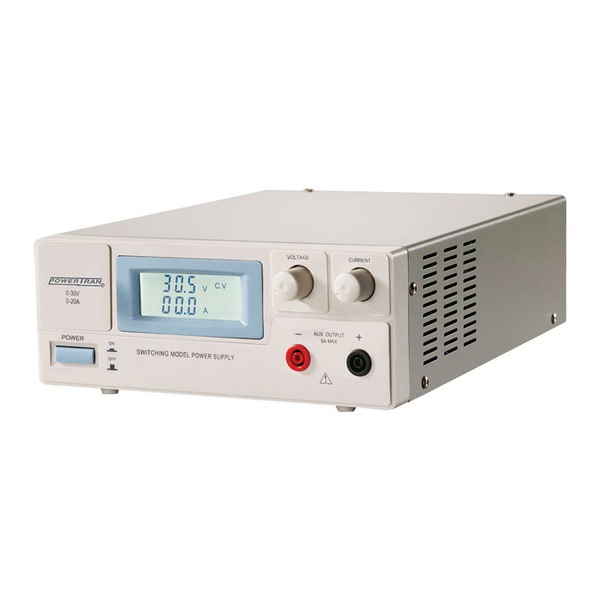

POWERTRAN 30V 20A Regulated Bench Top Power Supply

Image 1
Hurry! 5 items left!
$499

Collect 499 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Offers the flexibility of both wide adjustable voltage and current range. Size: 336W x 87H x 214Dmm. Weight: 2.9kg.


Features



  • Up to 20A output

  • 0-30V adjustable

  • High efficiency switchmode design

  • Over temperature, voltage and overload protection

  • Low ripple & noise

  • High RFI stability





    • Input voltage: a.c. 220-240V @ 50Hz

    • Output voltage: 0 - 30V d.c.

    • Output current max: 20A

    • Supply regulation: CV1%+10mV

    • Load regulation: CV1%+5mV

    • Ripple: 100mVp-p

    • Protection: Current limiting

    • Voltmeter: LCD 2% +3 counts

    • Ammeter: LCD 2% +3 counts

    • Operating Temperature: 0oC-40oC

    • Operating Humidity: 90%

    • Operating time: 8hrs

    • Dimensions: 87 x 214 x 336mm



*Specifications are subject to change without notice.
