Formfutura Platinum LCD Series is a general-purpose photopolymer LCD resin that is specifically developed to work with all open-source LCD and DLP 3D printers in the range of 385-420 nm. Our Platinum LCD resin is almost odourless and 3D prints with extremely high accuracy and a very smooth surface finish. The Platinum LCD Resin series is developed to 3D print with relatively short curing times.

Key features

•
  Almost no odour-Compared to other resins on the market, our Platinum LCD resin is relatively odour-free!




• UV & weather resistant



• Fast printing with short curing times



• High-resolution 3D printing with fine detail



•


  Vivid colors with an extremely high level of colorfastness

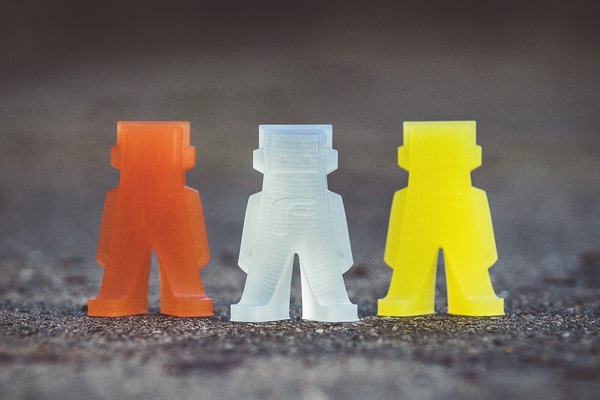

• Truly opaque and translucent colours are available



• No discoloration and/or yellowing



• Excellent dimensional accuracy and low shrinkage



• Low water absorption



• Compatible with all open-source LCD and DLP in the range of 385-420 nm.

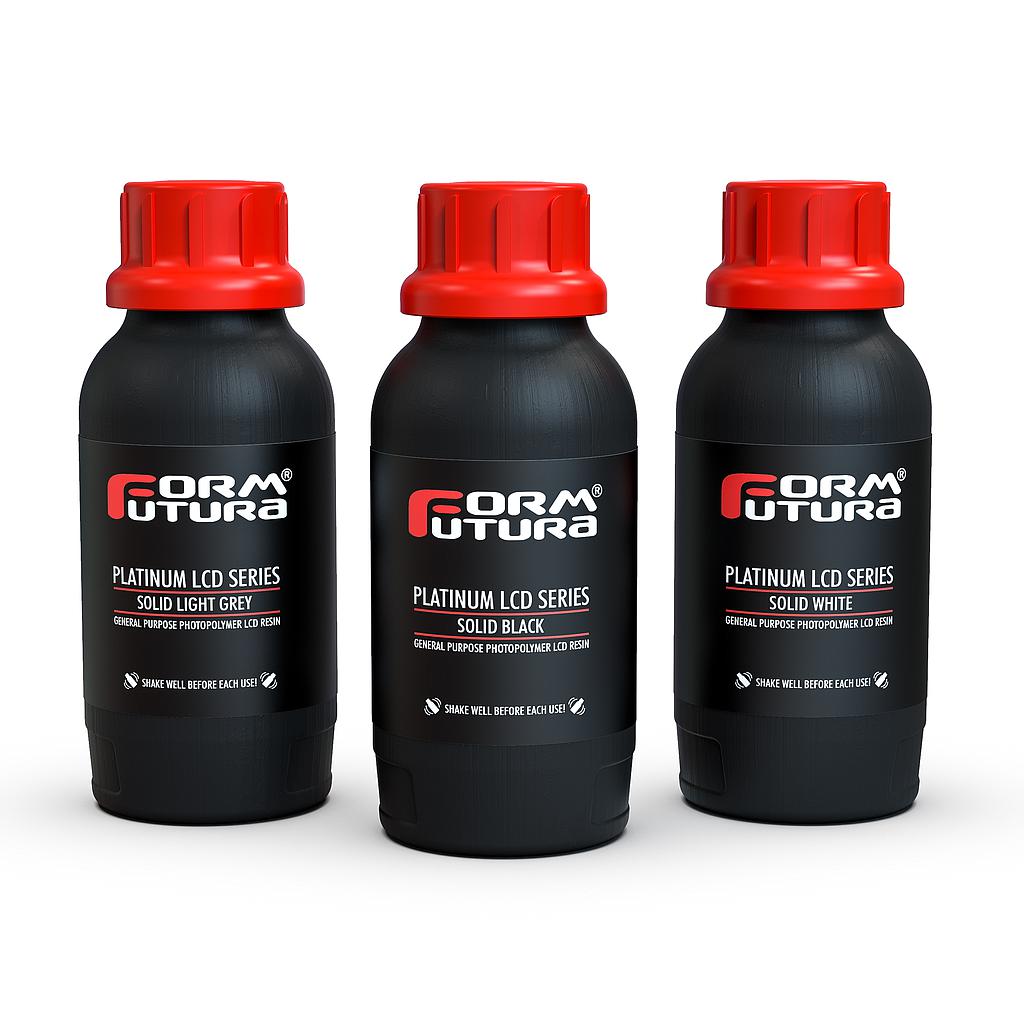

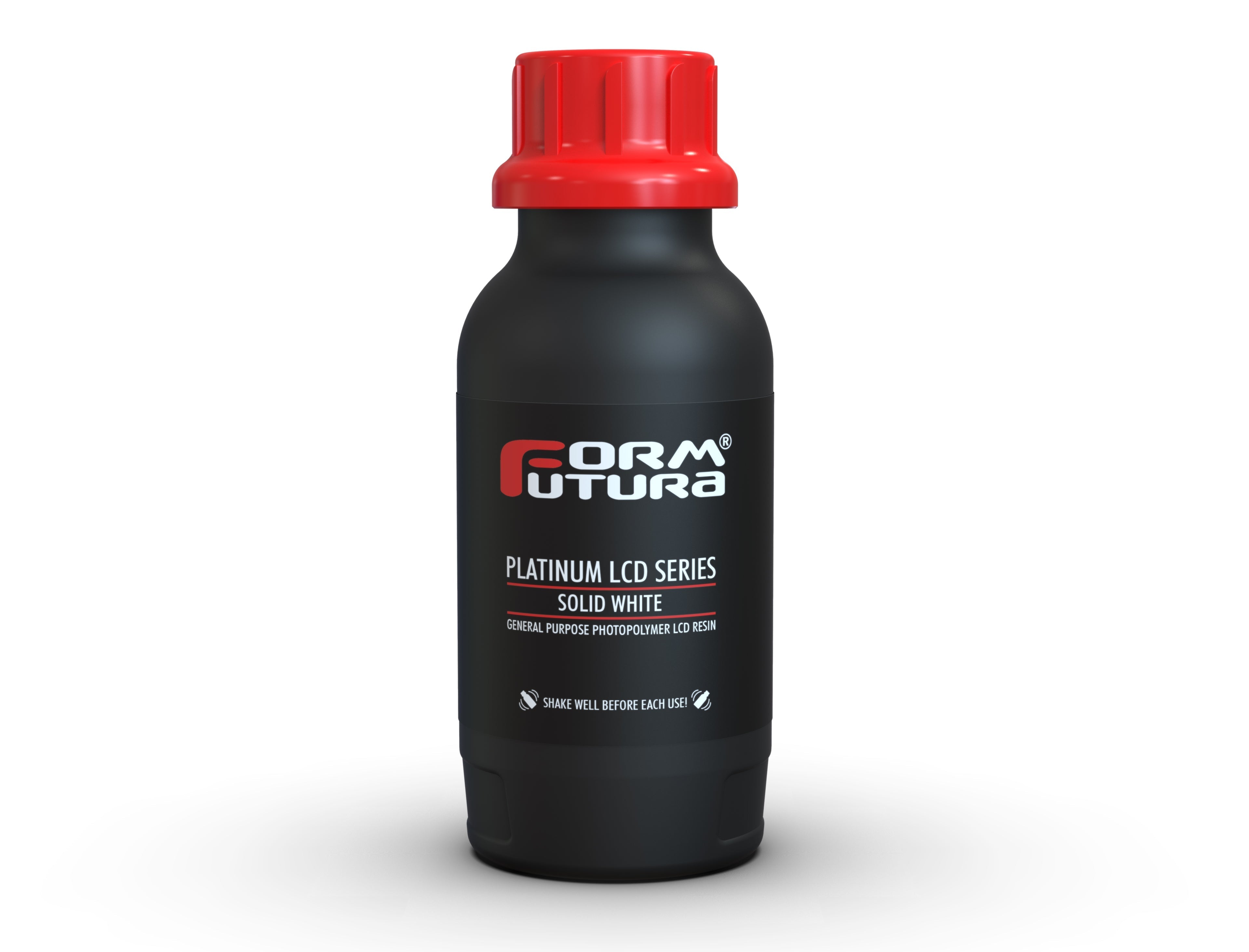

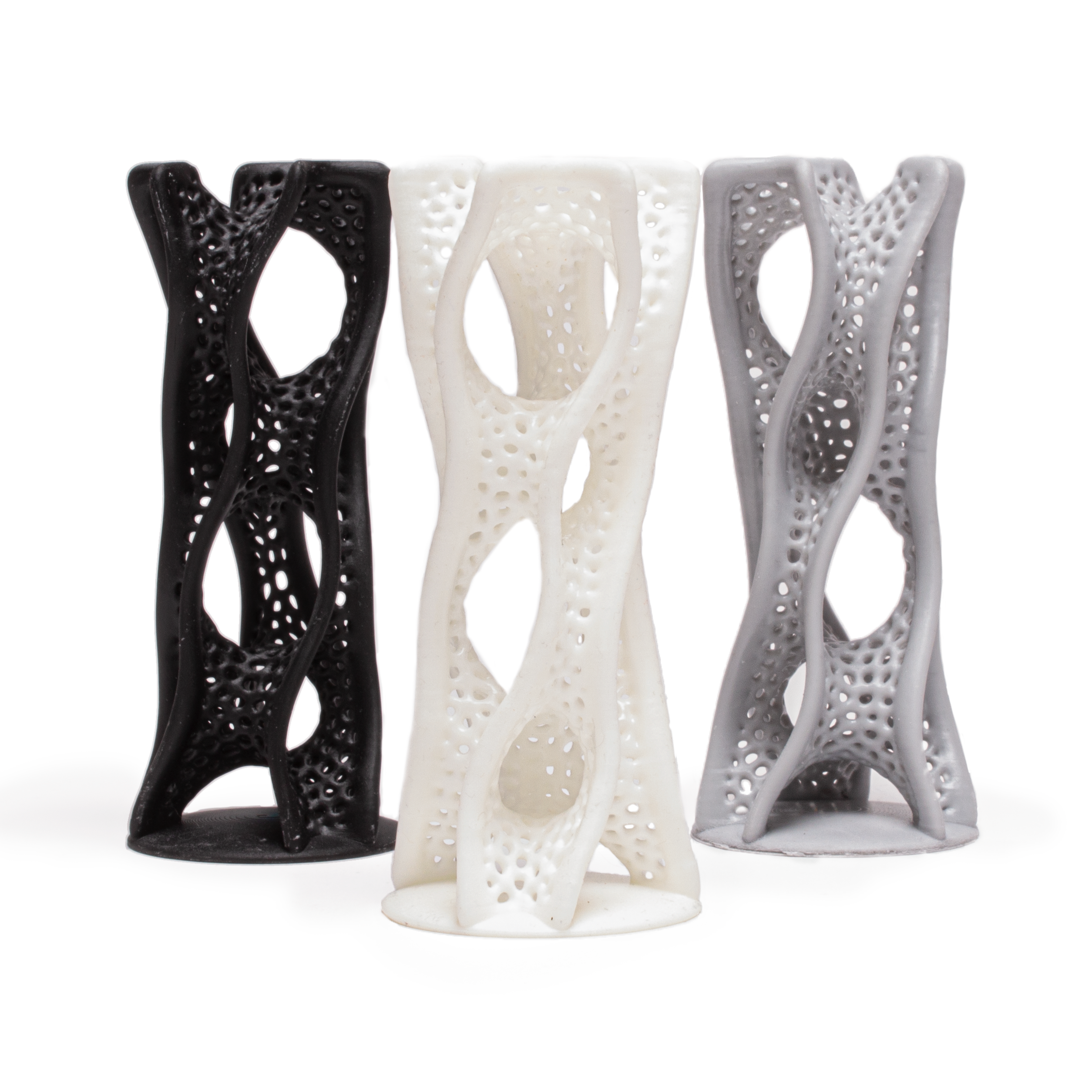

The Platinum LCD Series-Solid-Resin Pack contains the Solid Black, Solid White, Solid Light Grey resins (500 g each)

Applications

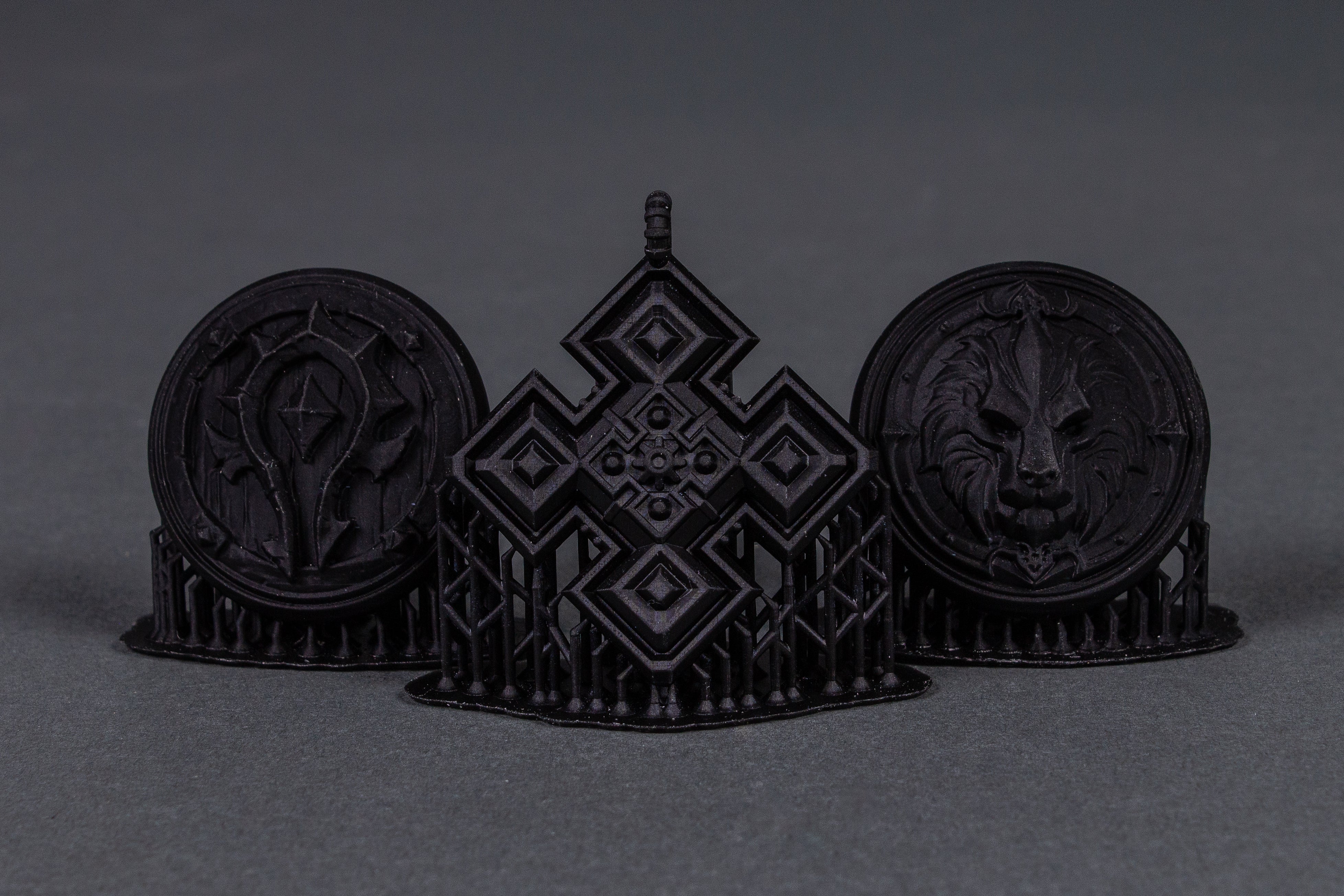

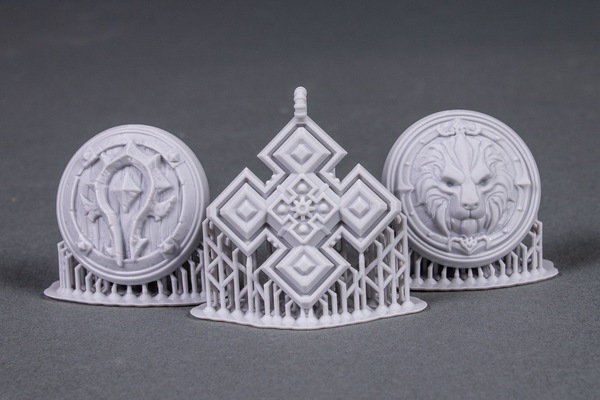

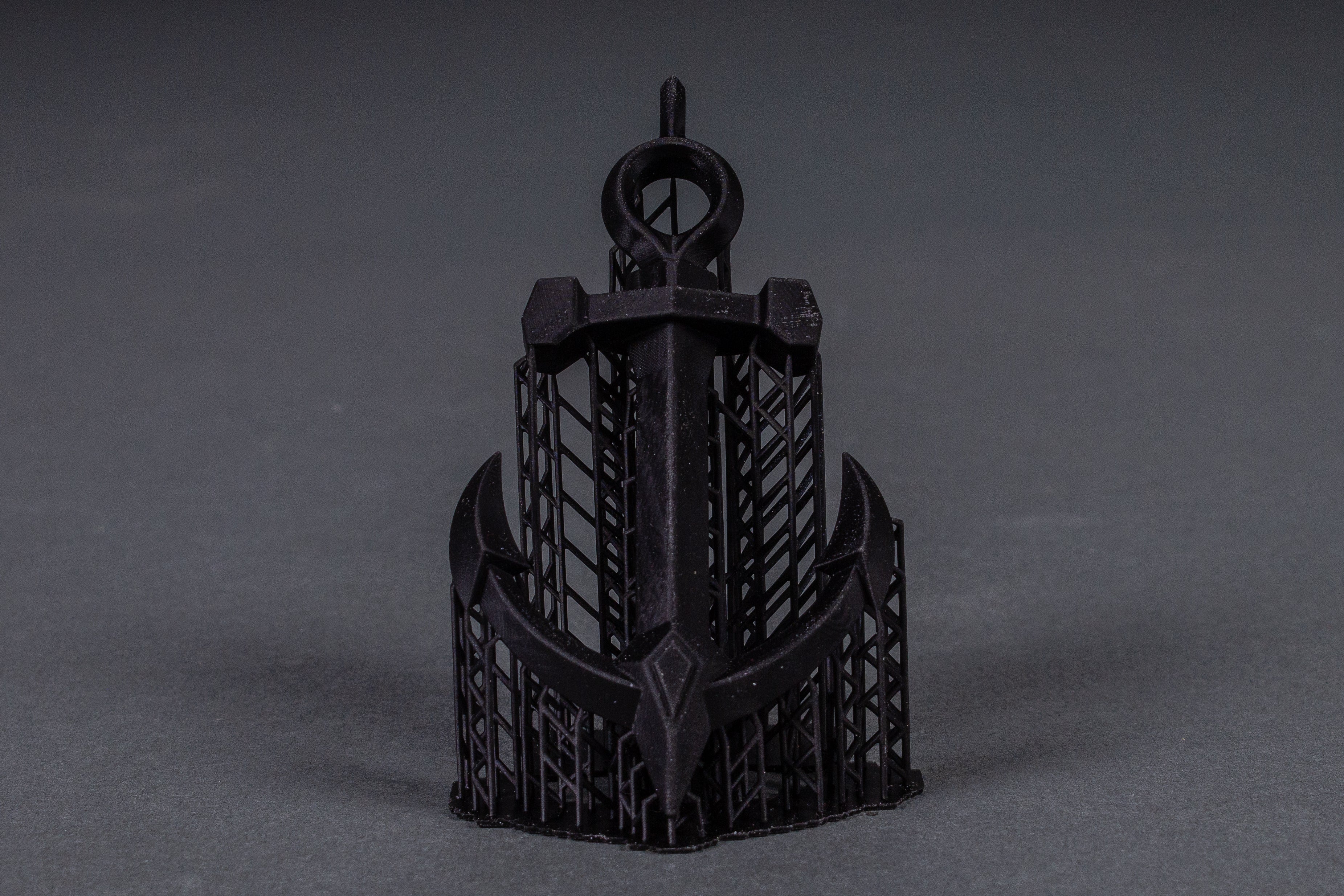

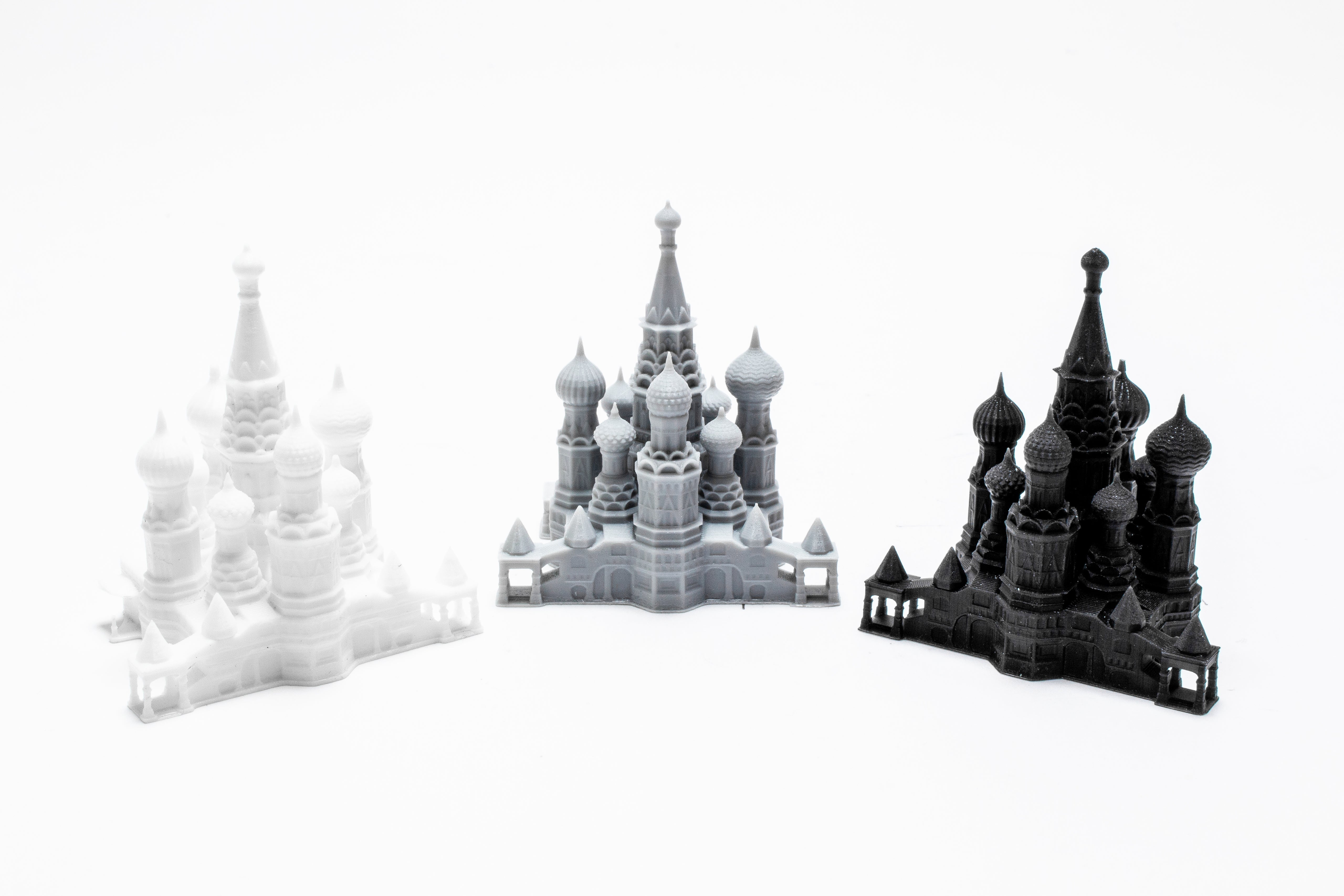

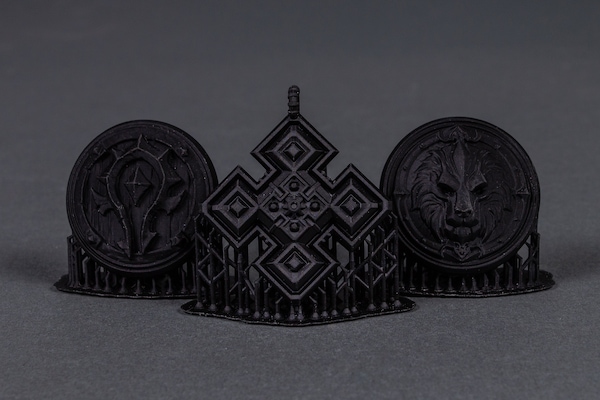

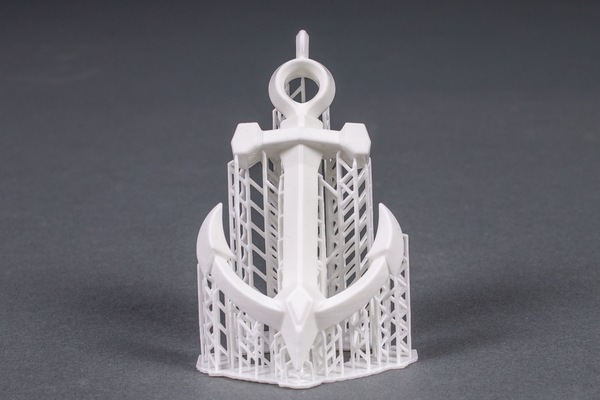

• Figurines and models



• Functional prototyping



• End-use products

Resin properties (uncured liquid)

•
  Viscosity: 500 cps at 25oC




•
  Density: 1.18 g/cm2


Mechanical properties

Test method on post-cured objects through 10 minutes of high-power mercury curing.

Please note that the above-displayed values can vary with individual machine processing, post-curing parts, geometry, print orientation, print settings, and temperature.

Preparation(s) before starting to print

• Shake the bottle for at least 2 minutes before each use.



•


  After shaking the bottle, leave the resin to rest for 10 minutes to let air bubbles get out of the resin






• The resin can be poured back from the vat into the bottle once your print is finished



• Always use protective measures like safety glasses and nitrile gloves when handling resins.

General printing guidelines

Base Curing Times at 50 micron

• Translucent Black: sec



• Translucent Aquamarine: sec



• Translucent Blue: sec



• Translucent Red: sec



• Solid White: sec



• Solid Black: sec



• Solid Light Grey: sec

Post-processing

•


  We do advise you to post-process your 3D print in order to achieve the material properties










• Rinse your 3D-printed object in IPA or (Bio)Ethanol for approximately 5 minutes






•


  An ultrasonic cleaner is preferred/recommended










• Make sure that IPA and/or (bio)ethanol-rinsed objects are perfectly dry before further post-curing






•


  Place the rinsed parts in a well-ventilated area for at least 30 mi...
