Collect 28 Everyday Rewards points
Dispatch in 2 business days

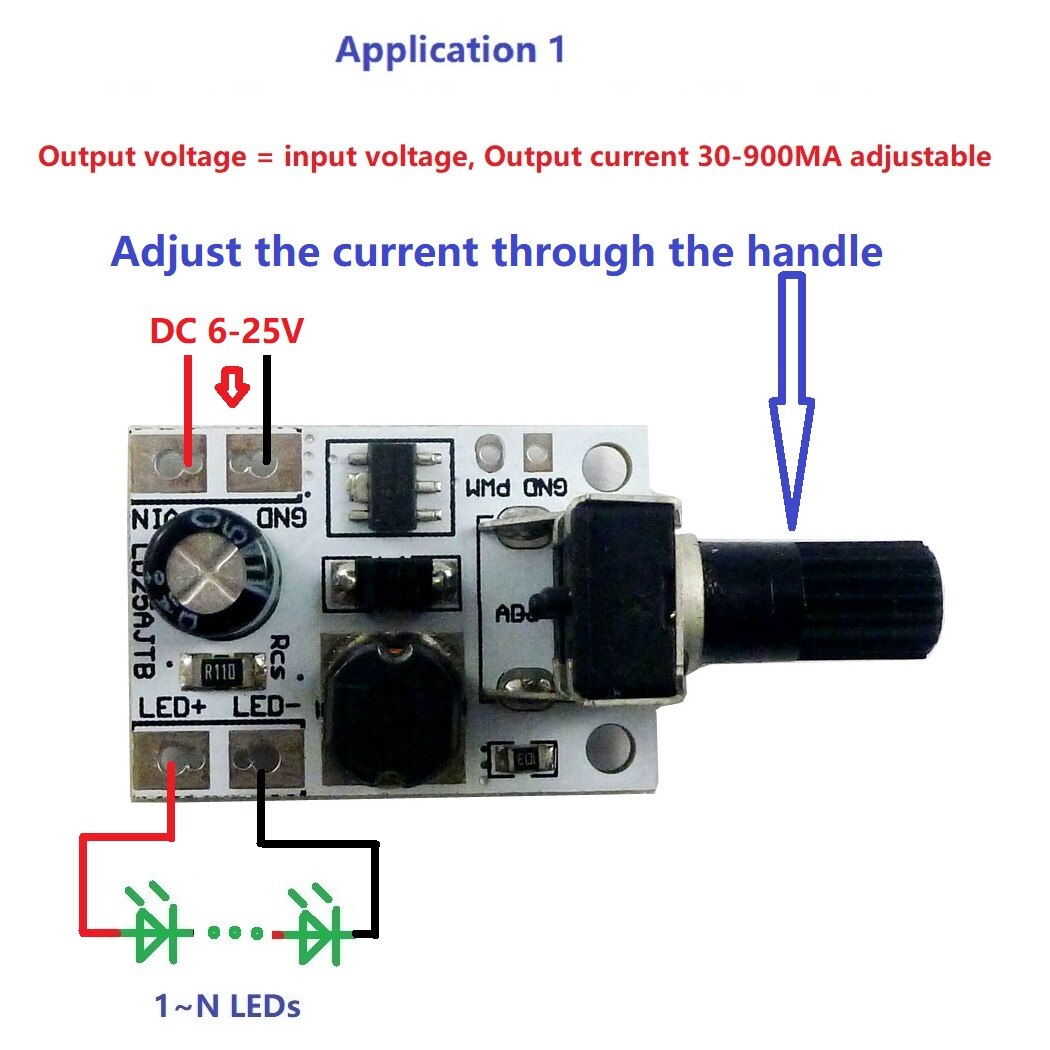

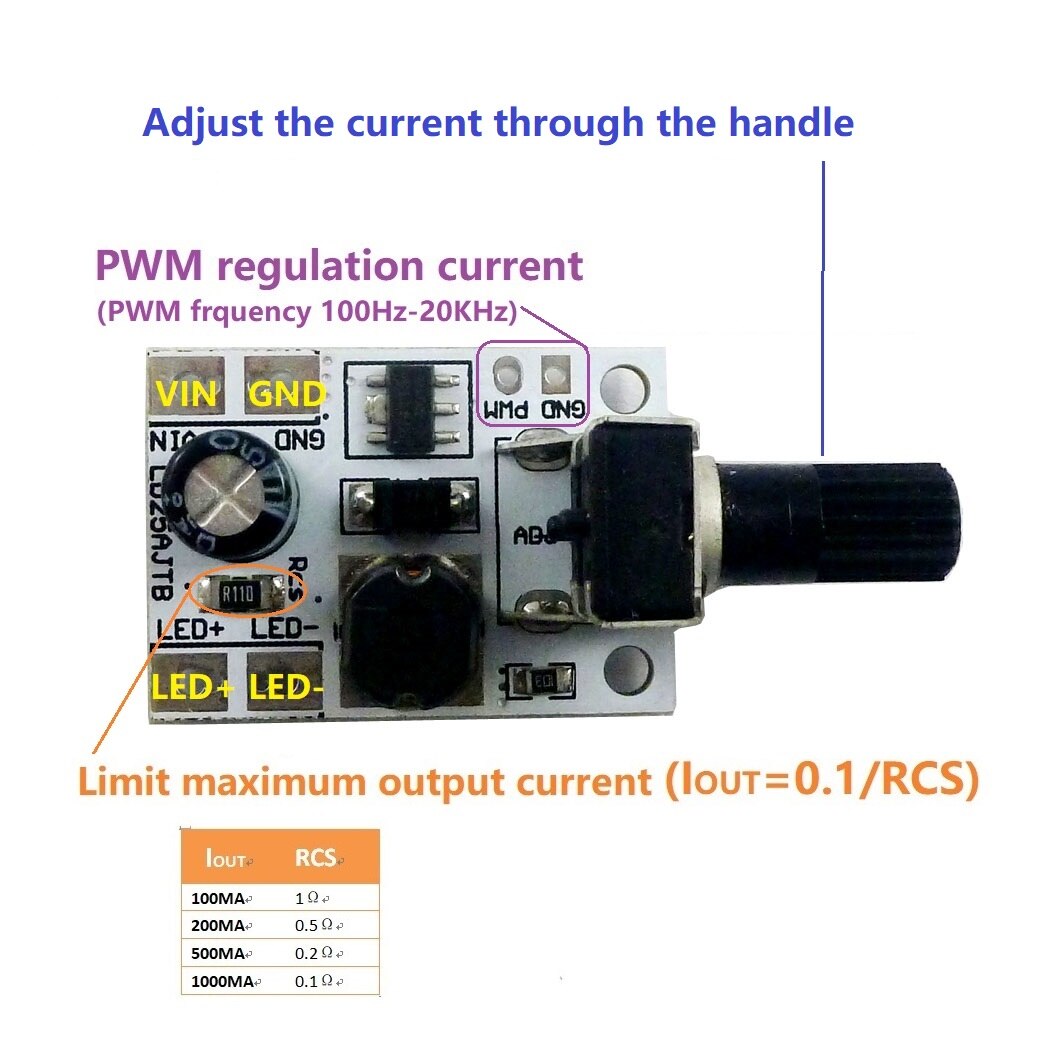

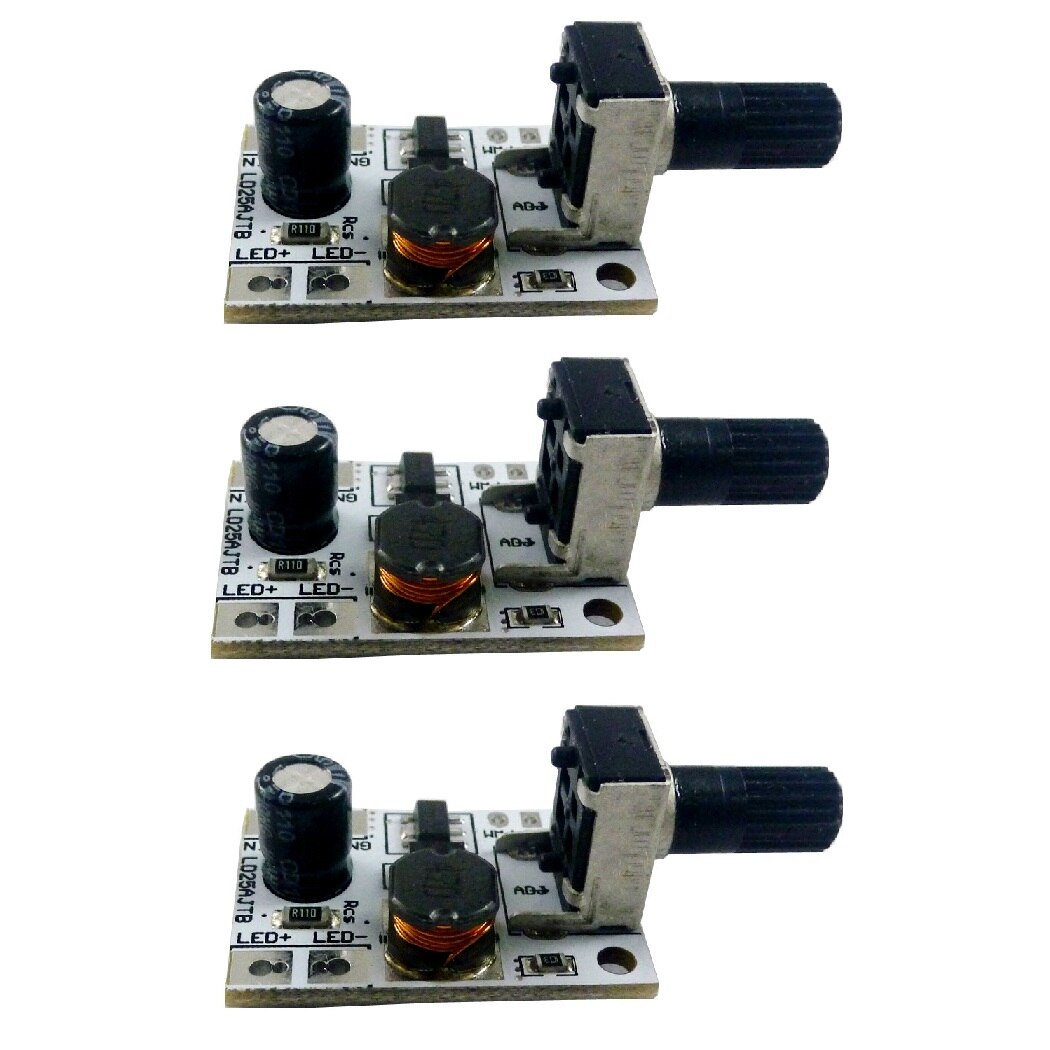

| Description: ? 6-25V 910mA Step-down High Brightness LED Driver with 5000:1 Dimming Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V? LED Driver) Output Current: 20-900MA;By changing the RCS resistance, the maximum current can reach 1200MA Maximum output power: 20W Current regulation: 1 through? through the handle, 2 through PWM control ??? Single pin on/off and brightness control using DC voltage or PWM Up to 1MHz switching frequency Typical 5% output current accuracy Inherent open-circuit LED protection High efficiency (up to 97%) High-Side Current Sense Hysteretic Control: No Compensation Adjustable Constant LED Current ??? Size :? 28 x 20 x 16MM(Handle not included) Handle Size : Length 13MM,Diameter 6MM Weight : 5g Packing list: 3 PCS 20-900MA 6-25V Multifunction Handle adjustment LED driver Module |
Please note it will need about 12~20days for the delivery!
Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
Thank you for your understanding!
Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.
Warranty policies: Our products have 180 days warranty.
GTIN: 774048925228
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039952
