NEW AFTERMARKET PARTS

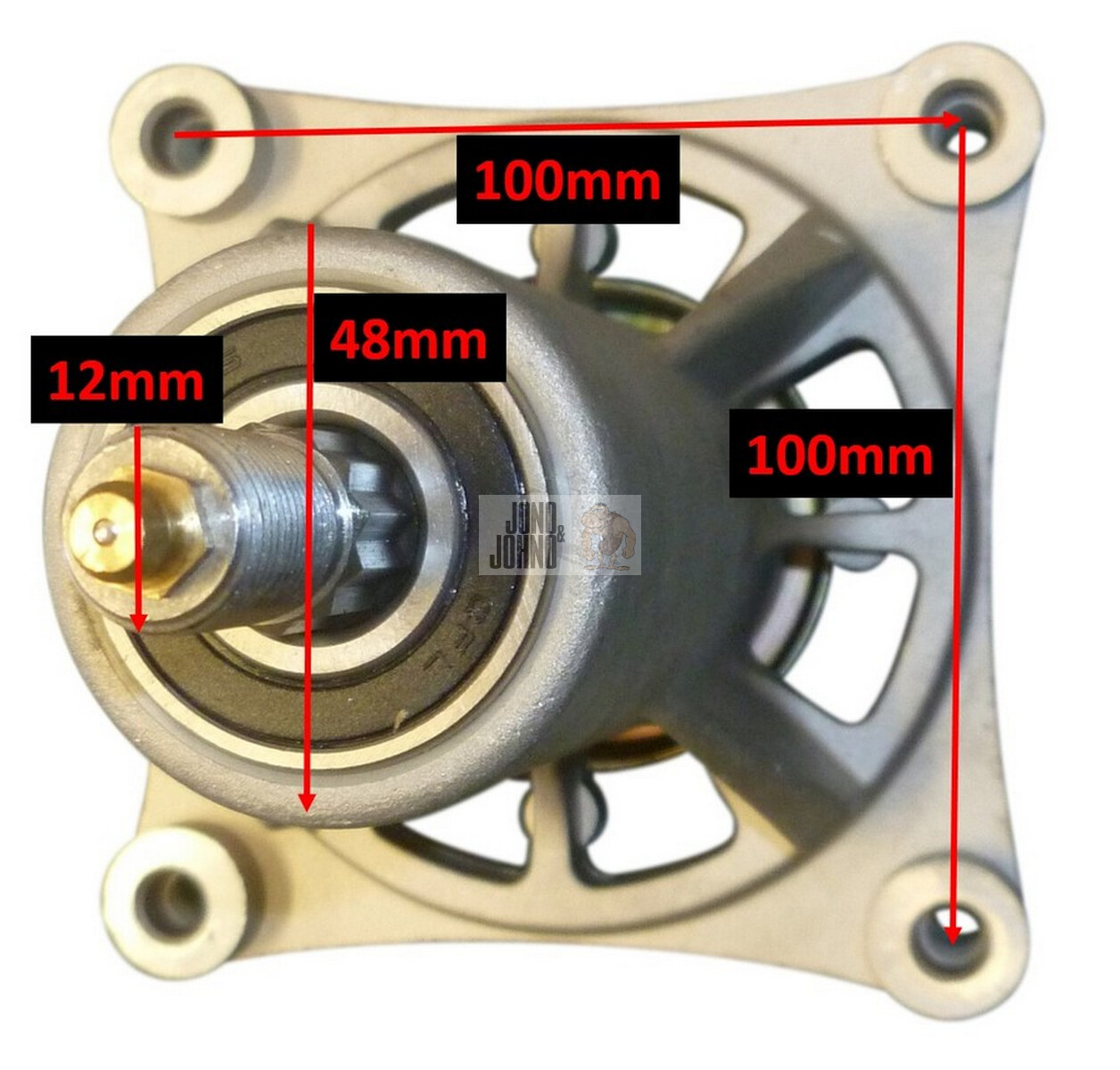

If your model mower is not listed below, then please check the measurements provided. We are unable to advise if these spindle assemblies will fit any specific model not mentioned in the above description. Please do not email or call asking if this will match your model. Check the dimensions in the pictures and see if they match up with your old spindle.

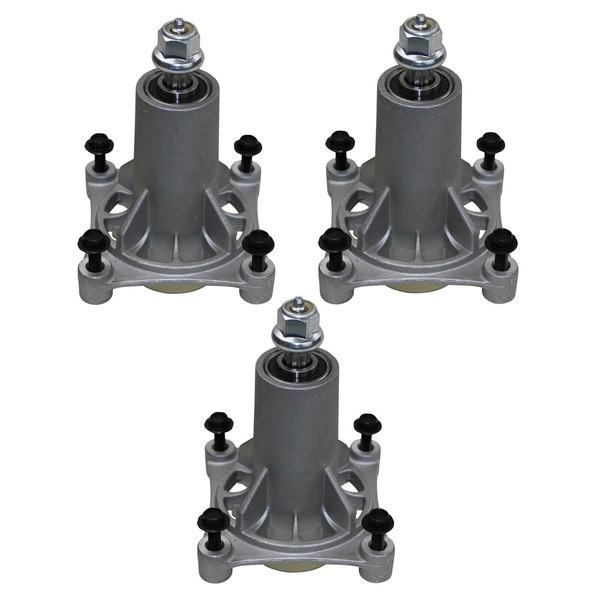

Please note: This sale is for THREE spindles..

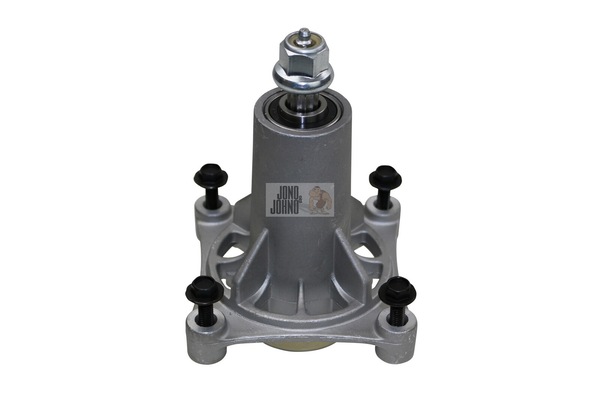

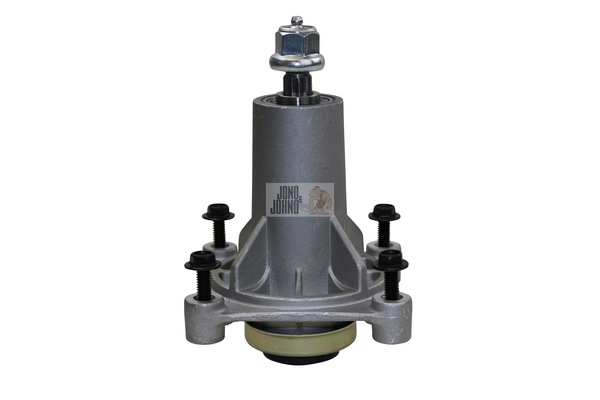

Comes with spindle shaft and grease nipple.

Shaft Length: 184mm

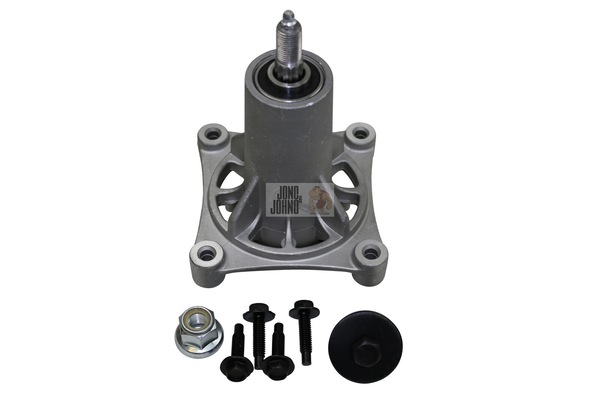

Includes pulley nut and blade mounting bolt.

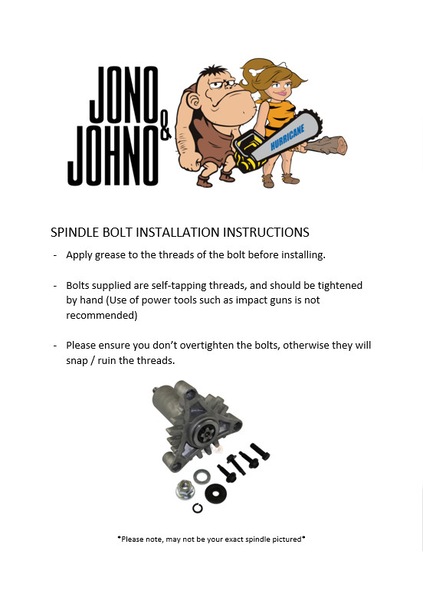

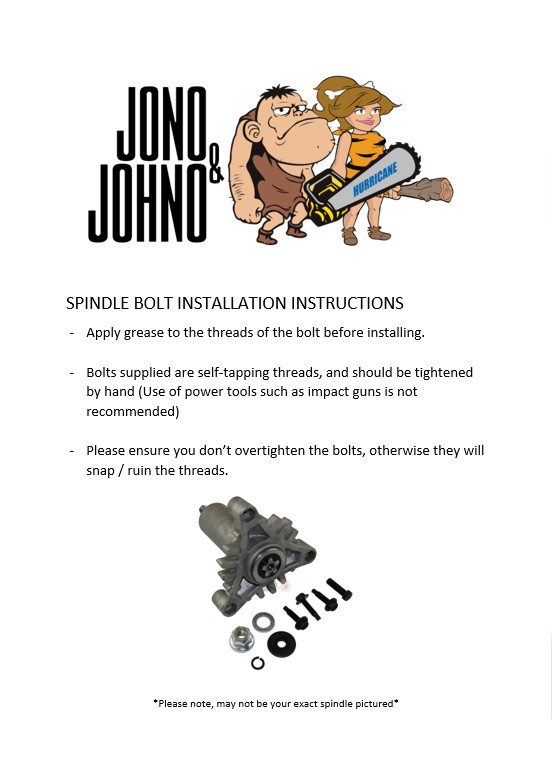

Takes 5/16" self-taping deck mounting bolts which are included in the package.

LT1597 - LTH1797 - LTH1742 - LTH1742T - LTH1842 - LTH1842T - LTH2142 - LTH2038 - LTH2038R - YTH1842 - YTH1842T - YTH2042XP - YTH204TD - YTH2546T - YTH2548XP - GTH2254XP - YTH21K46 - YTH2724T - YTH2754XP - LTH126 30" cut - zero turn models CTH19530 - GTH2554 - LT19538 - LT19538R - LTH126 - LTH1738 - LTH17538 - LTH1797 - LTH2142D - LTH2142DR - LTH19530 - RZ3016 - RZ3019 - RZ3815 - RZ4219 - RZ4220 - RZ4221BF - RZ5424T - TC130 - TC138 - TC142 - TC238 - TC239 - TC342 - TS138 - TS142 - TS142TX - TS142TXD - TS146 - TS242 - TS242TXD - TS246 - TS38 - YT42LS - YTH1942 - YTH2042 - YTH2042TD - YTH20K46 - YTH22V42 - YTH2246TDR - YTH22V46 - YTH2546 - YTH2548 - YTH2754.

PP14538 - PP17538HP - PP22044HP

PYT9000 - PP14538 - PP1753HP - PP22044HP - CMS1942S - CMV2242S - CMV2248S - CMV2454S - 20381 - 20382 - 20390 - 20391 - 28861 - 917203810 - 917203820 - 917203900 - 917203910 - 917288610 - 917250811 - 917203901 - 917253540 - 917288120 - 917288513 - 917288525 - T2200 - T3000 - YT3000

M16538H 16.5HP 38" RIDE ON - M13538 - M14538 - M19542H - M22042H

Please check that your old spindle has 4 mounting bolt holes.

187292 - 192870 - 532187292 - 532192870 - 587253301 - 532 18 72-92 - 532 19 28-70 - 587125401 - 587819701 - 587 81 97-01

Takes an M6 grease nipple. Uses bearings 75-3220 & 75-3224 (included).

PLEASE NOTE: THIS WILL NOT FIT FABRICATED DECKS.
