Elinz 4.3" Monitor CMOS 170° Car Reversing Camera 600TVL 4 Ultrasonic Parking Sensors

Elinz 4.3" Monitor CMOS 170° Car Reversing Camera 600TVL 4 Ultrasonic Parking Sensors

1 Review

Hurry! 6 items left!

Price	$119.95
	Earn 5x points and collect 595 Everyday Rewards points. Promotion ends 25/04/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz 4.3" Monitor CMOS 170° Car Reversing Camera 600TVL 4 Ultrasonic Parking Sensors

SKU: M48RV600SENSOR

4 Ultrasonic sensors

Double CPU and advanced chipset for enhanced coverage and detection

Easy to Install

4.3” Digital Panel

With 2 AV Inputs & 360 Rotation

600 TVL CMOS Reversing Cam

Clear image Day & Night

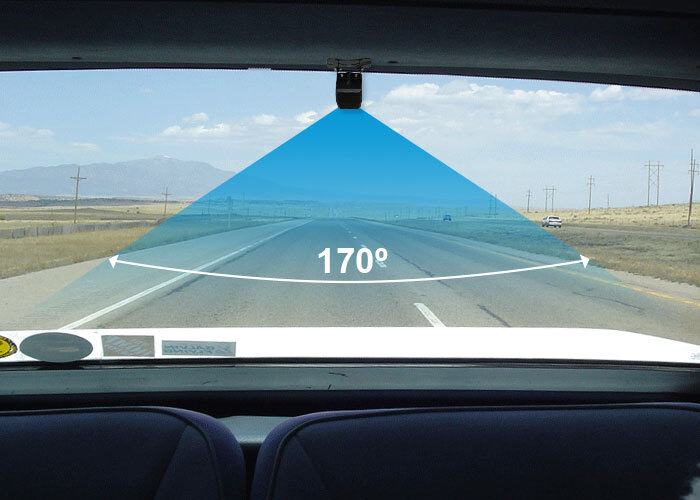

170° Wide View Angle

Clear view to help avoid accidents & injuries

Waterproof IP67

Range Distance Alarm 0-2.0M

Distance Barrier Display

STOP warning appears when car is too close or near the barrier

Wiring Labels

Wiring Diagram

Monitor Labels

Product Dimensions

Product Views

MORE INFORMATION

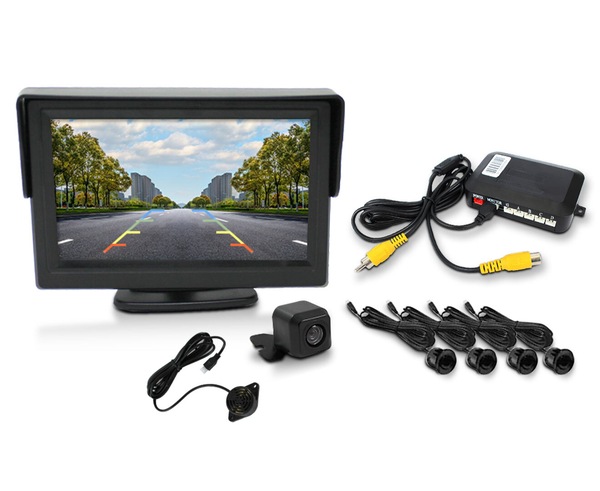

When we are driving our first priority is to reach our destination safe and on time. As part of driving, parking is really one of the problems encountered by many. To help you solve this problem, it has now arrived at Elinz. The New Reversing Camera with 4 parking sensors. This reverse camera package comes with 4.3" HD Monitor, a 170º CMOS reversing camera with a high resolution of 600 TV Lines and 4 Ultrasonic Parking Sensors that is suitable for 12V vehicles.

Installing this reverse camera system can help drivers avoid collision while driving or parking. The system has a state-of-the-art alarm that indicates the direction and the distance of the obstacle.

The parking sensor and rearview camera can help you save time, money and even dangerous accidents. Start making your driving experience safer and install the reversing camera monitor kit with 4 parking sensors.

DISCLAIMER: Vehicle design and dimensions vary from one another, and the way they're wired will also be different. Prior to purchasing this product, we strongly recommend that you carefully check and confirm if the cable length and diagram will be suitable for your vehicle. You may need an additional extra video cable and adapter to connect the rear camera to the control box, which is sold separately. Kindly message us with any questions and we'd be glad to help.

PRODUCT HIGHLIGHTS

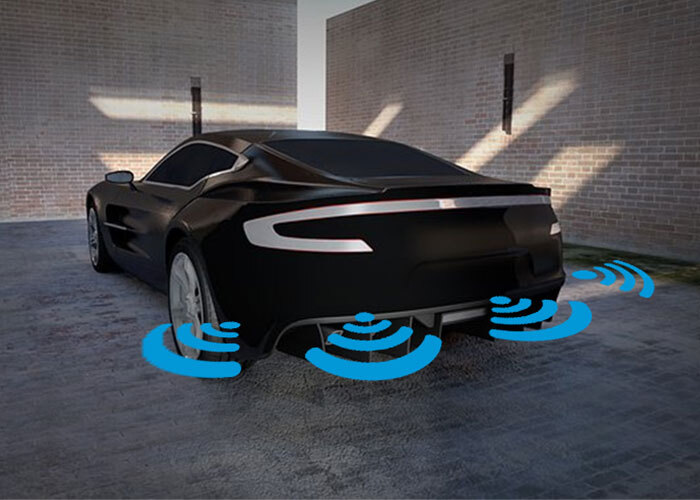

4 Ultrasonic Sensors
- Parking sensors are nearness sensors for vehicles that are intended to warn the driver of obstacles while parking or driving.
- 4 sensor system
- Double CPU and advanced chipset for enhanced coverage and detection (0-2.0m)

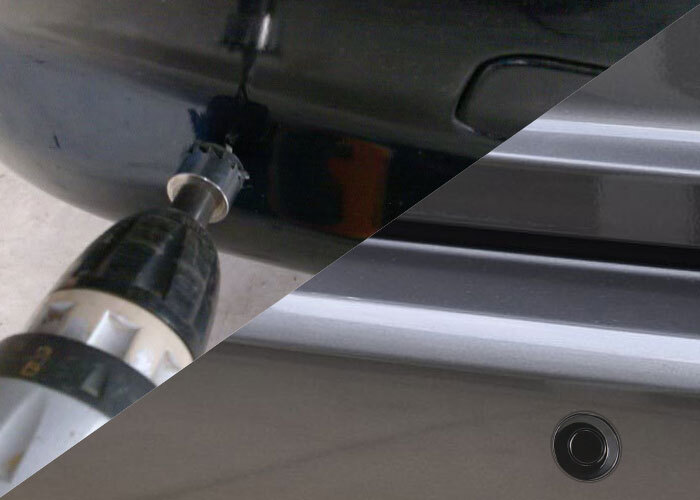

- The parking sensors will fit any make of car or 12V vehicle, van, caravan, trailer and horse boxes. (universal hole saw is included).
Collision Avoidance System
- Security assistance that is used for safety in driving and parking .The scheme senses whether there is an obstacle through the Ultrasonic Sensor. It specifies the direction and the distance of the obstacle via alarm.
Easy to install

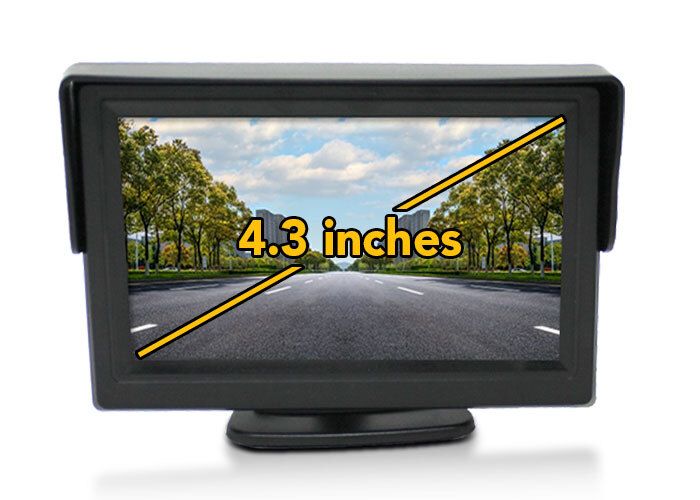

High Definition 4.3" Digital Panel with Brightness Adjustment
- 2 AV inputs
- It shows the rearview automatically when the reverse signal is induced
- 360 degree rotation for convenient visibility
- Adjustable brightness - This colour system can give you a clear rear view picture and help prevent an expensive accident while backing or driving.
600TVL Reversing Camera
- CMOS sensor
- 170° wide view angle
- Waterproof IP67
- IR night vision - Crystal clear view day or night

PRODUCT SPECIFICATIONS

Parking Sensor Specification

Voltage: 9DCV—15DCV
Rated voltage: 12DCV
Power Cost Max: 1.5W
Respond Distance: 0.4m—2.0m
Alarm Distance: 0m—2.0m

Sensor Diameter: 22mm
Sensor angle: X, Y, 60 °C
Work temperature -30°C~+80 °C
Alarm Type: Bi-Bi
Alarm Volume: 65dB

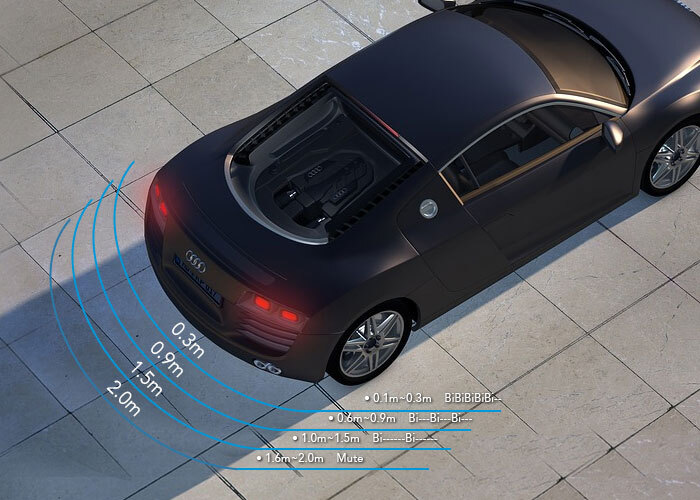

Range Distance Alarm

1.6m~2.0m Mute
1.0m~1.5m Bi------Bi------
0.6m~0.9m Bi---Bi---Bi---
0.1m~0.3m BiBiBiBiBi--

Monitor Specification

Screen size: 4.3"
Image Sensor: 1/3 CMOS Colour Image Sensor
Resolution: 520 TV Line
Video Signal: PAL/NTSC
Dynamic Guidance Trajectory: Embedded
Video Output: 1.0vp-p.75ohm
Power Supply: DC9～16V

600TVL Camera Specification

Photosensitive chip: MCCD (CMOS 1/4)
Image System: NTSC or PAL
Resolution: 960X576 (540,000 pixels)
Resolution: 600 TV line
Video output impedance: 1.0Vp-p 75ohm
Signal to noise ratio: > 45dB
Working power: DC 12V
Working temperature:-20 °C ~ 60 °C, humidity up to 95%
Storage temperature:-40 °C ~ 90 °C, humidity up to 95%
Lens angle level: > 170°
Waterproof rating: IP67
Minimum lighting: 0.1Lux

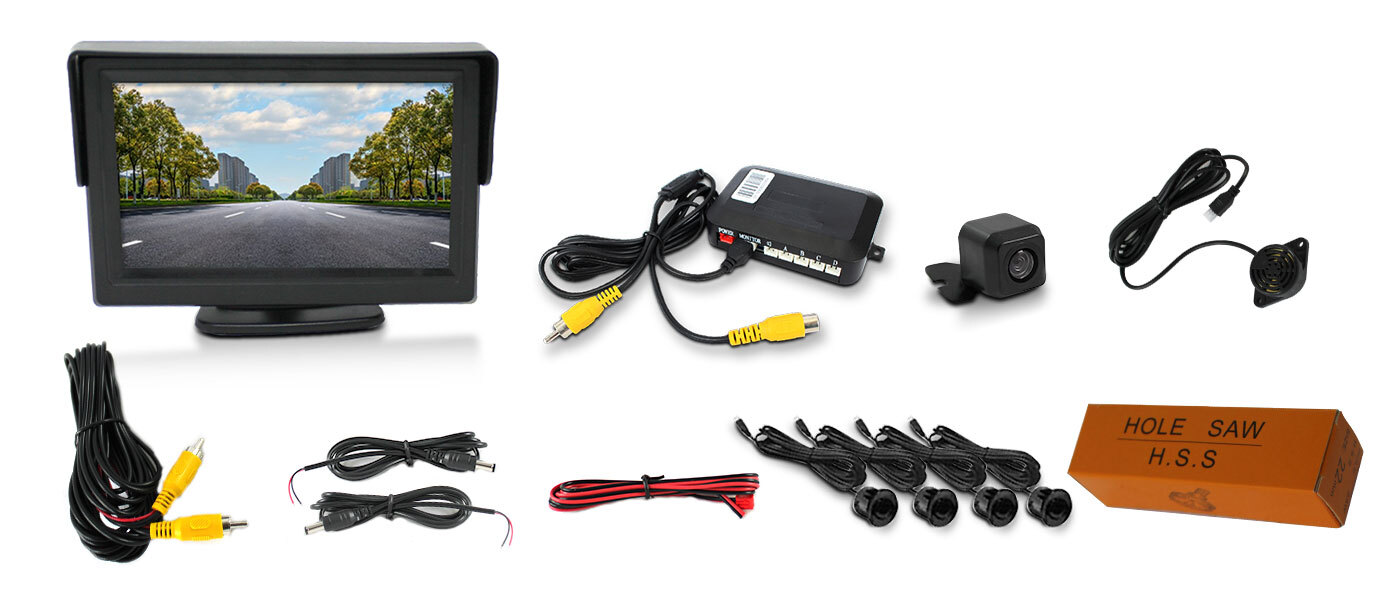

WHAT'S INCLUDED

1. 1x 4.3" HD Digital LCD Monitor with mount

2. 1x Central Control Box & 1x Monitor Video Cable

3. 1x 600TVL Rear View Camera

4. 1x Sound Alert Indicator

5. 1x 5M Video Cable

6. 2x Power Cables

7. 1x Control Box Power Cable

8. 4x Parking Sensor

9. 1x Hole Saw

GTIN: 0606015373940
