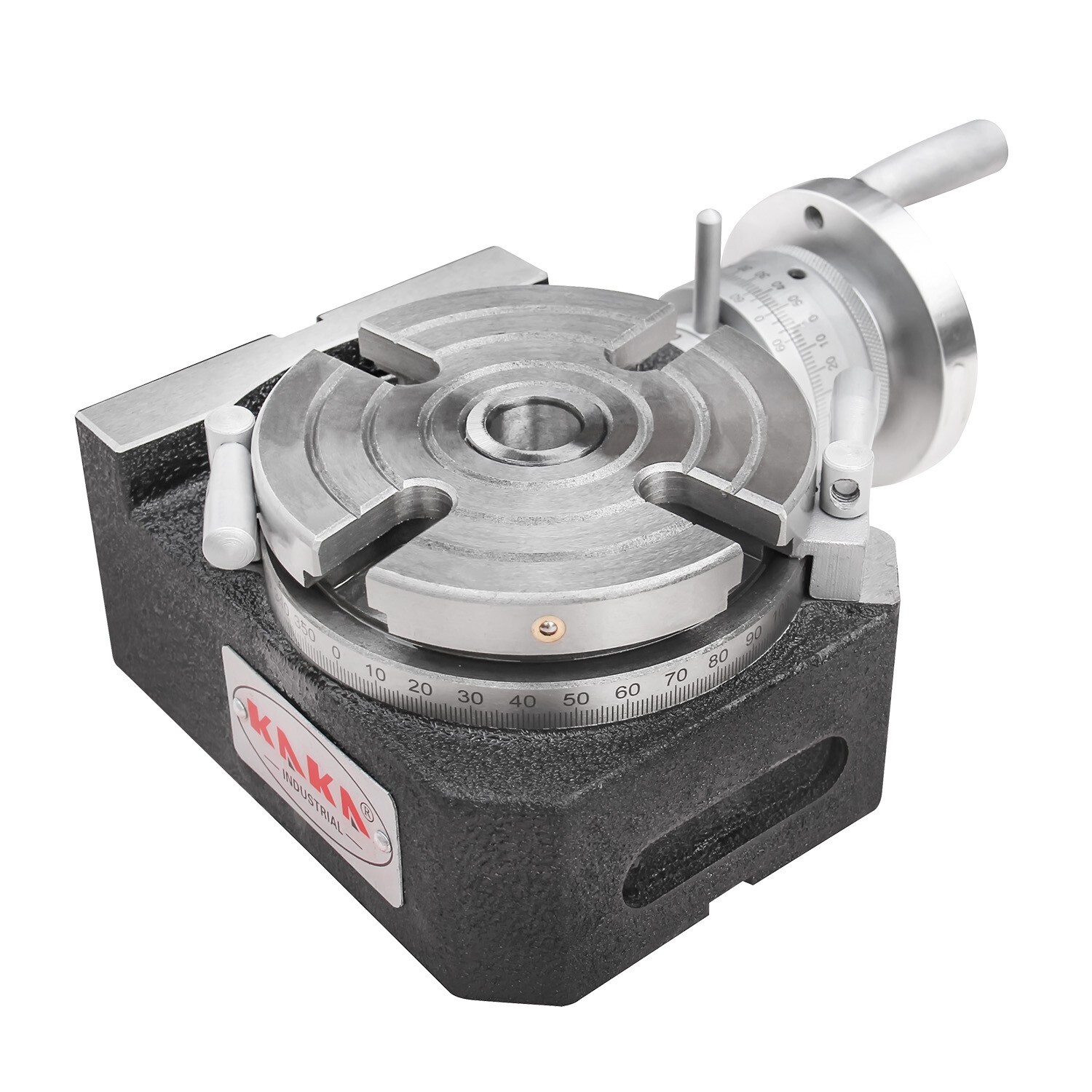

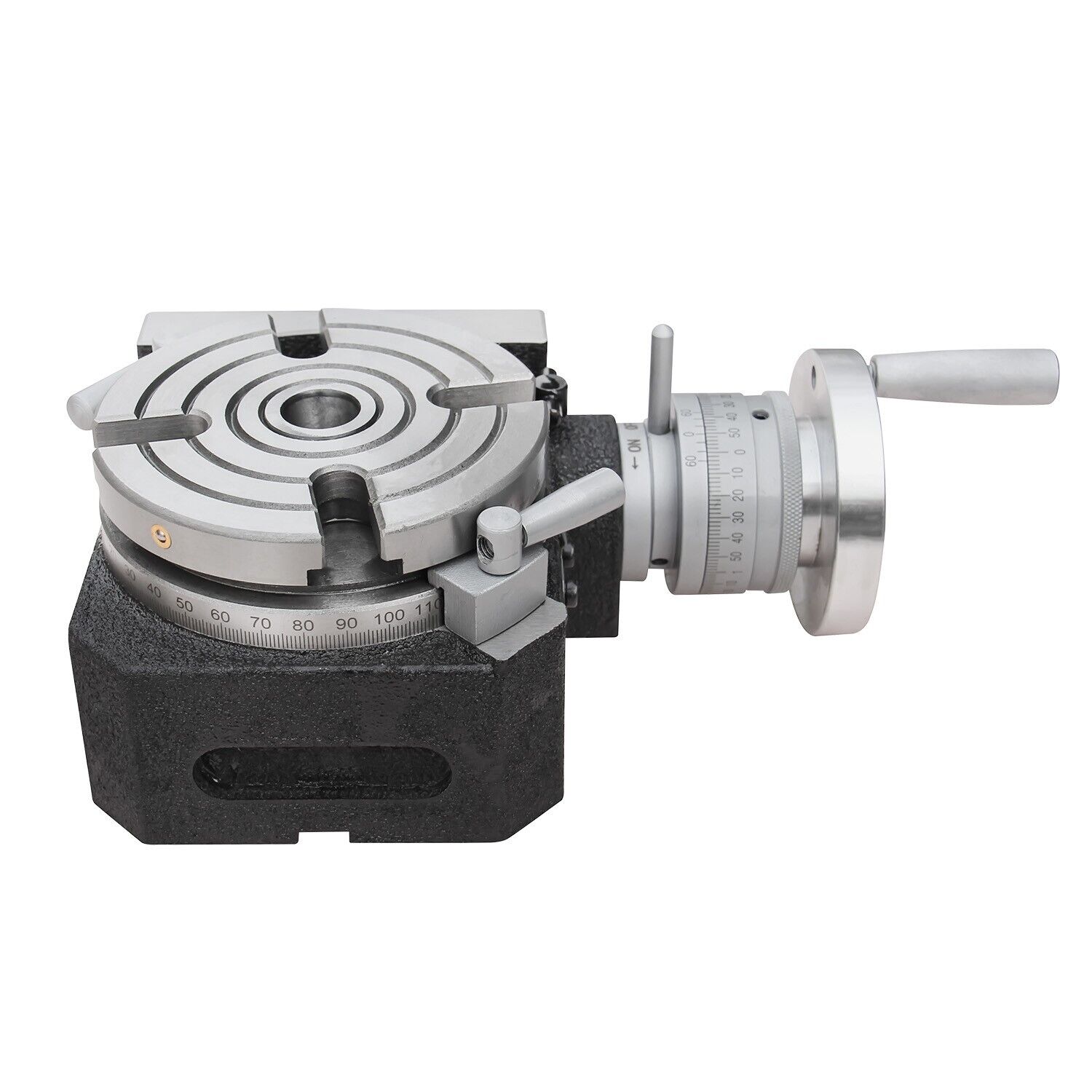

Industrial Rotary Table with Dividing Plate

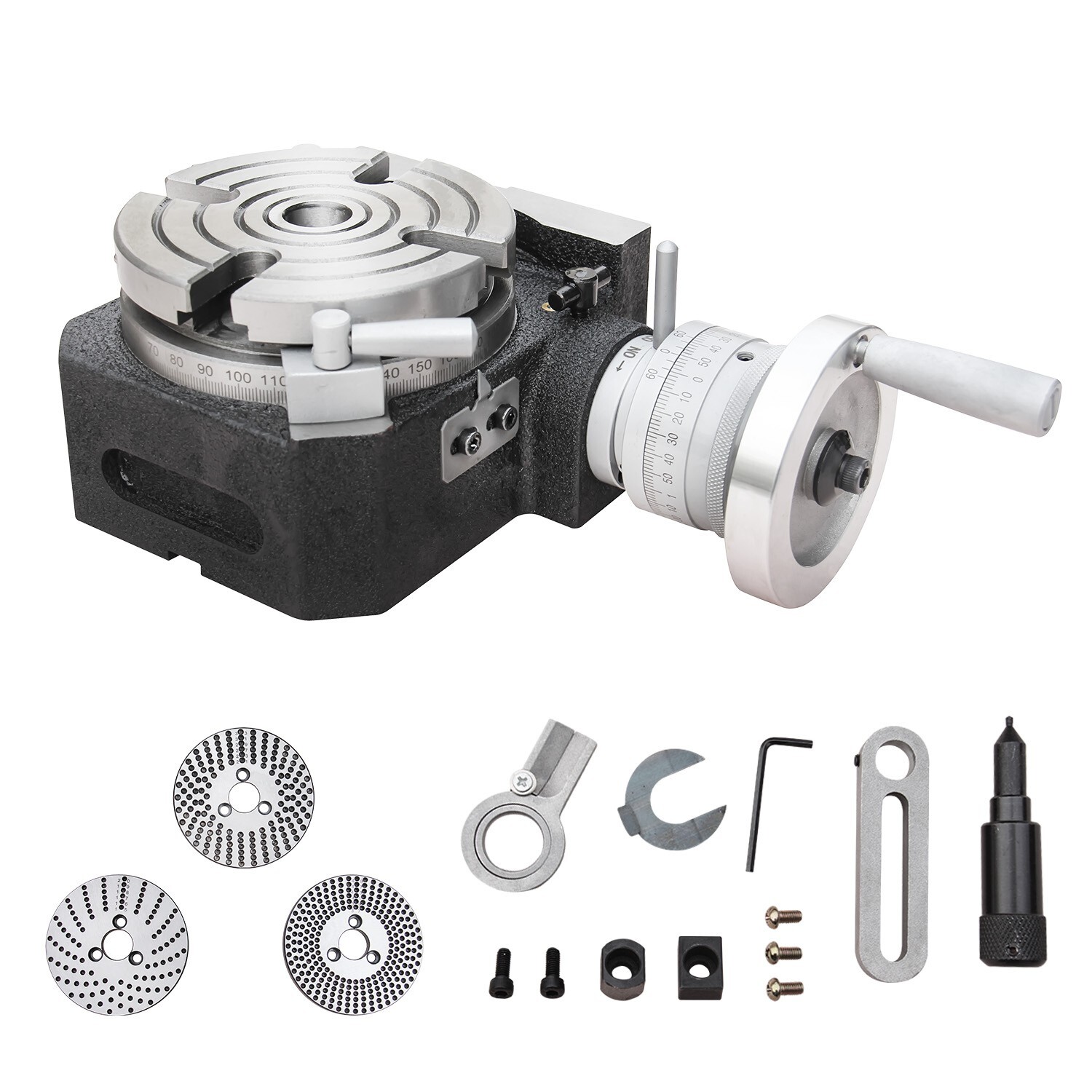

• 4" Rotary table, with dividing set of 3 plates

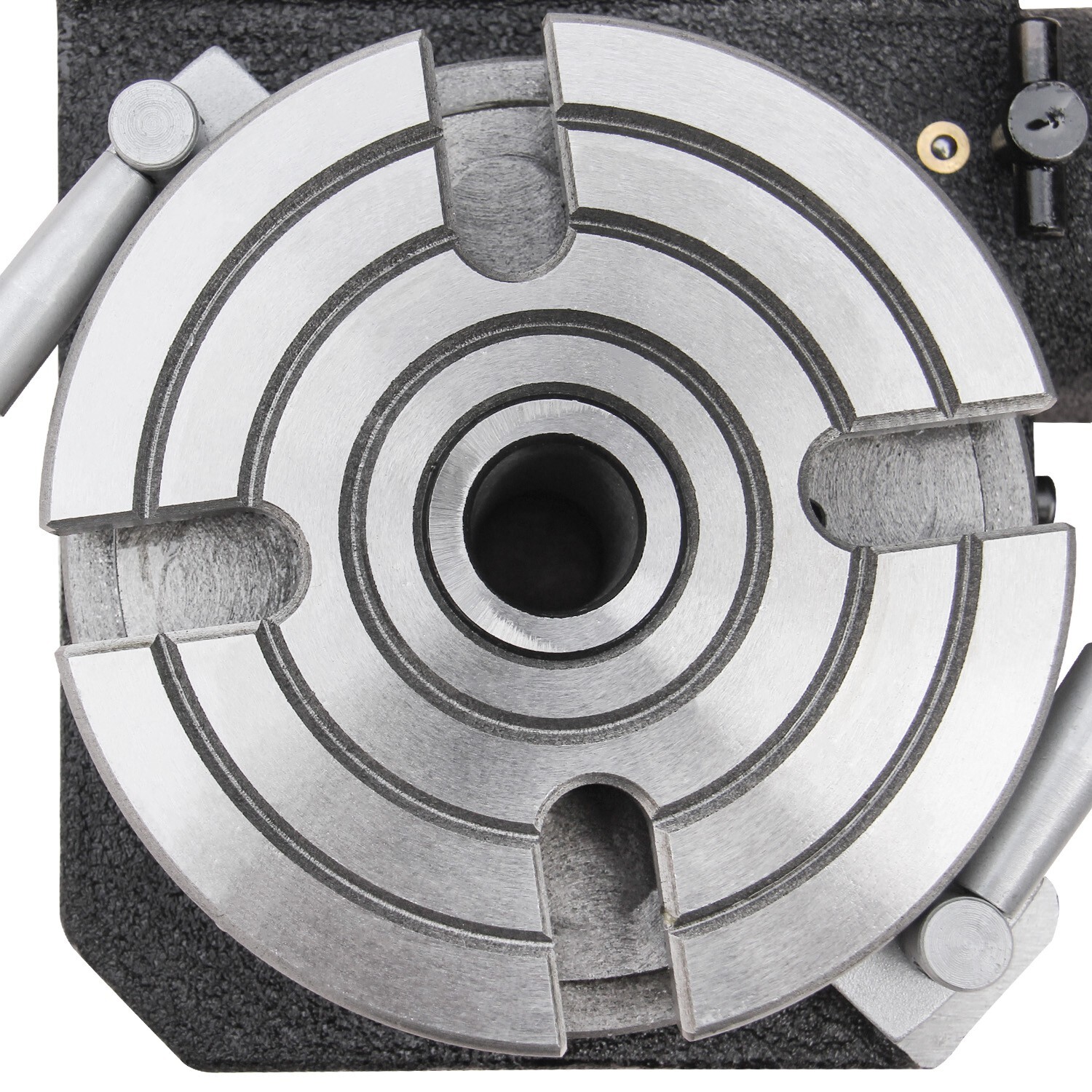

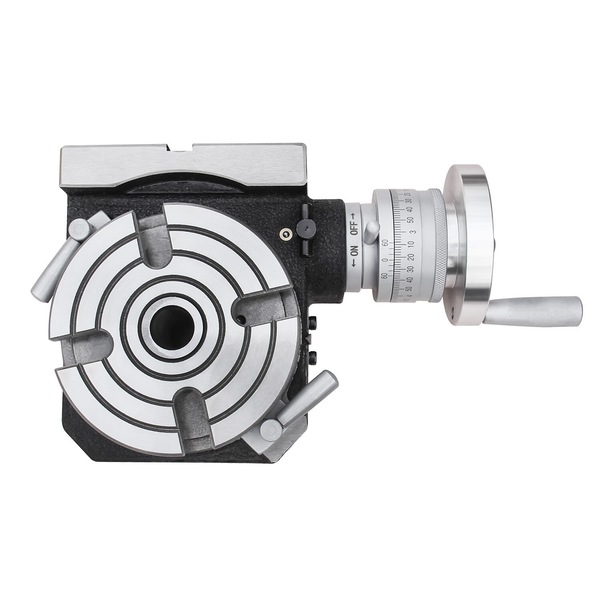

• 4" Horizontal & Vertical rotary table with 4 slots
• Hardened and ground work 72:1 ratio

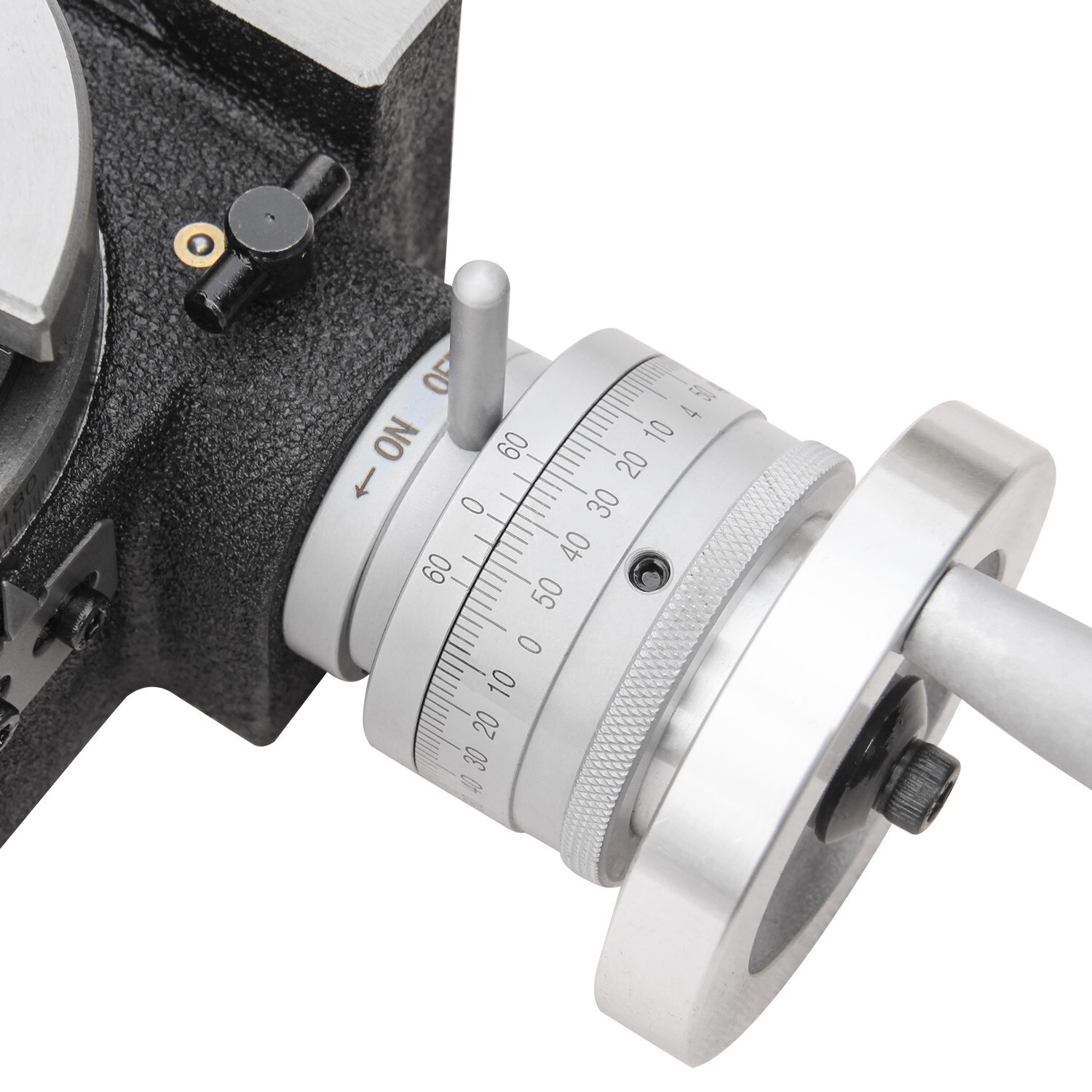

• 360° table graduation
• 85 mm table height
• Center bore MT2
• Comes with 3 pcs of index plate
• Number of holes of the dividing/Index plate

• SKU: 162311
• Model: HVP-41
• Table dia.: 110 mm
• Morse taper of the center hole: MT2

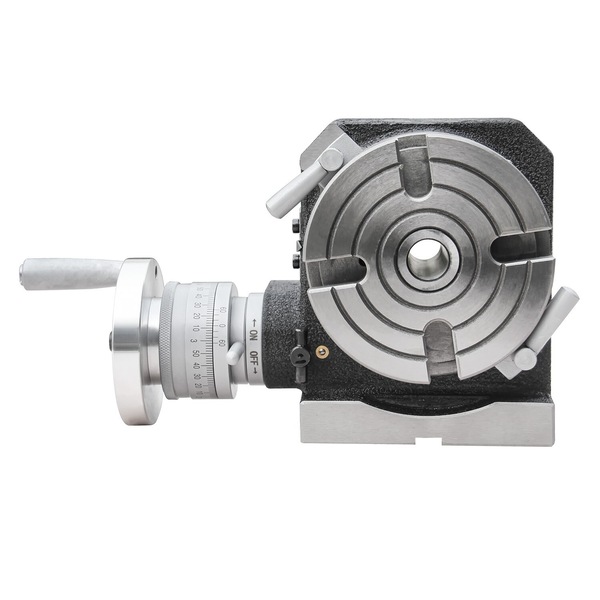

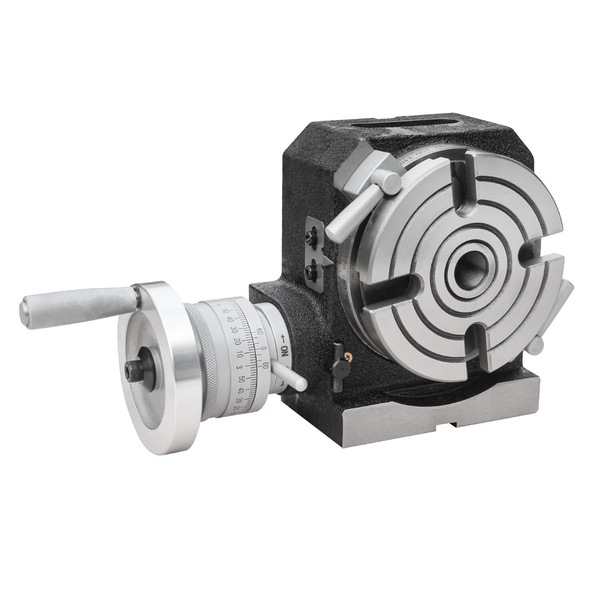

• Height of center for vertical mounting: 85.5 mm
• Width of T slot: 12 mm
• Adjacent angle of T-slot: 90°
• Width of the locating key: 12 mm
• Modules of worm and worm gear: 1
• Transmission ratio of the worm gear: 1:72
• Graduation of the table: 360 °
• Rotating angle of the table with one revolution of worm: 5
• Index Plate A: 15, 16, 17, 18, 19, 20
• Index Plate B: 21, 23, 27, 29, 31, 33
• Index Plate C: 37, 39, 41, 43, 47, 49
• Packing size: 29x24x13 cm
• N.W./G.W.: 10/11 kg
