4 PORT 1G FIBRE MEDIA CONVERTER
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)

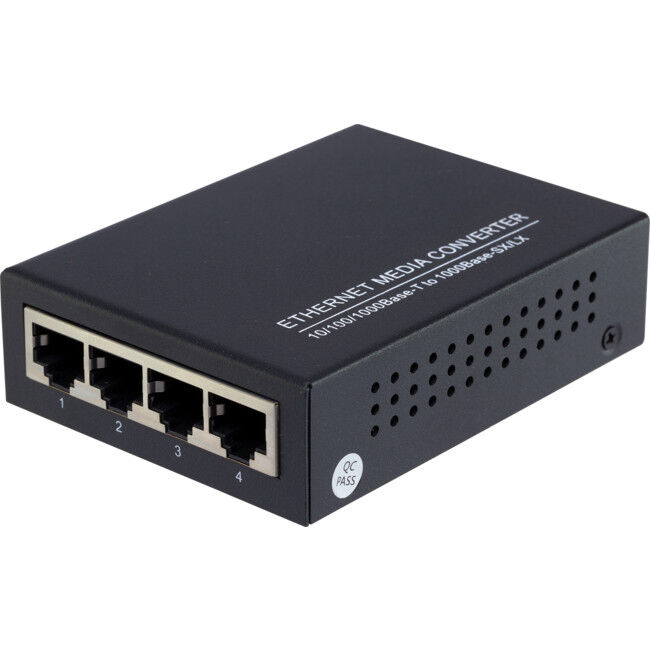

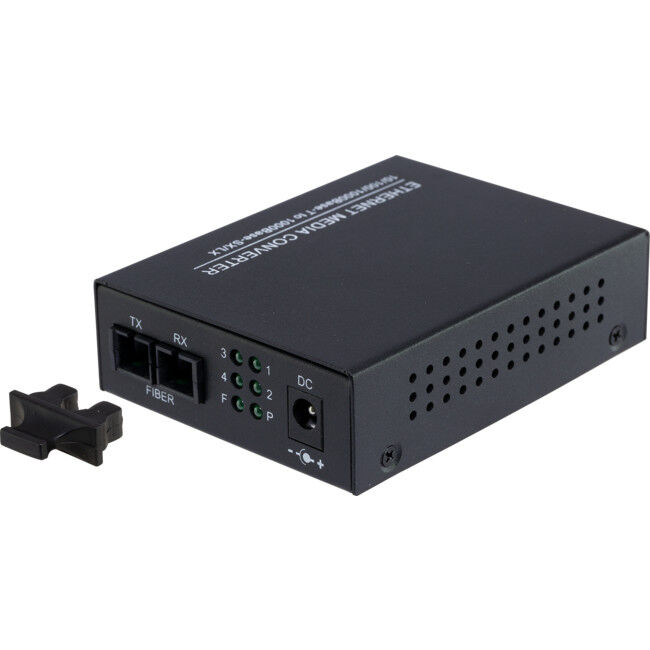

4P1GBSM20KSC is Gigabit Ethernet Media Converter and extends the 10,100 and 1000Mbbps twisted-pair network segments up to 20km over the fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100/1000Mbps auto negotiation RJ45 connector and 1-port 1.25Gbps full-duplex on the fiber port with SC/FC/ST interface optional. It’s widely used in security monitoring, wireless networking, optical fiber access and other application scenarios.
Performance | |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
Data Forwarding | Store and Forward |
Switch capacity | 12Gbps |
Packet forwarding Rate | 7.44Mpps |
MAC address | 2k |
Buffer Space | 1M |
Jumbo Frame | 9k bytes |
Flow Control | support |
Interface | |
Copper Port | 4x 10/100/1000M Auto-negotiation, RJ45 auto-MDI/MDI-X |
Fiber Port | 1.25G SC Single Mode |
LED indicators | |
Status | PWR, Fiber Link/act, Copper Link/act |
Electrical characteristics | |
Input Voltage | 5~12Vdc |
Power Consumption | <3W |
Power Port | DC socket, Φ2.5mm |
Power Adaptor | 100~240Vac 50/60Hz input, 5Vdc 1A output |
Physical characteristics | |
Dimension | 94x71x26mm |
|
|
Enclosure | Metal IP30 |
Environment | |
Working Temperature | -20~60ºC |
Storage Temperature | -40~85ºC |
Relative Humidity | 5%~95% (no condensation ) |
Certification | |
Safety | EN62368 |
EMC | EN55032, EN55035, FCC Part 15 Subpart B Class A |
Reliability | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32 |
ROHS | ROHS 2.0 |
Code | Model | Ports | Speed | Mode | Dual Fibre | Connector | Distance |
09051505 | FMC100SM20KSC | 1 | 100MB | SM | Y | SC | 20KM |
09051507 | FMC1GBSM20KSC | 1 | 1GB | SM | Y | SC | 20KM |
09051512 | FMC1GBMM550MSC2 | 1 | 1GB | MM | Y | SC | 550M |
09051550 | 4P100SM20KSC | 4 | 100MB | SM | Y | SC | 20KM |
09051552 | 4P1GBSM20KSC | 4 | 1GB | SM | Y | SC | 20KM |
09051522 | FMC1GBSFP | 1 | 1GB | Requires SFP Module, can be SM/MM and LC/SC etc. |
GTIN: 9328202034908
Reference ID: 14604360
