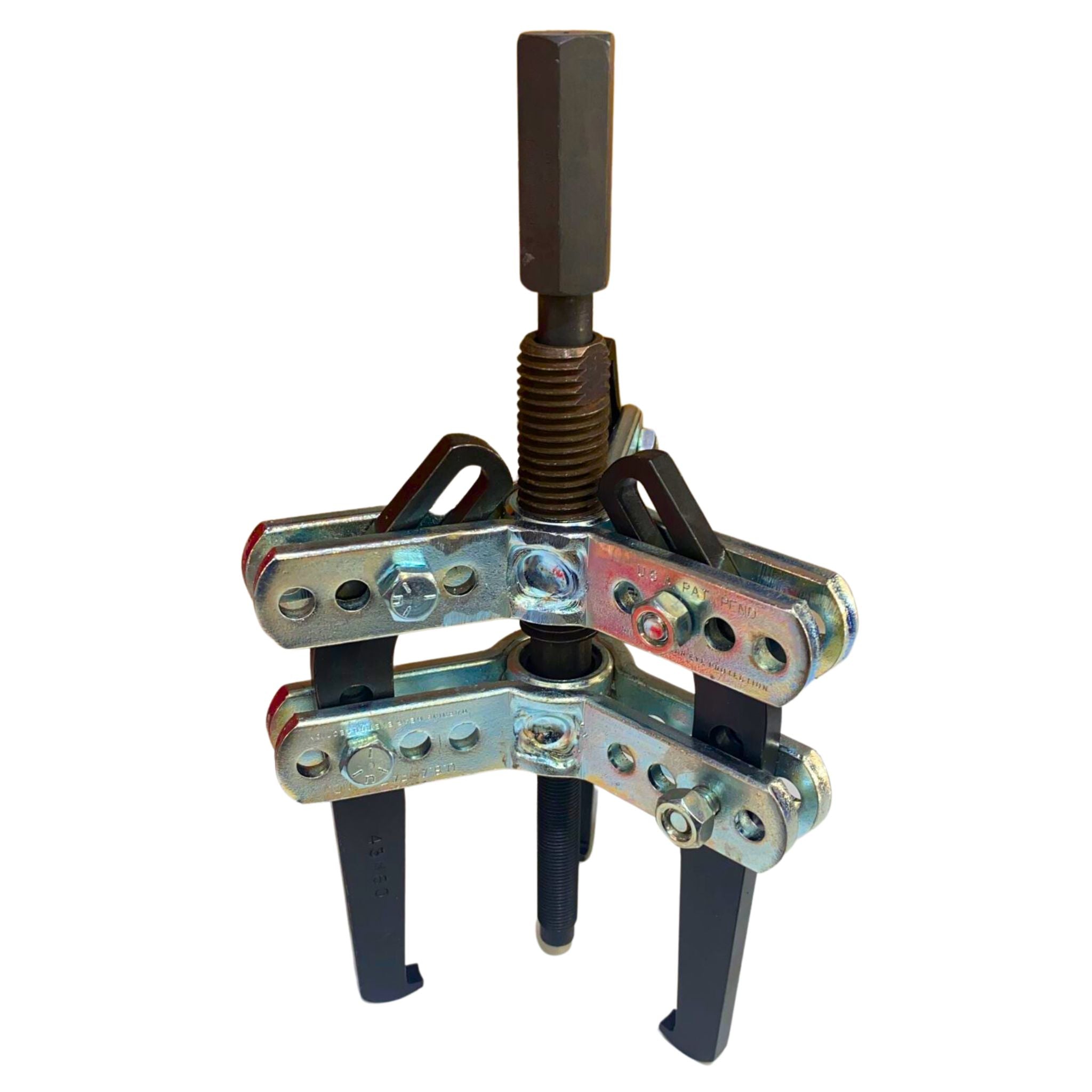

About this item:

• Positive clamping action for easier use.
• No more floppy jaws.
• No slippage
• Adjustable jaws give a firm grip on the pulling surface, every time.
• Puller jaws are supported by the frame to hold their position and prevent slipping.
• Works on both and external pulls.

Specifications:

• Capacity: 4 ton
• Jaws: 3, reversible
• Reach: 3 9/16
• Spread: 10" Internal | 6" External

Directions:

1. Fasten the jaws in the puller body to fit the pulling surface. The jaws should be as close to parallel as possible. Use nuts and bolts provided.

2. Turn the outer adjusting screw with 11/16" wrench to adjust the jaws.
3. To pull, turn the puller screw with 3/4" wrench.
4. For internal pulling applications, reverse the jaws.
