4 Way HDMI 2.0 18GBPS UHD Splitter
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 59 Everyday Rewards points
Collect 59 Everyday Rewards points
This 4 output HDMI high bandwidth Splitter is an advanced solution for splitting a HDMI signal to two HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV4:4:4) and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
Perfect for new 4K video sources such as Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.
Features:
Â
• HDMI 2.0b, HDCP 2.2 compliant
• Supports High Definition resolutions up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
• Supports 3D frame sequential video format up to 4K2K@30Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• HDMI input supports 'Standard' mode and 'TV' mode EDID settings
• Compact design for an easy and flexible installation
Â
Technical | |
HDMI Compliance | HDMI 2.0b |
HDCP Compliance | HDCP 2.2 |
Video Bandwidth | 18 Gbps |
Video Resolutions | up to 4K2K@60Hz(4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
Color Depth | 10-bit, 12-bit |
Audio Formats | PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby  Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact  discharge) |
Connections | |

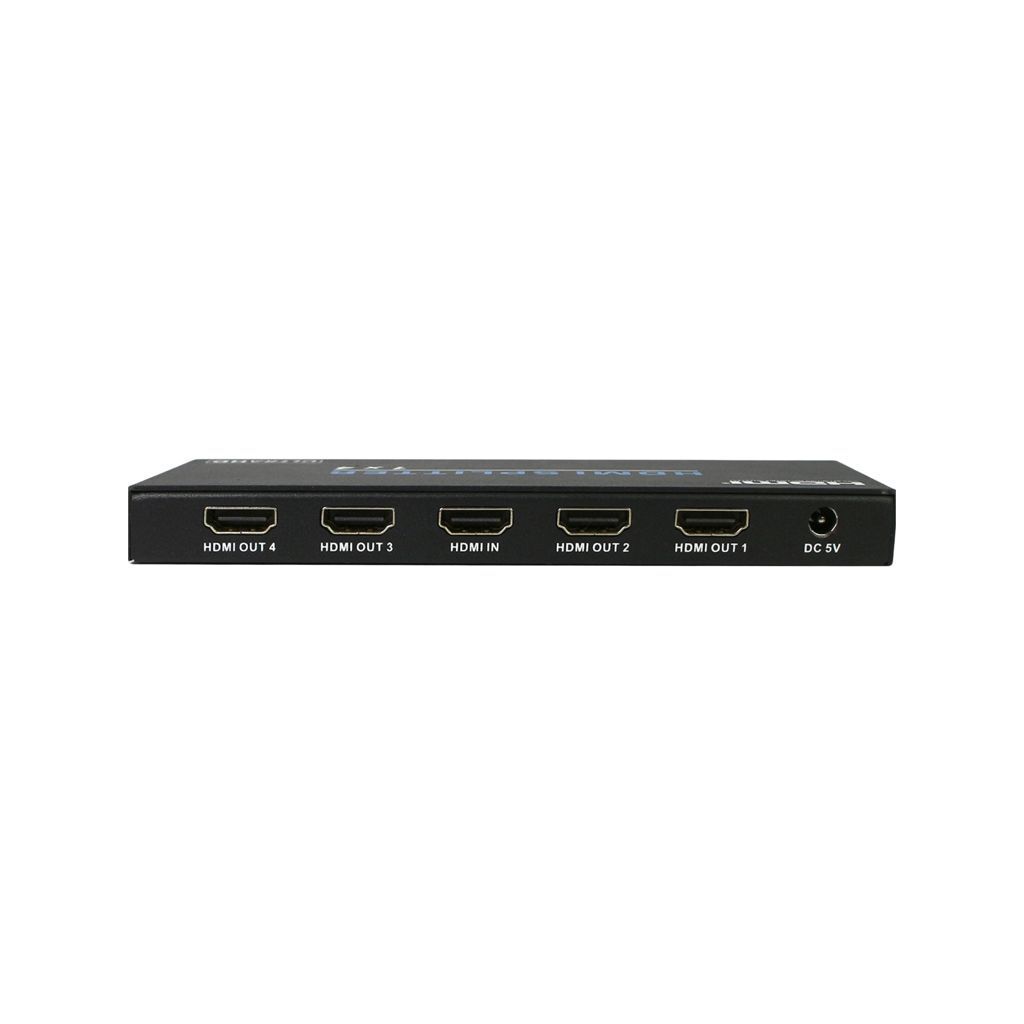

Inputs | 1x HDMI Type A [19-pin female] |
Outputs | 4x HDMI Type A [19-pin female] |
Mechanical | |
Housing | Metal Enclosure |
Dimensions | 180mm [W] x 85mm [D] x 11.6mm [H] |
Net Weight | 300g |
Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/1AÂ |
Power Consumption (Max)Â | 3W |
Operation Temperature | 32 - 104°F / 0 - 40°C |
Storage temperature | -4 - 140°F / -20 - 60°C |
Relative Humidity | 20 - 90% RH (no condensation) |
Â
Â
12 Month Warranty
GTIN: 9351634008292
Estimated Delivery Time Frame:2-10 Business Days
Ask a Question About This Product
Reference ID: 4093583
