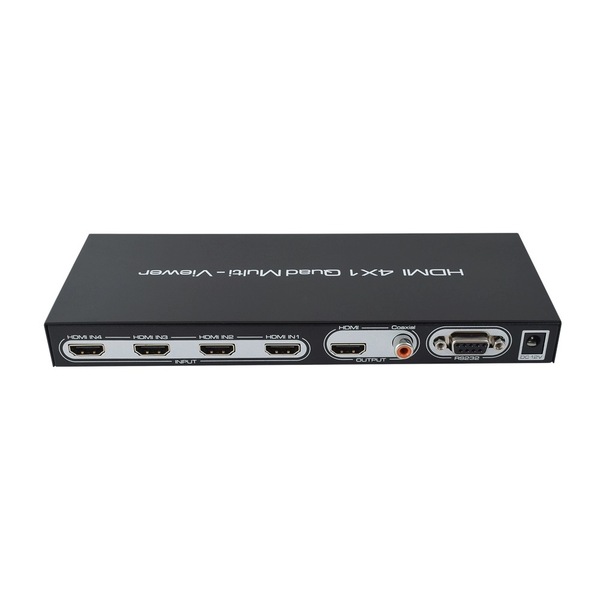

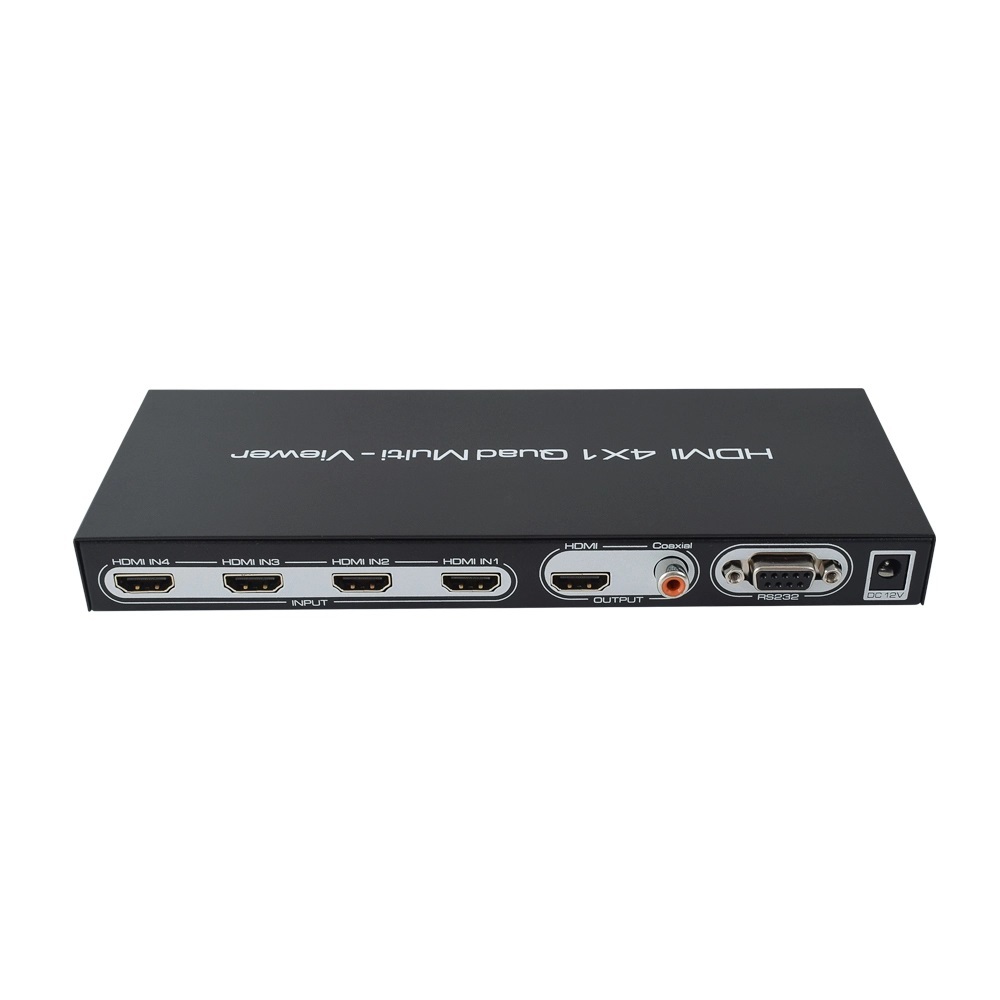

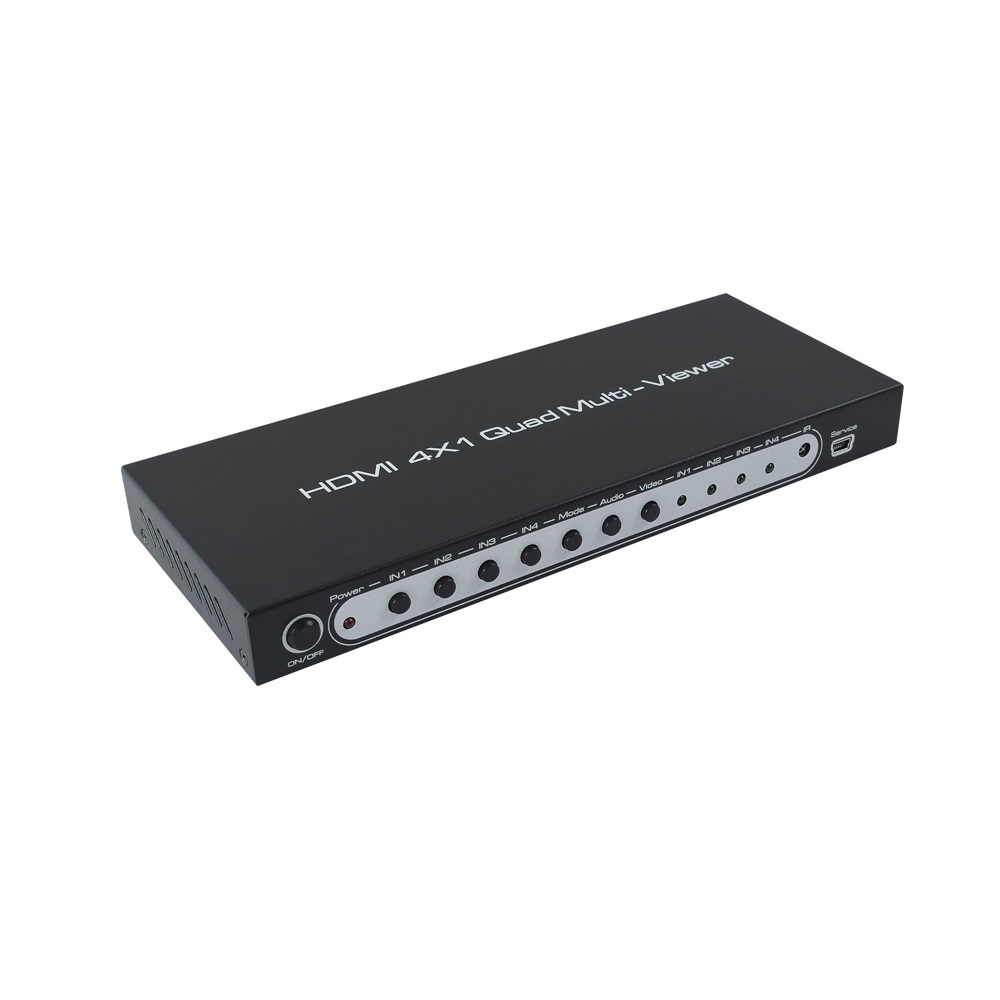

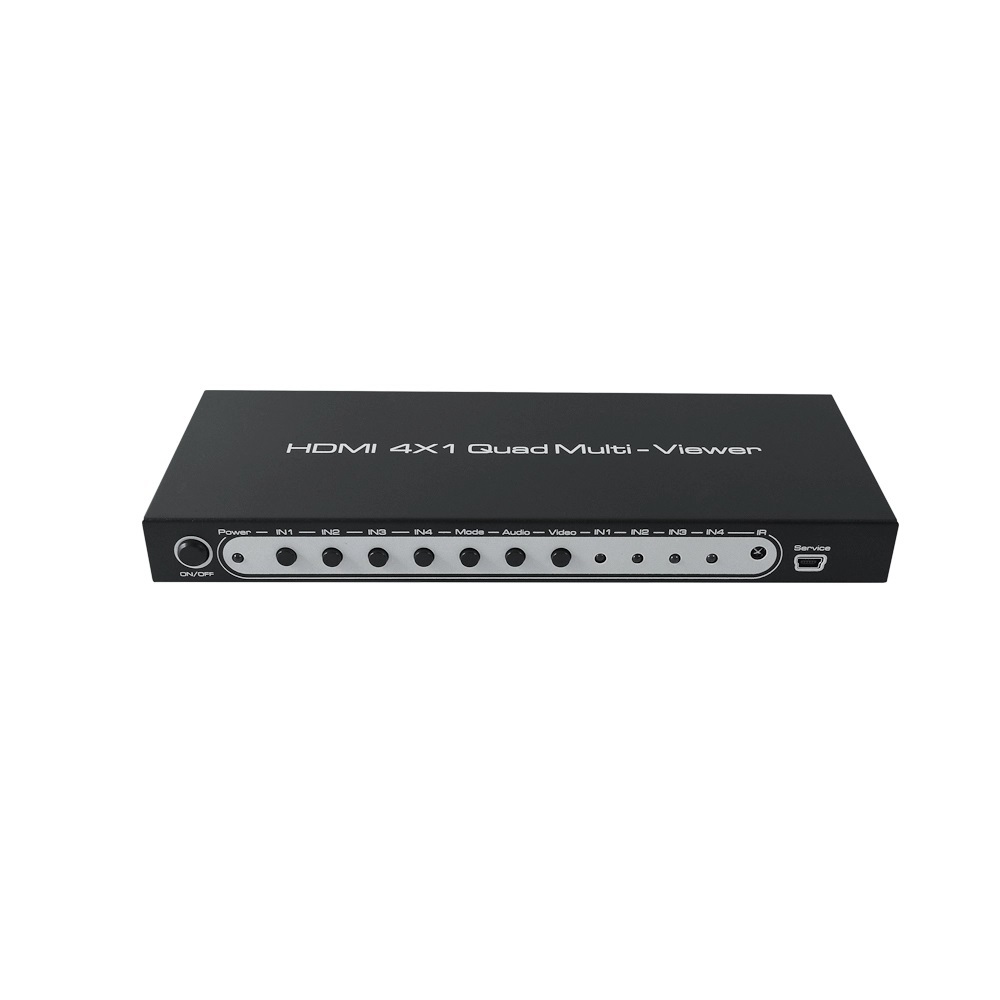

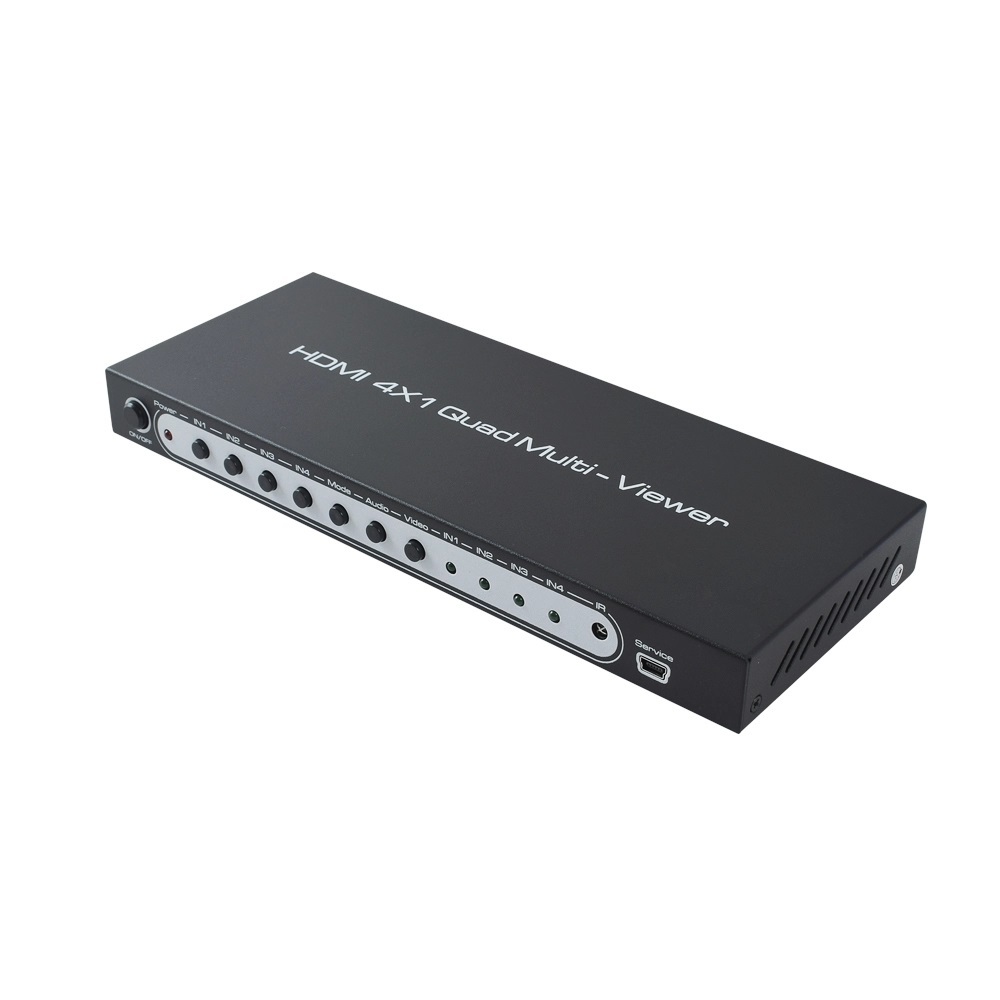

4 Way HDMI Quad Screen Multi-viewer
Display up to 4 HDMI Sources on one LCD or TV.
The 4 Way HDMI Quad Screen Multi-viewer with seamless switcher allows four HDMI inputs to be displayed to one HD Display simultaneously and support multi type of video splitter effect. Also has a Digital Audio Splitter built-in to allows connection to your home theater or amplifier set up.

Capable of displaying one HDMI Display, Seamless Switching between HDMI Inputs or display all 4 HDMI inputs in various configurations on your display.

The switcher can be controlled through the front panel button, IR Remote and RS232. It can be used for the gaming, security, Conference meeting rooms, etc

FEATURES

  • Four HDMI input signals switched to one single HDMI sink devices
  • Support Four HDMI Input to one Quad Multi-Viewer
  • Support Four HDMI Input Switch Seamless
  • HDMI input resolution highest support: 1080P @60Hz resolution
  • HDMI output resolution:720P/ 60Hz. 1080P/ 60Hz;
  • Support SPDIF Coaxial digital audio format: Dolby digital (AC3), DTS and LPCM2.0
  • Support IR Remote Control and Push Button at device control.
  • Support RS232 Control and the device can do software upgrade by the PC.
  • LED indication: when source or sink is working, LED related will go bright.
  • Led Status Light allows the user to know the working status easily.
  • No loss of quality
  • Installs in minutes

SPECIFICATIONS:

HDMI input resolution : 1080p/1080i/720p/576p/576i/480p/480i

Max transmission bandwidth : 225MHz

Max baud rate : 6.75Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤10m AWG26 HDMI standard cable

Output cable distance : ≤10m AWG26 HDMI standard cable

Max working current : 700mA

Power adapter : DC12V/2A

Operating Temperature range : 0 to +40℃

Storage Temperature range : -15 to +55℃

Operating Humidity range : 5 to 90%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Dimension (L x W x H) : 220X87X23(mm)

Weight : 443g


Specifications:

12 Month Warranty

GTIN: 9351634012657

Reference ID: 981835
