4 X Mawell WiFi internal antenna adhesive for wifi 2.4GHz wifi 5 wifi 6 wifi 6E full bands 1.4GHz-7.125GHz

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Hurry! 5 items left!
$35.60

Collect 35 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

WiFi all bands internal antenna for all WiFi bands and High frequency 5G/4G

5G: the antenna supports all 5G high bands from the globe: 2600MHz, 3500MHz and 4800MHz

WiFi: WiFi 2.4GHz WiFi 5 at 5.8G and WiFi 6 at 6GHz and WiFi 6E at 7.125GHz All Supported

  • 5G: the antenna supports all 5G high bands from the globe: 2600MHz, 3500MHz and 4800MHz
  • WiFi: WiFi 2.4GHz WiFi 5 at 5.8G and WiFi 6 at 6GHz and WiFi 6E at 7.125GHz All Supported
  • 4G/3G High Frequency: 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz All Supported
  • 4G /3G Low Frequency 700MHz, 850MHz, 900MHz NOT SUPPORTED!

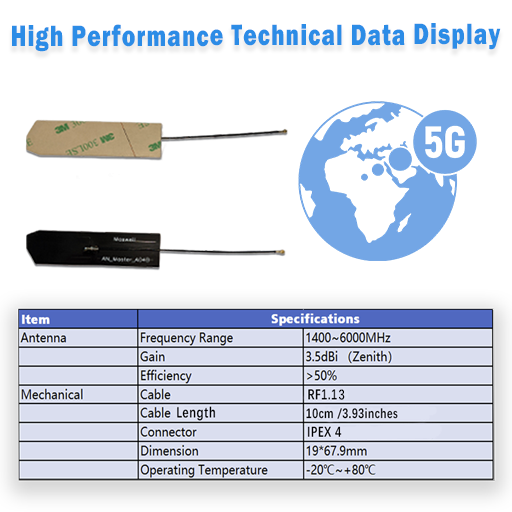

Specifications:

ITEM ID:AN_Master_A04B

Frequency 1.4GHz-7.125GHz
V.S.W.R 2.0 : 1

Band Width 5.725GHz
Impendence 50 ohm
Gain 3.0 dBi

Input Impedance 50 Ohms

Polarization Type Vertical

Working Temp -40 Degrees Celsius~+85 Degrees Celsius

Humidity 55%~75%

Size: D29.4 x 143mm

Mouting adhesive FPC substrate

Connector: Ipex4 (MHF4 equivalent)

Cable Length 10 cm

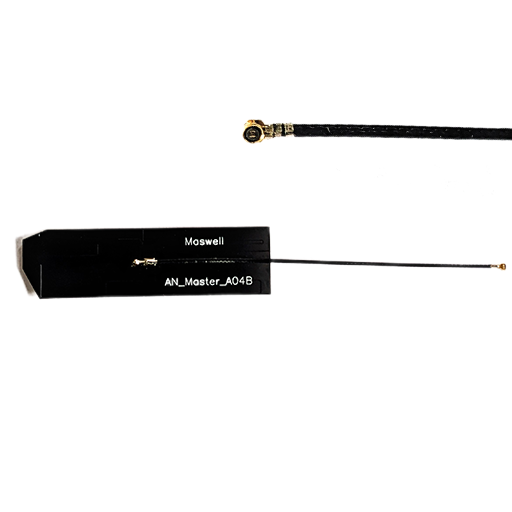

Full band WiFi Flexible FPC internal antenna with 10cm cable length

All purpose antenna for most of the High frequency 5G/4G/3G/GSM and WiFi 2.4G, WiFi 5.8G,WiFi 6 WiFi 6E bands around the globe including AUS.

Ideally work for Intel AX210 WiFi 6E wireless cards series.

4G low frequency band 700MHz, 800MHz, 850MHz NOT SUPPORTED!

GTIN: 796167907398
