Features:
High-quality materials, sturdy and durable, anti-rust and anti-corrosion, smooth and burr-free, solid structure, strong bearing capacity, not easy to deform.
Specification text is printed on the bottom of the chuck for easy identification, and the non-slip thread design on the surface of the card slot effectively increases friction and prevents the wire rope from slipping.

Product introduction:
?? Wire rope chucks are also called wire rope buckles:
? (1) It is mainly used for the temporary connection of the steel wire rope and the fixing of the hand rope behind the end of the steel wire rope passing through the crane rail, as well as the fixing function of the wind rope rope end on the ship's mast. Among them, it is applicable to include: phosphating coated steel wire rope, galvanized steel wire rope, stainless steel wire rope and smooth steel wire rope. It is a wide wire rope fixture used in hoisting operations and a fixture that assists in the role of steel wire rope hoisting.

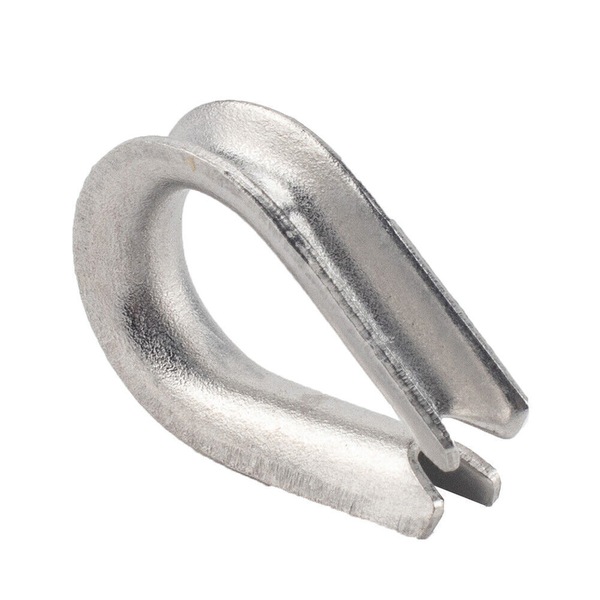

? (2) The chicken heart ring has a rope groove for the end of the rope to be wrapped around to prevent excessive bending and wear of the rope, protect the safety of the wire rope, and reduce the risk.
? (3) The wire rope clamp and the heart ring are complementary and can be used alone or at the same time. When used at the same time, it can increase the protection of the wire rope and effectively reduce the wear.

Description:
1. Product material: stainless steel 304
2. Product attributes: wire rope chuck is also called wire rope buckle, wire rope sling loop is also called heart ring
3. Production process: casting, bending
4. Surface treatment: polishing

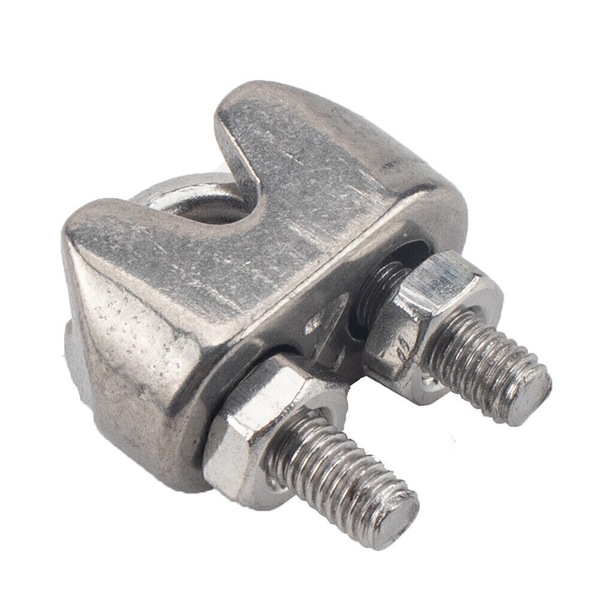

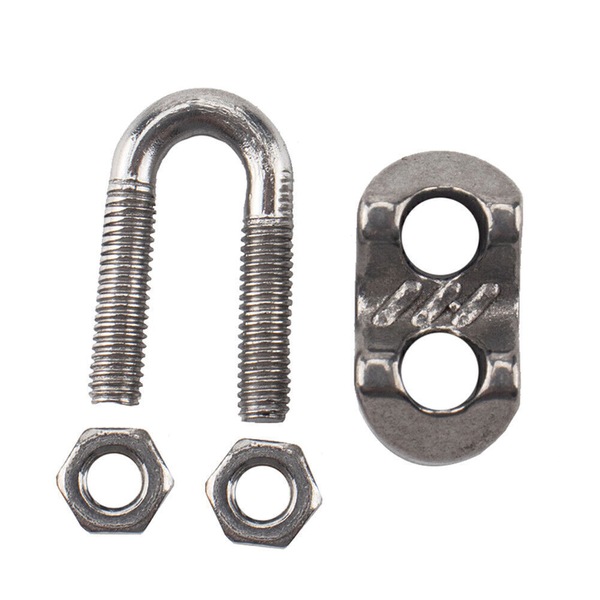

5. Interface type: U-shaped wire rope clamp, heart ring ring, with rope groove

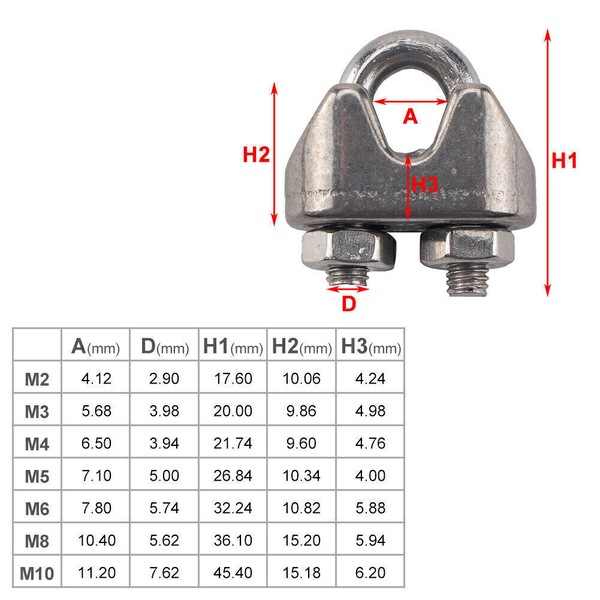

M3 wire rope clamp: rod inner diameter 5.68MM, thread diameter 3.98MM, suitable for wire rope 3mm;

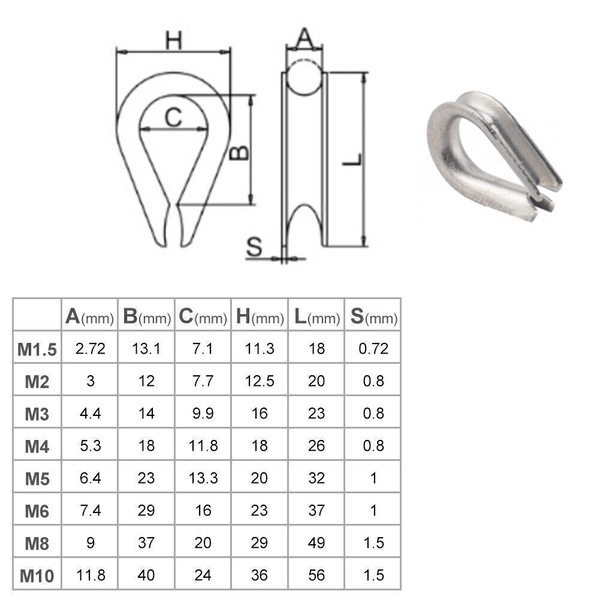

M3 heart ring: rope groove 4.4MM, total length 23MM, suitable for wire rope 3mm;

Fitment:
?Scope of application: ships, docks, ports, industrial machinery, home outdoor, electrical equipment, marine and land transportation, forestry machinery, etc.

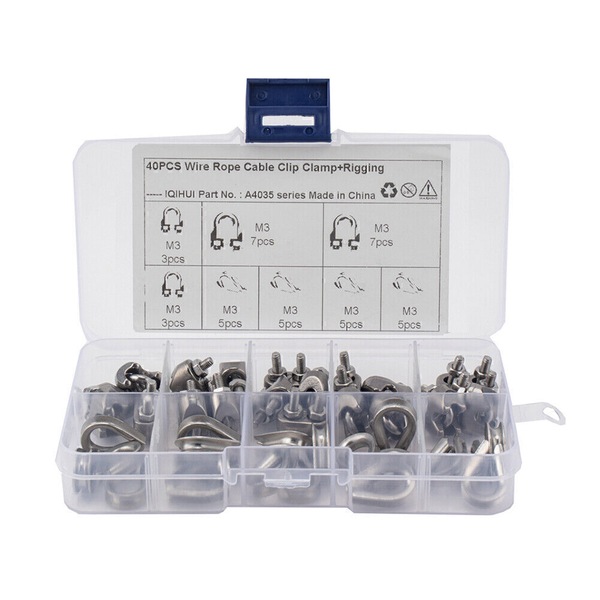

Package Included?
M3 wire rope clamp*20pcs
M3 Chicken Heart Ring*20pcs

Precautions for installation:
?Wire chuck:
?? (1) When using a wire rope chuck, it is necessary to select a chuck suitable for the thickness of the wire rope.
?? (2) When using the wire rope buckle, tighten the U-shaped bolt until the wire rope is flattened by about 1/3-1/4. Since the wire rope is deformed after being stressed, the rope must be tightened a second time after the wire rope is stressed to ensure the firmness of the joint
?? (3) When selecting the chuck, the size of the clip should be suitable for the thickness of the wire rope. The inner net distance of the U-shaped ring is 1?3mm larger than the diameter of the wire rope. If the net distance is too large, it is not easy to clamp the rope, which is prone to accidents.
?? (4) The chucks should be arranged in a row, the U-shaped part is in contact with the rope head, and must not be in contact with the main rope. If the U-shaped part is in contact with the main rope, the main rope is easily flattened when stressed.
?? (5). In order to check the reliability of the joint and find out whether the wire rope slips off, install another chuck about 500 mm behind the last chuck, release the rope end for a safe bend and then clamp it with the main rope , In this way, if the clip has a sliding phenomenon, the safety bend will be straightened, which is convenient for discovery and timely reinforcement at any time to avoid accidents.
Sweetheart ring:
?? (1) The shackle should be smooth and flat, and no defects such as cracks, sharp edges, overburning, etc. are allowed.
?? (2) It is strictly forbidden to use cast iron or cast steel shackles. The buckle body can be forged with killed steel, and the shaft pin can be machined after forging from bar material.
?? (3) The shackle should not be drilled or welded to repair. After the buckle body and the shaft pin are deformed, no repair is allowed.
?? (4) The buckle body and bolt should be checked during use, and no serious wear, deformation and fatigue cracks should be allowed.
?? (5) When using, the lateral spacing must not be subject to tension, and the shaft pin must be inserted with a safety pin.
?? (6) After the shaft pin is correctly assembled, the width of the buckle body must not be significantly reduced, and the threaded connection is good.
