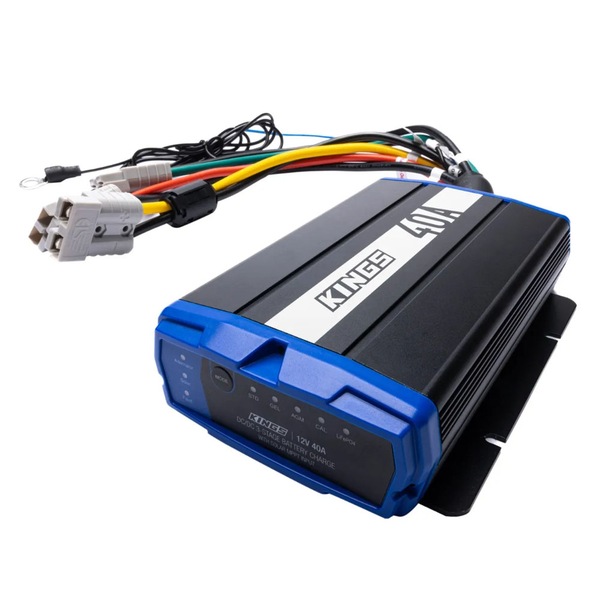

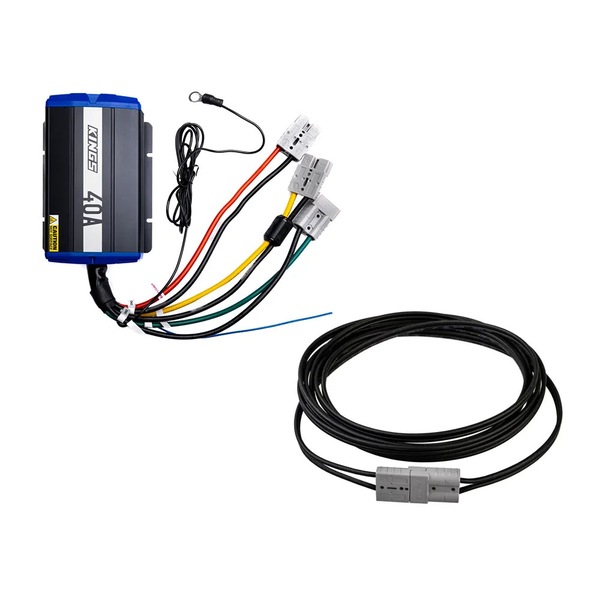

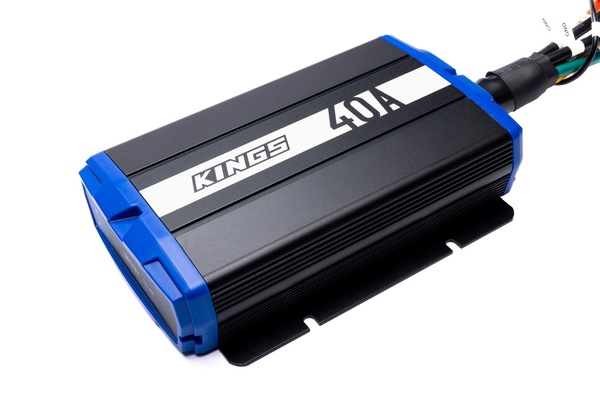

Adventure Kings 40A 12V DC to DC Charger with 6m Solar Lead for Lithium batteries and solar input

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$213.95

Collect 213 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
40 Amp Multi-Stage Battery Charger. Built-in MPPT Solar Regulator with Solar Priority Charging

• Push Button Battery Type Selection for Lithium or AGM. Quick Connect Plugs make wiring super easy

• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

• 6 meter cable length extends your solar panels reach. Heat, water and abrasion resistant outer sheath

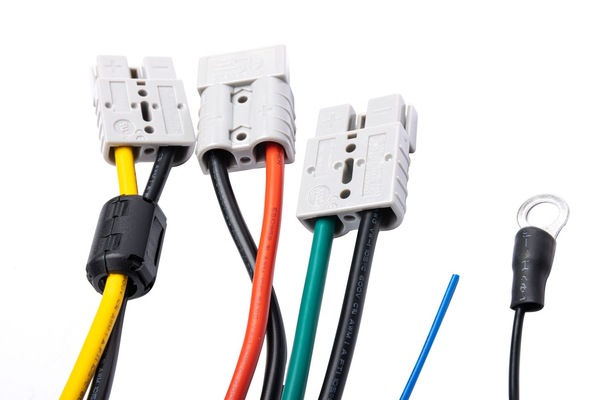

• Cable Fitted with 50 Amp rated quick-connect plugs. Extra thick 2.5mm2 copper wiring improves performance

The Kings 40A DCDC Charger has built in  MPPT Solar Regulator.
Driving at night without solar input, the charger will pull only from your alternator.
When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging.

Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Battery Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

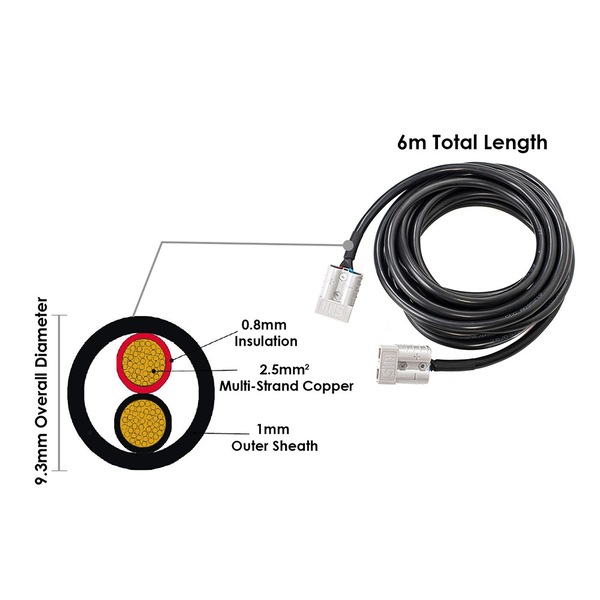

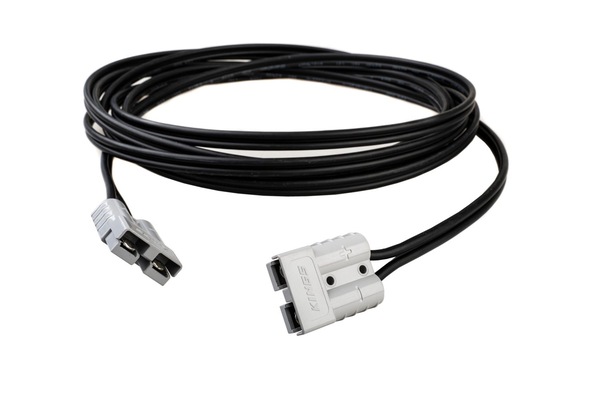

Kings 6m Solar Extension Lead
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

MPN: SC-CO-DC40A-6MLEAD02
