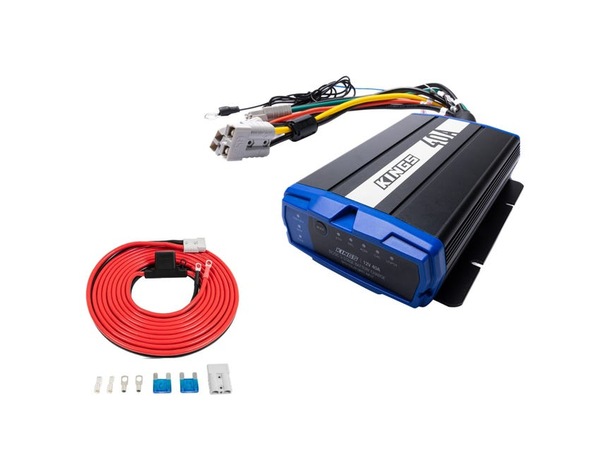

Adventure Kings 40A 12V DC DC Charger with 6m 6AWG 50A Wiring Kit 16 mm2

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$273

Collect 273 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

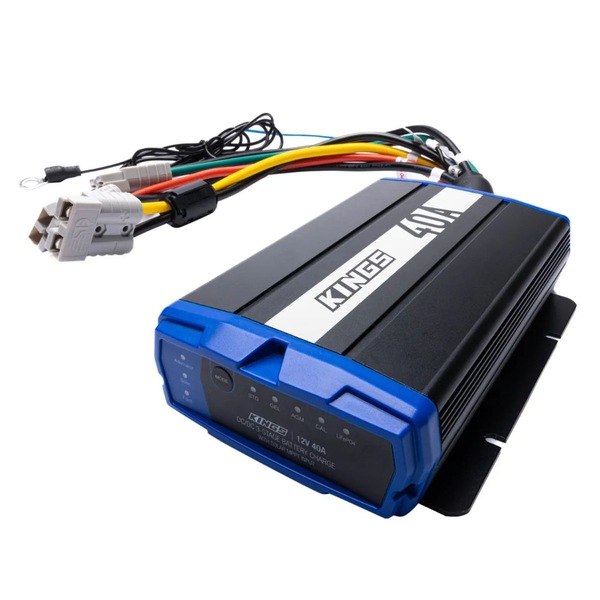

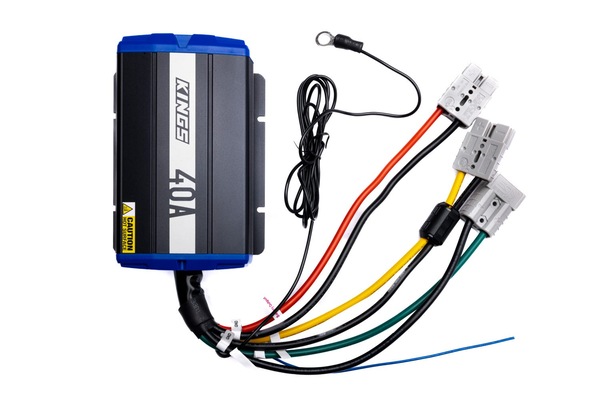

40 Amp Multi-Stage Battery Charger. Built-in MPPT Solar Regulator with Solar Priority Charging

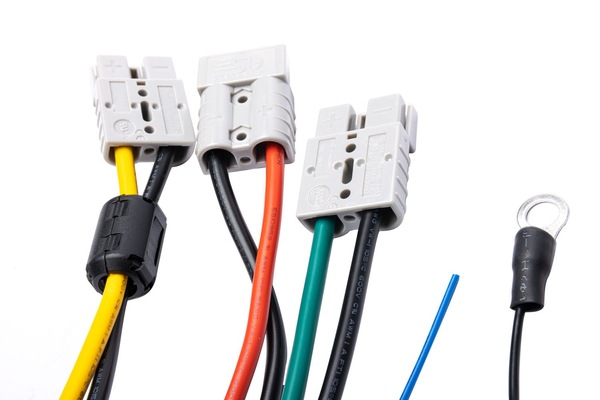

• Push Button Battery Type Selection for Lithium or AGM. Quick Connect Plugs make wiring super easy

• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

• 6m of 6AWG 16mm2 twin-core wire allows for high current with low voltage drop.

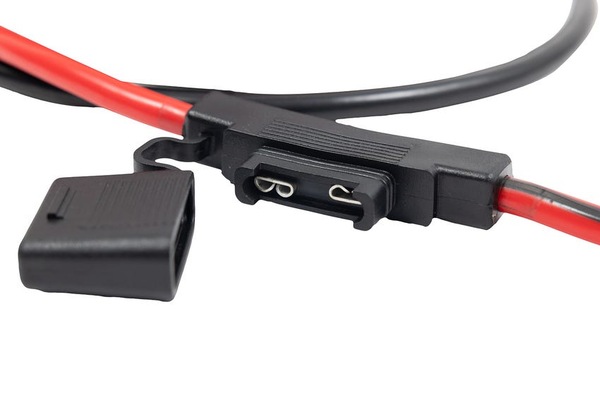

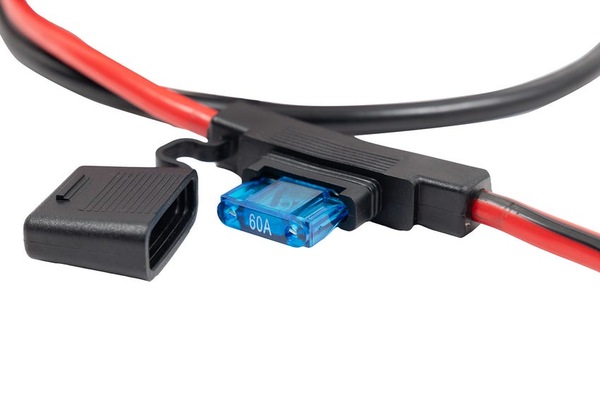

• Pre-connected in-line fuse holder with 60Afuse

KINGS 25A DCDC CHARGER





•Max. Continuous Charging Current 25A
•Max. Output Power 300W
•Max. Input Current 27A
•Vehicle Input Working Voltage Range (12V) 11.8 - 18V
•Vehicle Input Working Voltage Range (24V) 23.6 - 32V
•Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
•Solar Input Range 10 - 32V
•Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
•Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
•Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
•Min. Aux Battery Voltage (Lead Acid) 4V
•Idle Current Draw 15mA
•Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
•Dimensions (LxWxH) 151mm x 121mm x 44mm
•Weight ~1kg
•Temperature Compensation Yes ±18mV/°C
•Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
•Housing Powder coated aluminium

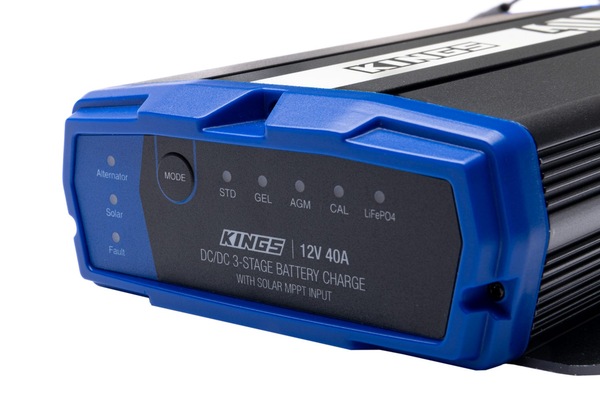

•LED Indicator lights Yes – for connection, charging status and errors
•Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
•Fuses required Yes – not supplied (50A Suggested)
•IP Rating IP66
•Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

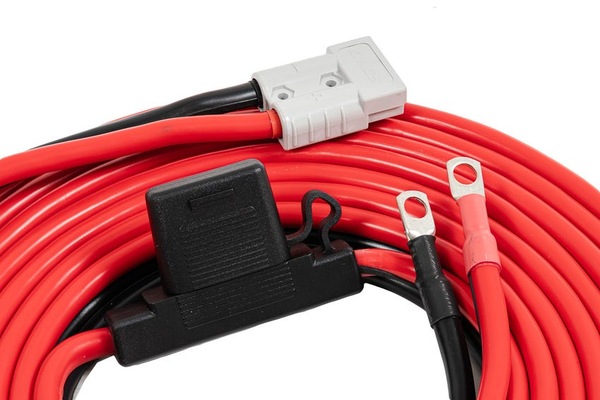

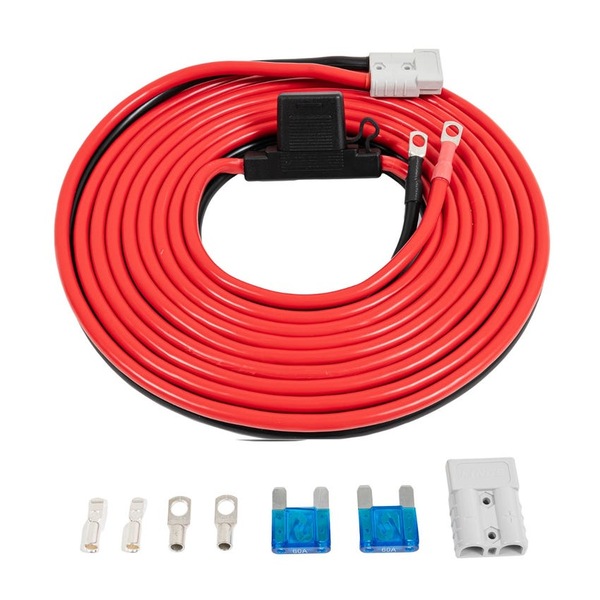

KINGS 50A WIRING KIT





•Wire Length 6m
•Wire gauge Twin Core 6 AWG (16mm2)
•Fuse Type / Rating Maxi Blade Fuse / 60A
•Fitted plug/ terminal types Pre-fitted anderson style plug and 8mm eye terminals
•Extra terminals included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
•Spare Fuse included Yes, 2 x 60A maxi blade fuses

MPN: SC-CO-DC40A-WIRING50A
